Disassembly

Rear Internal Gear and Forward Clutch Hub

Rear Internal Gear and Forward Clutch Hub:

DISASSEMBLY
1. Remove rear internal gear by pushing forward clutch hub forward.





2. Remove thrust washer from rear internal gear.

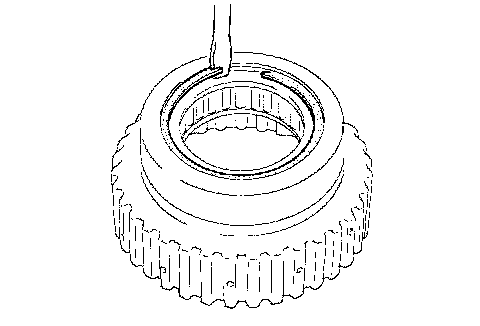

3. Remove snap ring from forward clutch hub.





4. Remove end bearing.

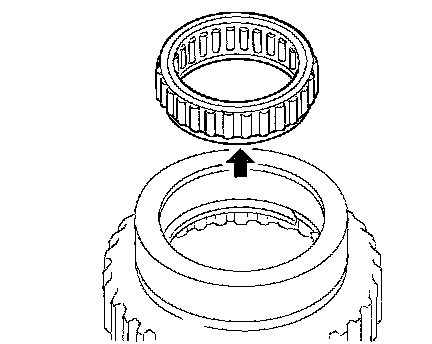

5. Remove forward one-way clutch and end bearing as a unit from forward clutch hub.





6. Remove snap ring from forward clutch hub.
