High Clutch
High ClutchHIGH CLUTCH:
Clutches and Brakes / HIGH CLUTCH:
DISASSEMBLY AND ASSEMBLY
Service procedures for high clutch are essentially the same as those for reverse clutch, with the following exception:
Check of high clutch operation

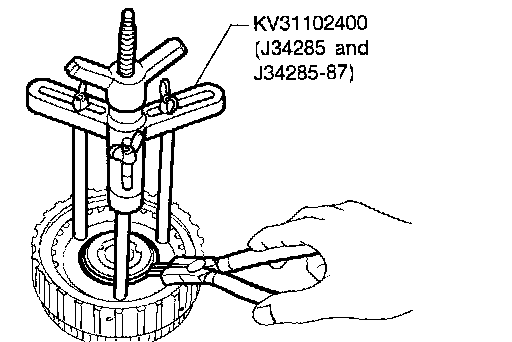

Removal and installation of return spring
INSPECTION
Inspection of high clutch return springs

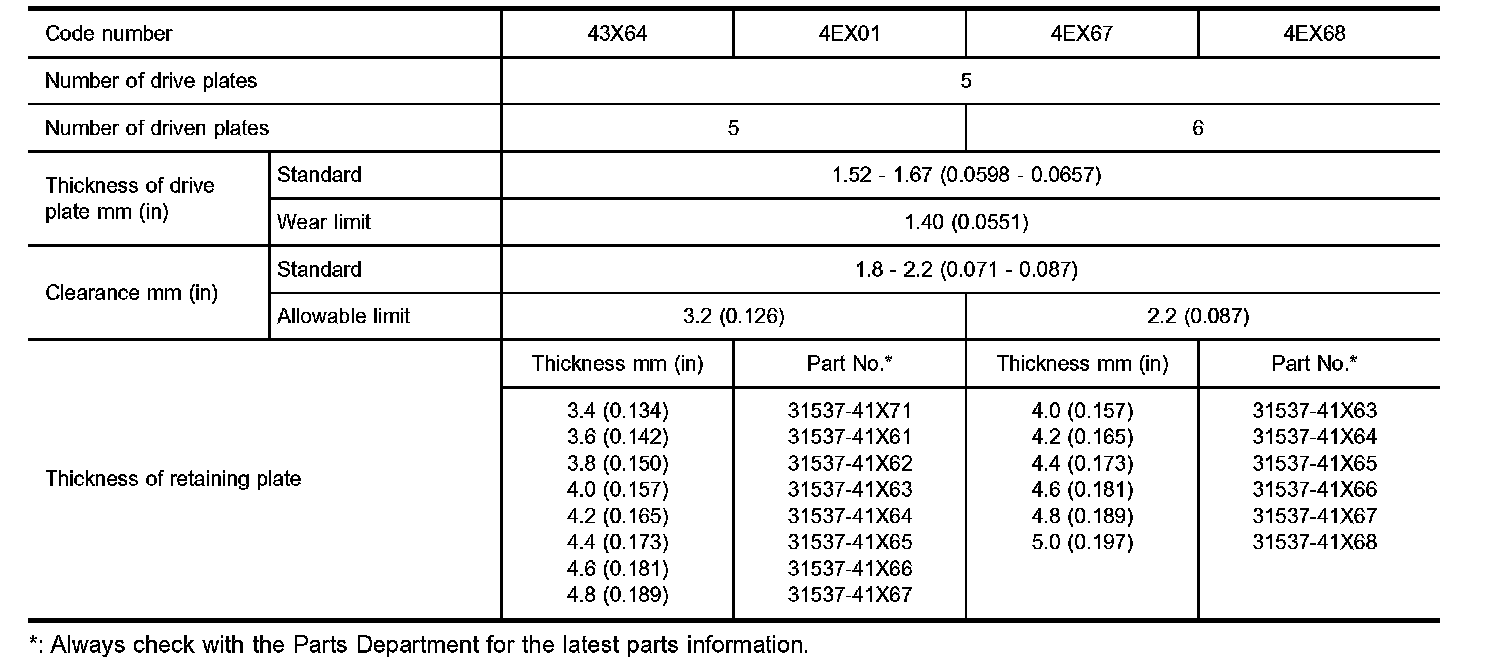

Inspection of high clutch drive plate
Thickness of drive plate:
Standard.......................1.52 - 1.67 mm (0.0598 - 0.0657 inch)
Wear limit.........................1.40 mm (0.0551 inch)
Measurement of clearance between retaining plate and snap ring
Specified clearance:
Standard..................1.8 - 2.2 mm (0.071 - 0.087 inch)
Allowable limit
VG33E only:..........................2.8 mm (0.110 inch)
VG33ER only:.........................2.2 mm (0.087 inch)
