Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE Crew Cab 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Locations

Power Door Lock Actuator: Locations

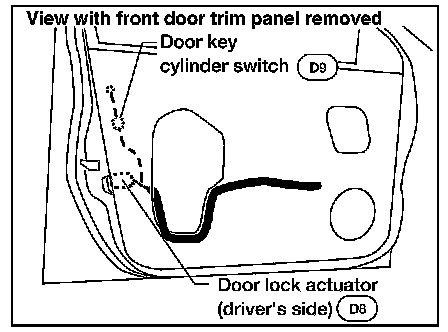

Door Key Cylinder Switch/Door Lock Actuator (driver's Side):

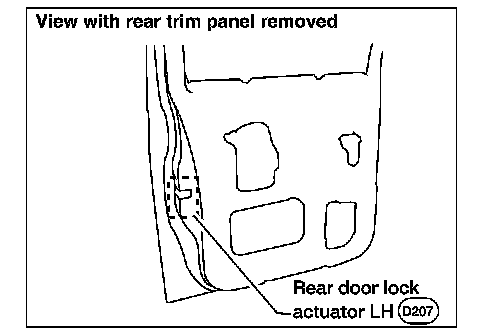

Rear Door Lock Actuator LH:

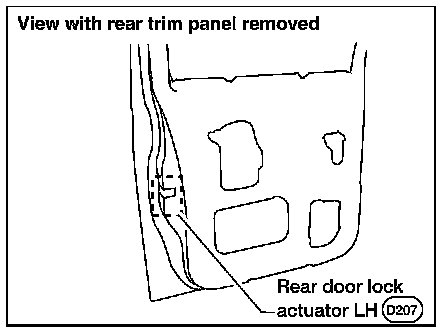

Rear Door Lock Actuator LH:



Door Key Cylinder Switch/Door Lock Actuator LH:
