Trim Panel: Service and Repair
Removal and InstallationCAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

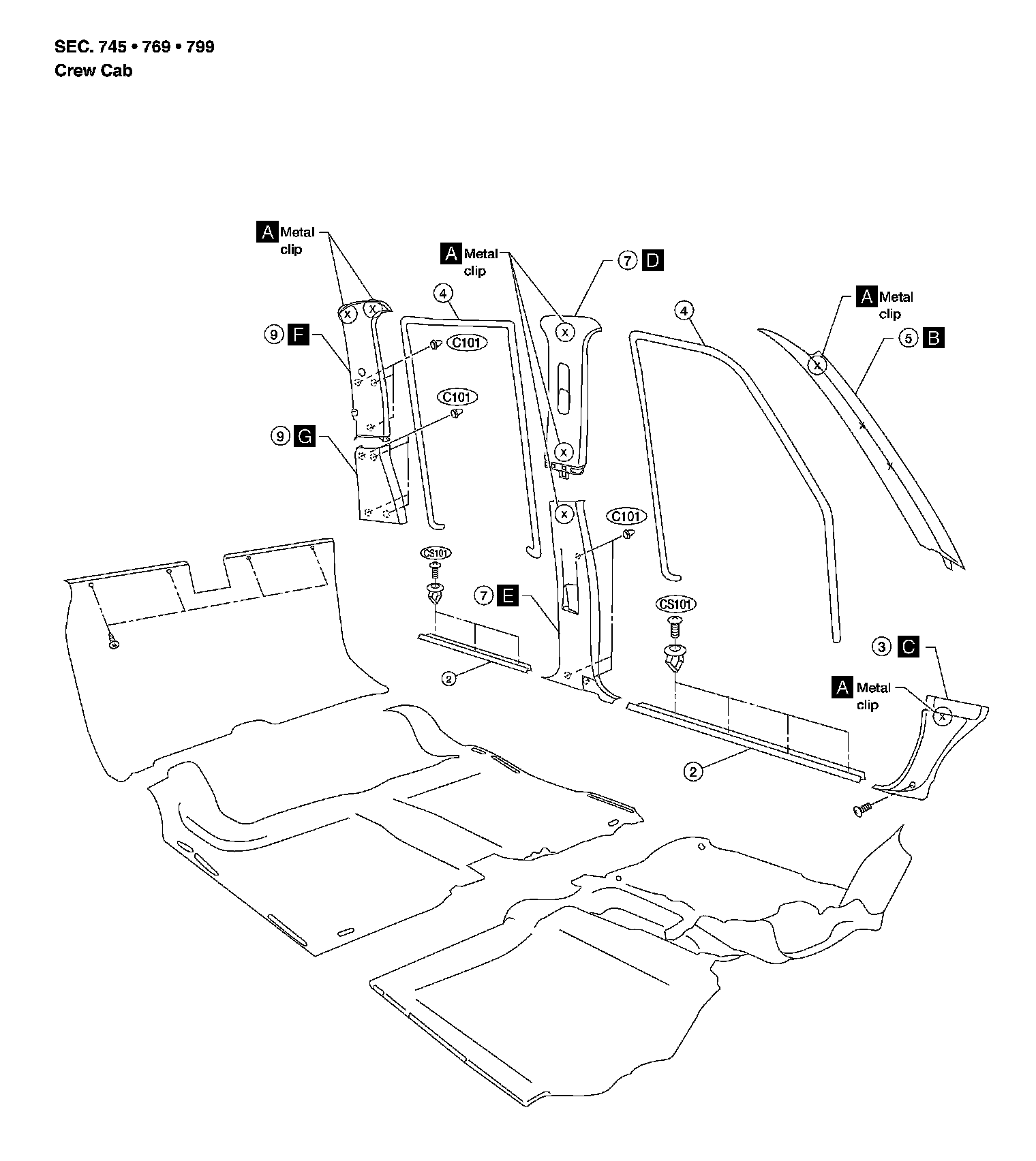

BODY SIDE TRIM
Crew Cab:
Crew Cab:
Crew Cab
1. Remove front and rear seats. Refer to "Removal and Installation".
2. Remove kicking plates.
3. Remove dash side lower finishers. [C]
4. Remove body side welts.
5. Remove front pillar garnishes. [B]
6. Remove seat belt upper guide loop on B pillar. Refer to "Front Seat Belt".
7. Remove lower and upper B pillar garnishes. D [E]
8. Remove seat belt upper guide loop on C pillar. Refer to "Rear Seat Belt".
9. Remove lower and upper C pillar garnishes. [F] [G]
