Nissan-Datsun Truck
>>
2001
>>
Xterra XE 4WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

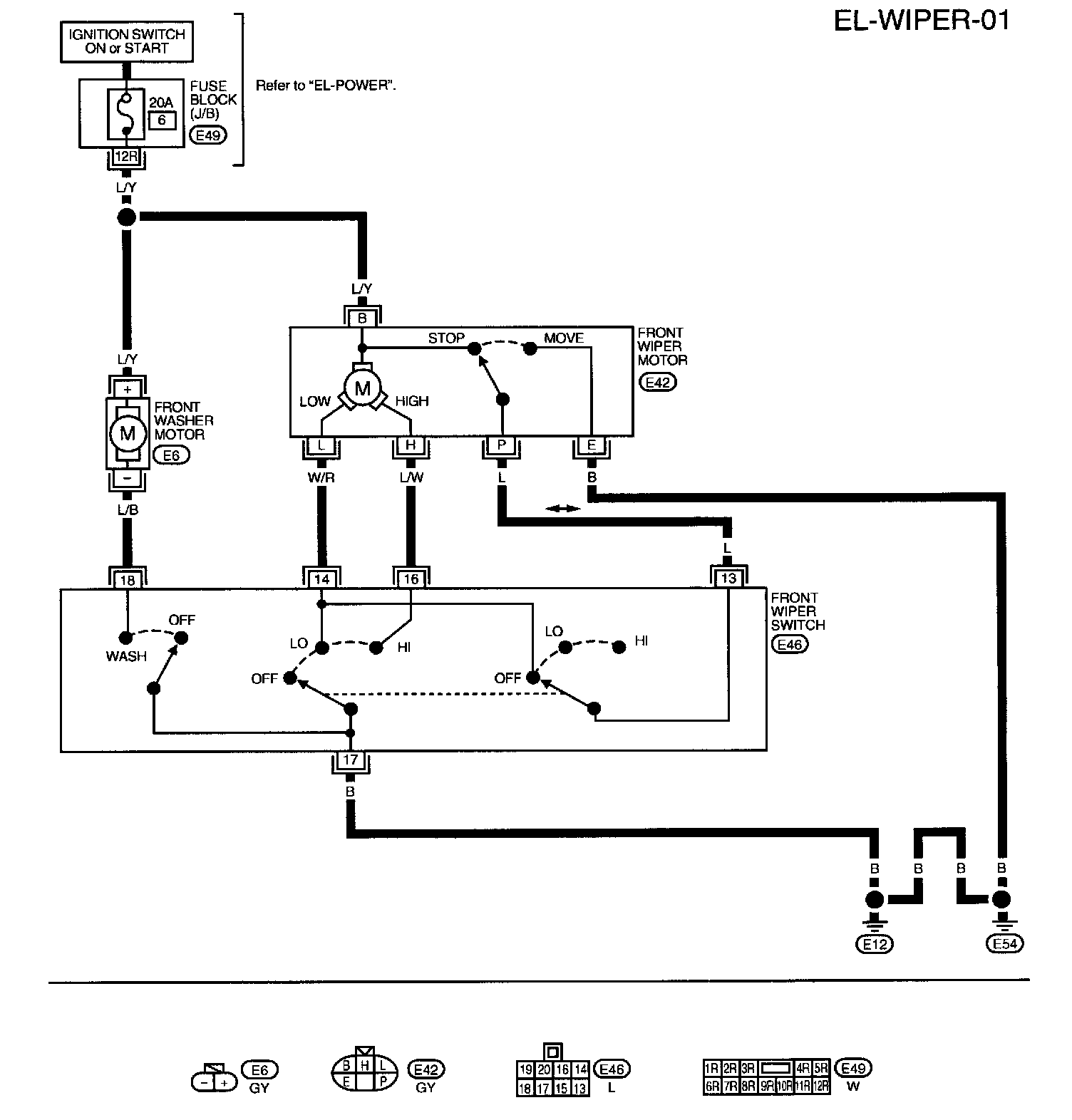

EL-WIPER-01 (Models Without Intermittent Wipers):

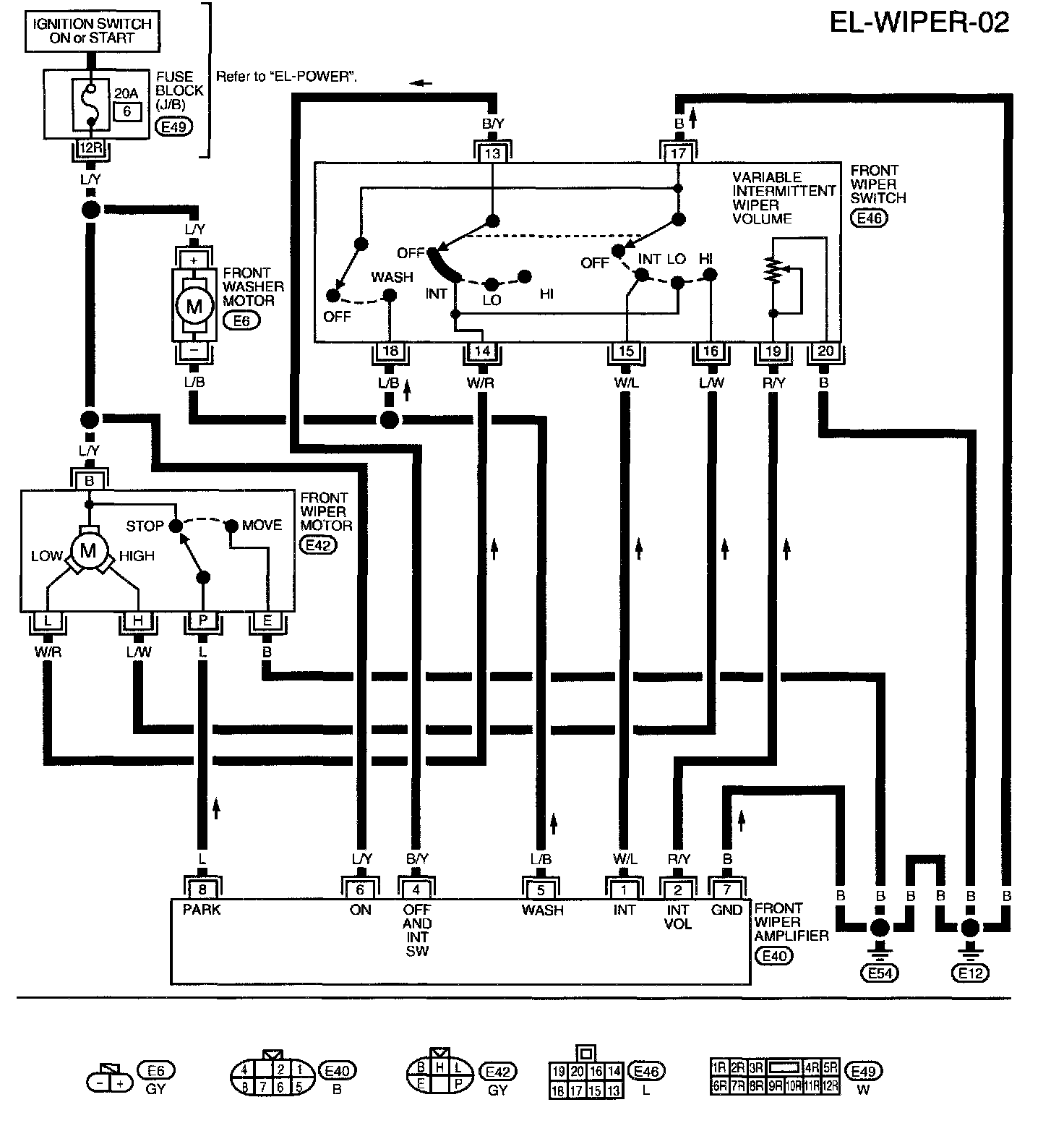

EL-WIPER-02 (Models With Intermittent Wipers):

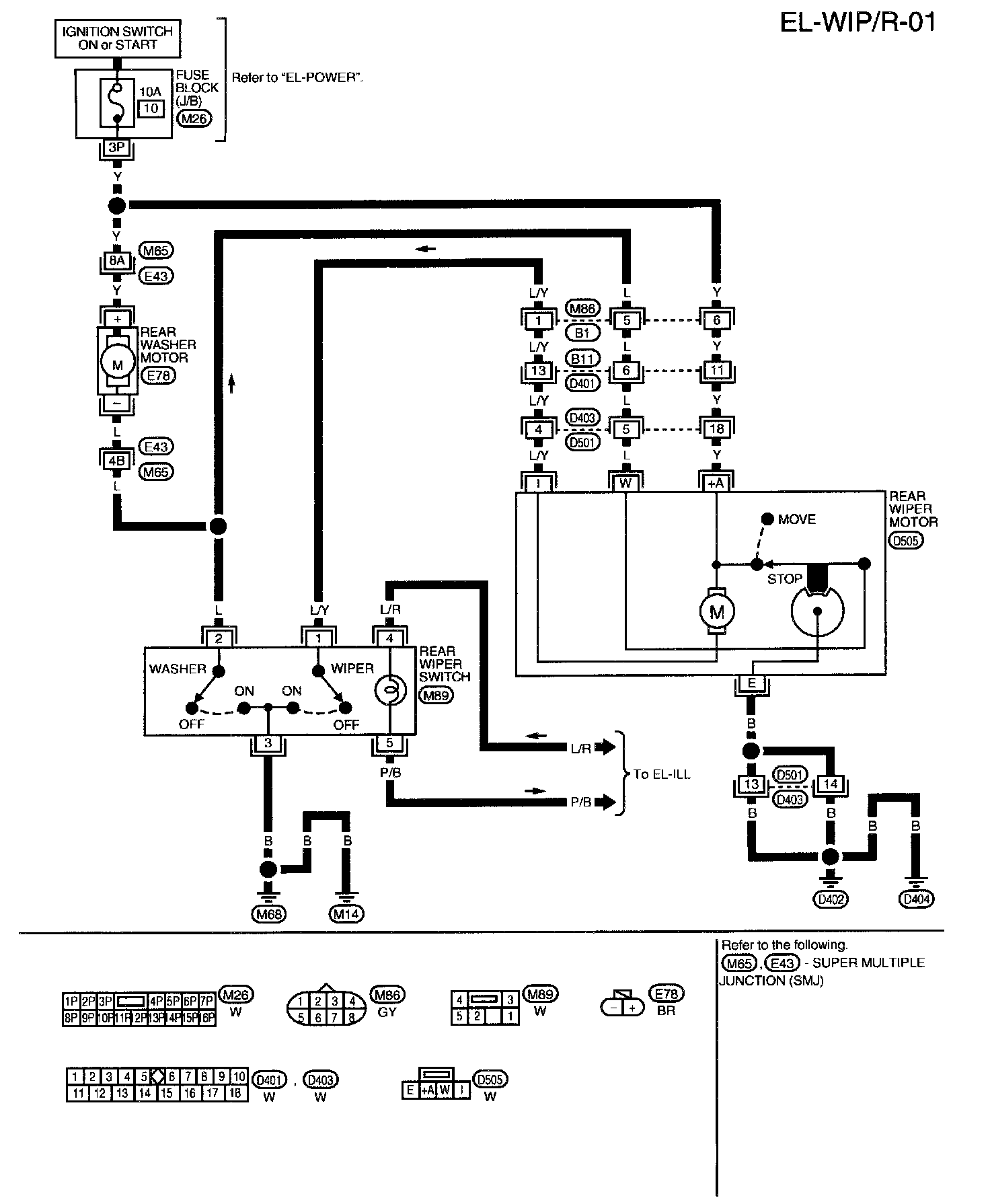

EL-WIP/R-01:
