Front Wiper and Washer
Front Wiper and Washer
-

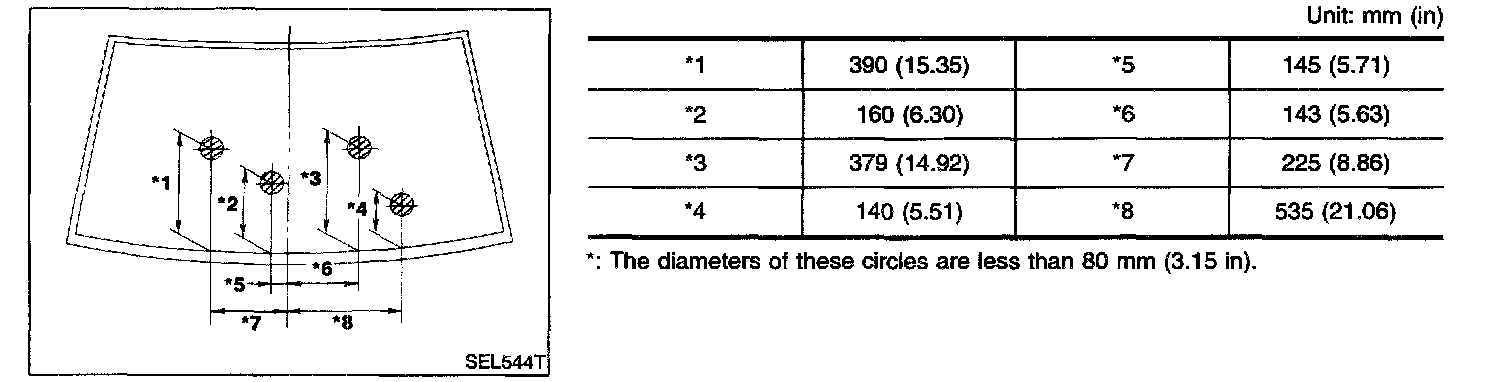

Adjust washer nozzle with suitable tool as shown in the figure.
Adjustable range:
± 10°
Washer Tube Layout
