Disassembly

DISASSEMBLY

CAUTION: Do not run engine when one wheel (rear) is off the ground.

1. Remove side bearing inner cone with Tool.
2. Loosen ring gear bolts in a crisscross pattern.
Bend down lock straps before removing bolts.

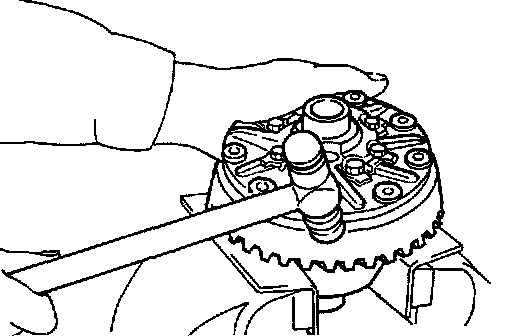

3. Tap ring gear off gear case with a soft hammer.
Tap evenly all around to keep ring gear from binding.

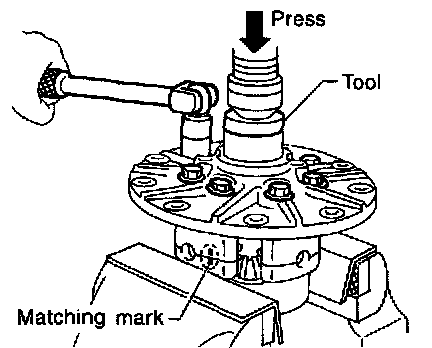

4. Remove couple bolts from differential cases A and B. Use a press with tool and a vise to keep the differential from rotating.
Tool number: ST33081000 (-)

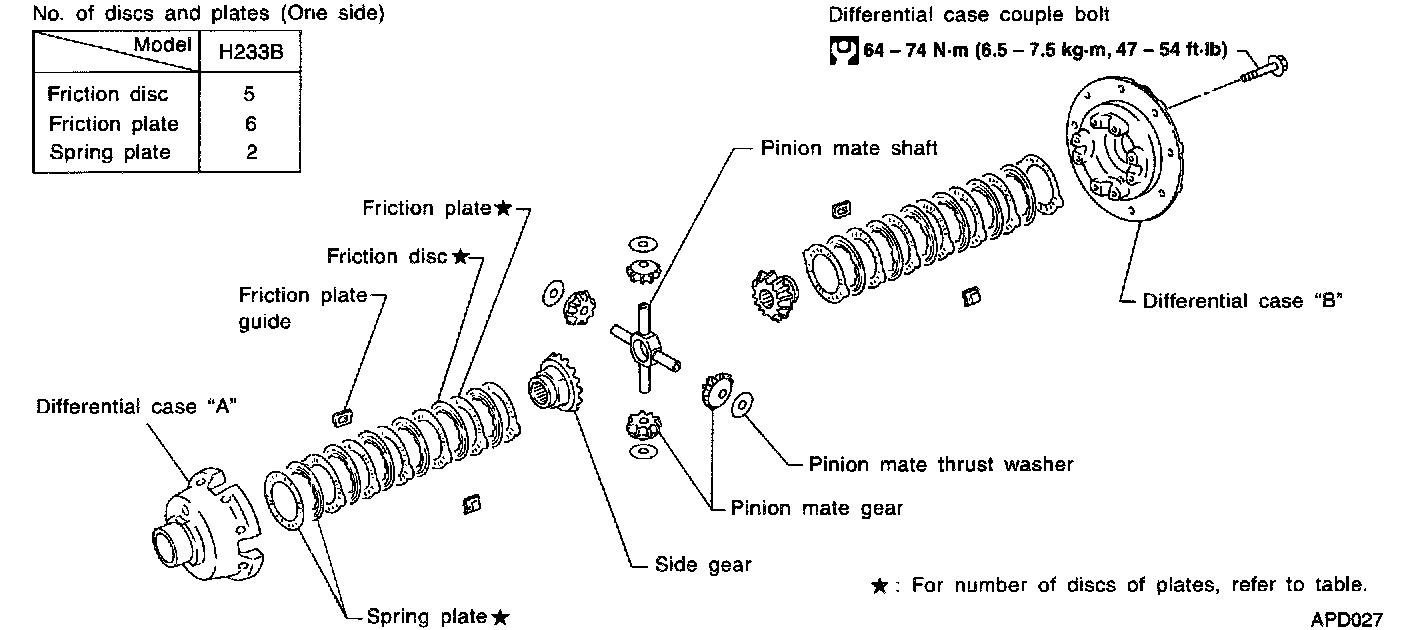

5. Separate differential case A and B. Draw out component parts (discs and plates, etc.).
Put marks on gears and pressure rings so that they can be reinstalled in their original positions from which they were removed.
