Front

FRONT SUSPENSION PARTS
Check front suspension parts for excessive play, cracks, wear and other damage.

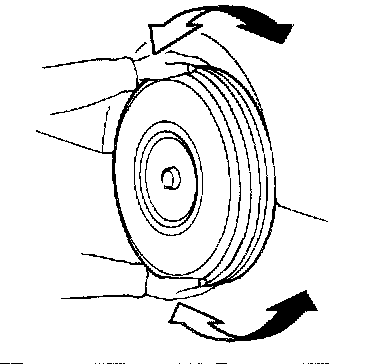

- Shake each front wheel to check for excessive play. If looseness is noted, adjust wheel bearing end play, then check ball joint end play.
- Make sure that the cotter pin is inserted.
- Retighten all nuts and bolts to the specified torque.





- Check shock absorber for oil leakage and other damage.

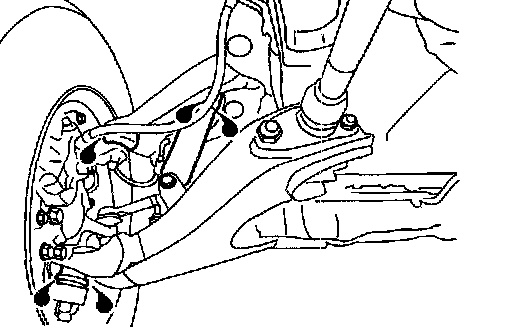

- Check suspension ball joint for grease leakage and ball joint dust cover for cracks and other damage.
