Ground Locations

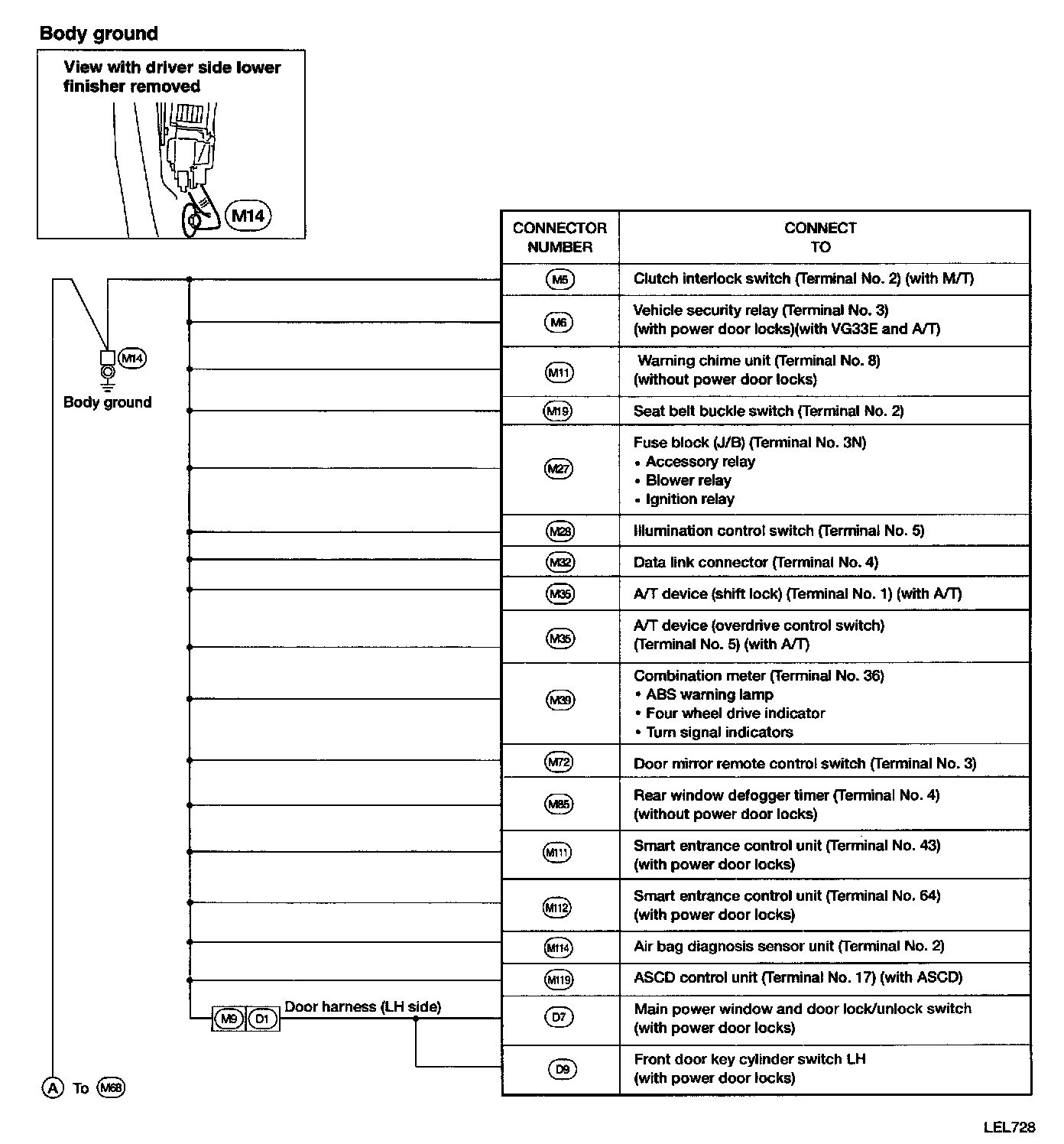

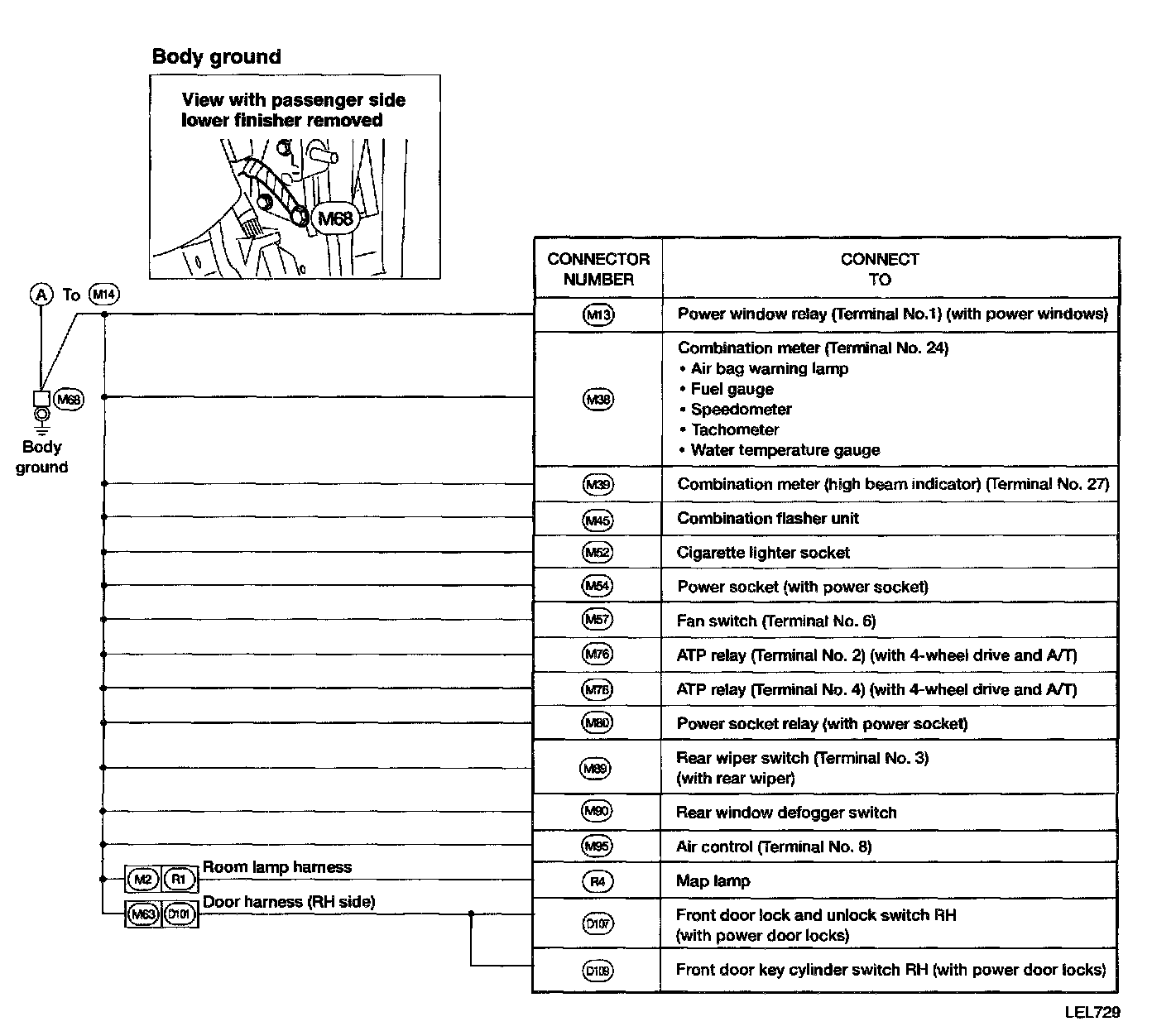

Grounds - Main Harness Part 1:

Grounds - Main Harness Part 2:

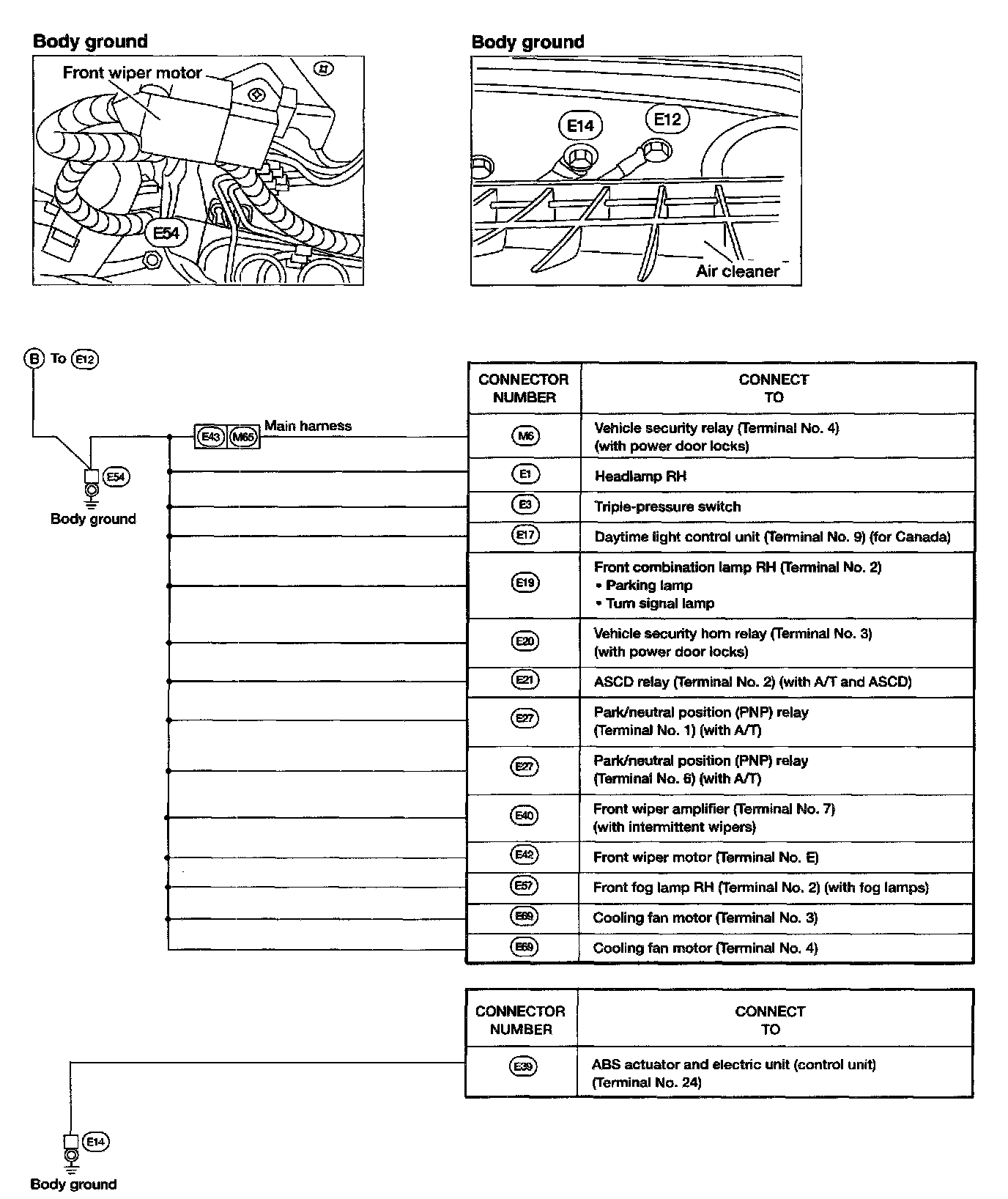

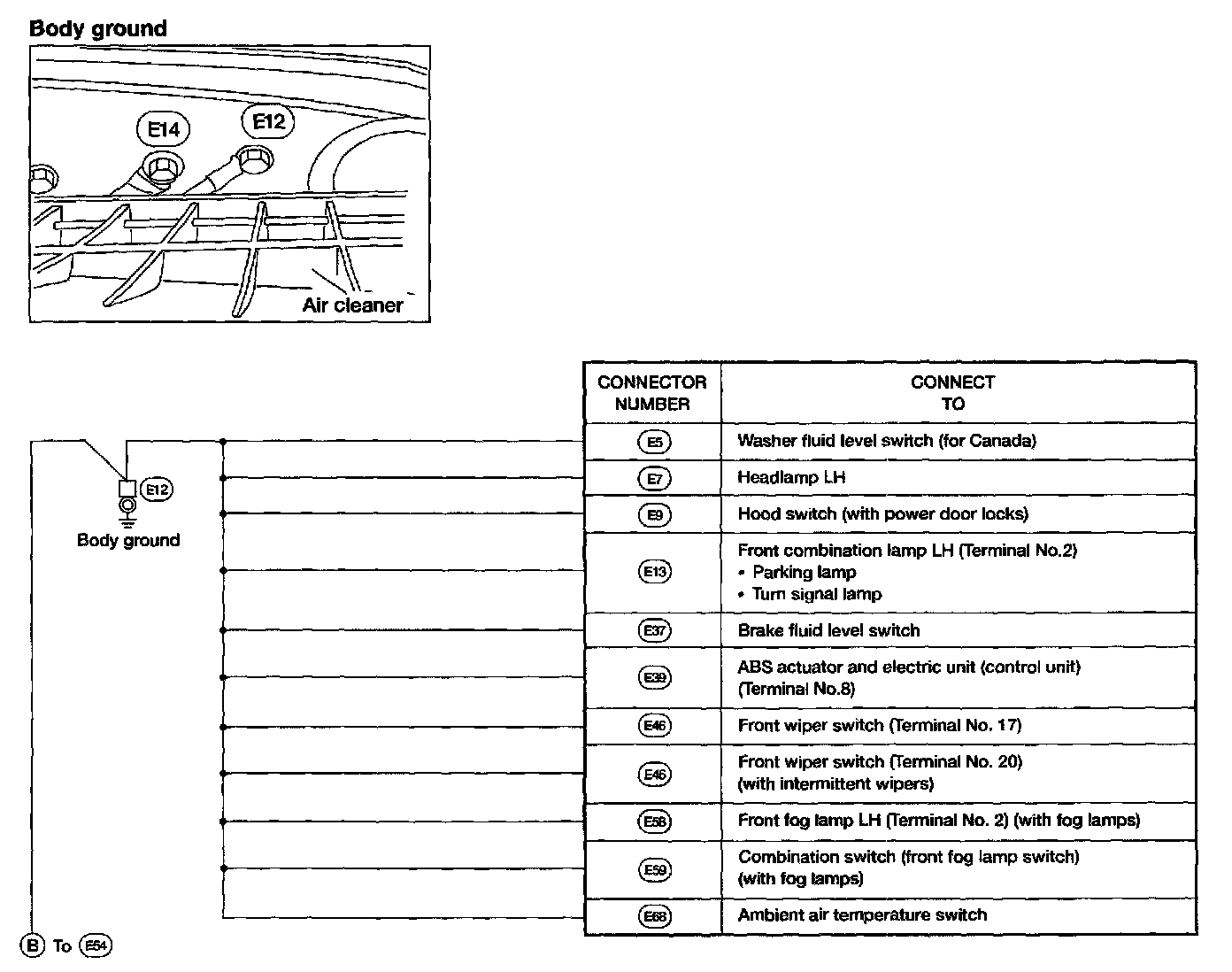

Grounds - Engine Room Harness Part 1:

Grounds - Engine Room Harness Part 2:

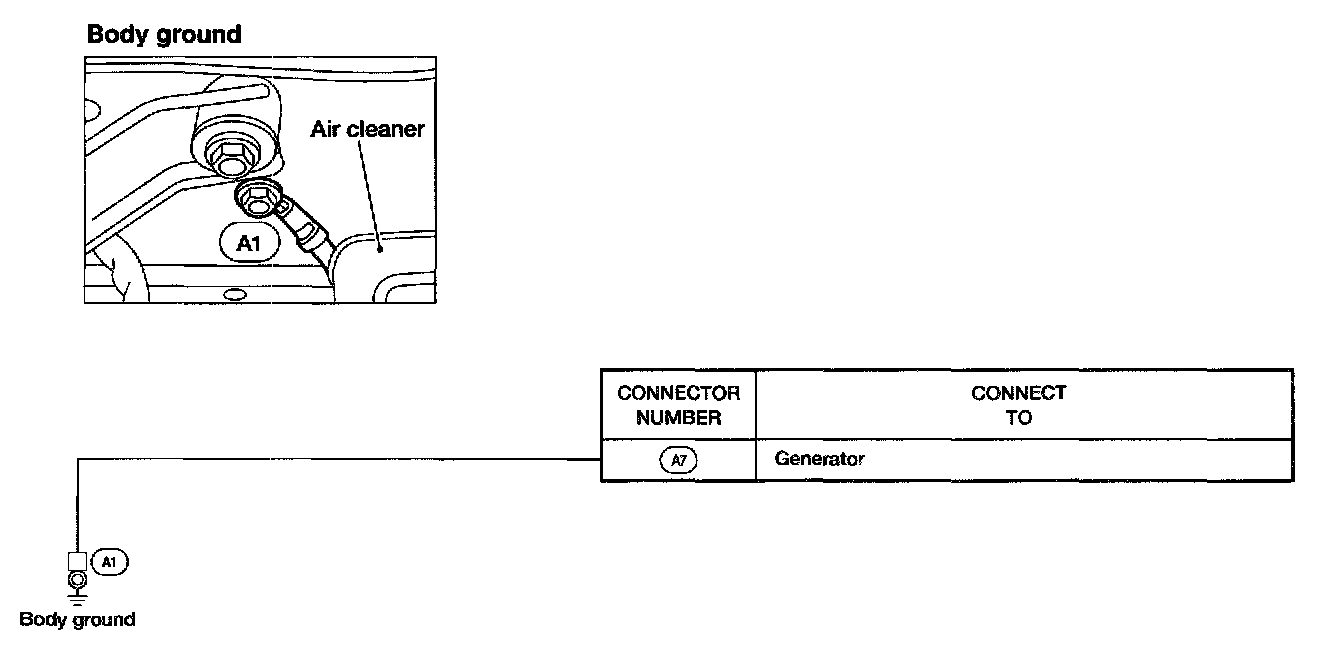

Grounds - Generator Harness:

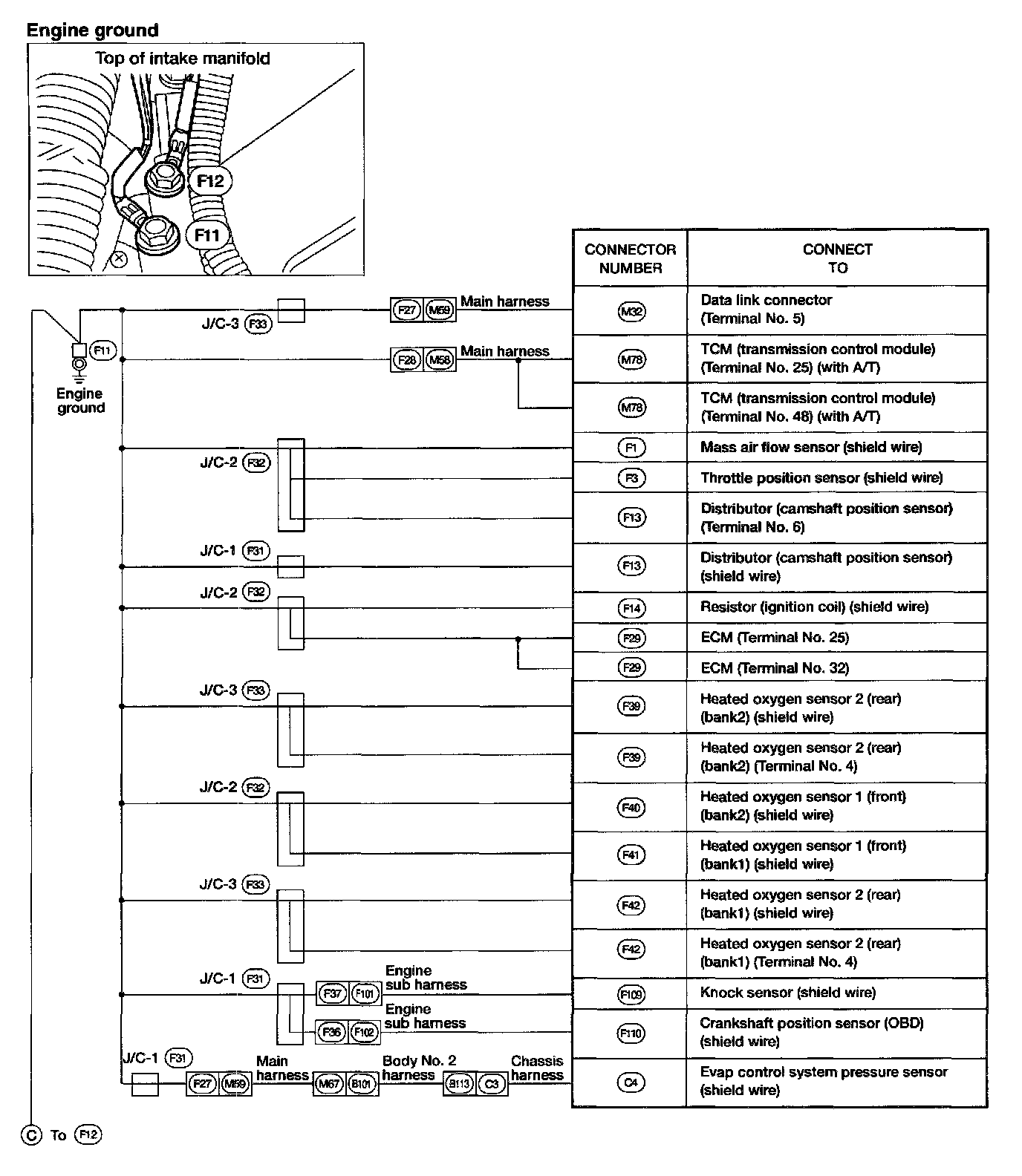

Grounds - Engine Control Harness Part 1:

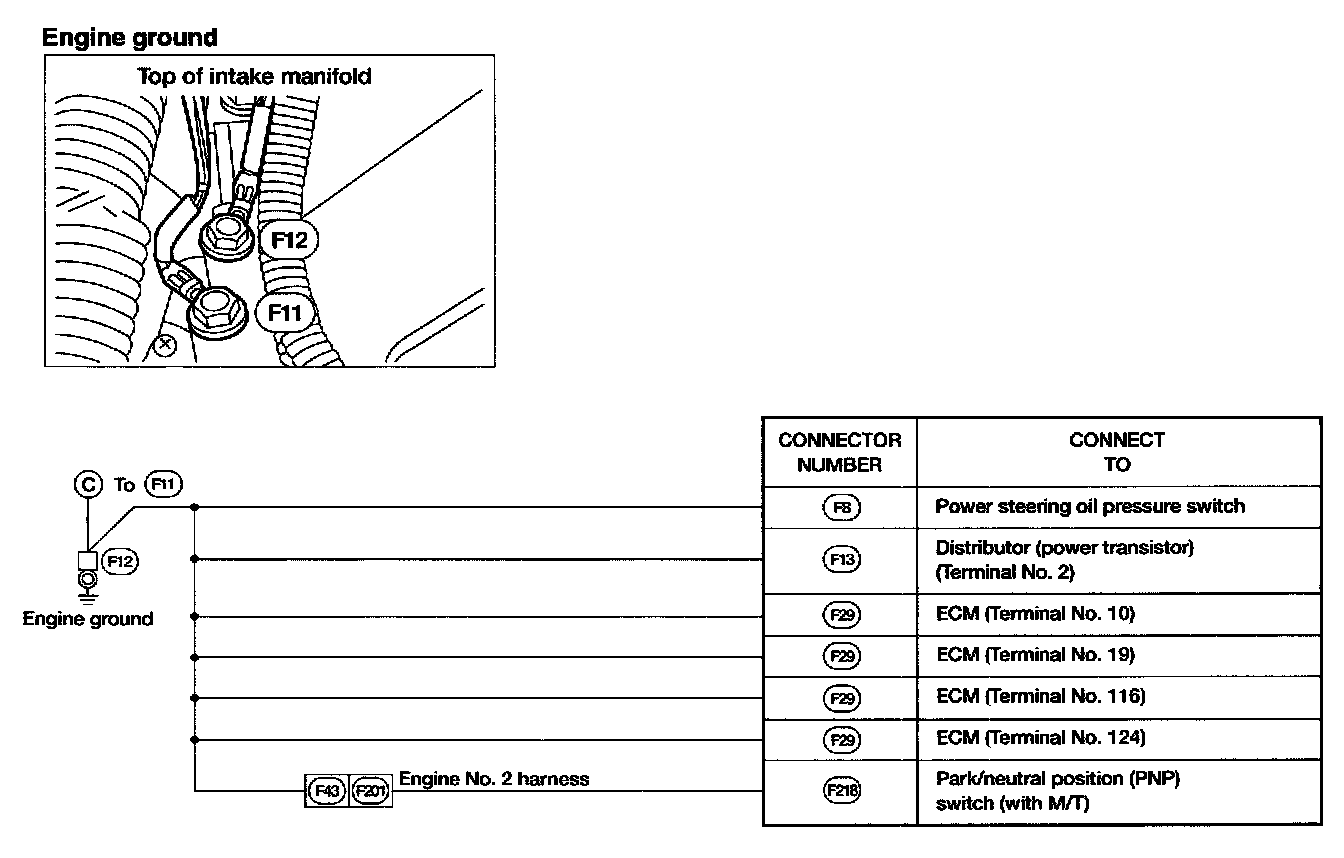

Grounds - Engine Control Harness Part 2:

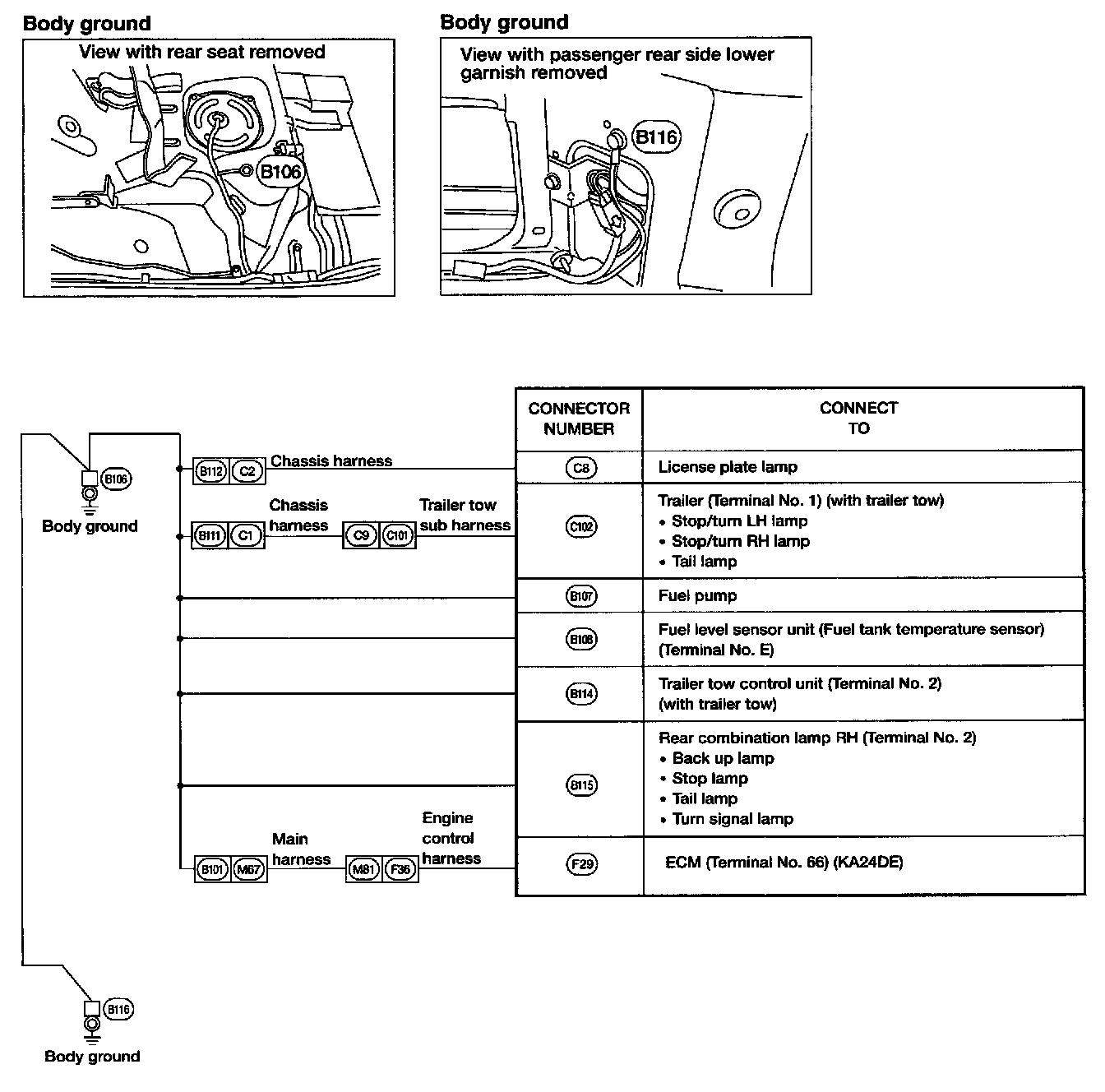

Grounds - Body Harness:

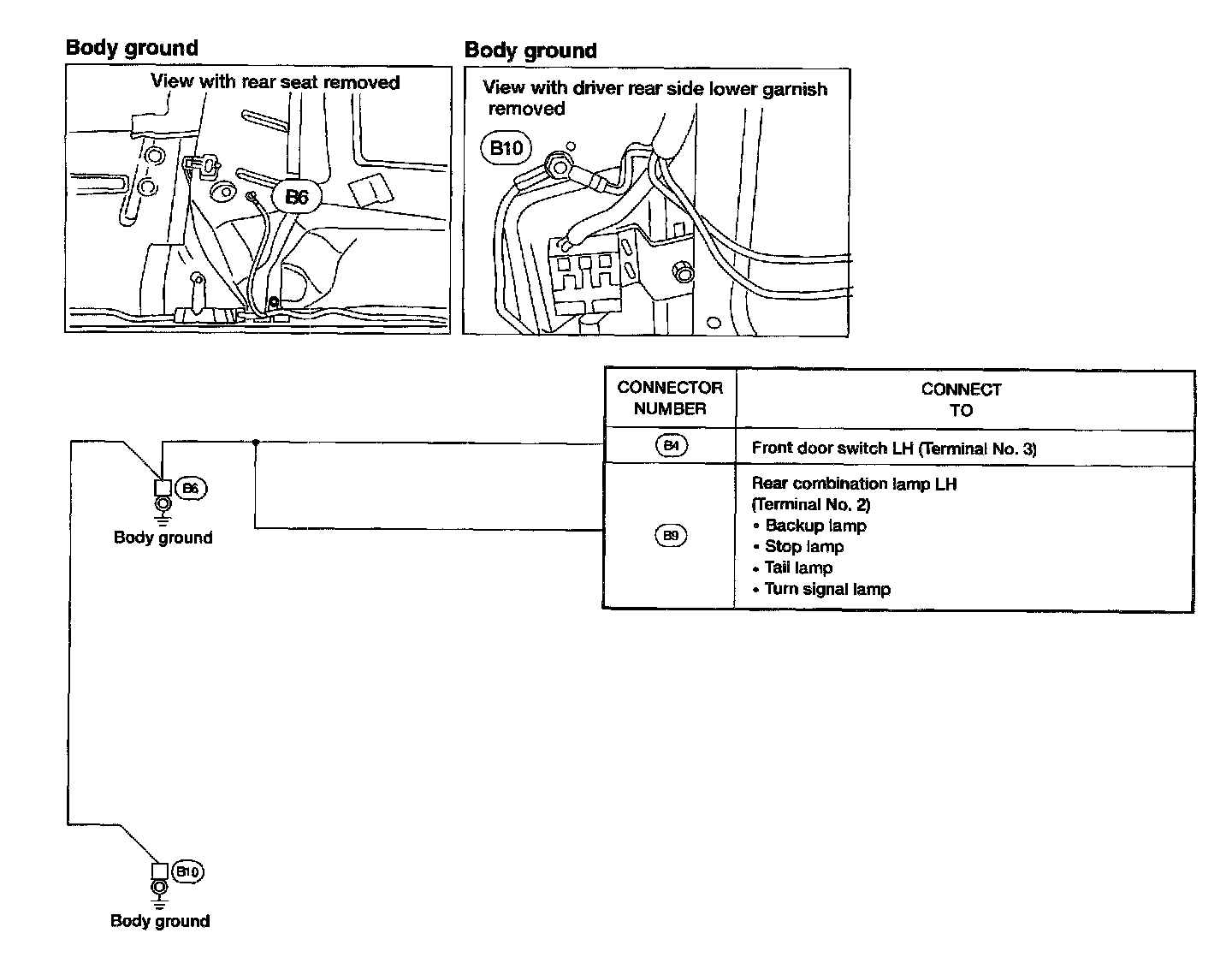

Grounds - Body No.2 Harness:

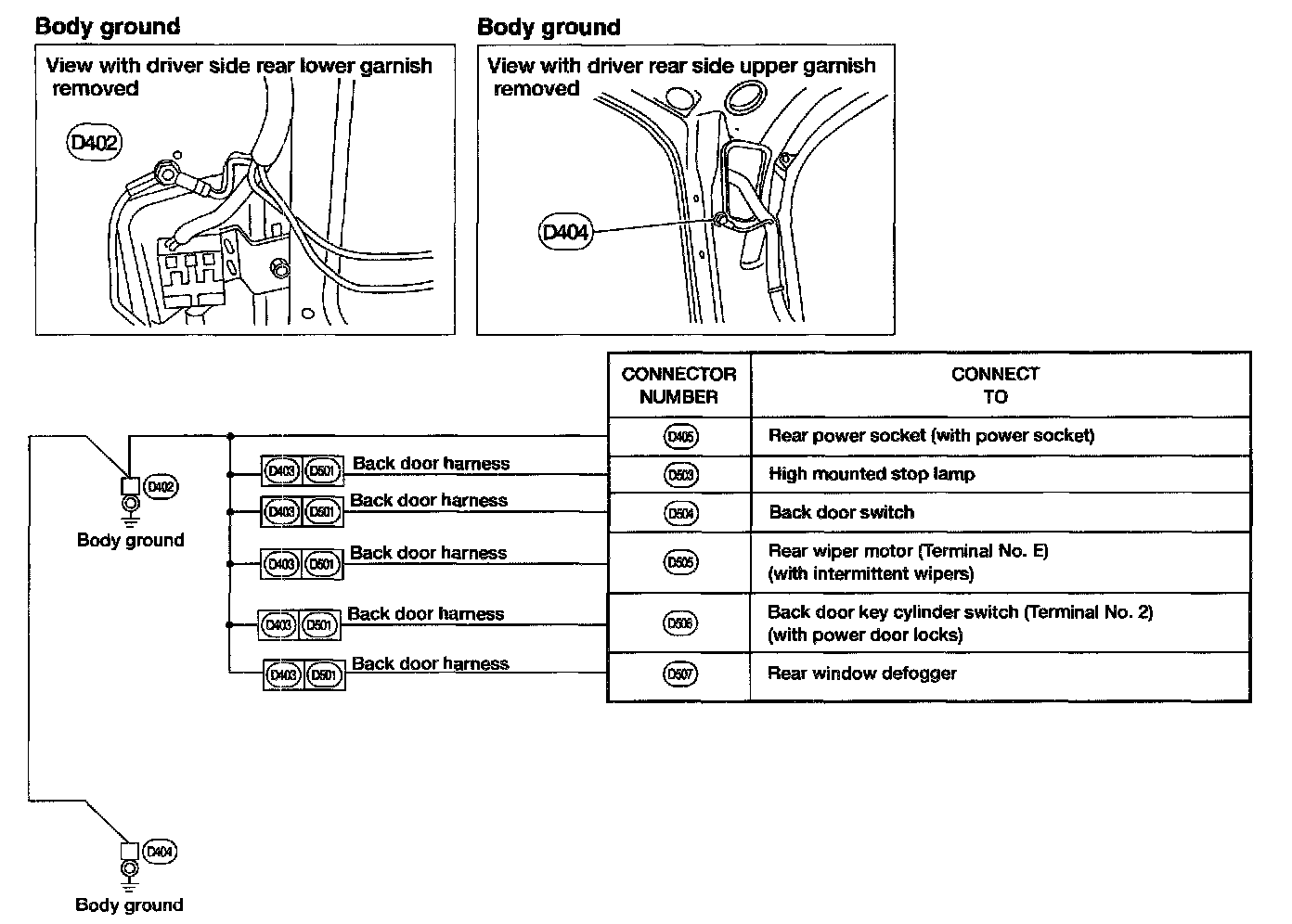

Grounds - Back Door No.2 Harness:
