Initial Inspection and Diagnostic Overview

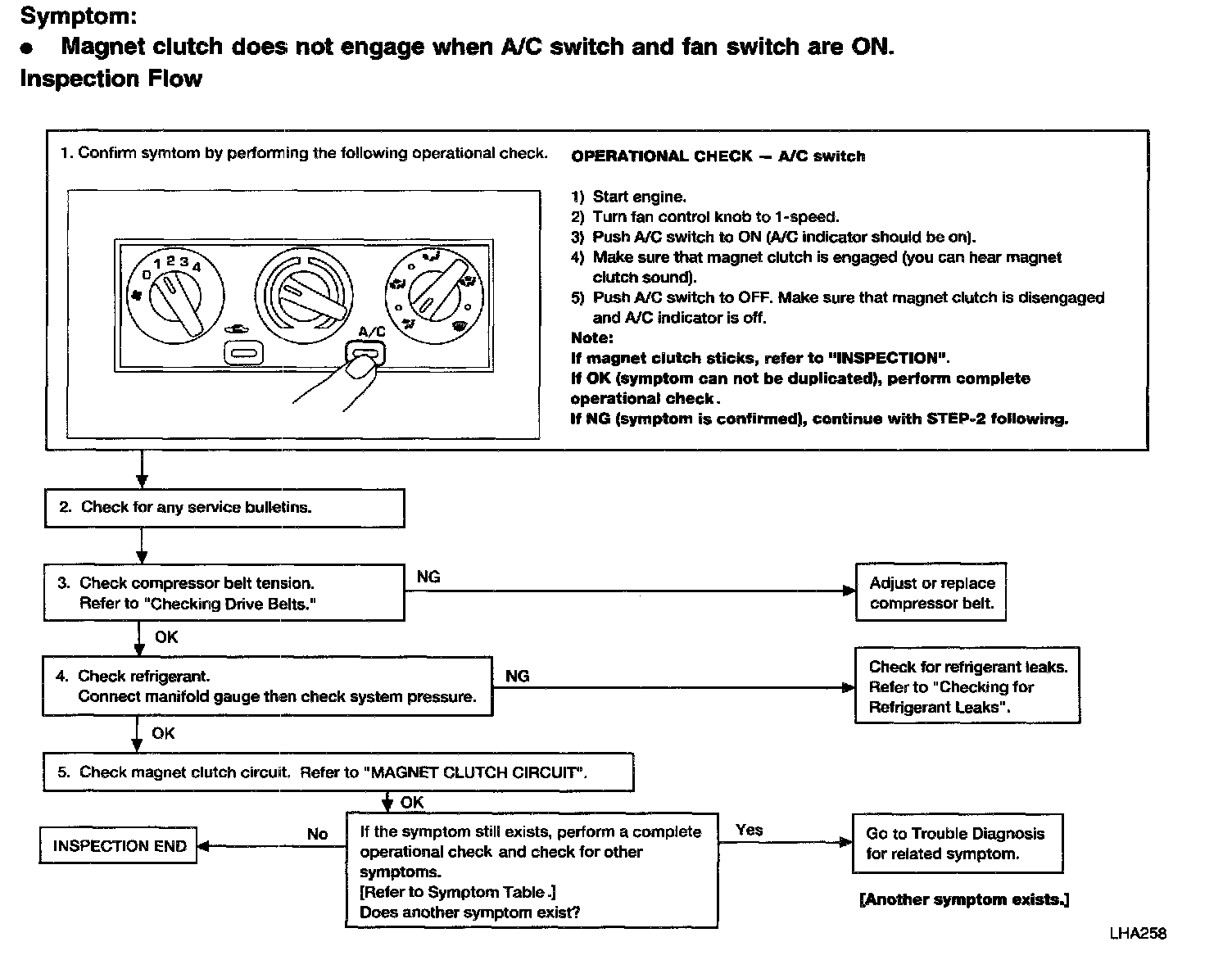

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH

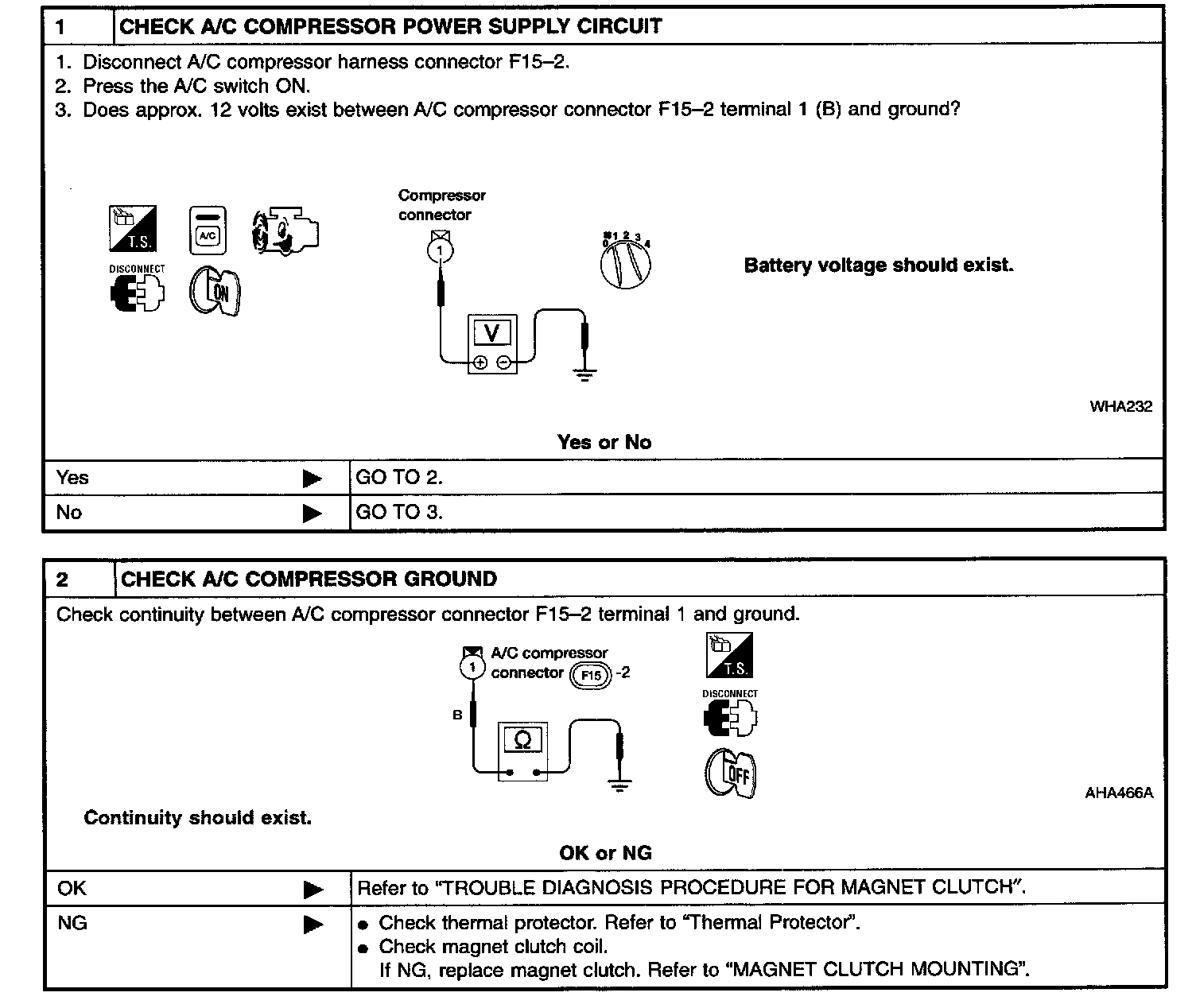

Steps 1 - 2:

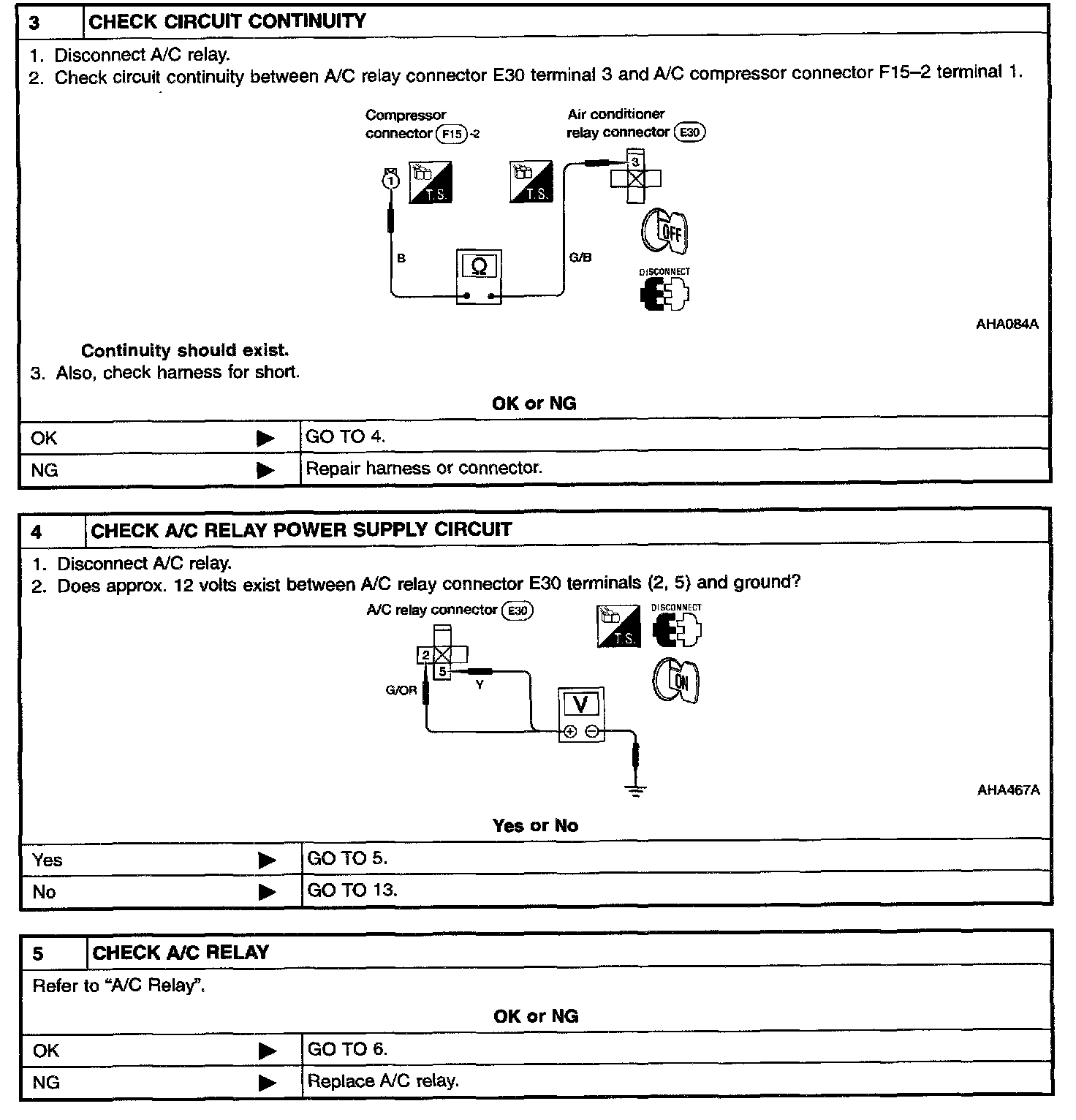

Steps 3 - 5:

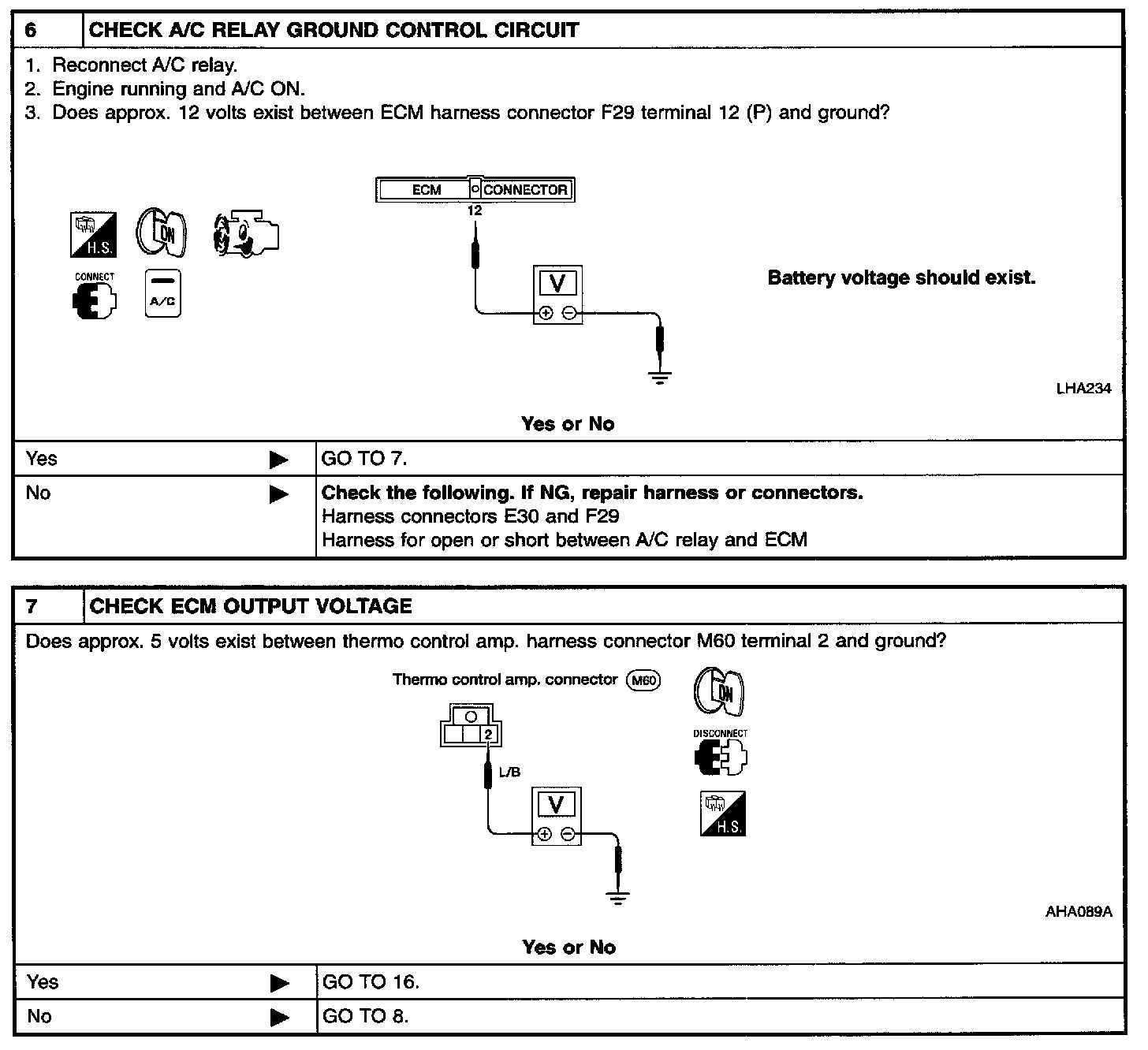

Steps 6 - 7:

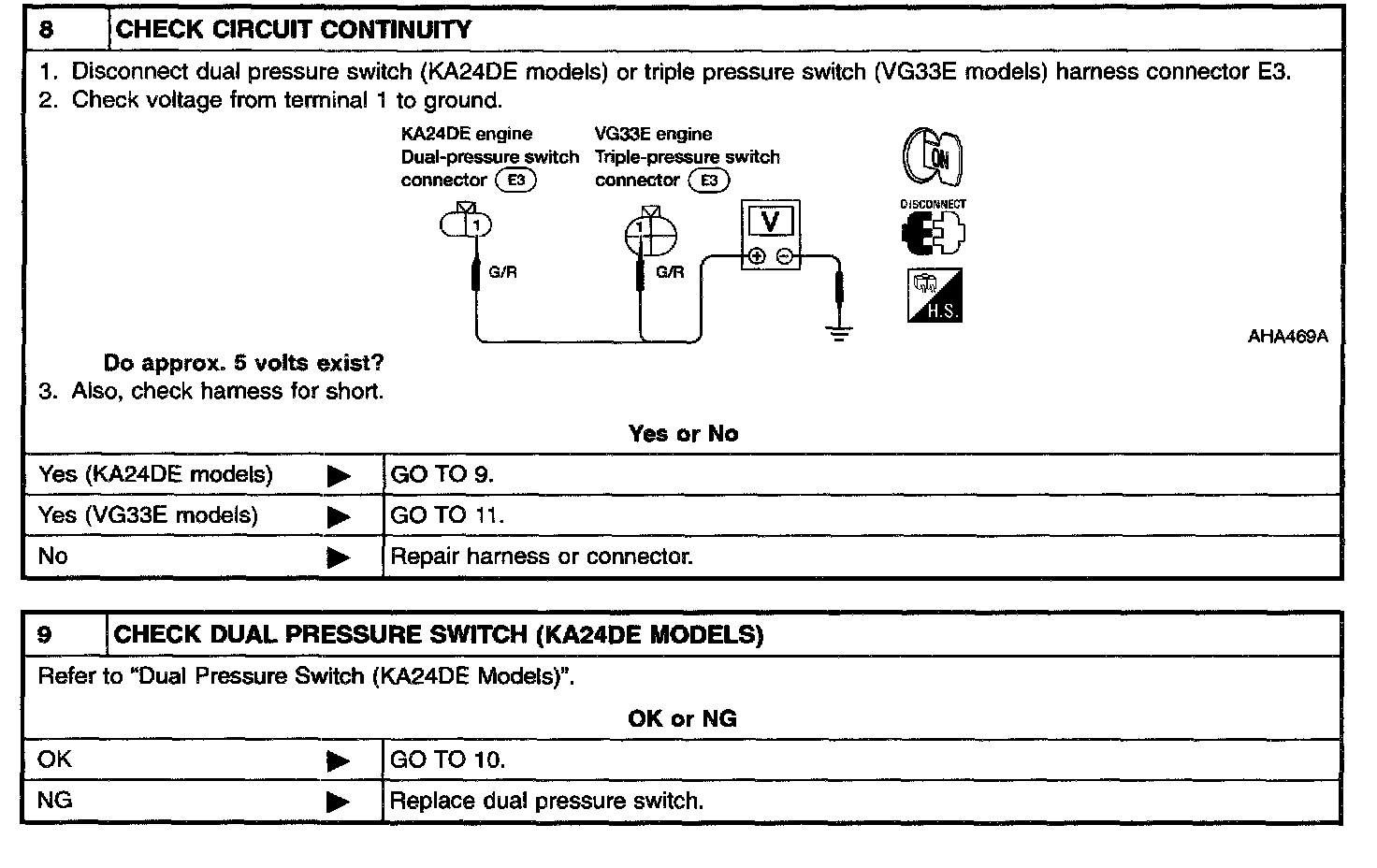

Steps 8 - 9:

Steps 10 - 11:

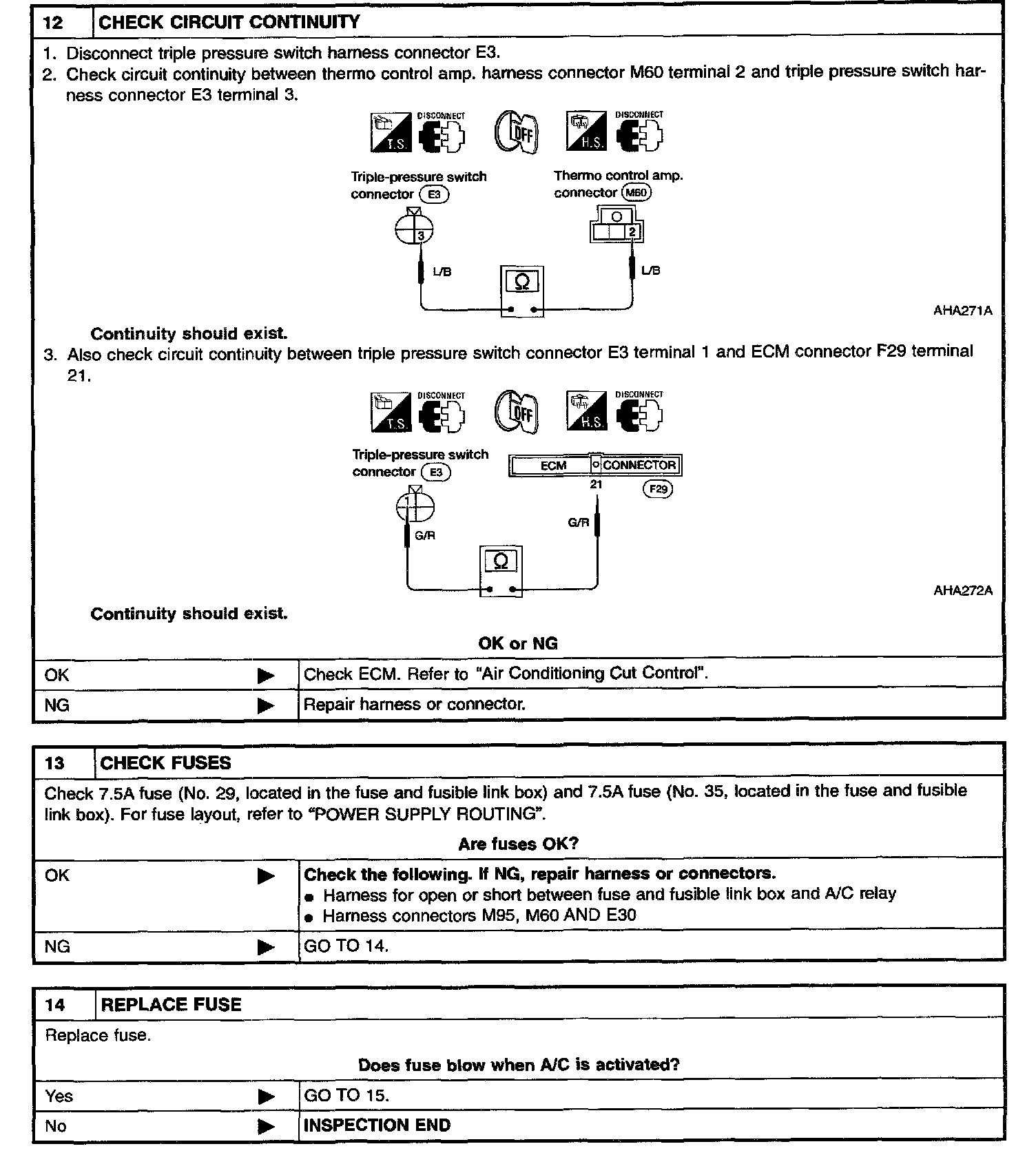

Steps 12 - 14:

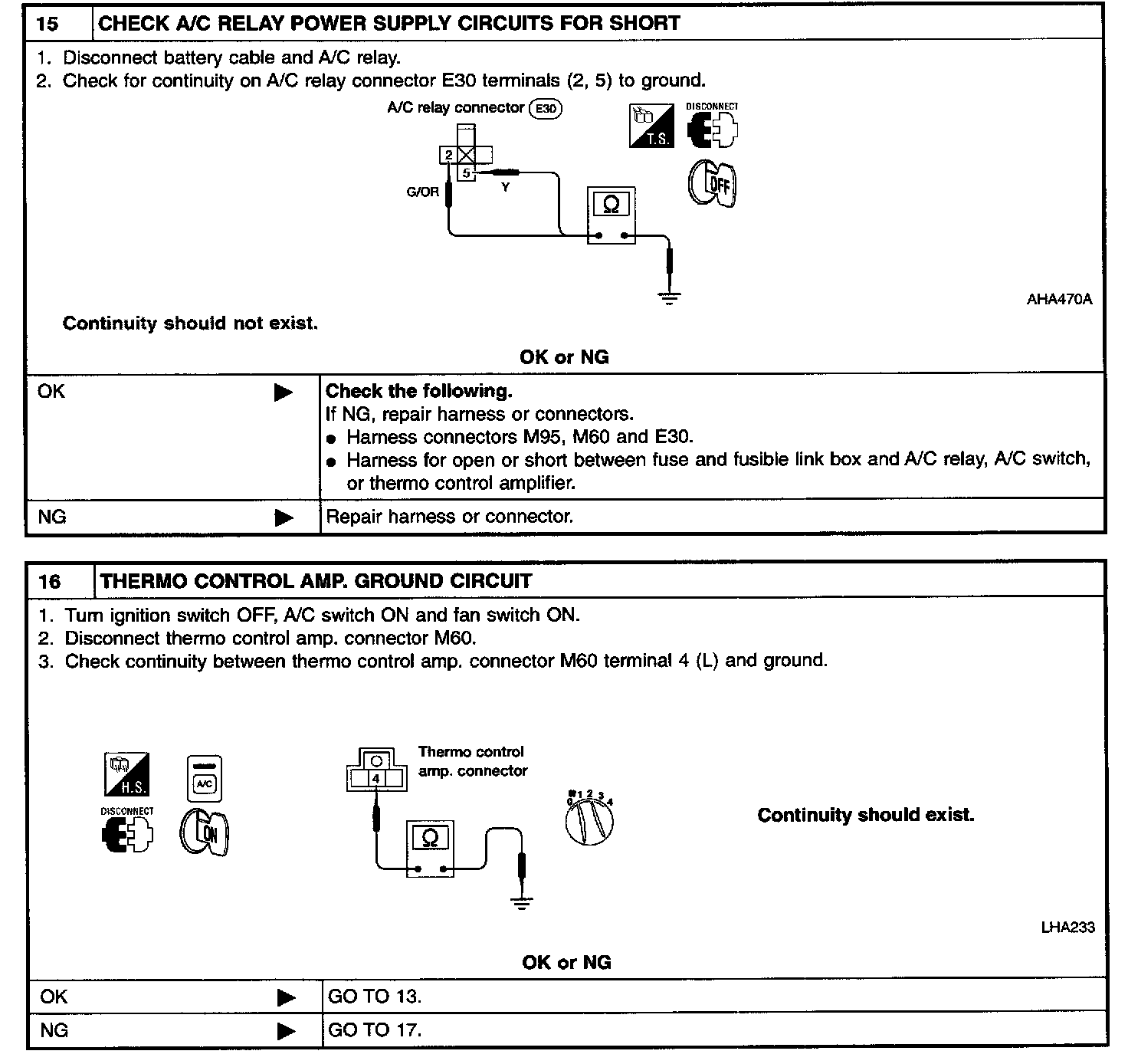

Steps 15 - 16:

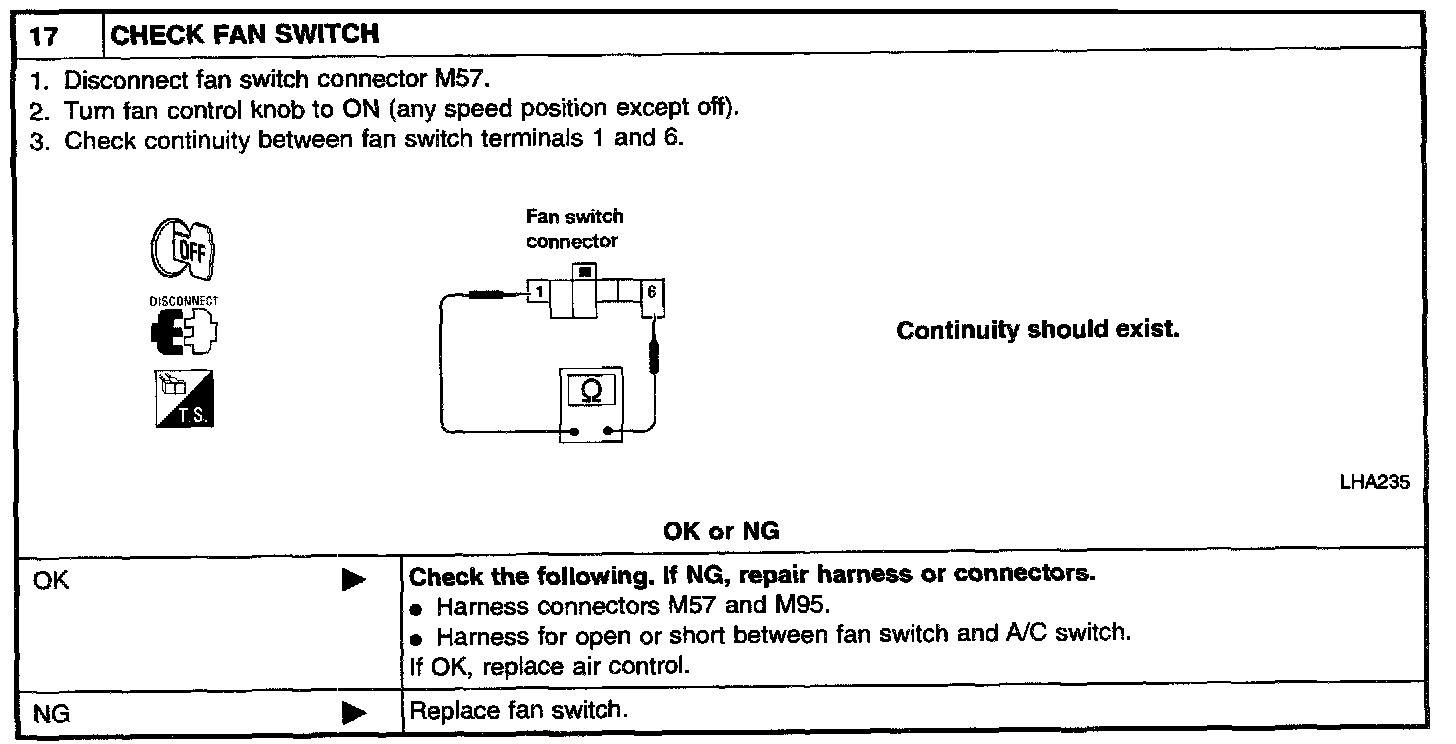

Step 17:

MAGNET CLUTCH CIRCUIT

SYMPTOM:
Magnet clutch does not engage when A/C switch and fan switch are ON.

ELECTRICAL COMPONENTS INSPECTION

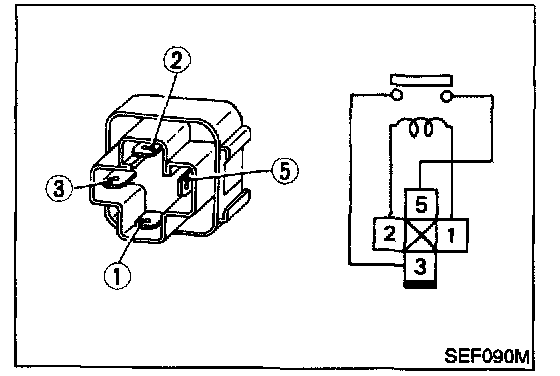

A/C Relay
Check continuity between terminals 3 and 5.
If NG, replace relay.

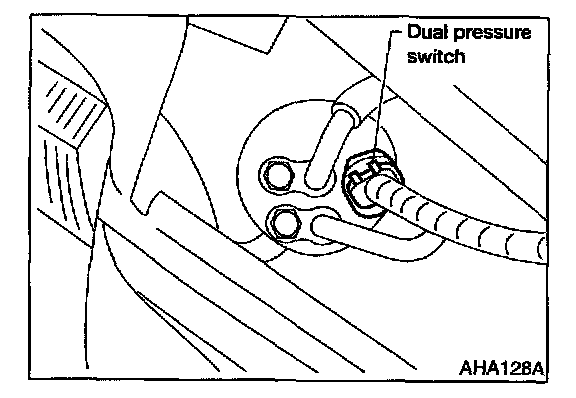

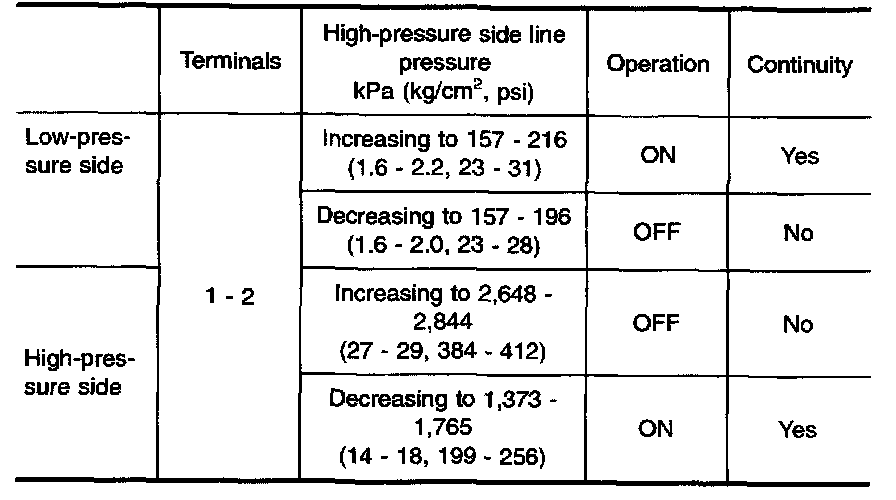

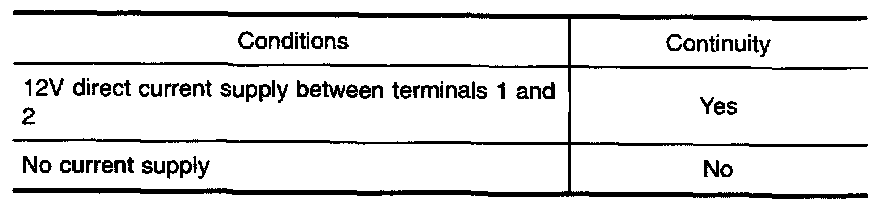

Dual Pressure Switch (KA24DE Models)
Check continuity between terminals.

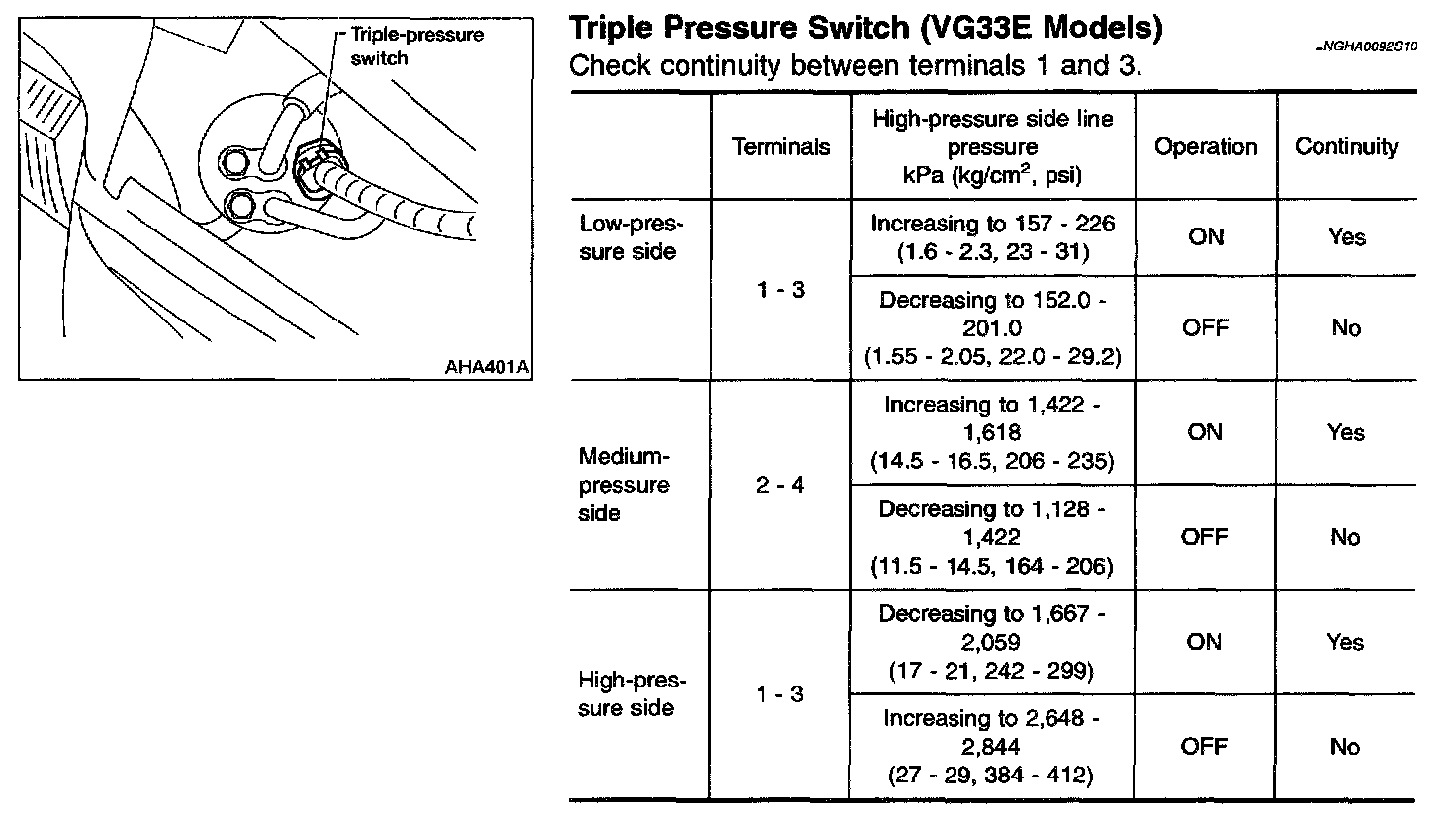

Triple Pressure Switch (VG33E Models):

KA24DE:

VG33E:

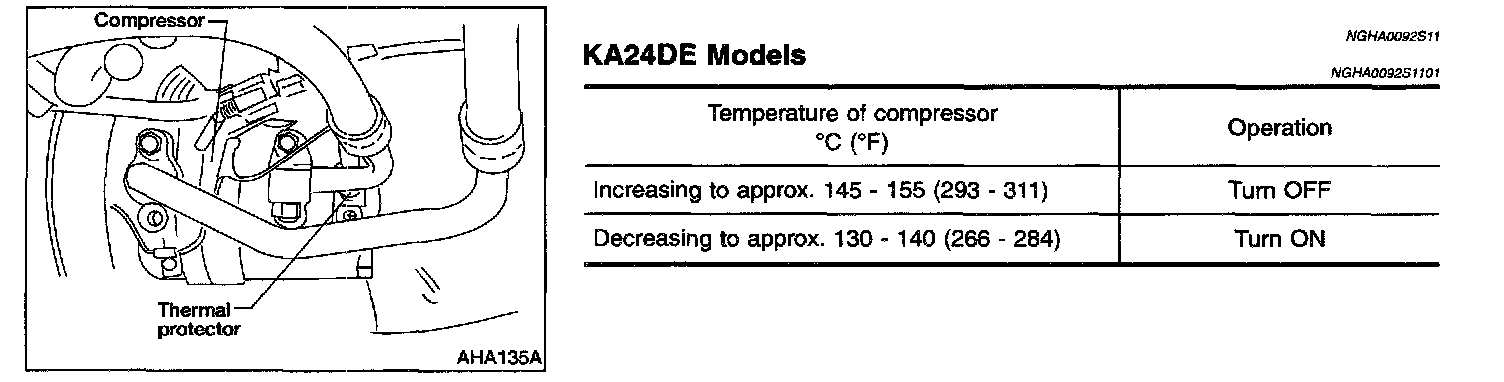

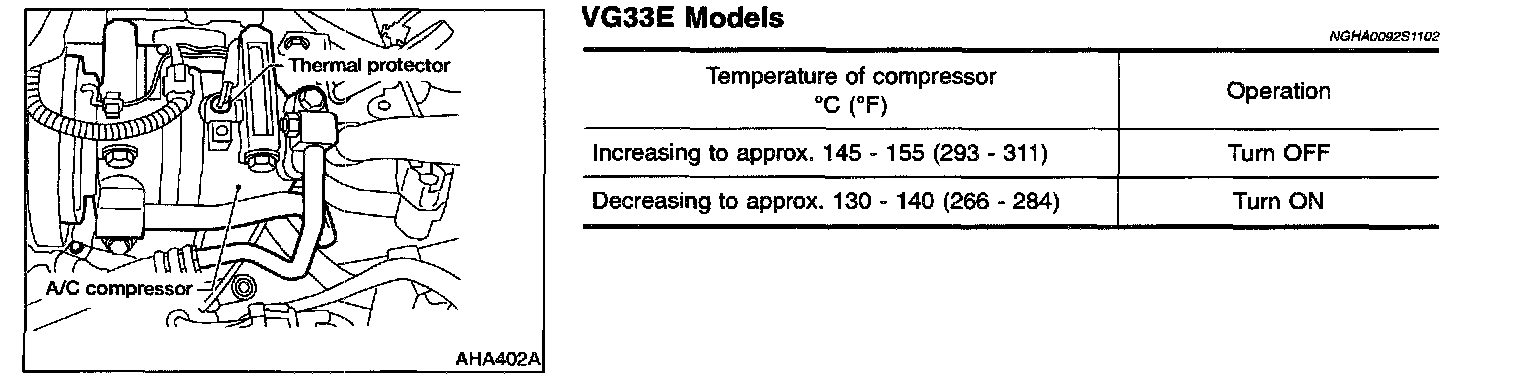

Thermo Control Amp.
1. Run engine and operate A/C system.

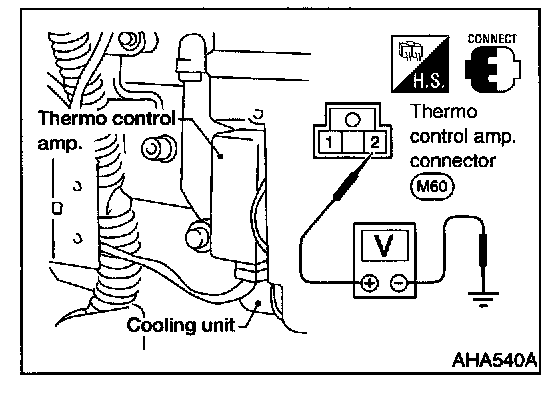

2. Connect the voltmeter from harness side.

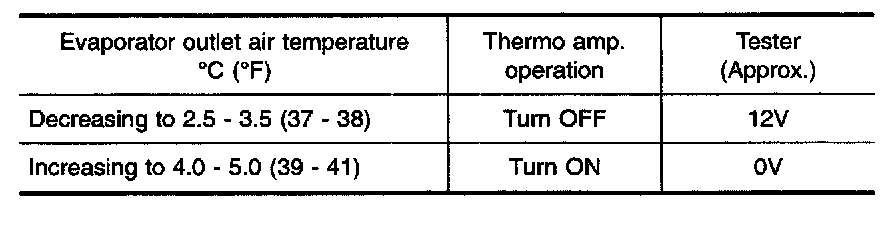

3. Check the thermo control amp. operation as shown in the table.
