ASCD Component Inspections

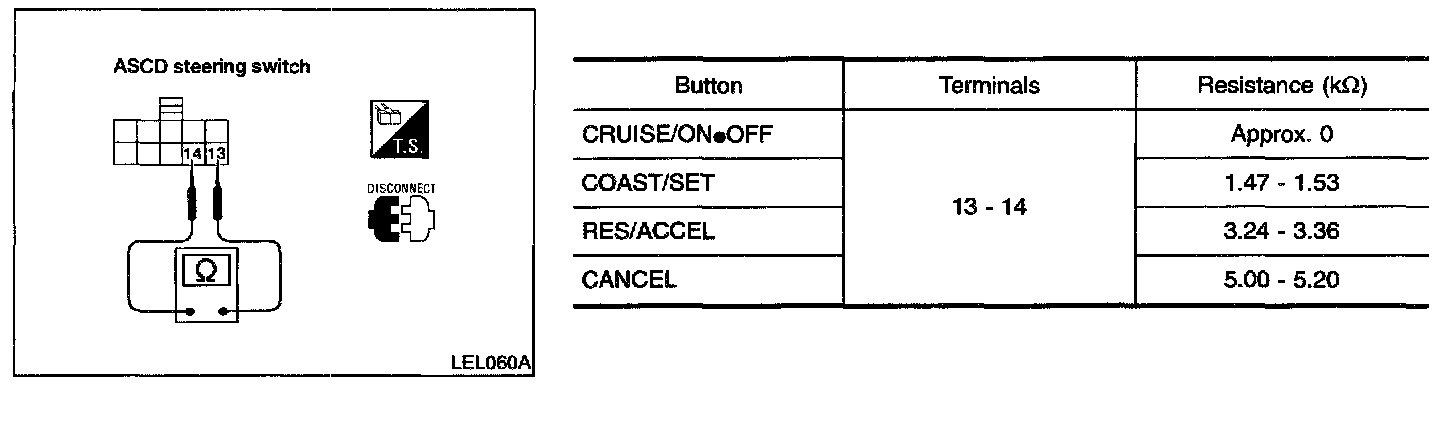

ASCD STEERING SWITCH
Check continuity between ASCD steering switch connector M205 terminals 14 and 13 by pushing each button.

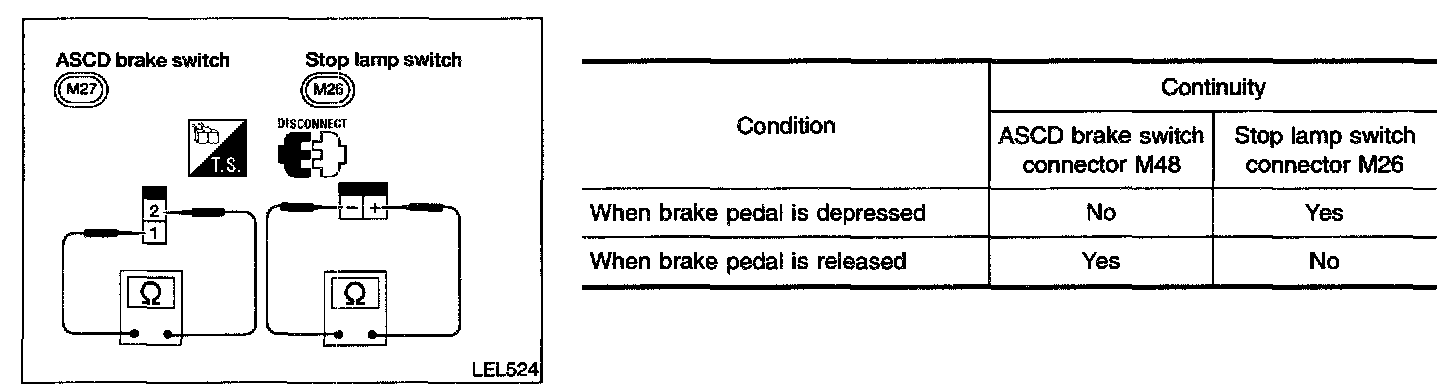

ASCD BRAKE SWITCH AND STOP LAMP SWITCH

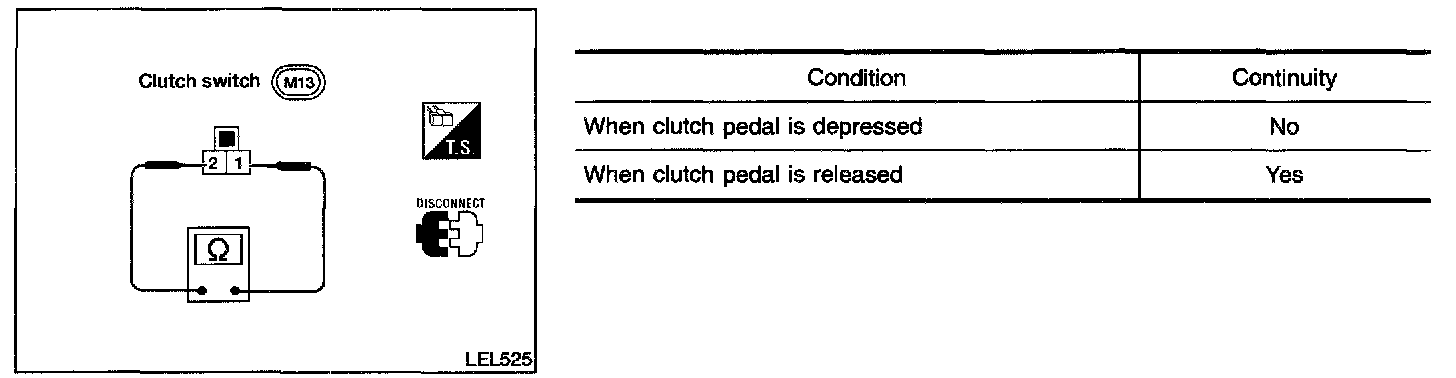

ASCD CLUTCH SWITCH (M/T)

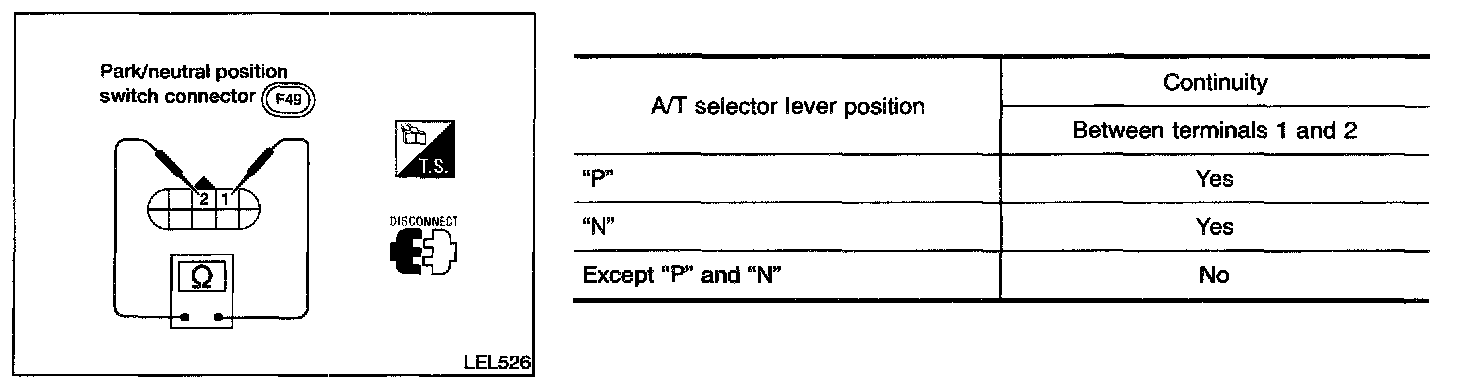

PARK/NEUTRAL POSITION SWITCH (A/T)

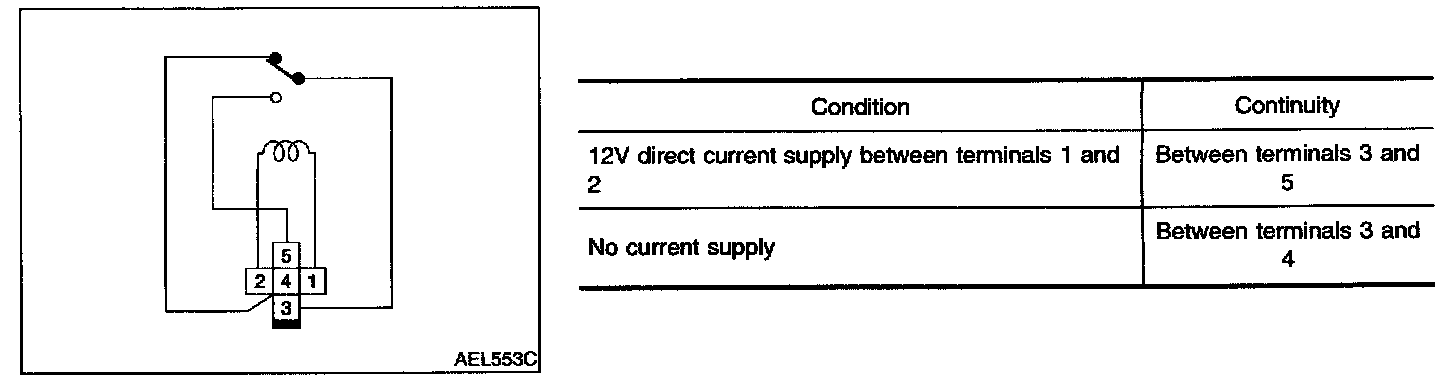

ASCD RELAY (A/T MODELS)
Check continuity between ASCD relay terminals 3 and 4, 3 and 5.
