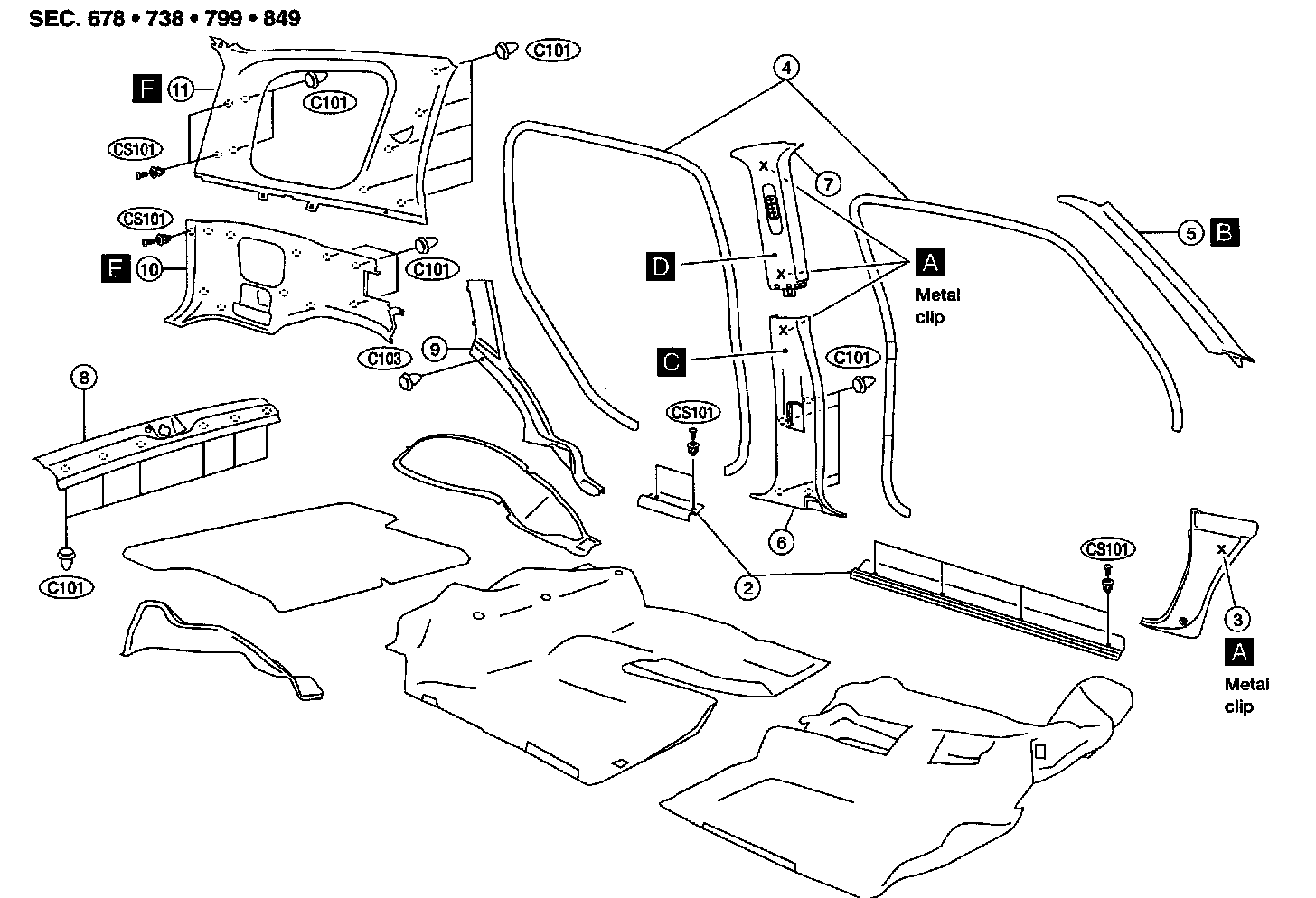

Side and Floor Trim

Part 1:

Part 2:

Removal and Installation

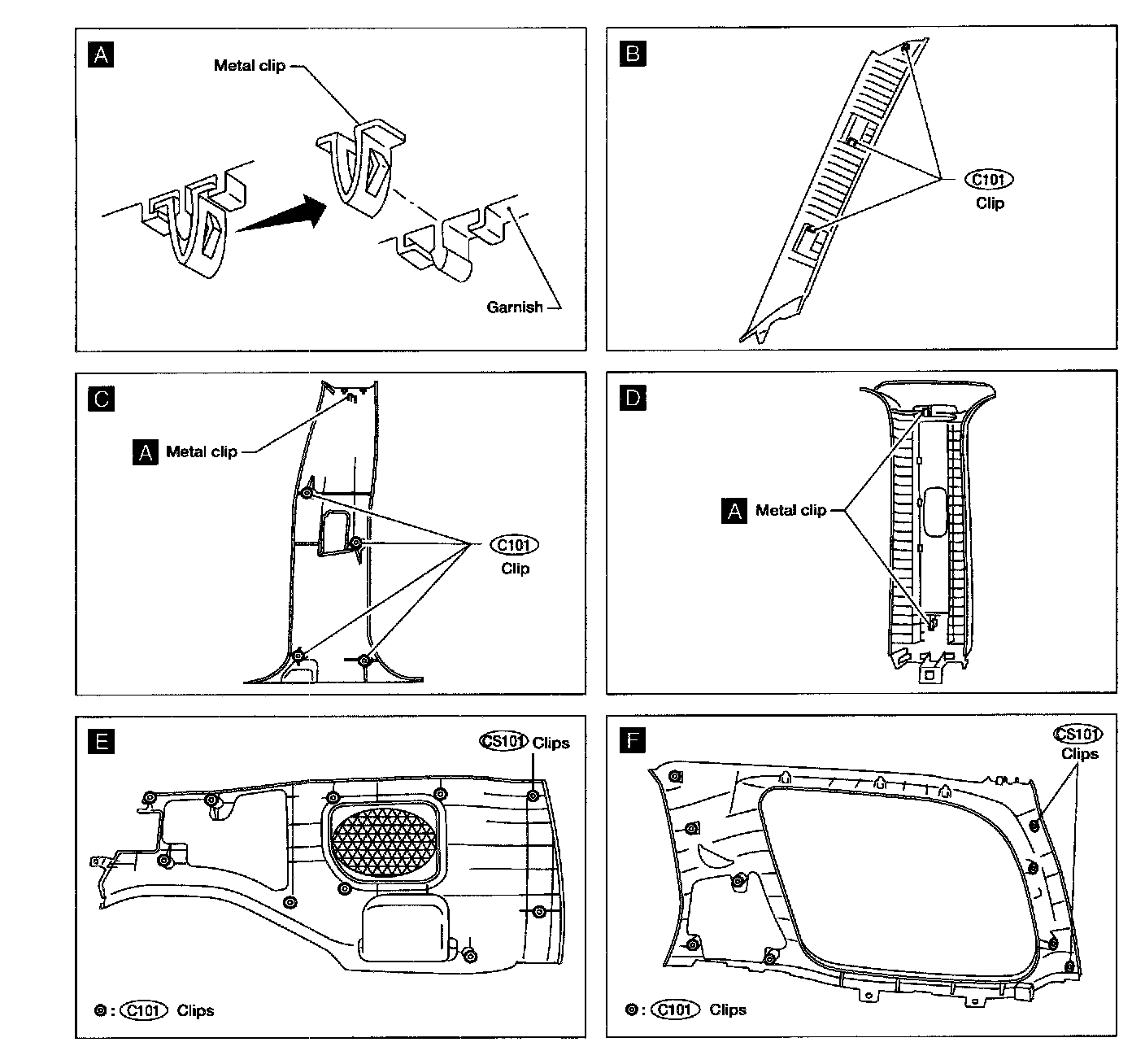

CAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

1. Remove front and rear seats..
2. Remove front and rear kicking plates.
3. Remove dash side lower finishes.
4. Remove front and rear body side welts.
5. Remove front pillar garnishes. B
6. Remove center pillar lower garnishes. C
7. Remove center pillar upper garnishes. D
8. Remove rear gate kicking plate.
9. Remove rear wheel well garnish.
10. Remove rear side lower garnishes. E
11. Remove rear side upper garnishes. F
