Rear Wiper and Washer

1. Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it "OFF" (Auto Stop).

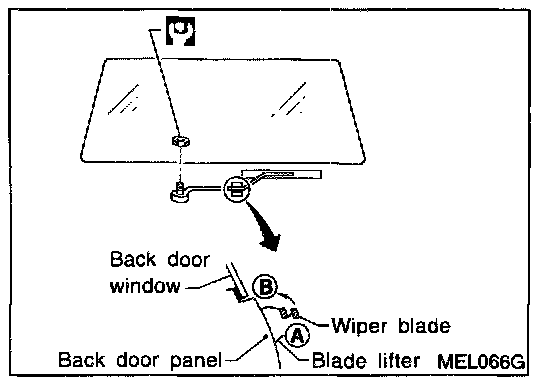

2. Install wiper arm to portion A and tighten wiper arm nut to specification.
3. Then set wiper arm to portion B.
Tightening Torque : 13 - 18 N.m (1.3 - 1.8 kg.m, 9 - 13 ft.lb)

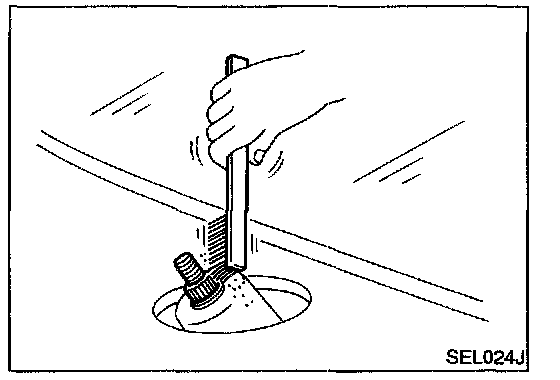

- Before reinstalling wiper arm, clean up the pivot area as illustrated. This will reduce possibility of wiper arm looseness.
