Rear Wiper and Washer

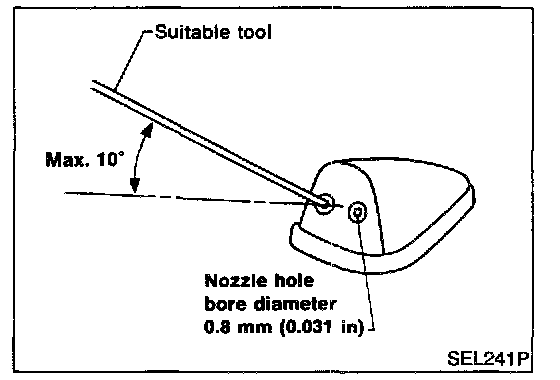

- Adjust washer nozzle with suitable tool as shown in the figure.
Adjustable range: ± 10° (In any direction)




Washer Tube Layout

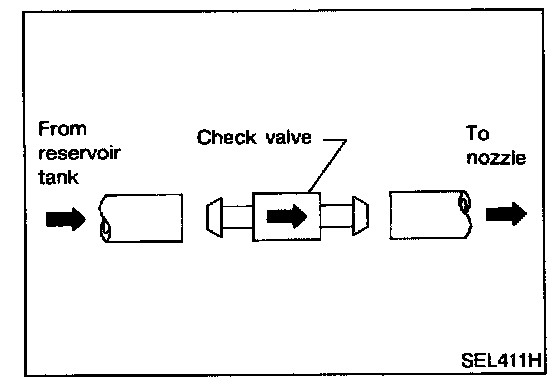

Check Valve
A check valve is provided in the washer fluid line. Be careful not to connect check valve to washer tube in the wrong direction.
