Shift Control Components

ASSEMBLY

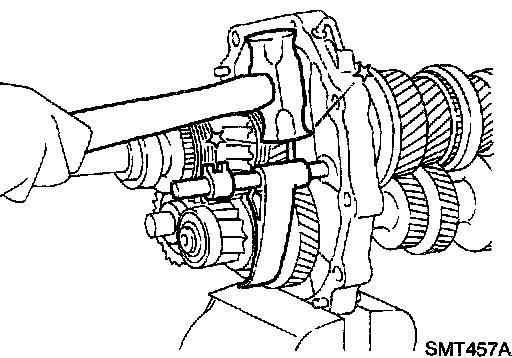

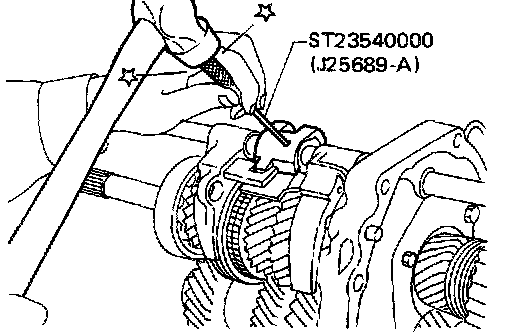

1. Install OD fork rod and OD shift fork. Then install retaining pin into OD shift fork.
2. Install 1st & 2nd, 3rd & 4th and reverse shift fork onto coupling sleeve.





3. Install striking rod into hole of shift forks, striking lever and interlock and then install retaining pin into striking lever.
- Make sure that striking rod moves smoothly.
