Home >> Nissan-Datsun Truck >> 2001 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment

Automatic Transmission/Transaxle: Tools and Equipment

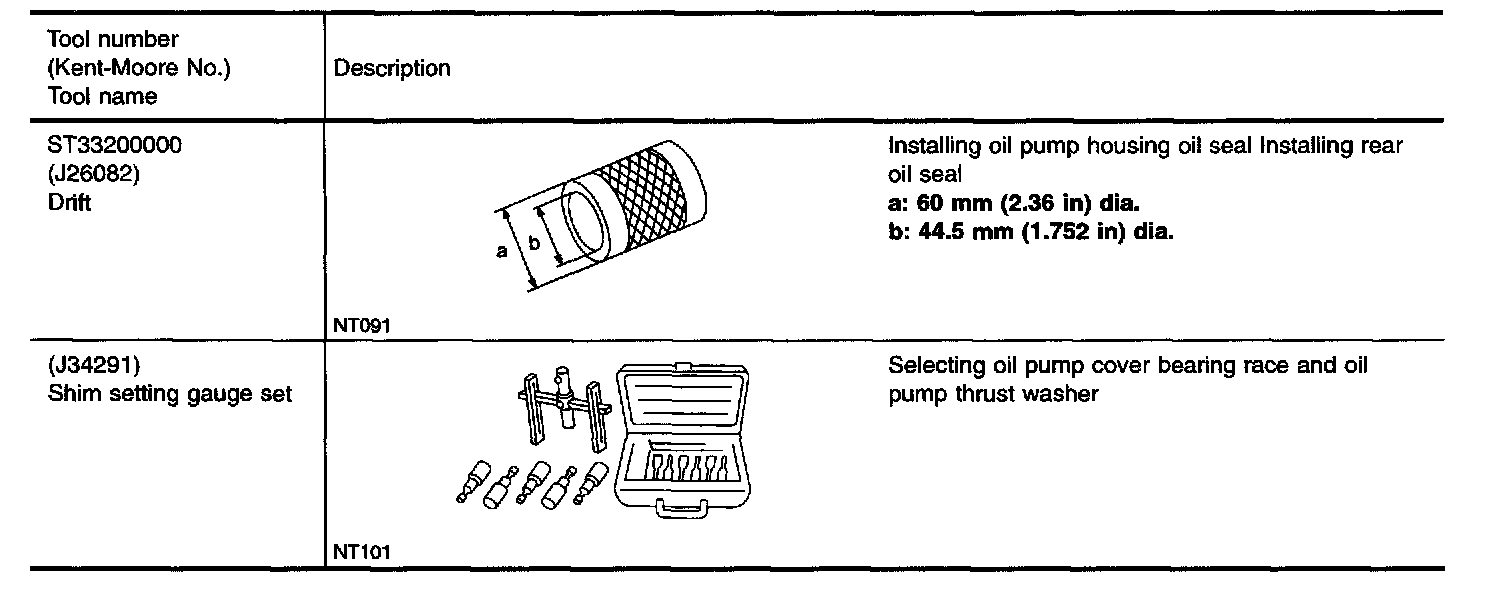

Special Service Tools
The actual shapes; of Kent-Moore tools may differ from those of special service tools illustrated here.
