Symptom Related Diagnostic Procedures

Diagnostic Procedure

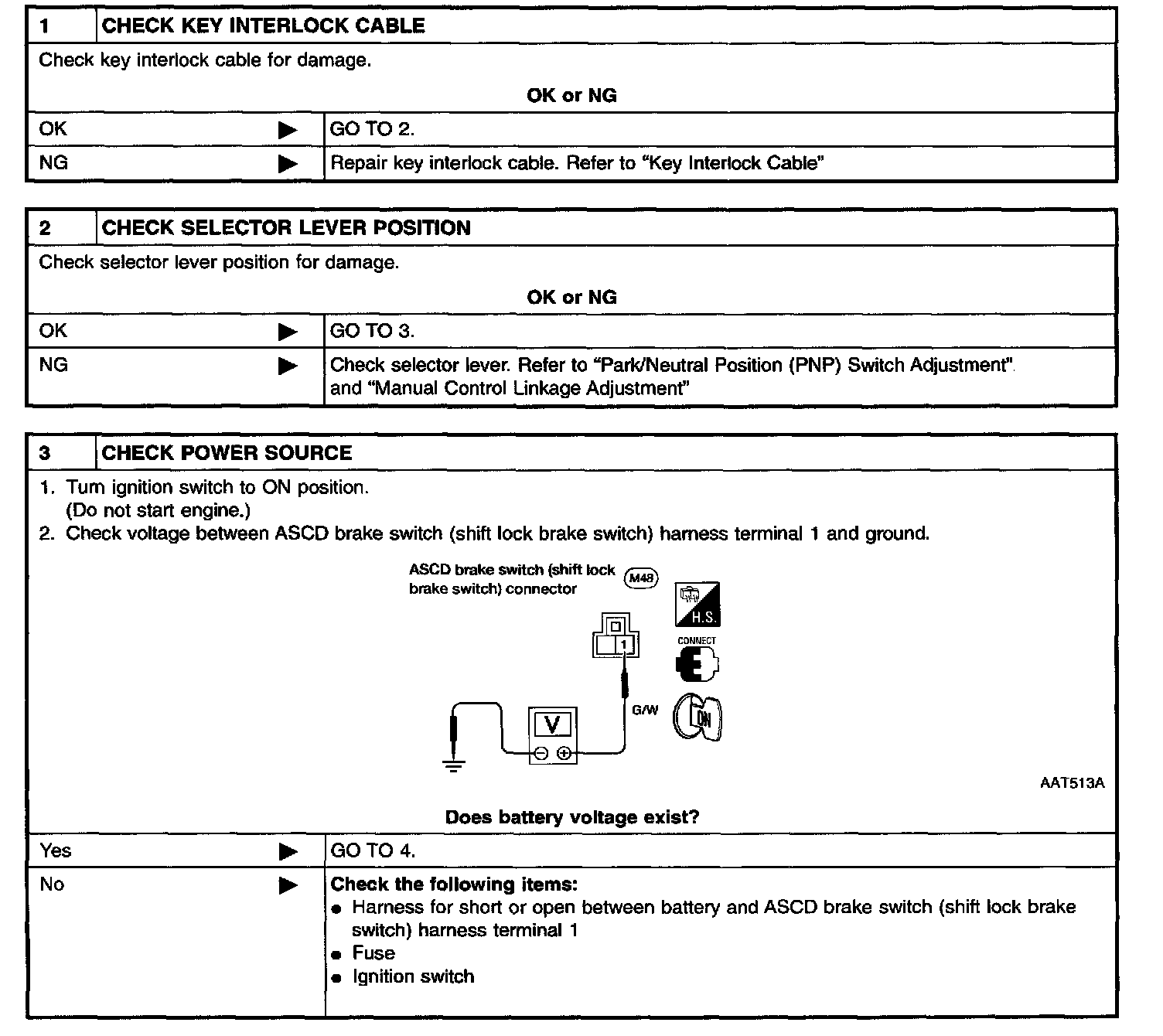

Checks 1 - 3

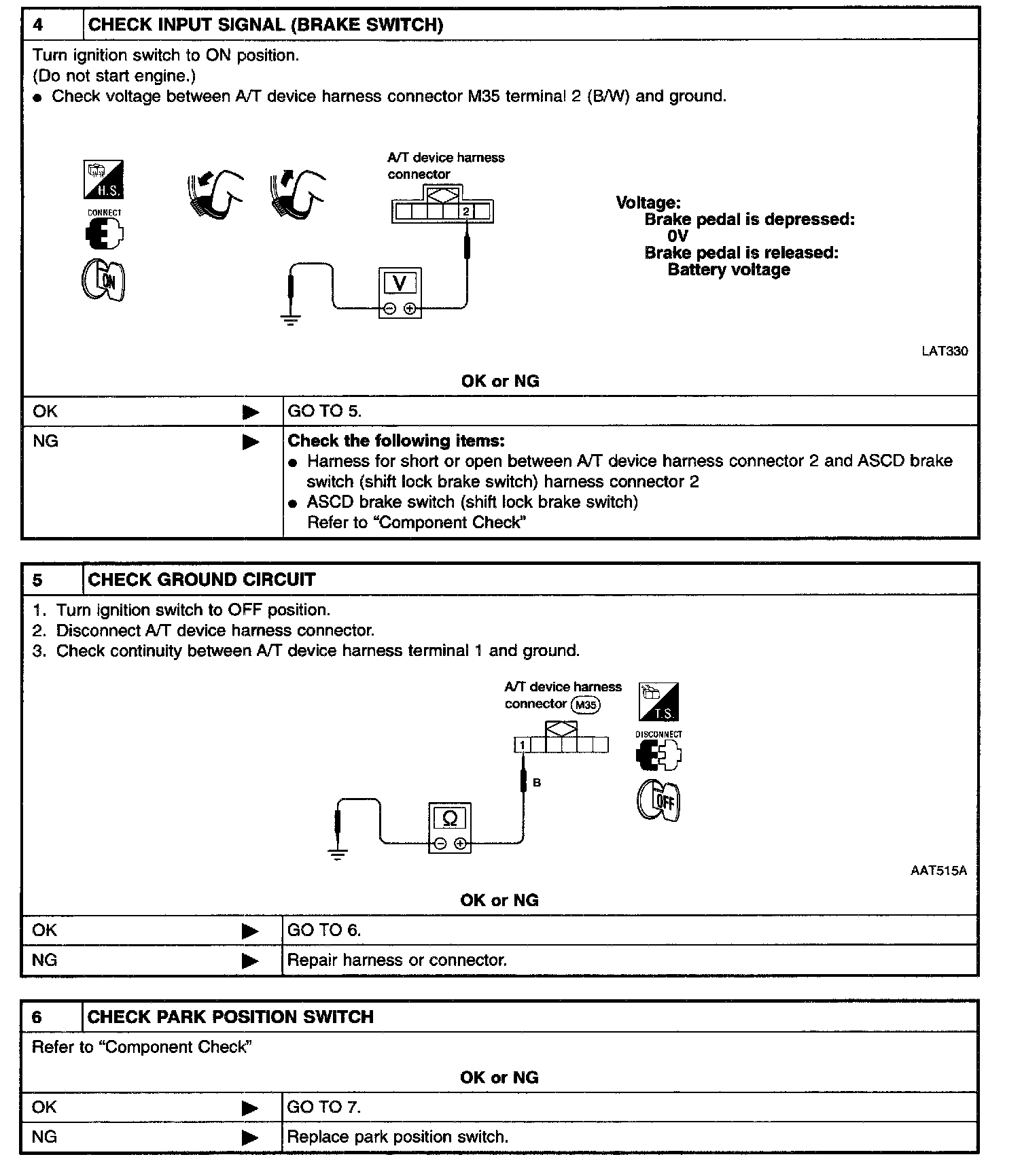

Checks 4 - 6

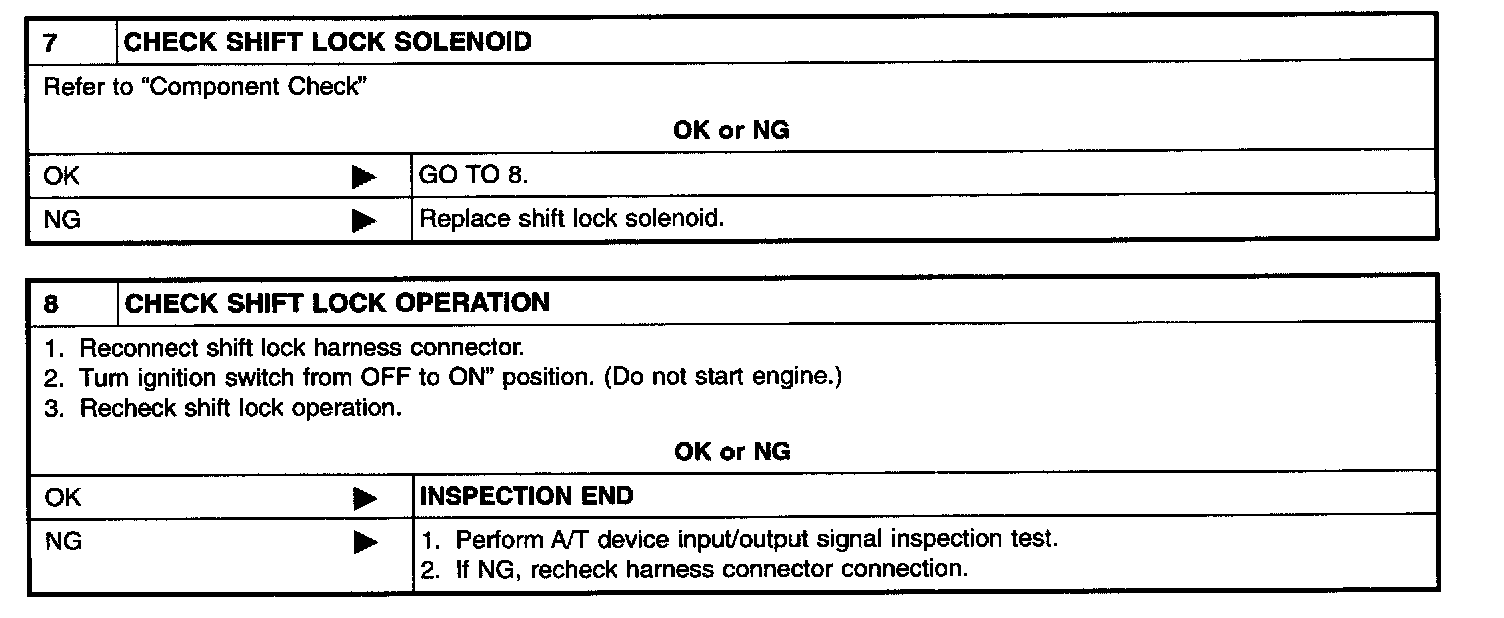

Checks 7 - 8

SYMPTOM 1:
^ Selector lever cannot be moved from P position with key in ON position and brake pedal applied.
^ Selector lever can be moved from P position with key in ON position and brake pedal released.
^ Selector lever can be moved from P position when key is removed from key cylinder.

SYMPTOM 2:
Ignition key cannot be removed when selector lever is set to P position. It can be removed when selector lever is set to any
