Ball Joint: Testing and Inspection

REMOVAL AND INSTALLATION
- Separate knuckle spindle from upper and lower links.

INSPECTION





- Check joints for play. If ball is worn and play in axial direction is excessive or joint is hard to swing, replace as a upper link or lower link.

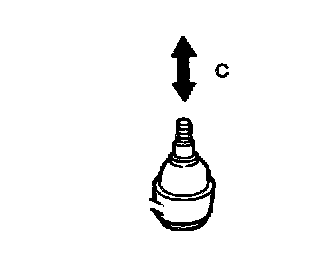

Axial end play "C":
Upper link: 0 mm (0 inch)
Lower link:
2WD KA24DE models: 1.3 mm (0.051 inch) or less
2WD & 4WD VG33E models: 0.2 mm (0.008 inch) or less
- Check dust cover for damage.
Replace dust cover and dust cover clamp if necessary.
