Multiple Junction Connector: Service and Repair

Super Multiple Junction (SMJ)







Installation

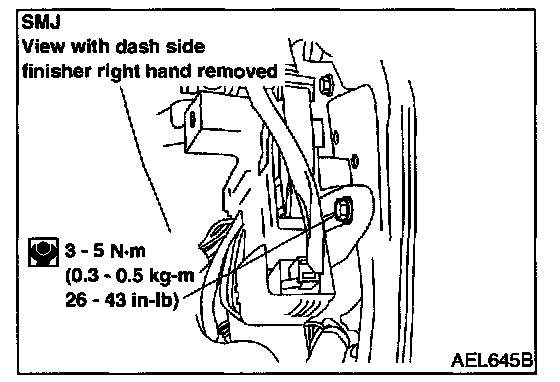

To install SMJ, tighten bolts until orange "full tight" mark appears and then retighten to specified torque.

Tightening Torque: 3 - 5 N.m (0.3 - 0.5 kg.m, 26 - 43 in.lb)

CAUTION: Do not overtighten bolts, otherwise, they may be damaged.
