Home >> Nissan-Datsun Truck >> 2001 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Starting and Charging >> Battery >> Testing and Inspection >> Component Tests and General Diagnostics >> Specific Gravity Check

Specific Gravity Check




1. Read hydrometer and thermometer indications at eye level.
2. Use the chart to correct your hydrometer reading according to electrolyte temperature.

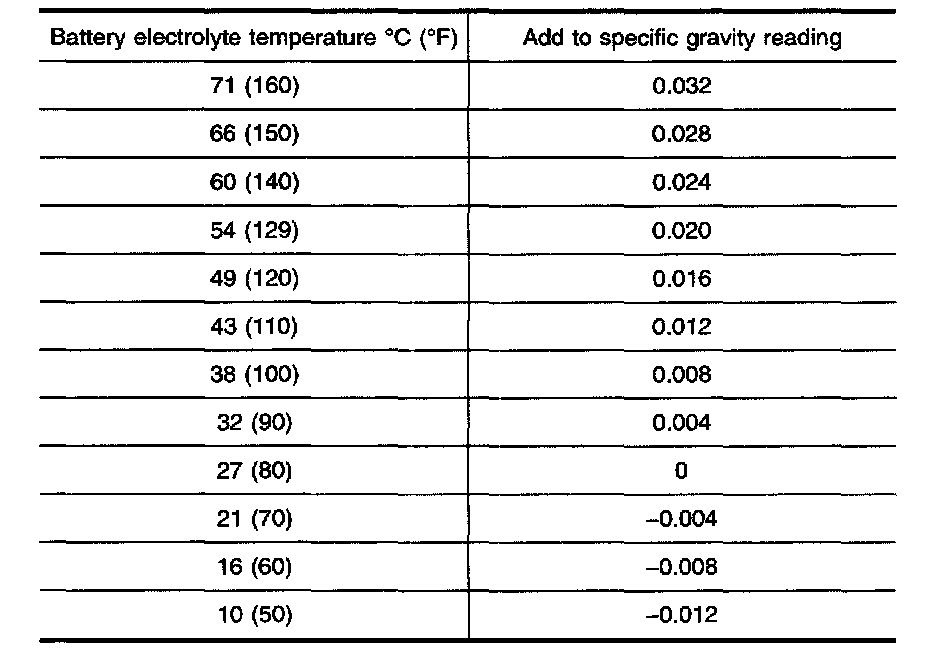

Hydrometer Temperature Correction Part 1:




Hydrometer Temperature Correction Part 2:
