Home >> Nissan-Datsun Truck >> 2001 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Main Bearings >> Standard

Standard

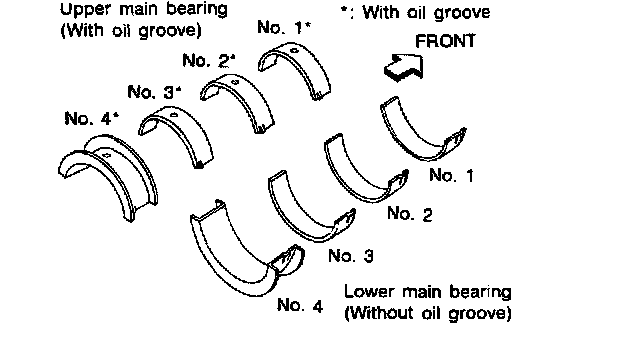

Available Main Bearing

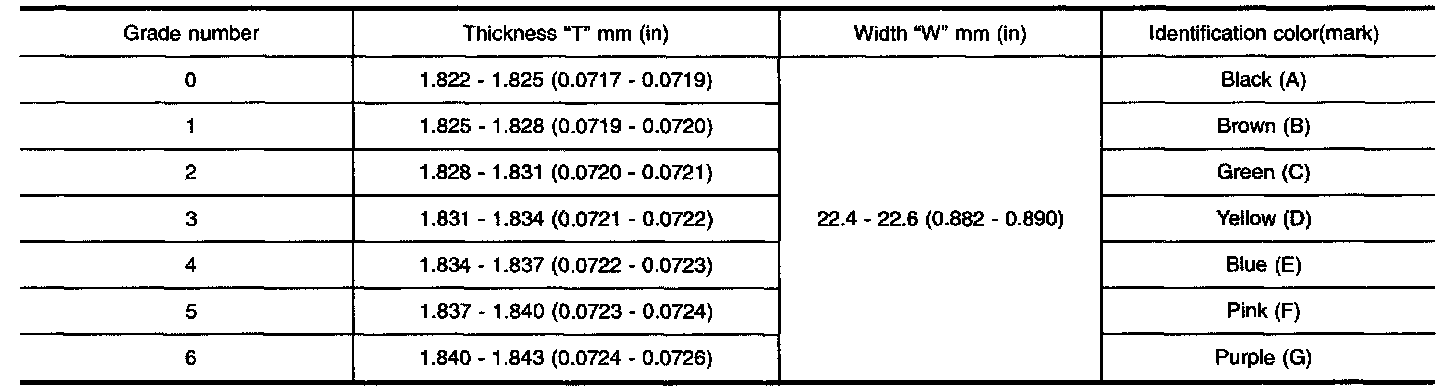

NO. 1 MAIN BEARING

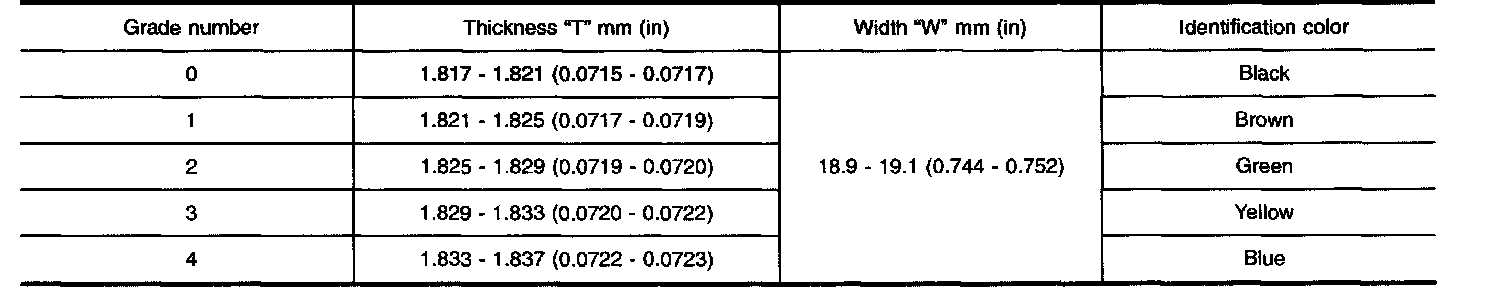

NO. 2 AND 3 MAIN BEARING

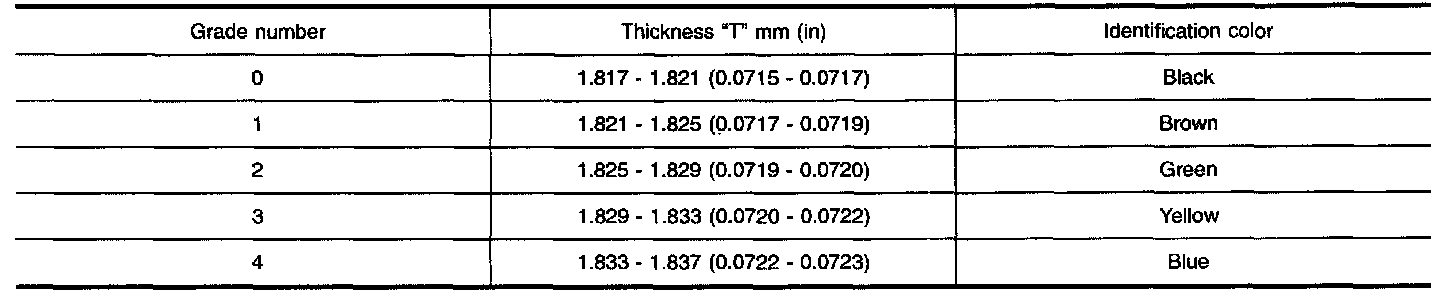

NO. 4 MAIN BEARING
