Front Axle

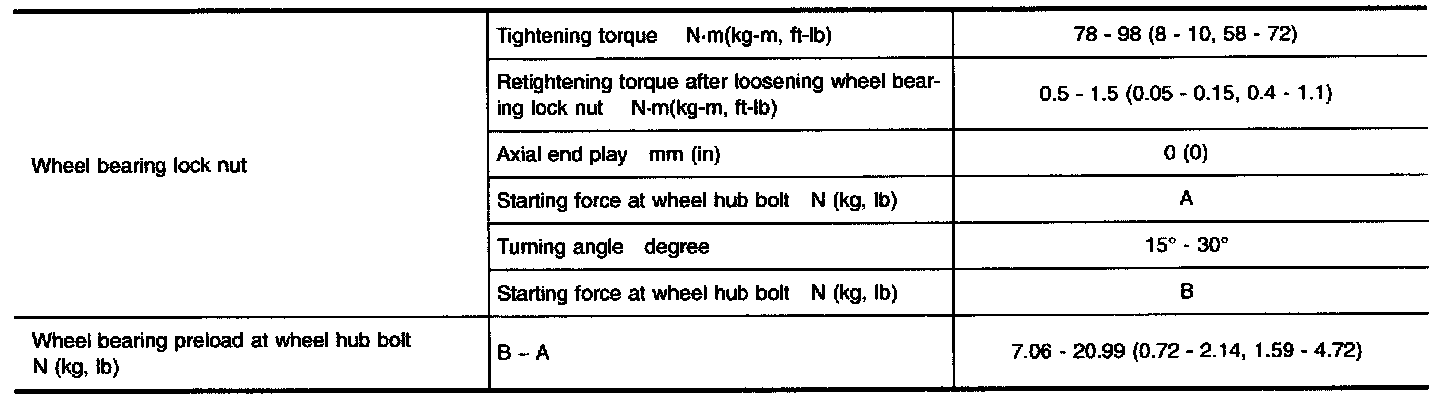

WHEEL BEARING (FRONT)





2WD Models





4WD Models

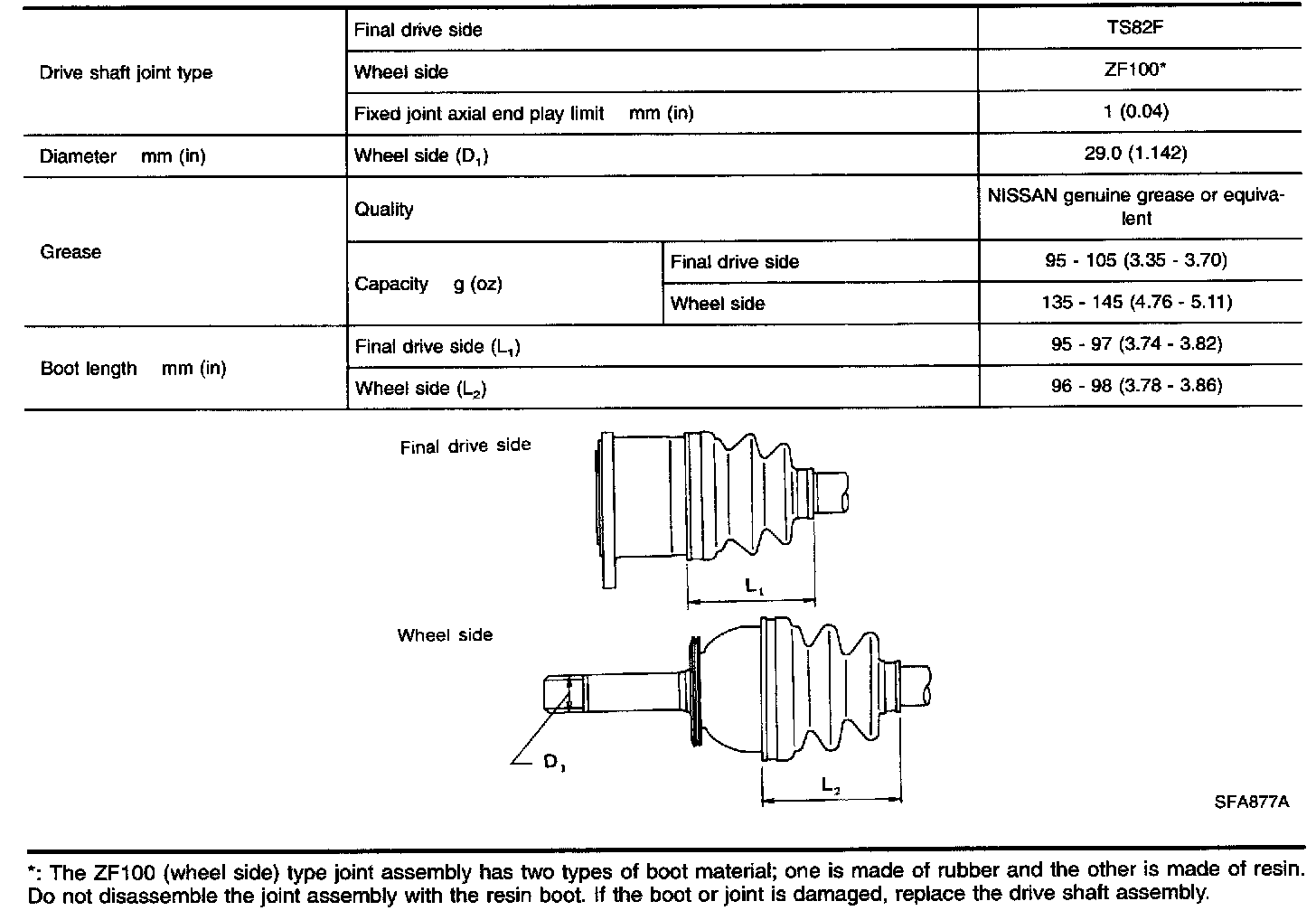

DRIVE SHAFT (4WD MODELS)





Drive Shaft Axle End Play

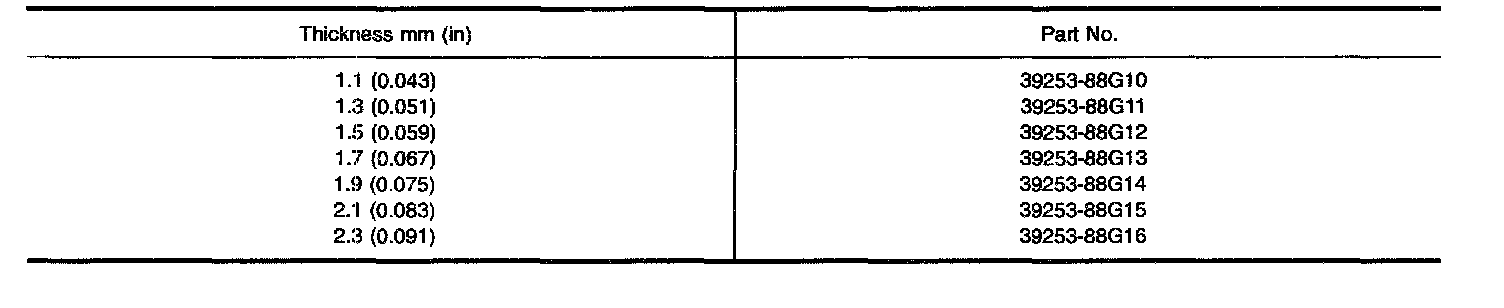

Drive Shaft End Snap Ring - Fron:





Drive Shaft End Snap Ring
