Temperature Sensor (Gauge): Testing and Inspection

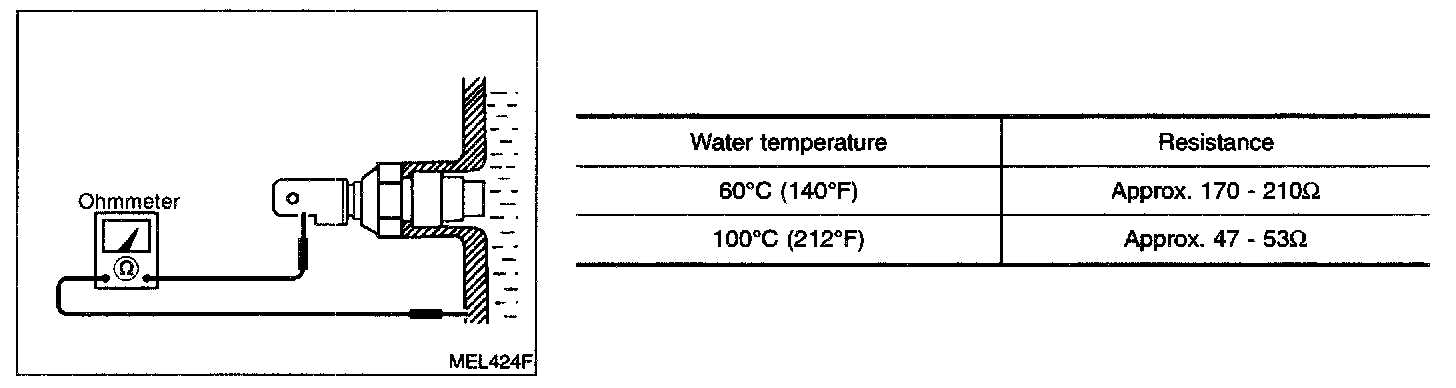

THERMAL TRANSMITTER CHECK
Check the resistance between thermal transmitter terminal 1 and body ground.
