Wheel Speed Sensor: Service and Repair

REMOVAL AND INSTALLATION

CAUTION: Be careful not to damage sensor edge and sensor rotor teeth. When removing the front or rear wheel hub assembly, disconnect the ABS wheel sensor from the assembly and move it away.

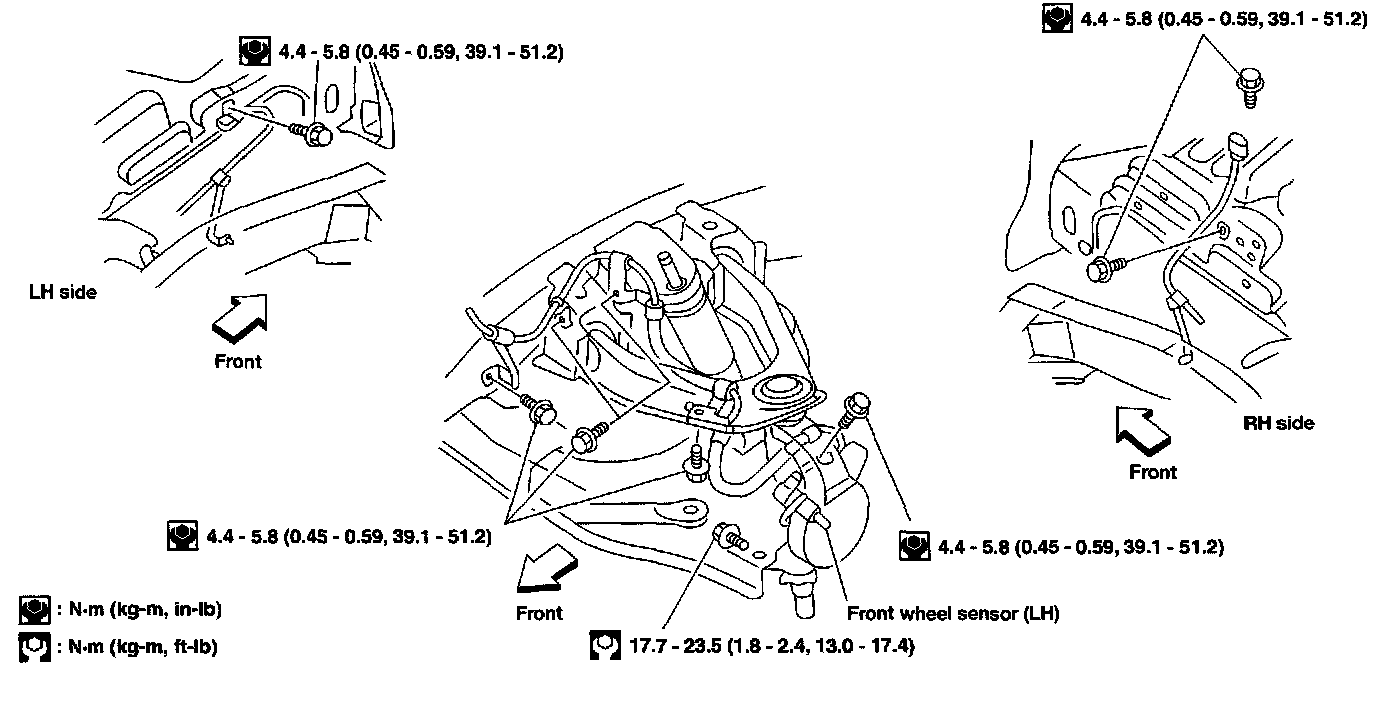

Front Wheel Sensor

Rear Wheel Sensor





4WD MODELS

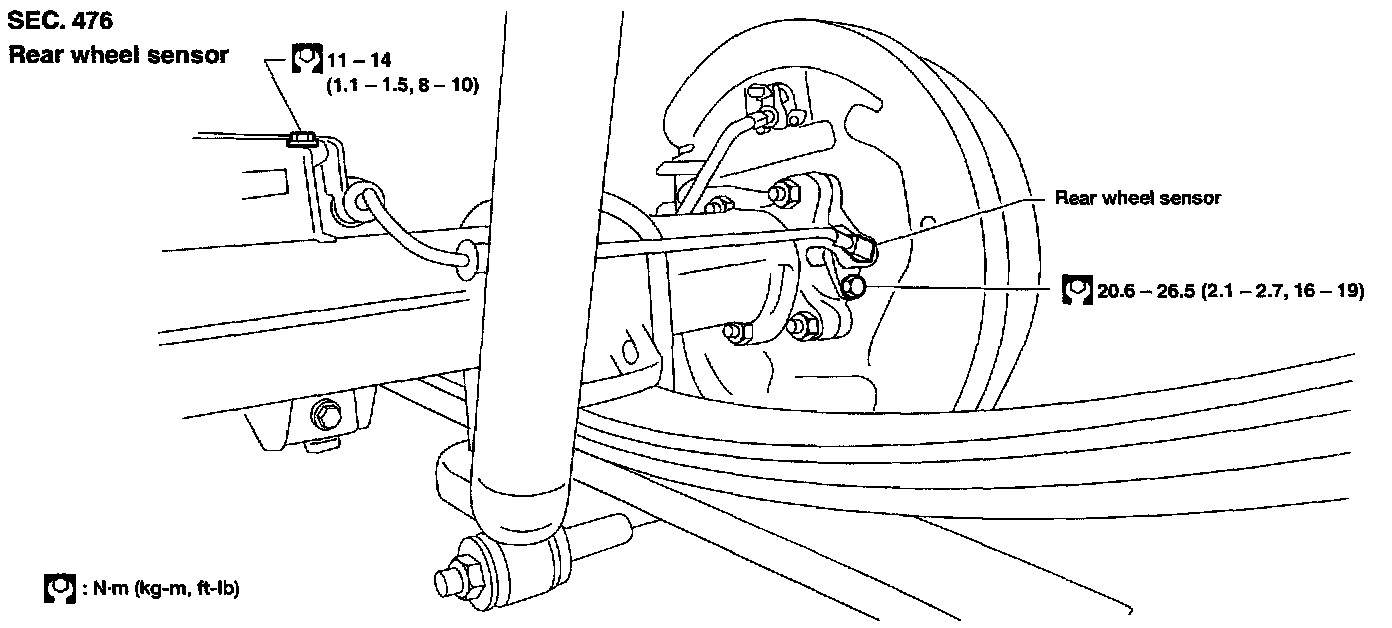

2WD MODELS

CAUTION: Be careful not to damage sensor edge and sensor rotor teeth. In case the final drive assembly needs to be removed, disconnect the ABS sensor from the final drive assembly and move it away. Failure to do so may result in damage to the sensor wires making the sensor inoperative.

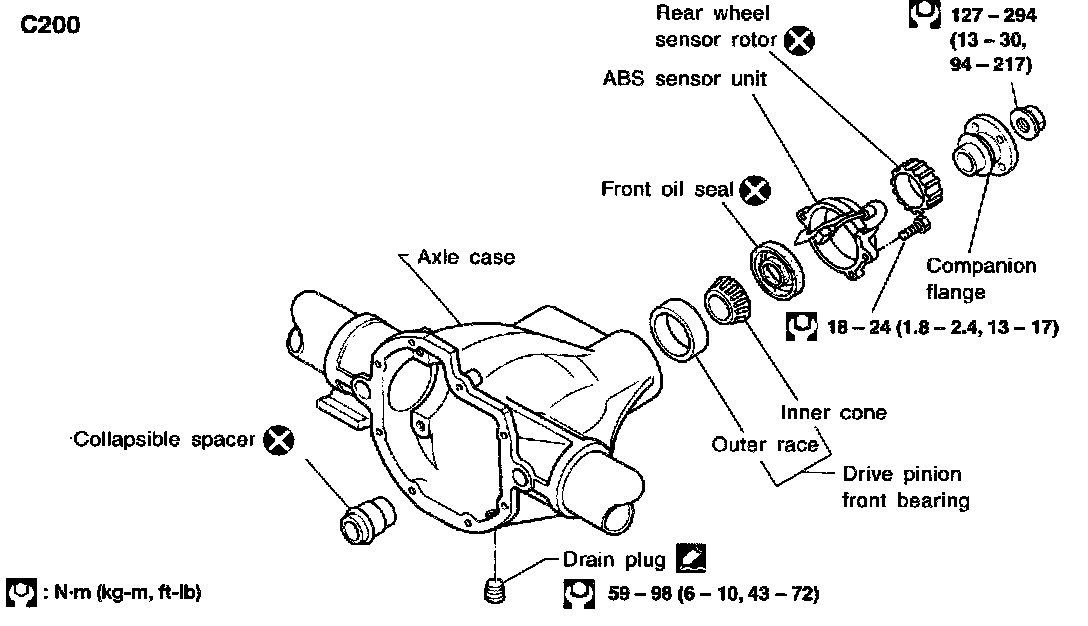

For final drive models using collapsible spacer (C200), bearing preload must be adjusted whenever companion flange is removed Therefore final drive overhaul is required.
