A/T Does Not Shift: D3->D4
A/T Does Not Shift: D3->D4
A/T Does Not Shift: D3-> D4

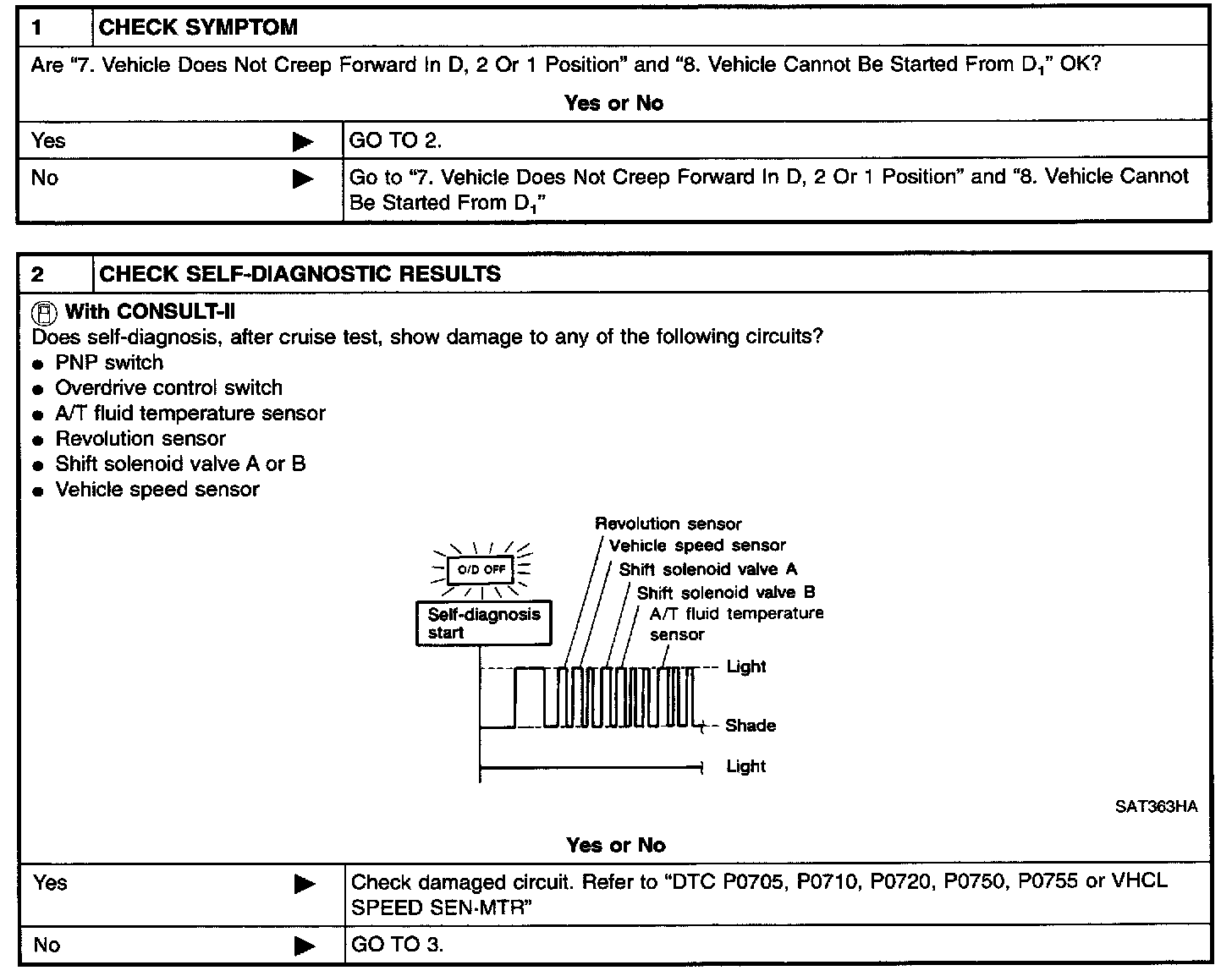

Checks 1 - 2

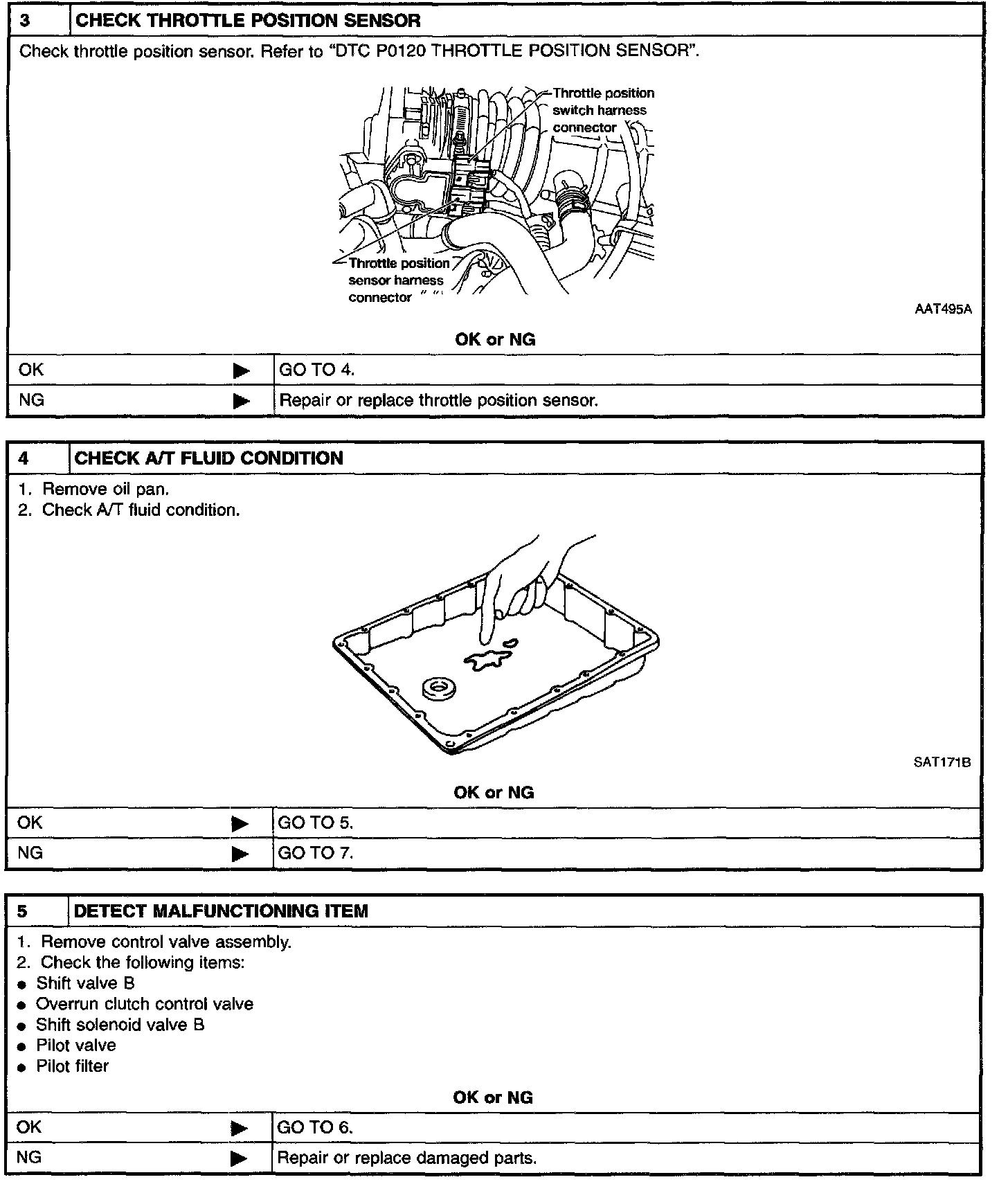

Checks 3 - 5

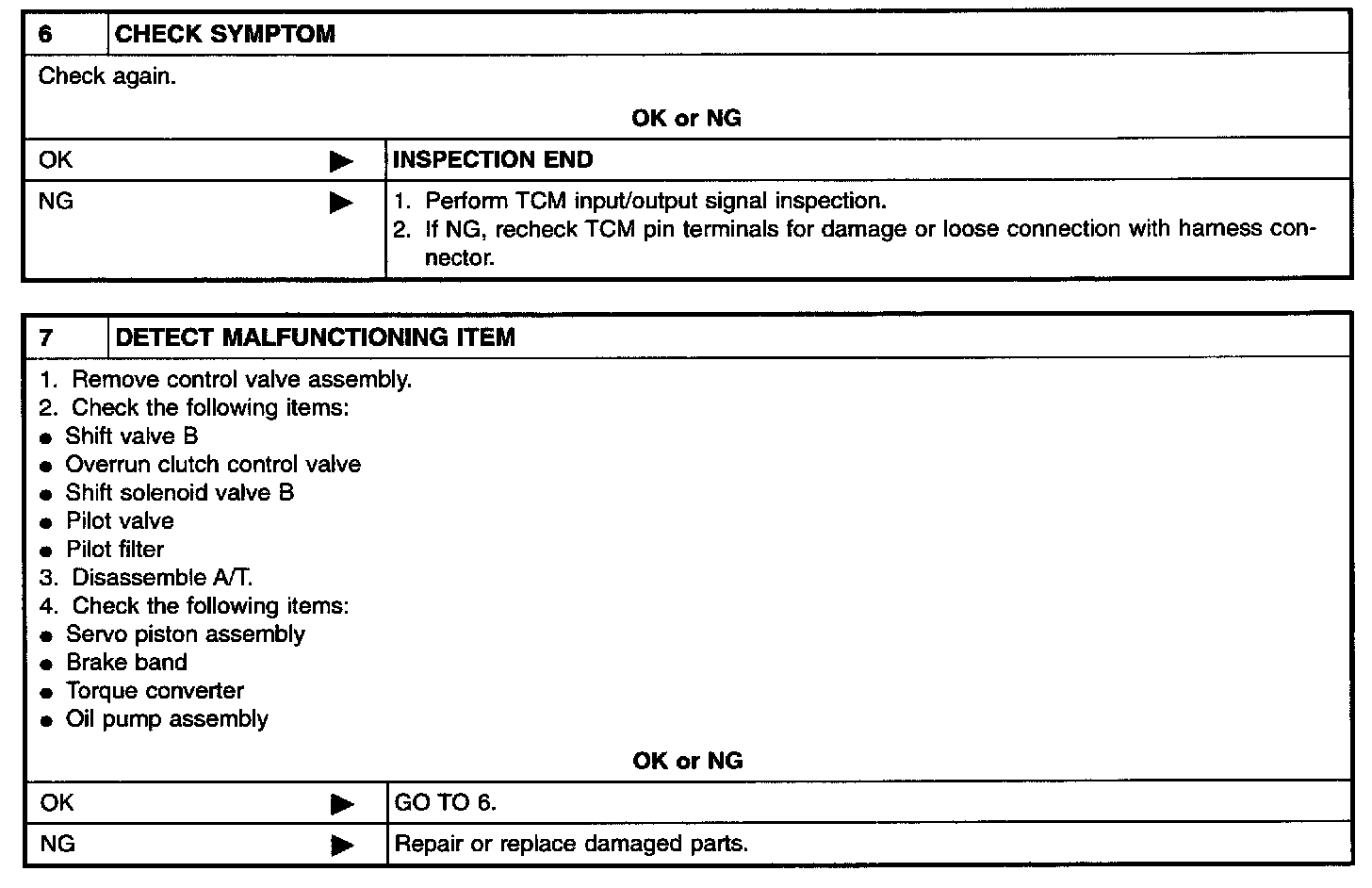

Checks 6 - 7
SYMPTOM:
^
A/T does not shift from D(3) to D(4) at the specified speed.
^
A/T must be warm before D(3) to D(4) shift will occur.
