Pinout Values and Diagnostic Parameters

TCM Terminals and Reference Value
PREPARATION

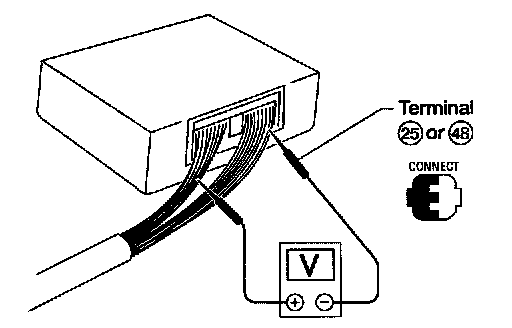

- Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".

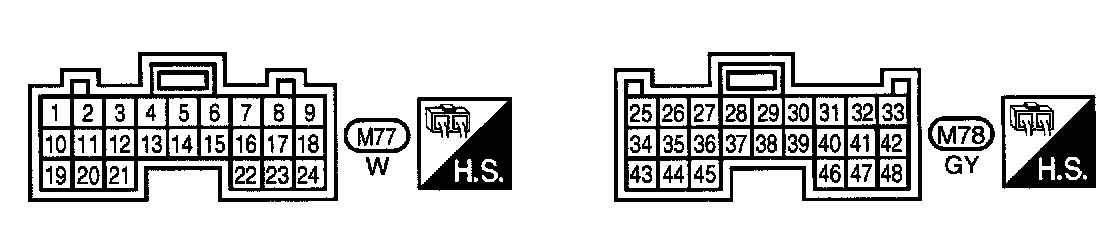

TCM HARNESS CONNECTOR TERMINAL LAYOUT

TCM INSPECTION TABLE

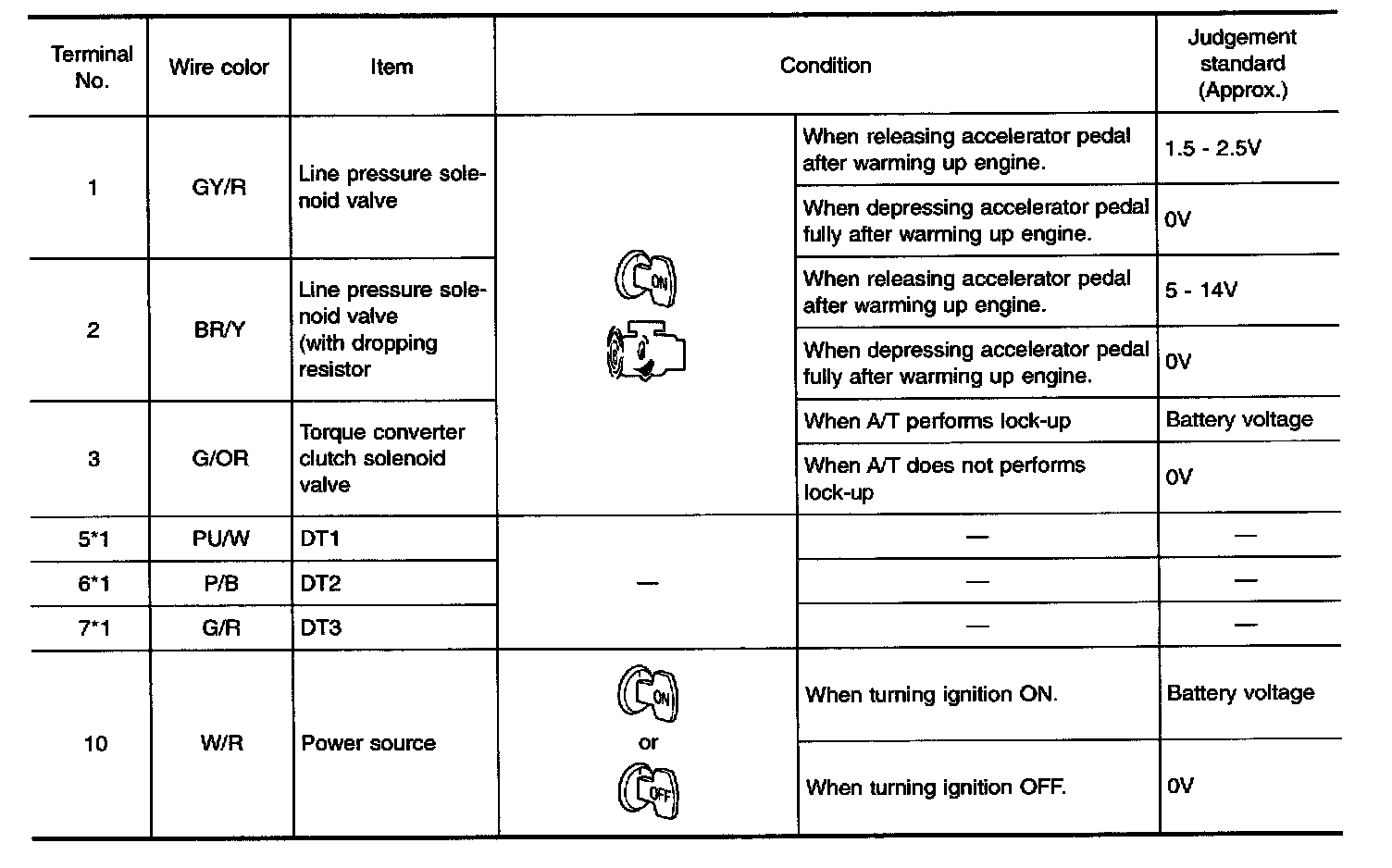

Terminals 1 through 10

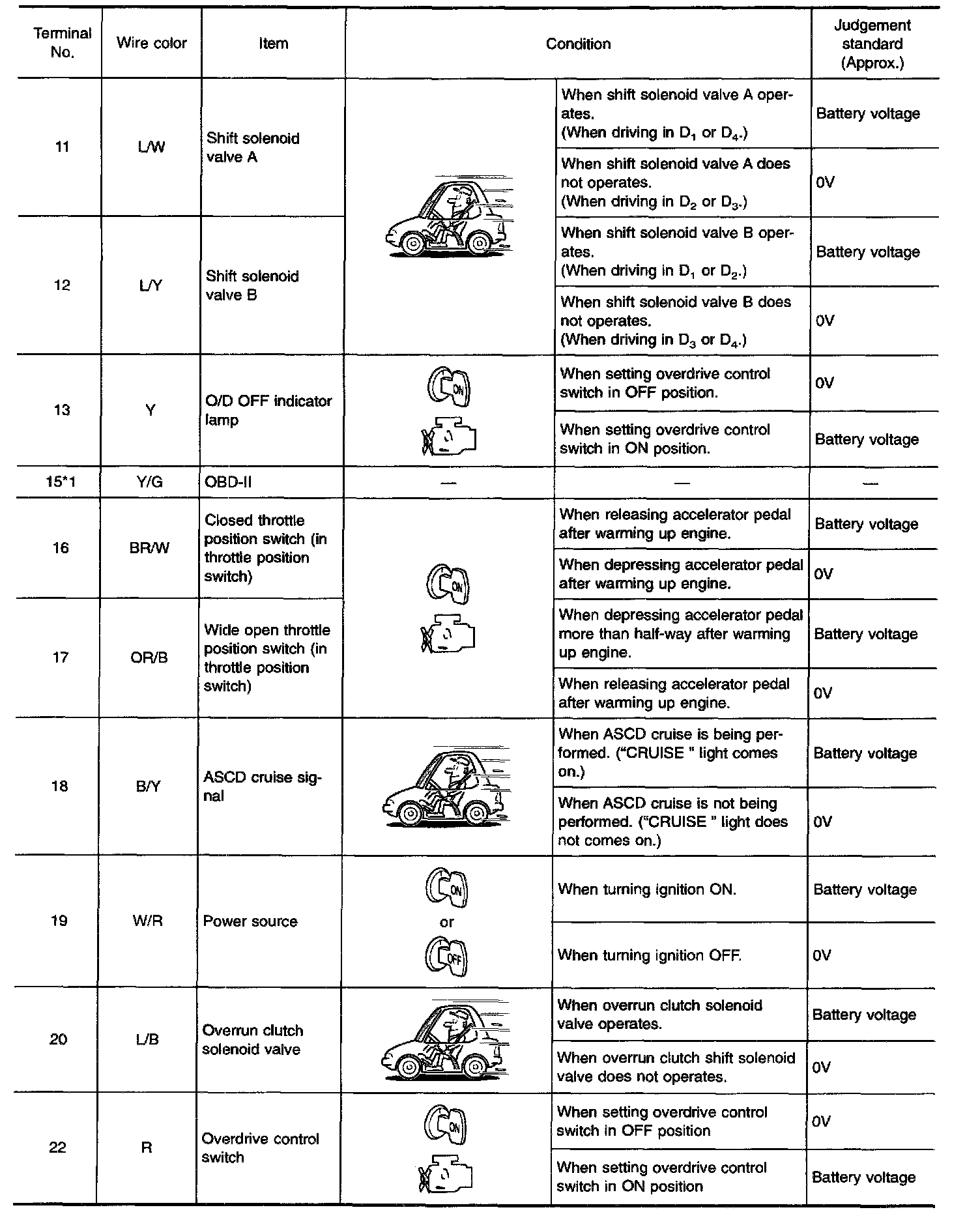

Terminals 11 through 22





Terminals 24 through 32

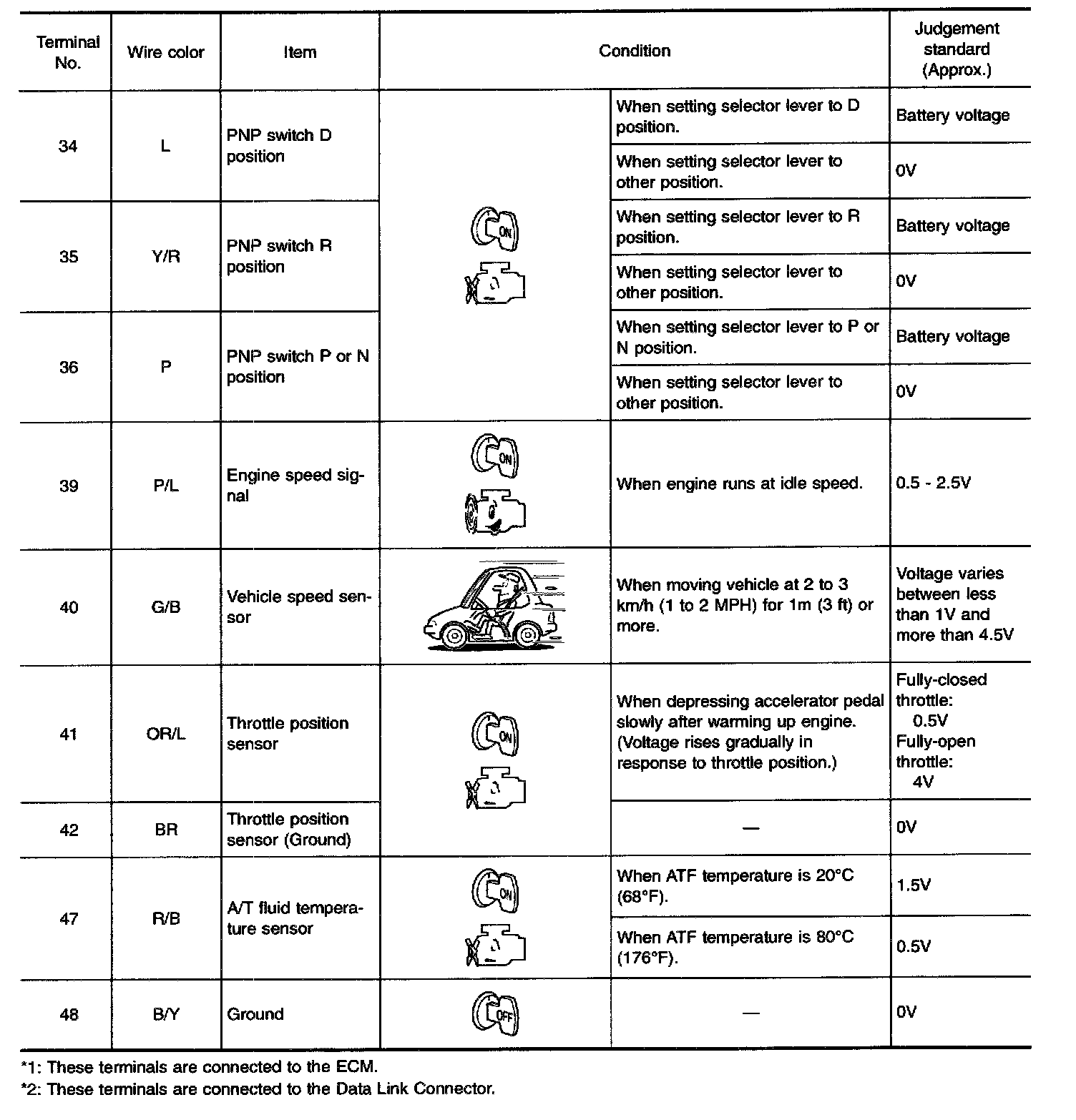

Terminals 34 through 48
