IACV-FICD Solenoid Valve

Component Description
When the air conditioner is on, the IACV-FICD solenoid valve supplies additional air to adjust to the increased load. For more information, refer to "FAST IDLE CONTROL DEVICE (FICD)".

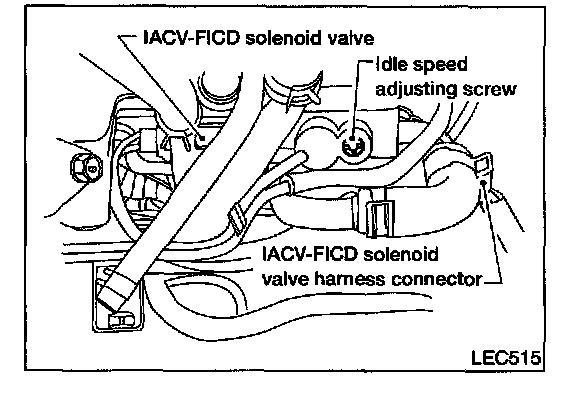

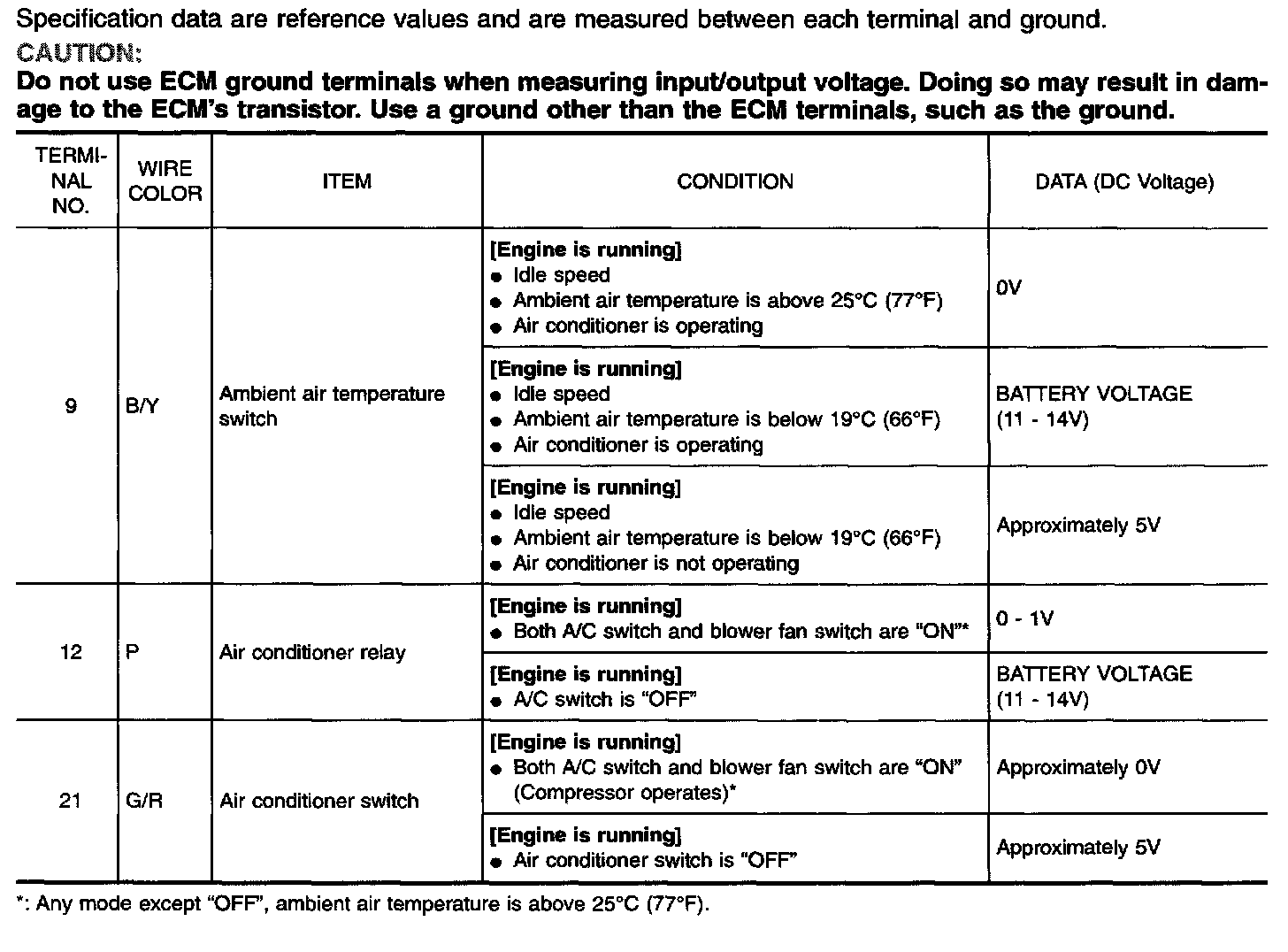

ECM Terminals And Reference Value:

EC-FICD-01:

EC-FICD-01 Connector View:

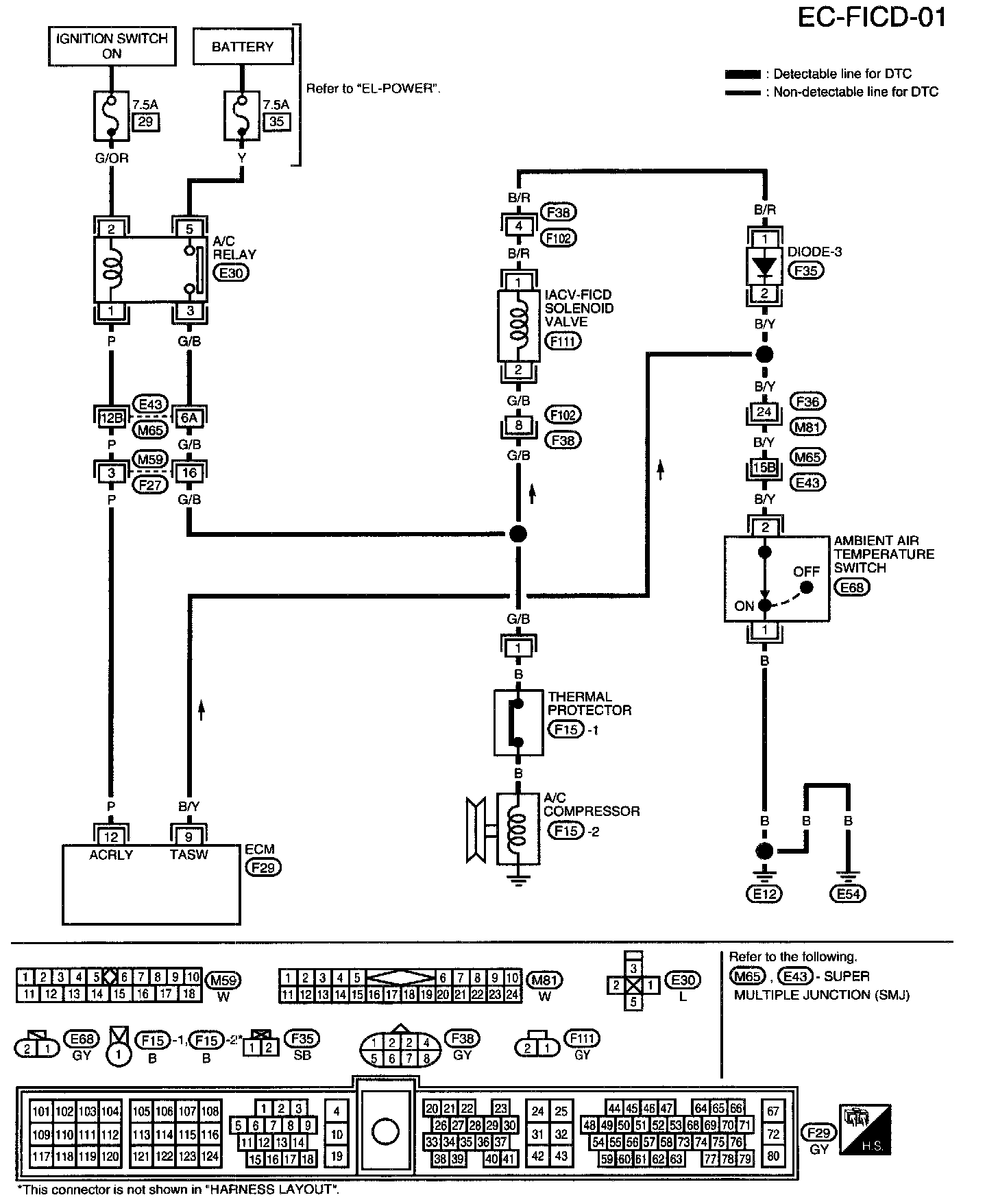

Wiring Diagram

Super Multiple Junction (SMJ) Terminal Arrangement (E43, M65):

Steps 1 - 2:

Steps 3 - 5:

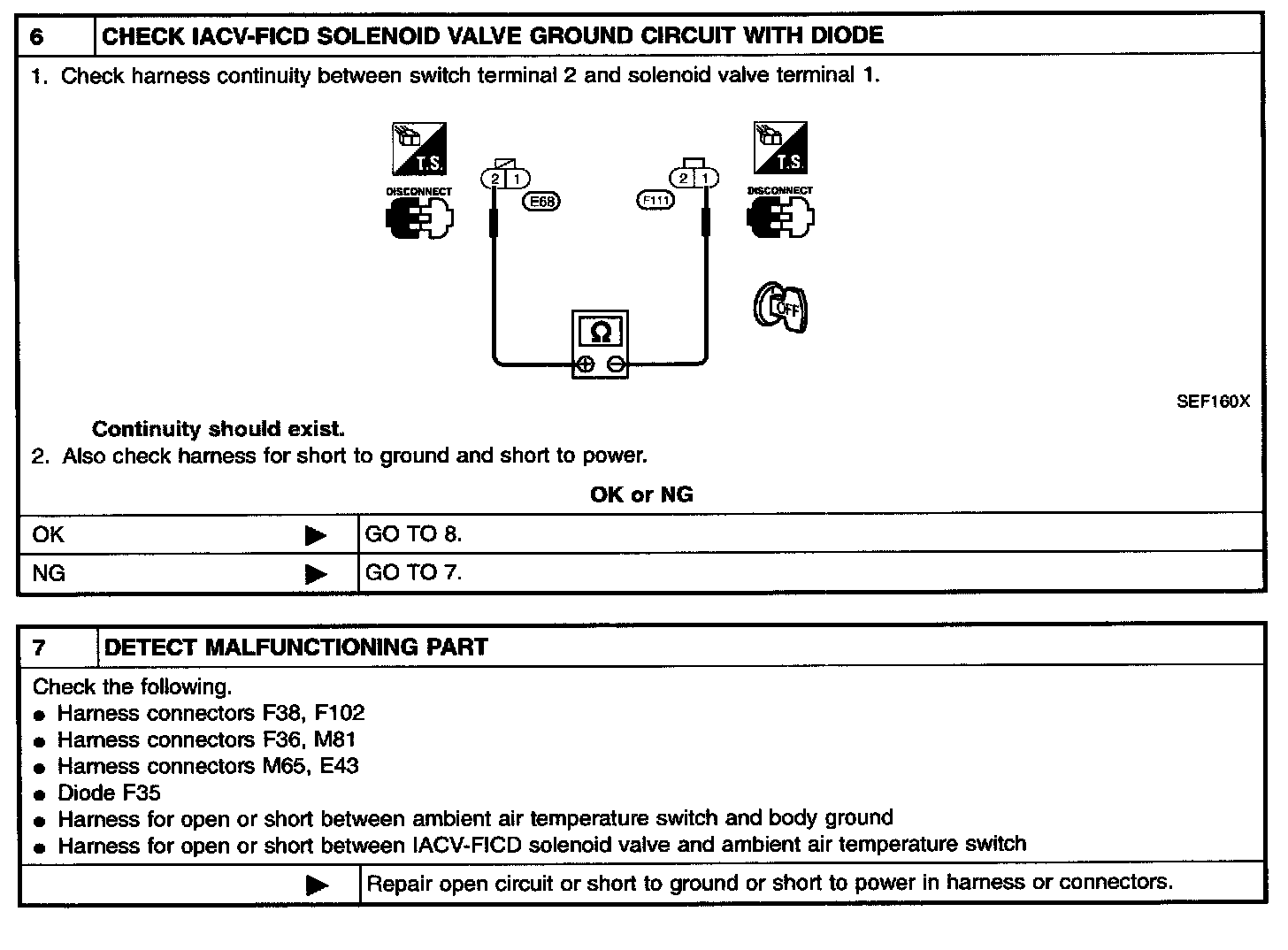

Steps 6 - 7:

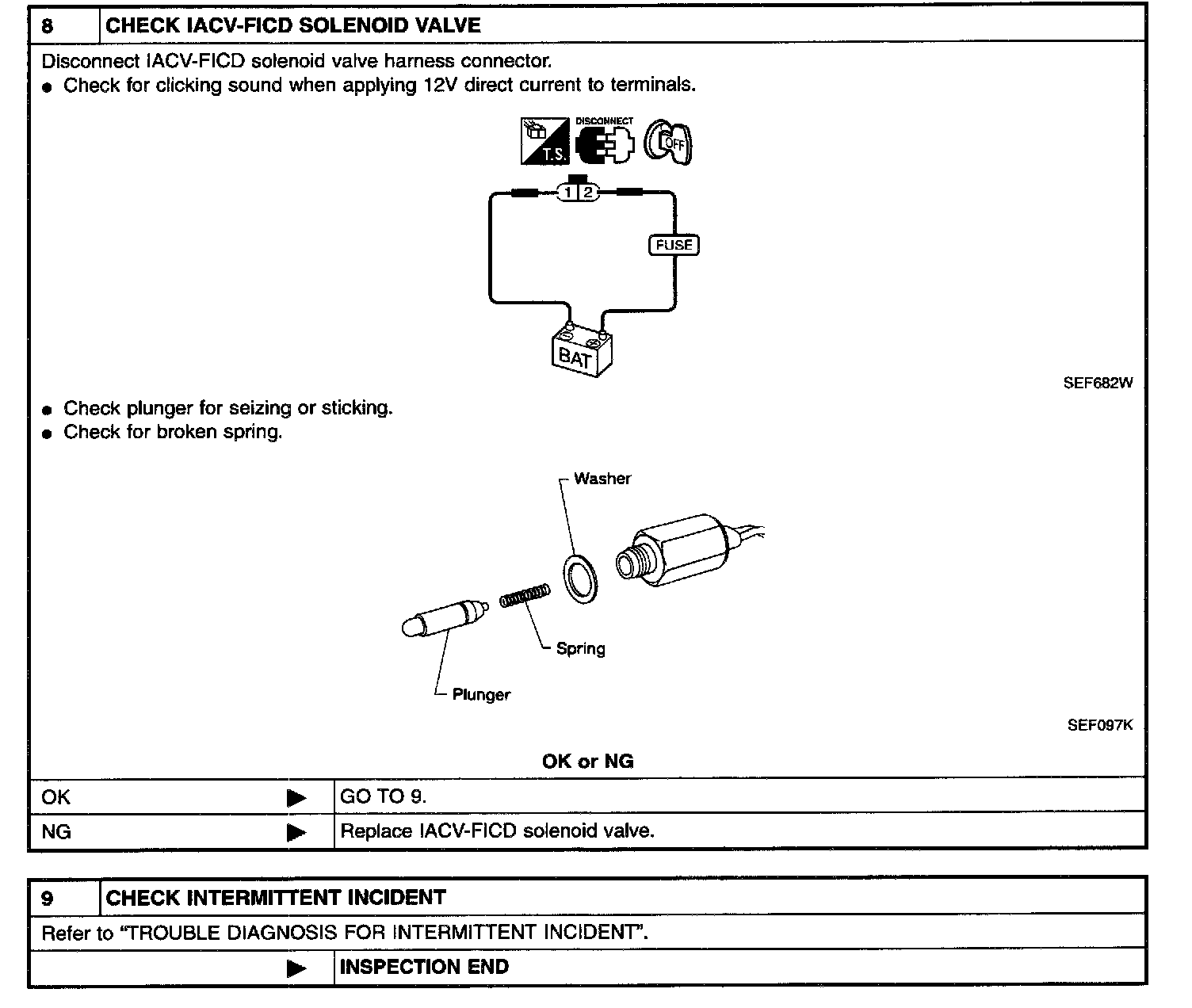

Steps 8 - 9:

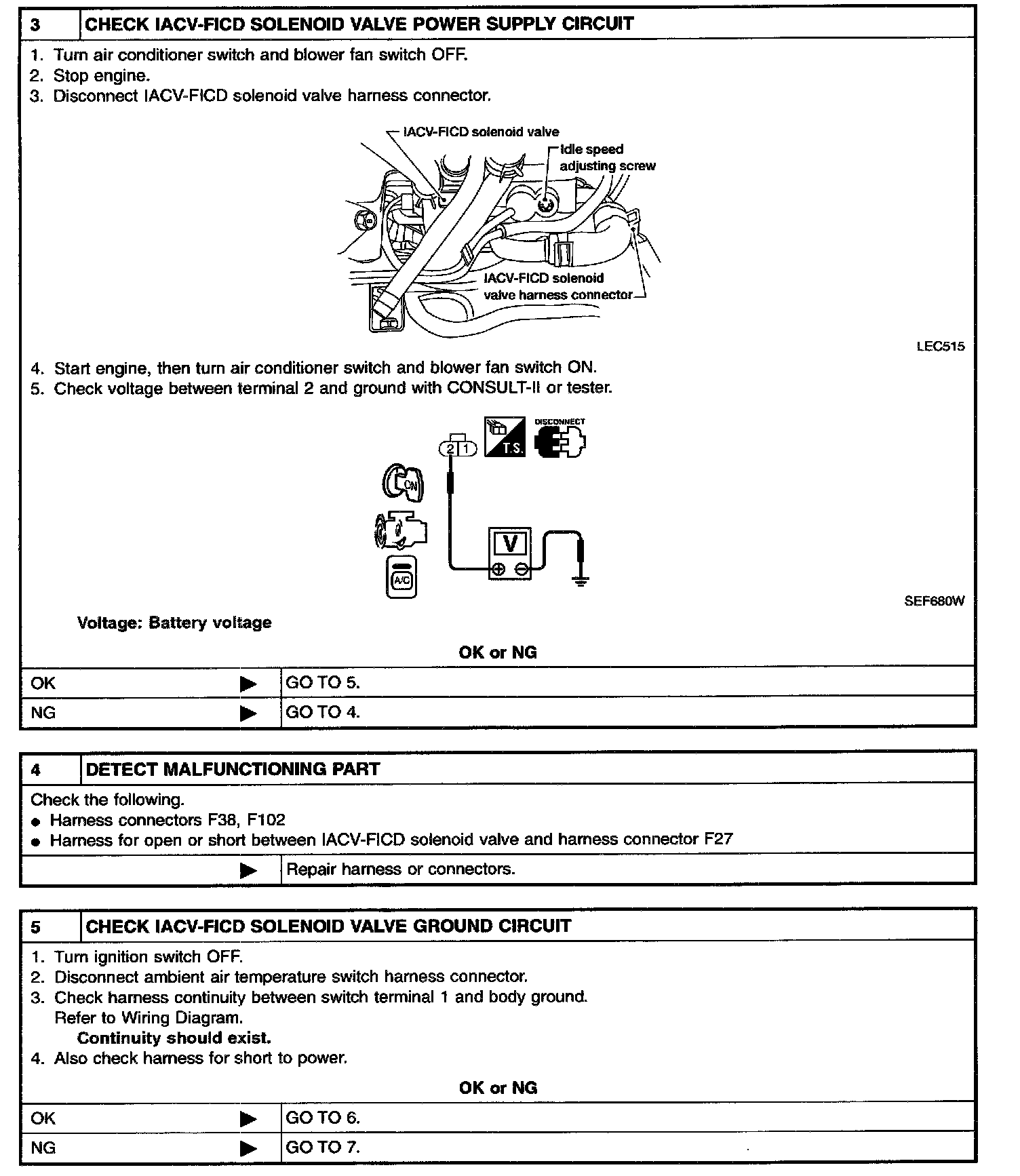

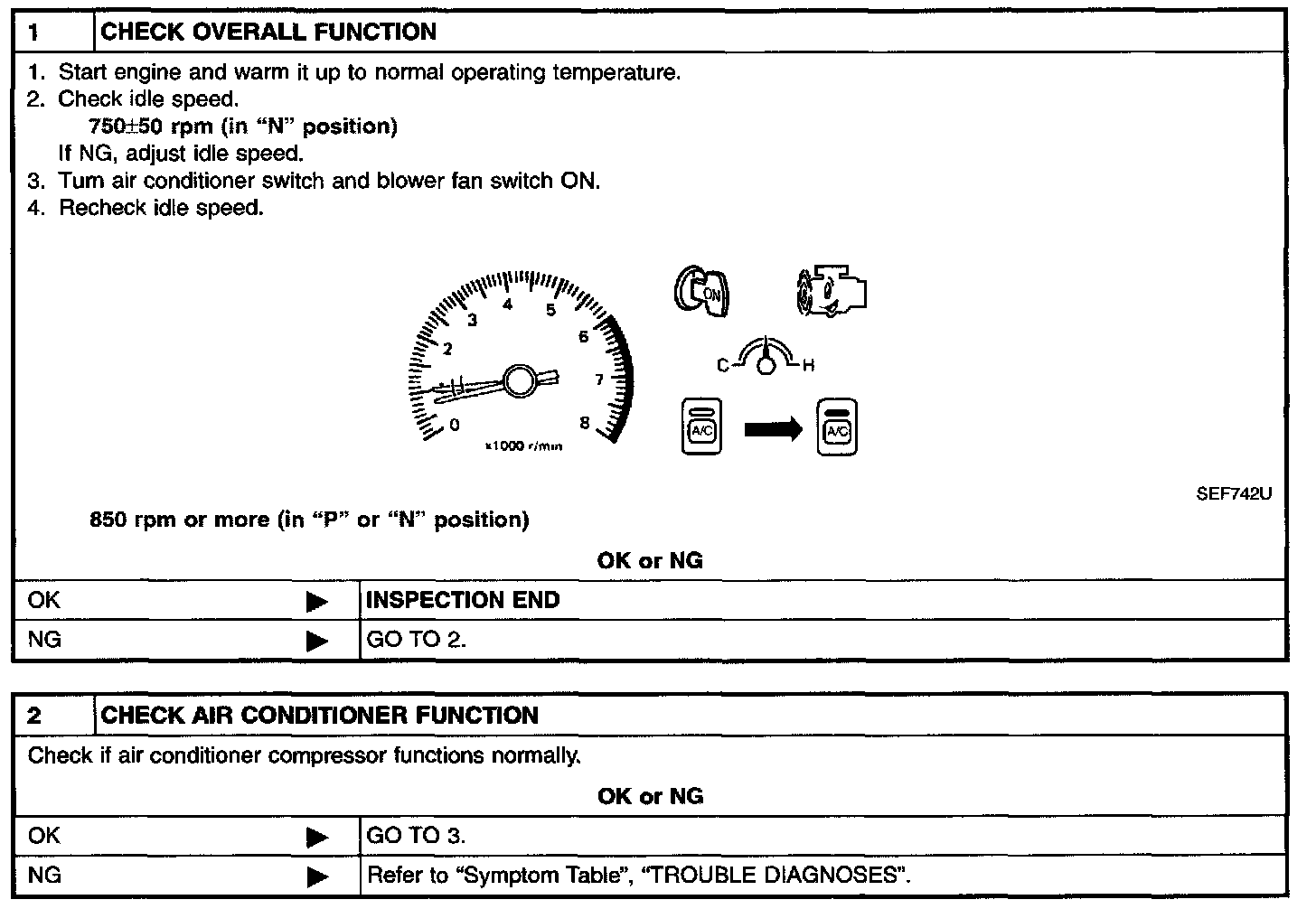

Diagnostic Procedure
