Intake Door

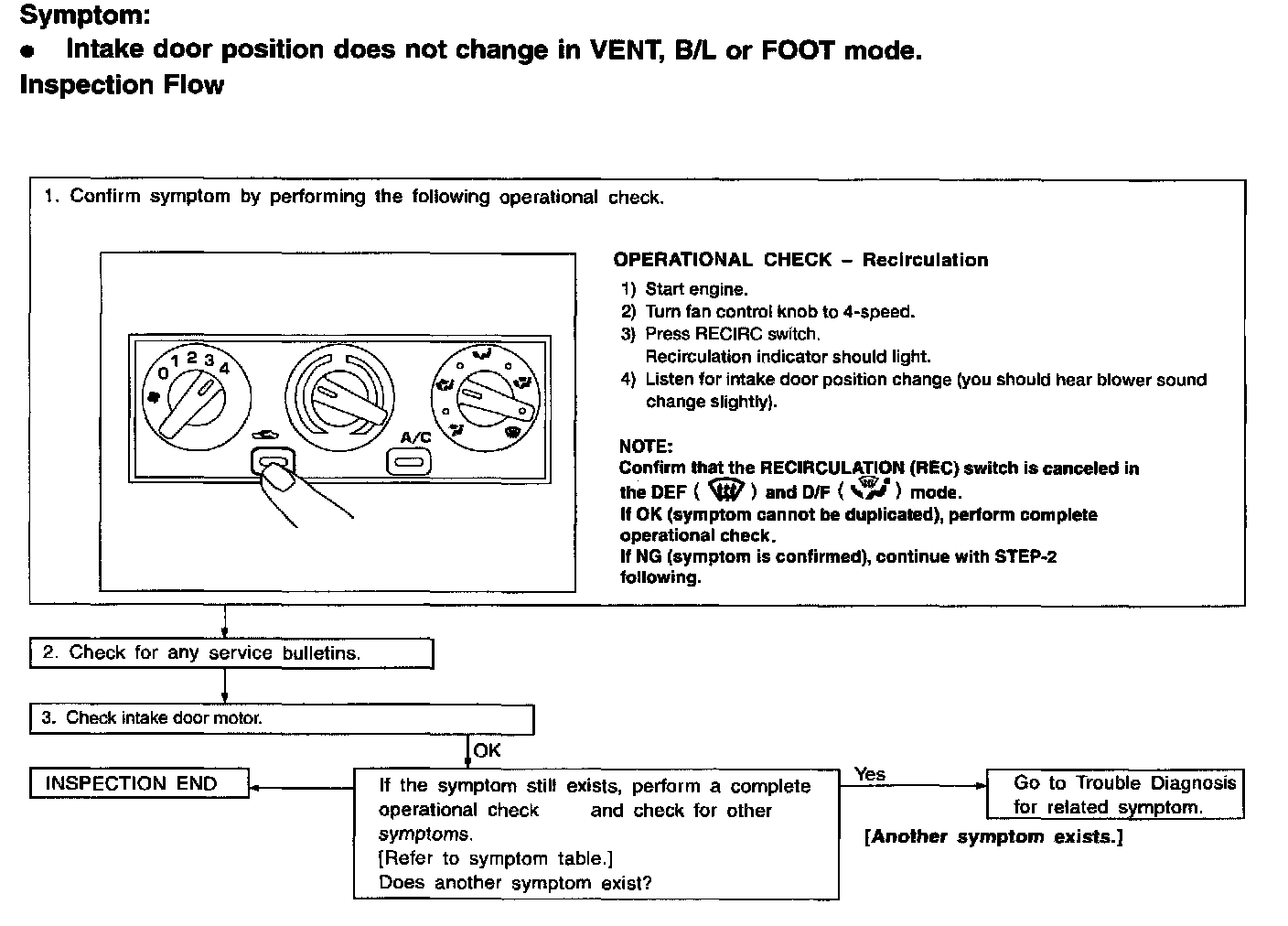

Trouble Diagnosis Procedure For Intake Door:

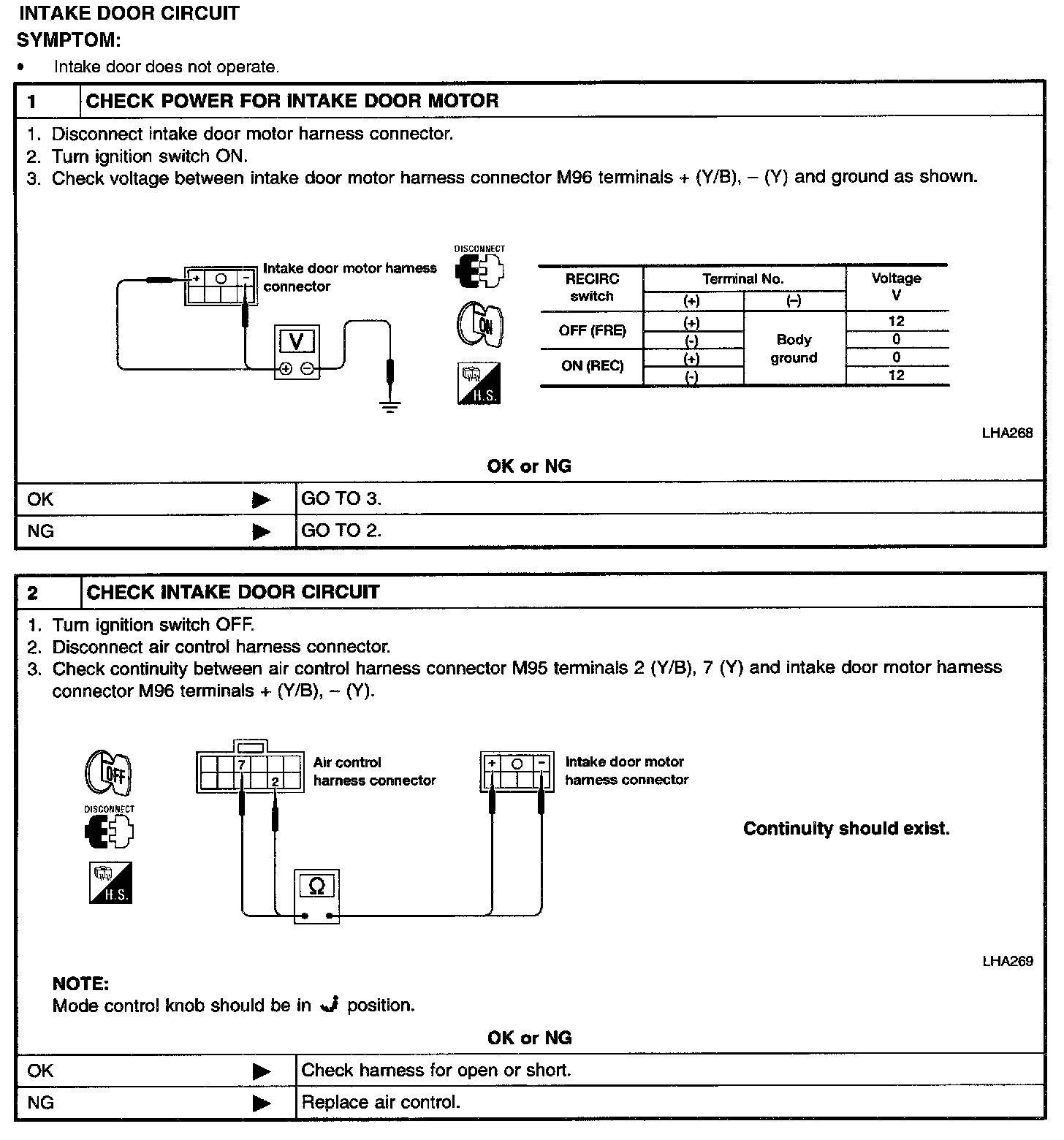

Intake Door Circuit, Steps 1 - 2:

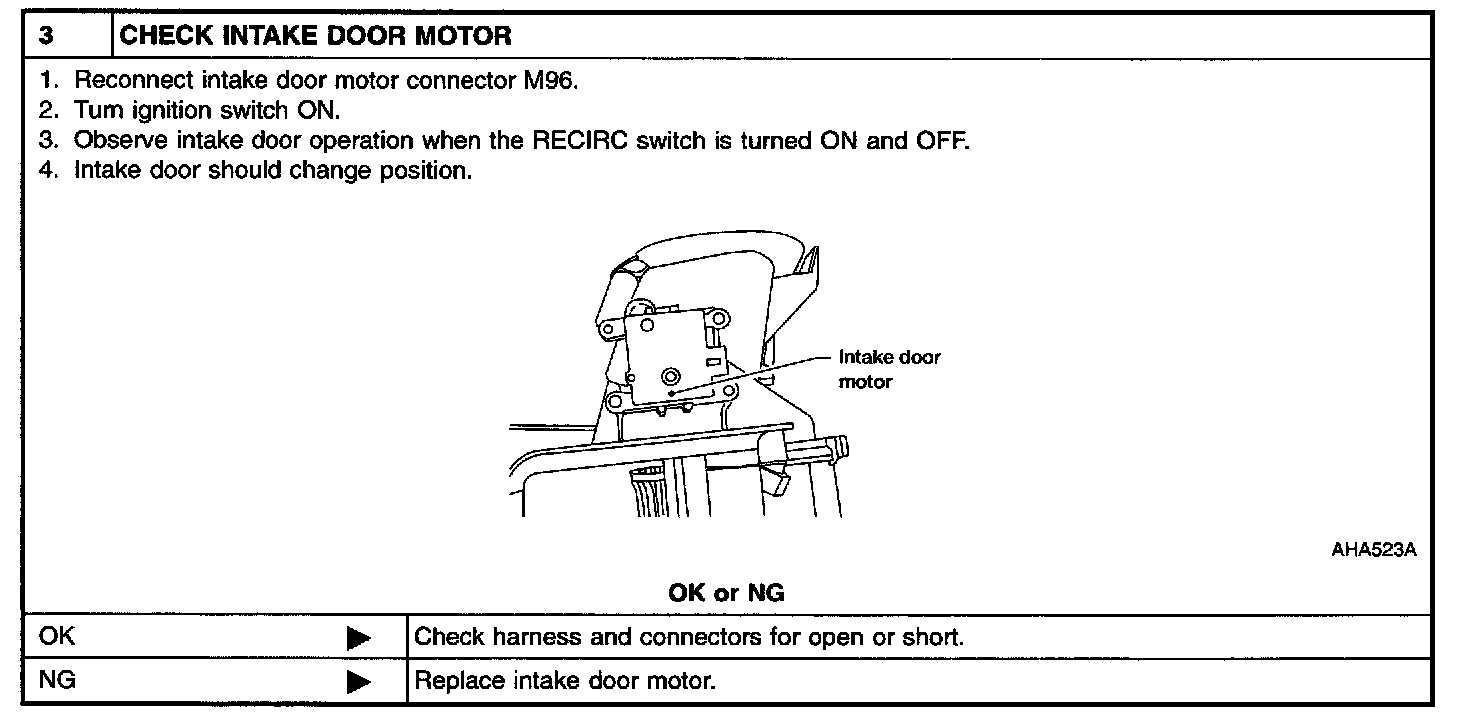

Intake Door Circuit, Step 3:
