Home >> Nissan-Datsun Truck >> 2001 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Testing and Inspection >> Blend Door

Blend Door

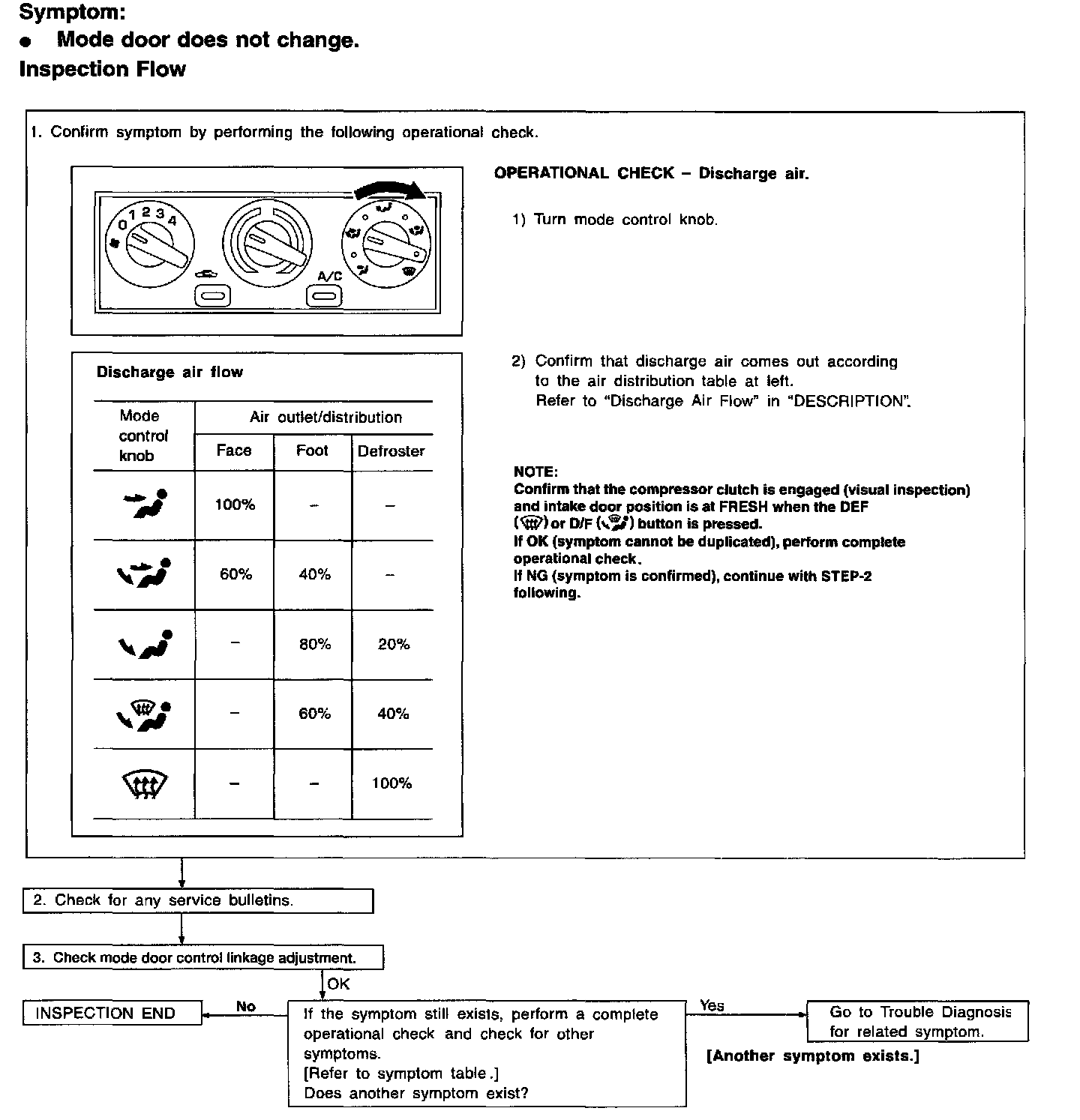

Mode Door - Trouble Diagnosis Procedure:
