Other Referenced Connectors
Other Referenced Connectors

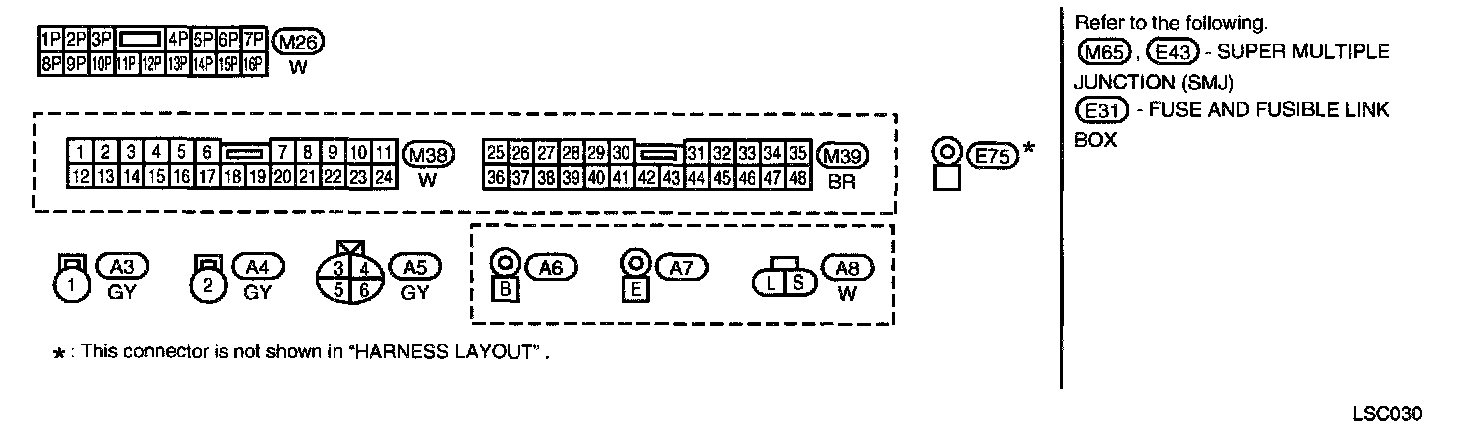

Super Multiple Junction (SMJ) Terminal Arrangement (E43, M65):

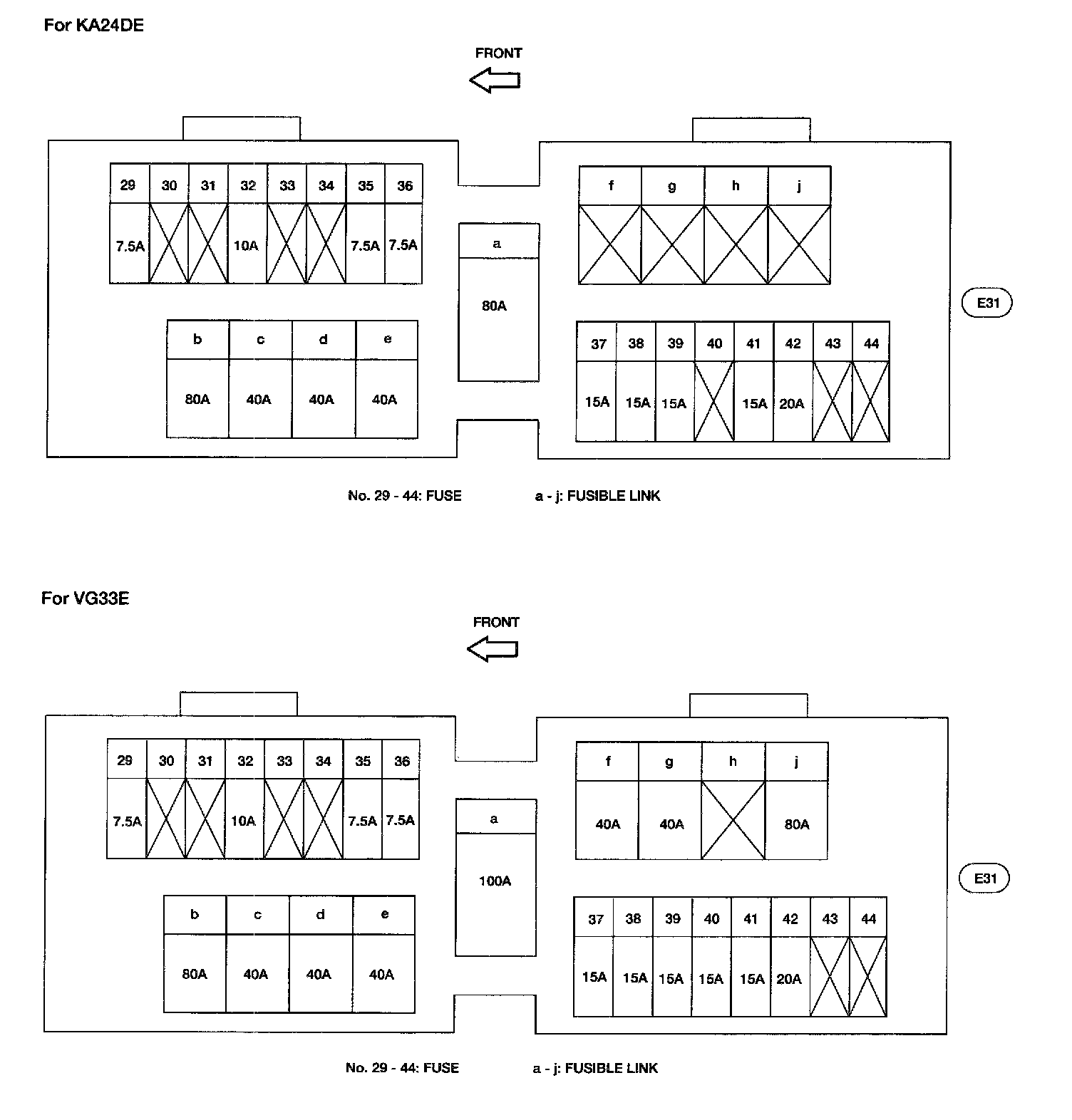

Fuse And Fusible Link Box Terminal Arrangement (E31):
SC-CHARGE-02 Connector View:
