Pinout Values and Diagnostic Parameters

All voltage inspections are made with:
- Ignition switch ON or ACC
- Audio unit ON
- Audio unit connected (if removed for inspection, supply a ground to the case using a jumper wire.)

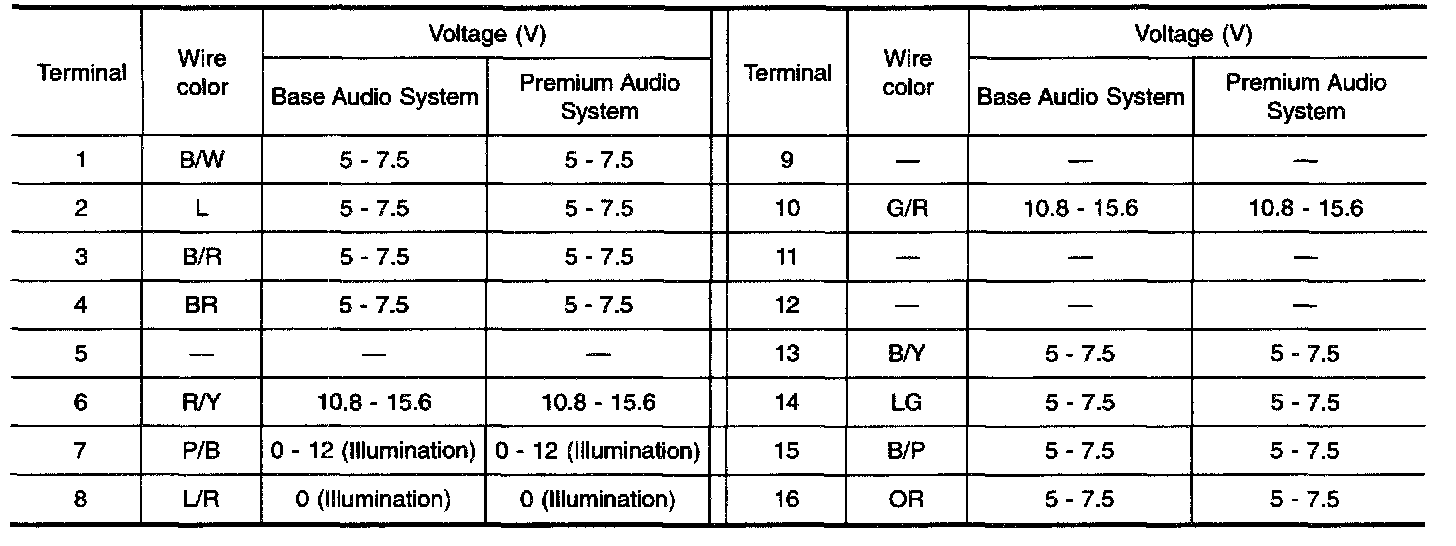

Audio Unit Voltages

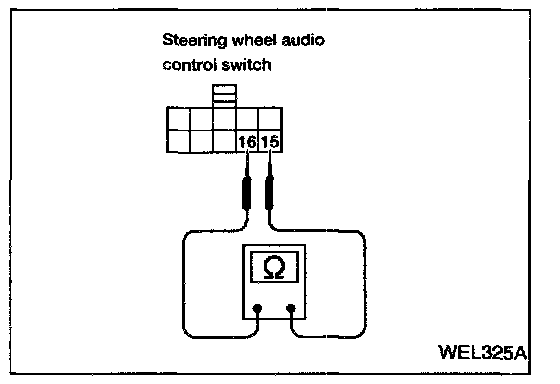

Steering Wheel Audio Control Switch Resistance
