Multi-Remote Control System

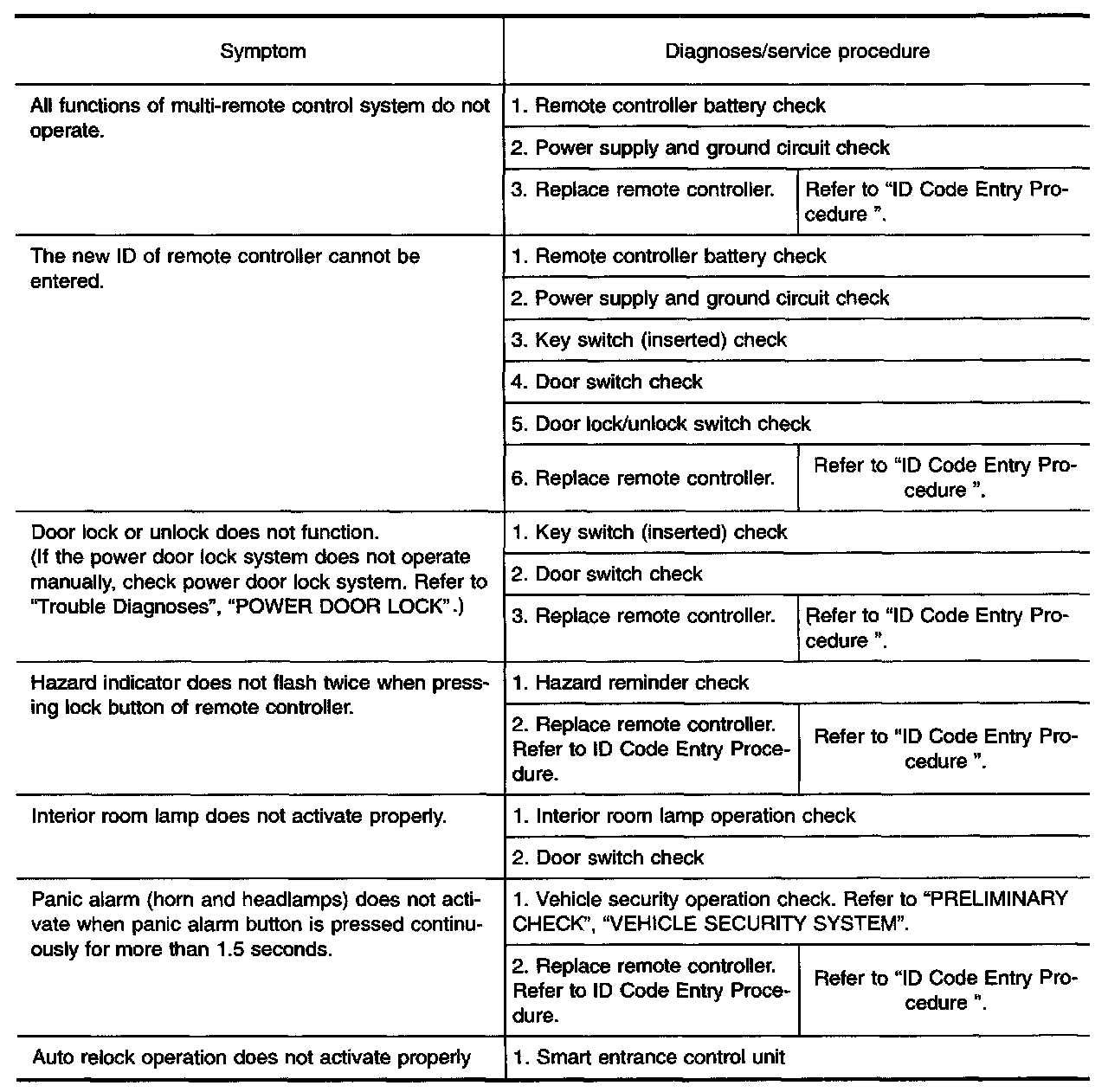

Symptom Chart:

NOTE:
- The panic alarm functions of the multi-remote control system do not activate when the key switch is in INSERTED position (key is in ignition key cylinder).
- If both of the following conditions exist, performing a door lock operation with the main power window and door lock/unlock switch, the door lock/unlock switch RH or a multi-remote controller locks the doors but immediately unlocks them when:
- key switch is in INSERTED position (key is in ignition key cylinder)
- front door switch LH or RH is in OPEN position (door is open).

Step 1:

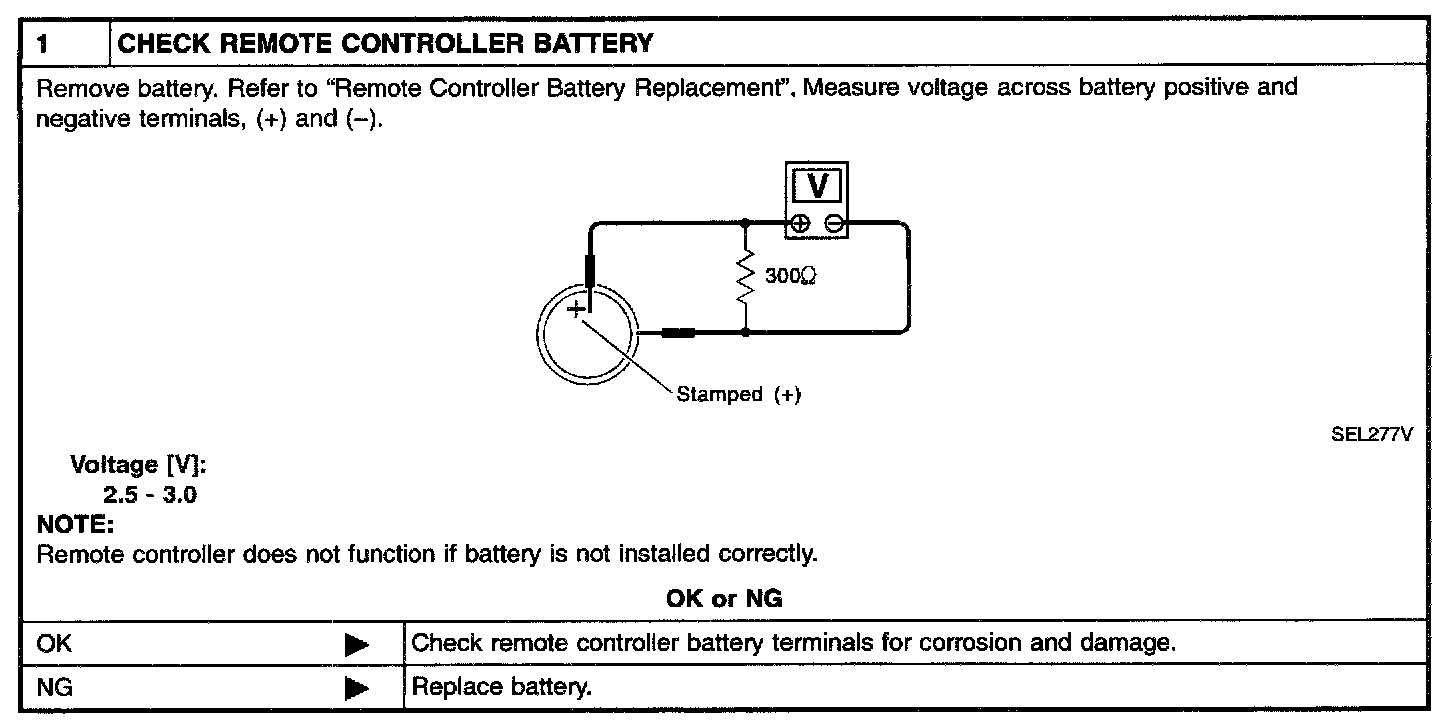

REMOTE CONTROLLER BATTERY CHECK

Steps 1 - 2:

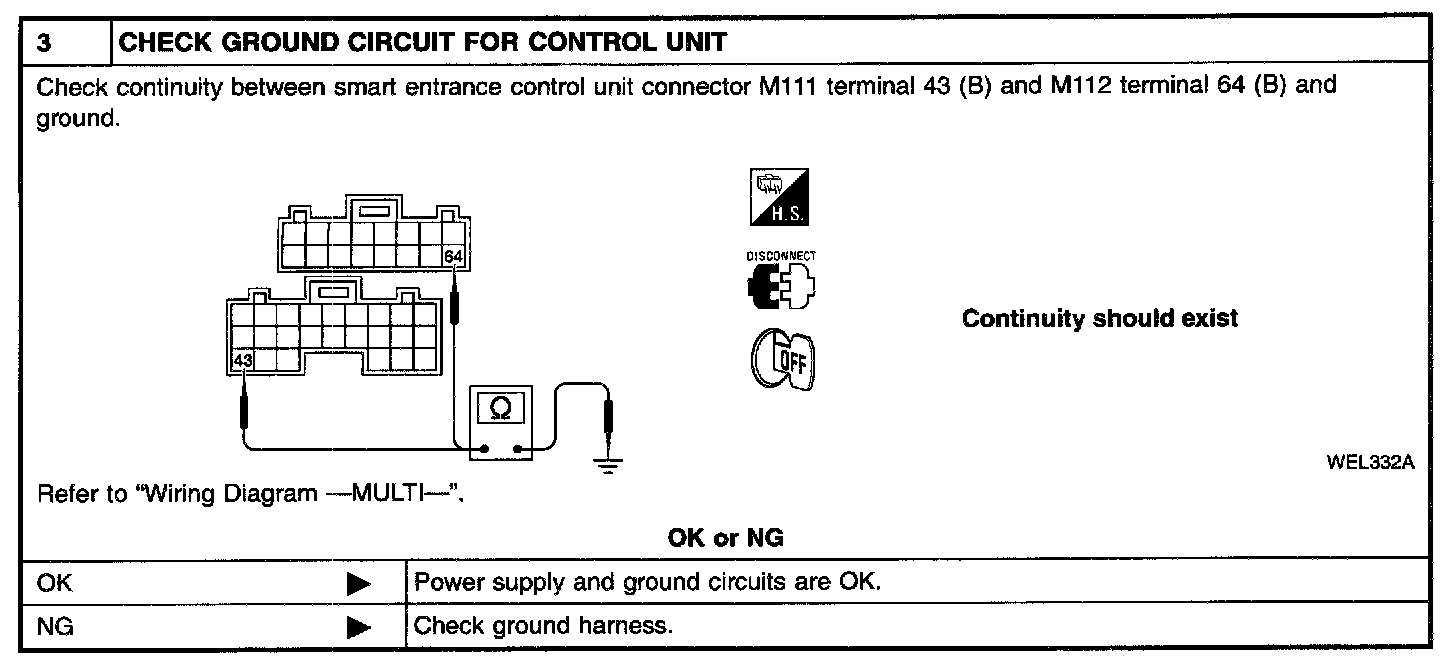

Step 3:

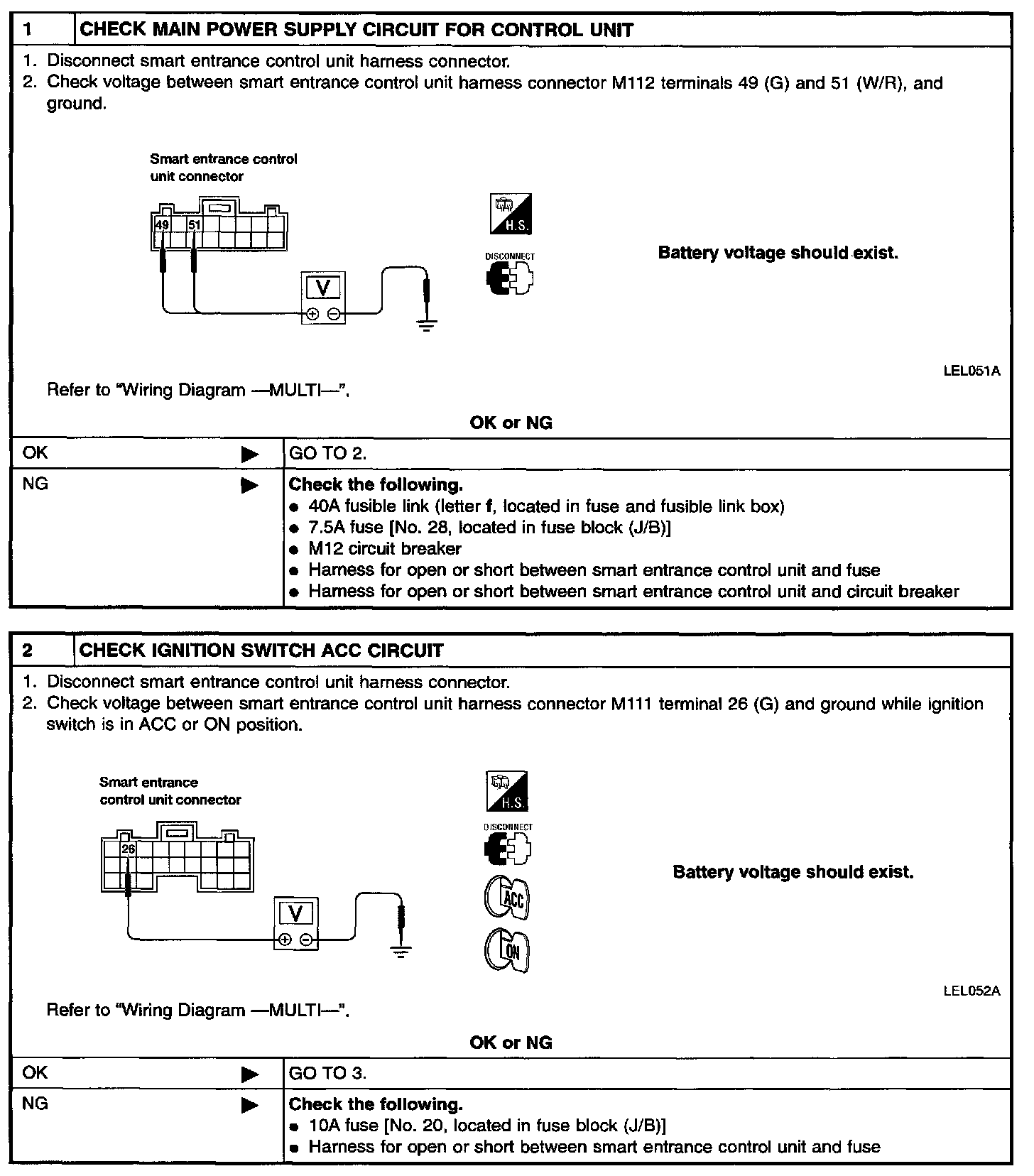

POWER SUPPLY AND GROUND CIRCUIT CHECK

Steps 1- 2:

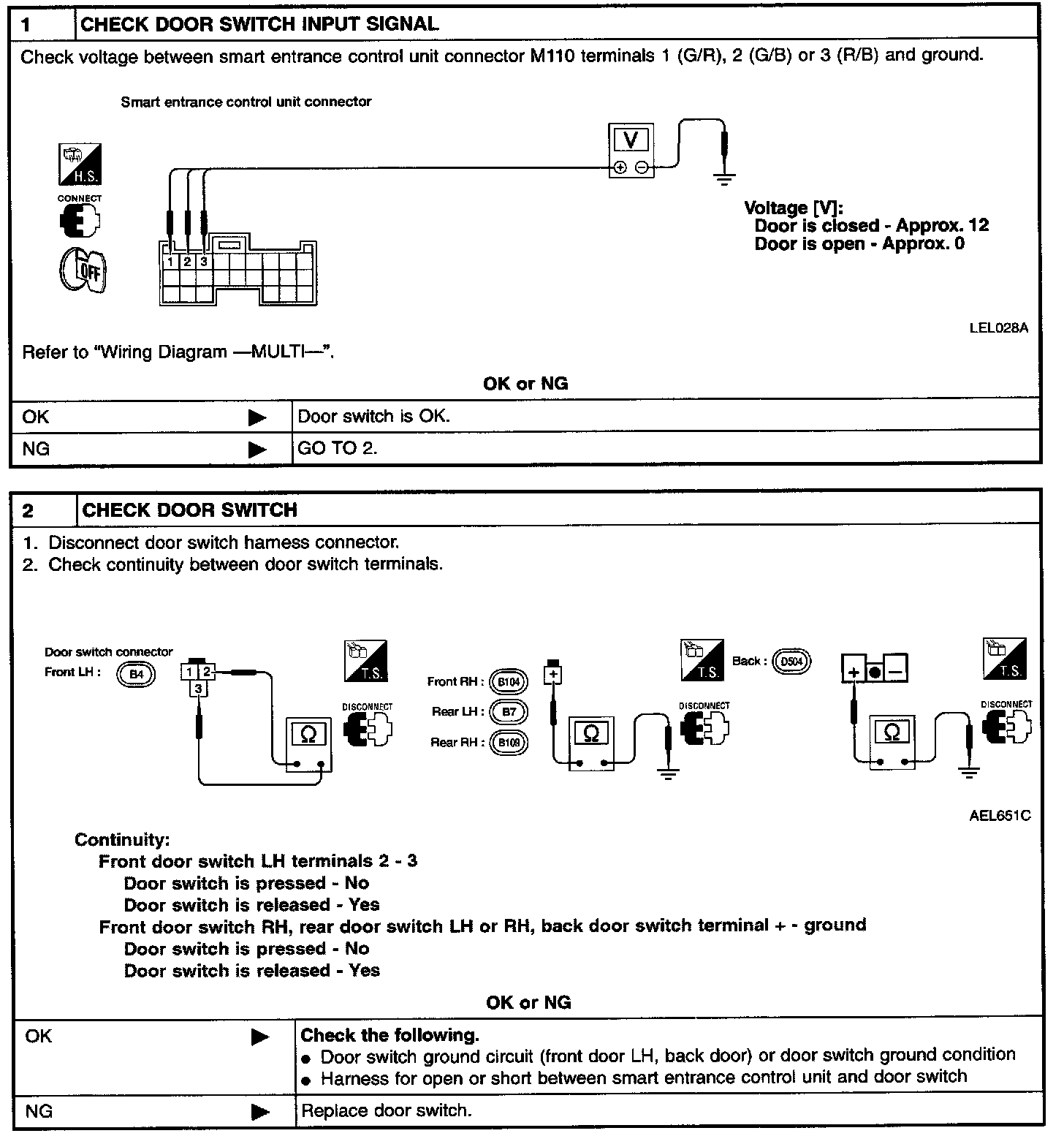

DOOR SWITCH CHECK

Steps 1 - 2:

Step 3:

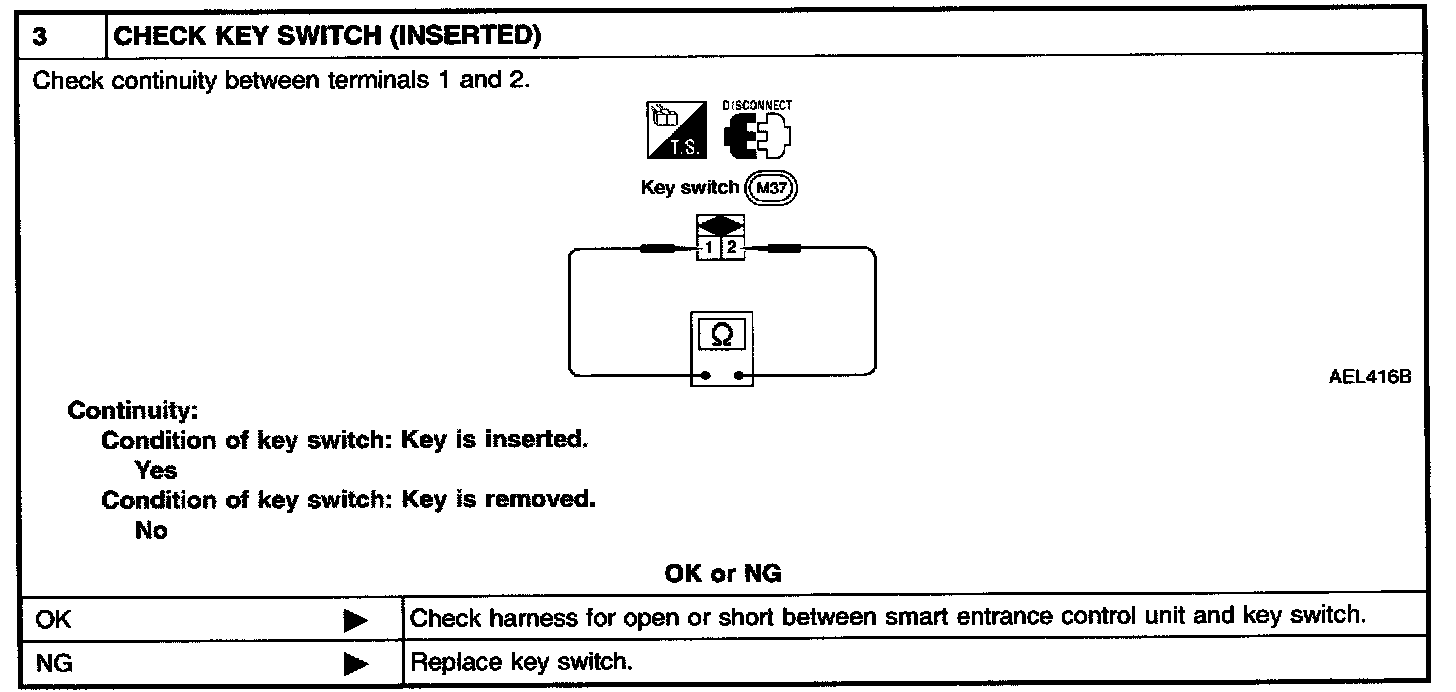

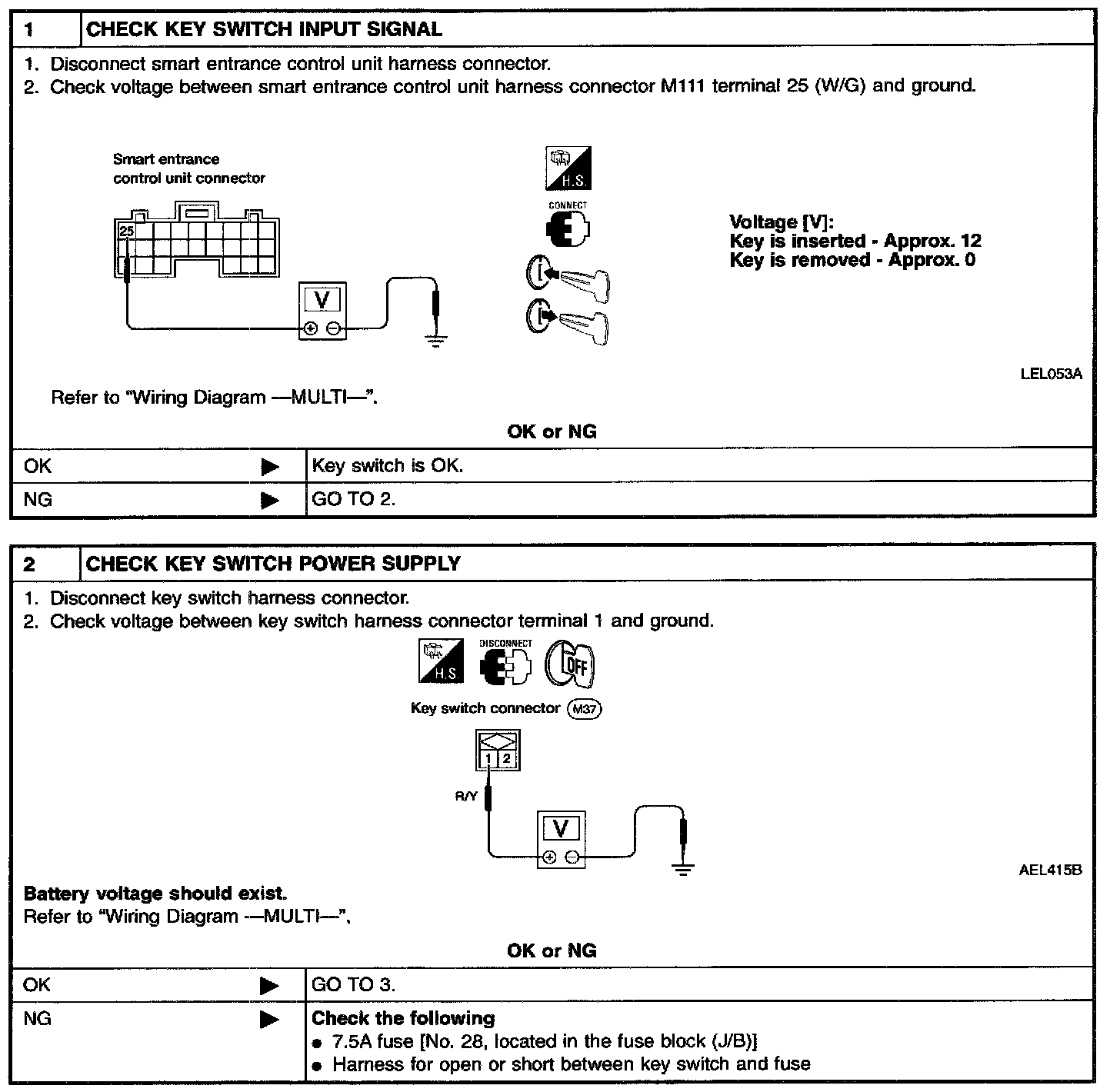

KEY SWITCH (INSERTED) CHECK

Steps 1 - 3:

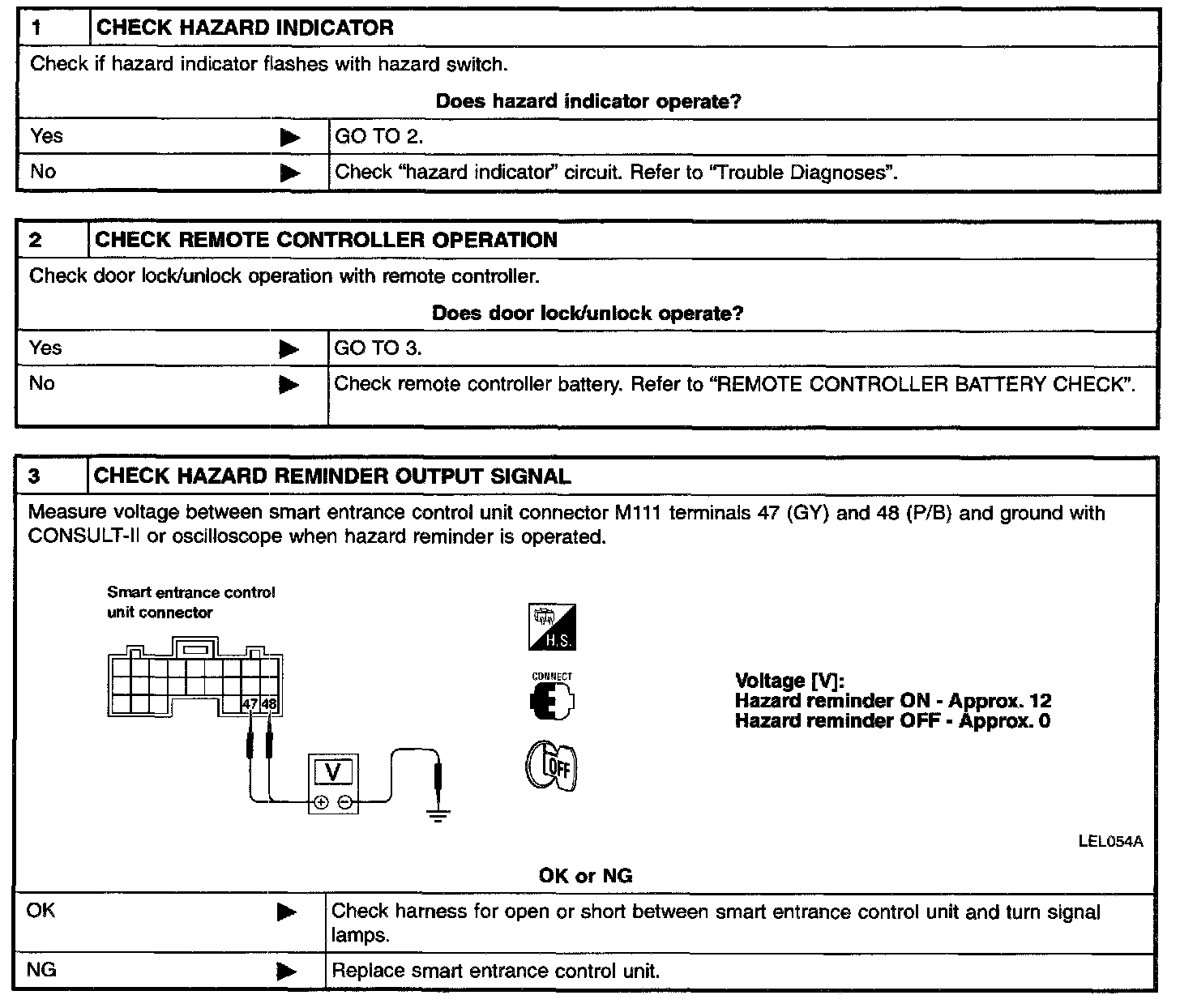

HAZARD REMINDER CHECK

Step 1:

Steps 2 - 3:

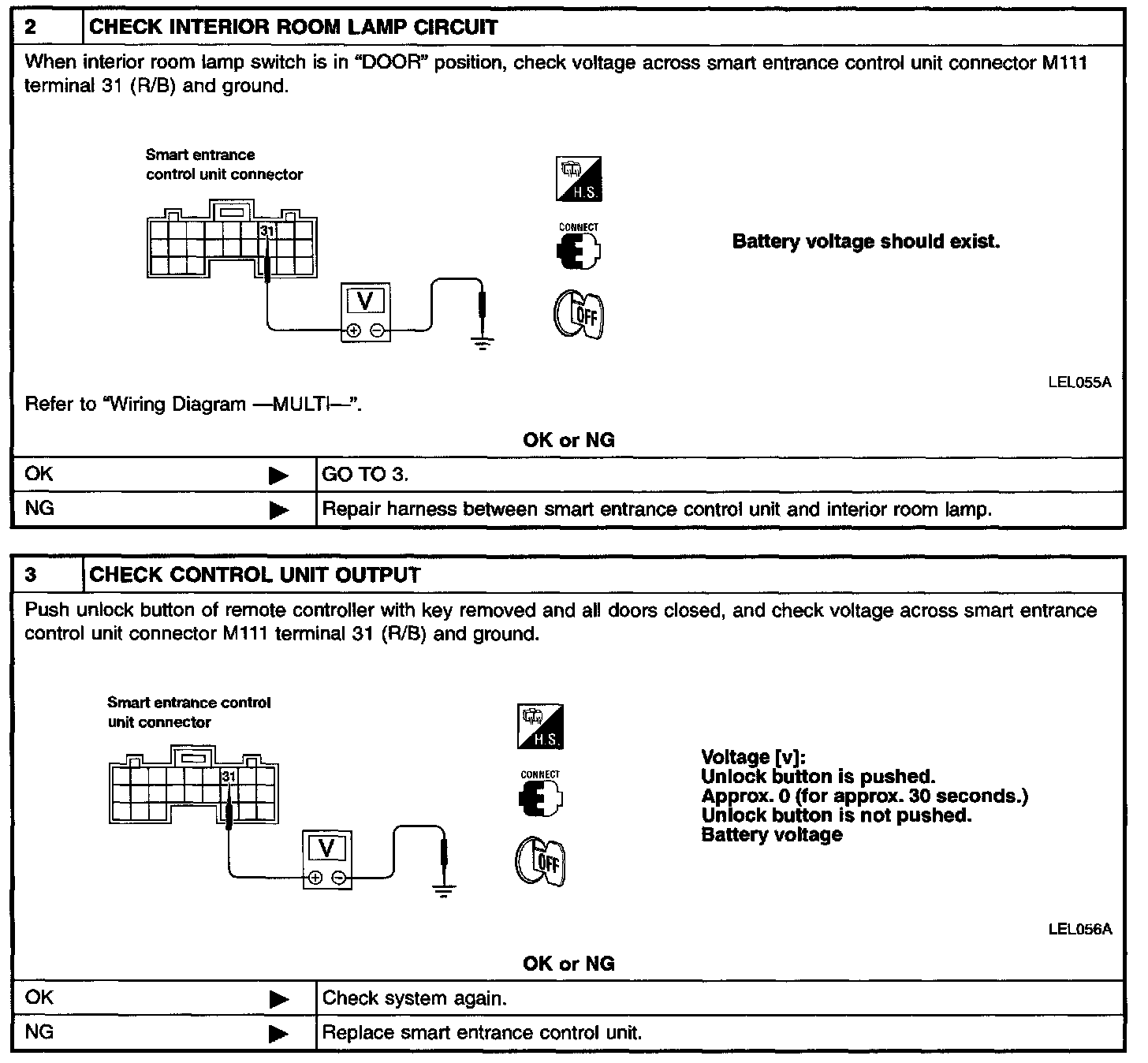

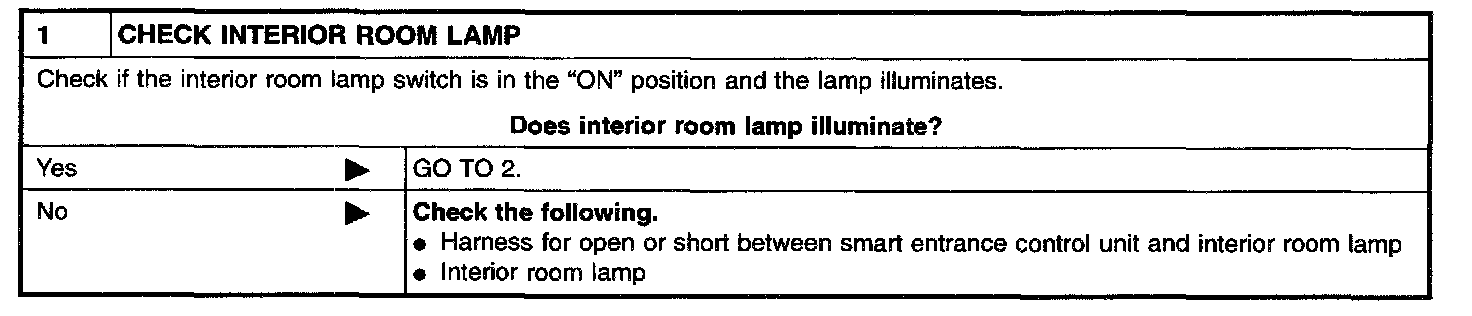

INTERIOR ROOM LAMP OPERATION CHECK
