P0710

Description










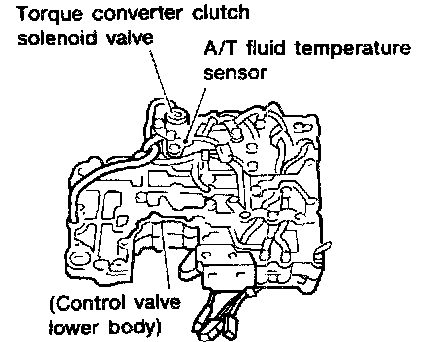

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

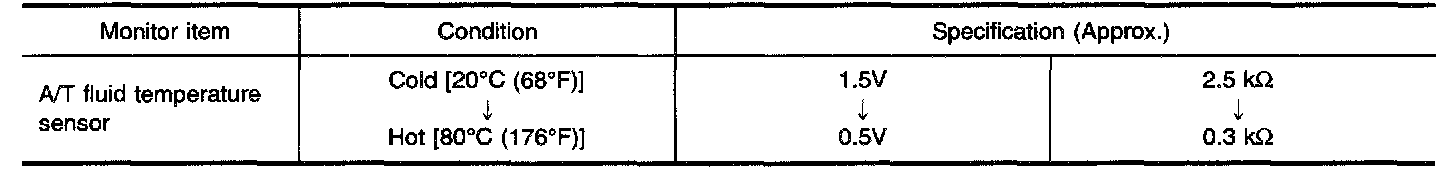

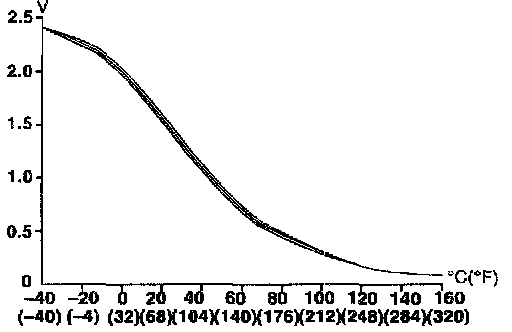

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE





Remarks: Specification data are reference values.

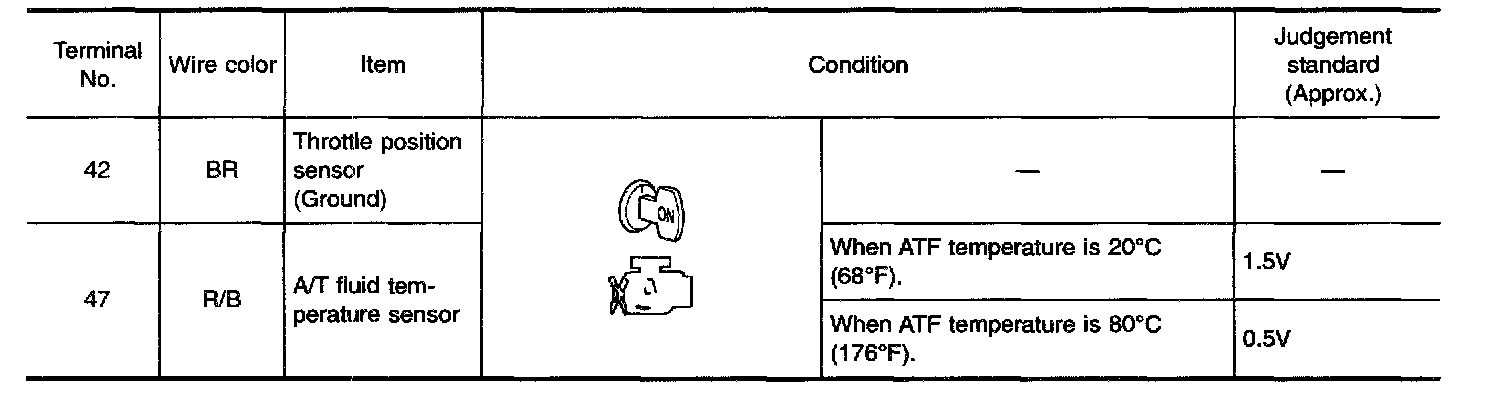

TCM TERMINALS AND REFERENCE VALUE





Remarks: Specification data are reference values.

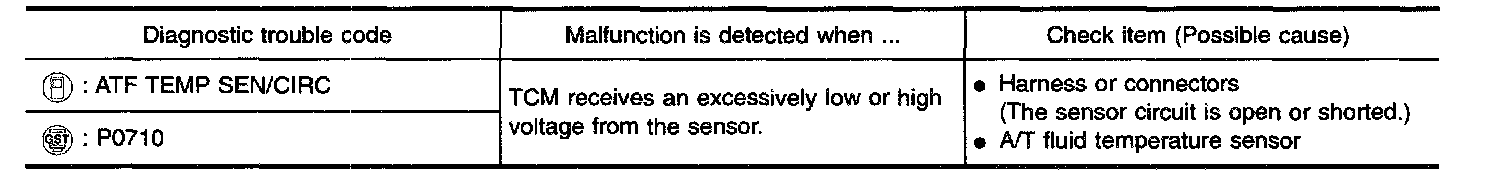

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

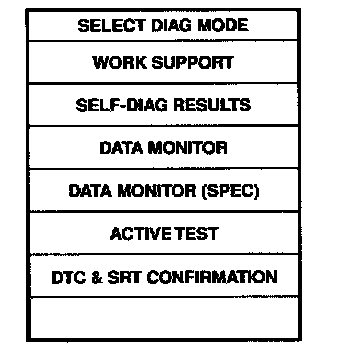

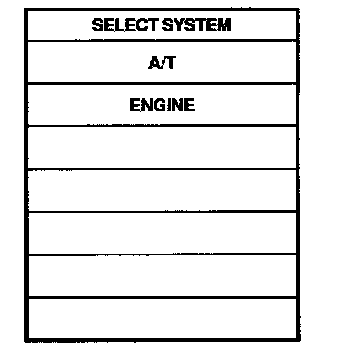

1. Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.





2. Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)
CMPS-RPM (REF): 450 rpm or more
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2 V
Selector lever: D position (O/D ON)

With GST
Follow the procedure "With CONSULT-II".





Wiring Diagram - AT - FTS

Diagnostic Procedure

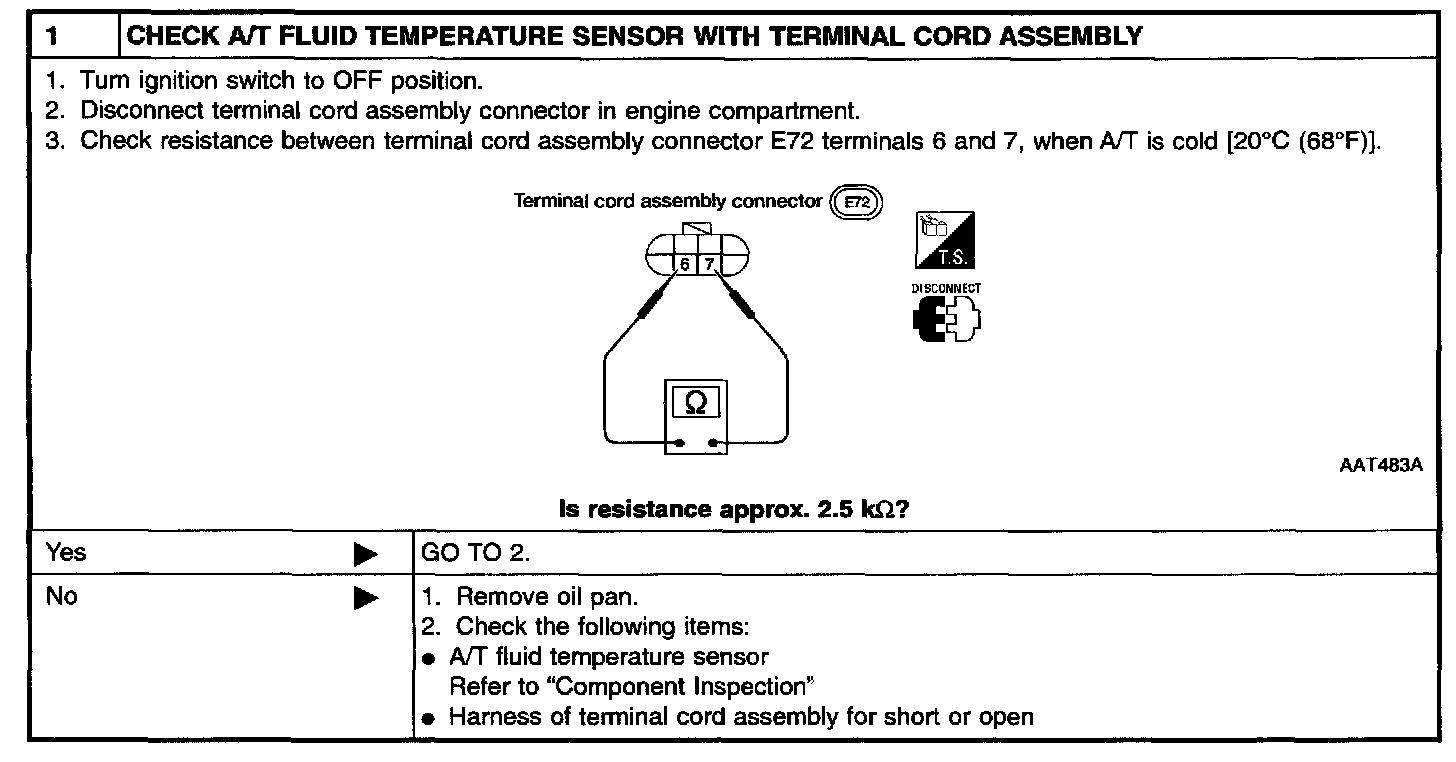

CHECK 1

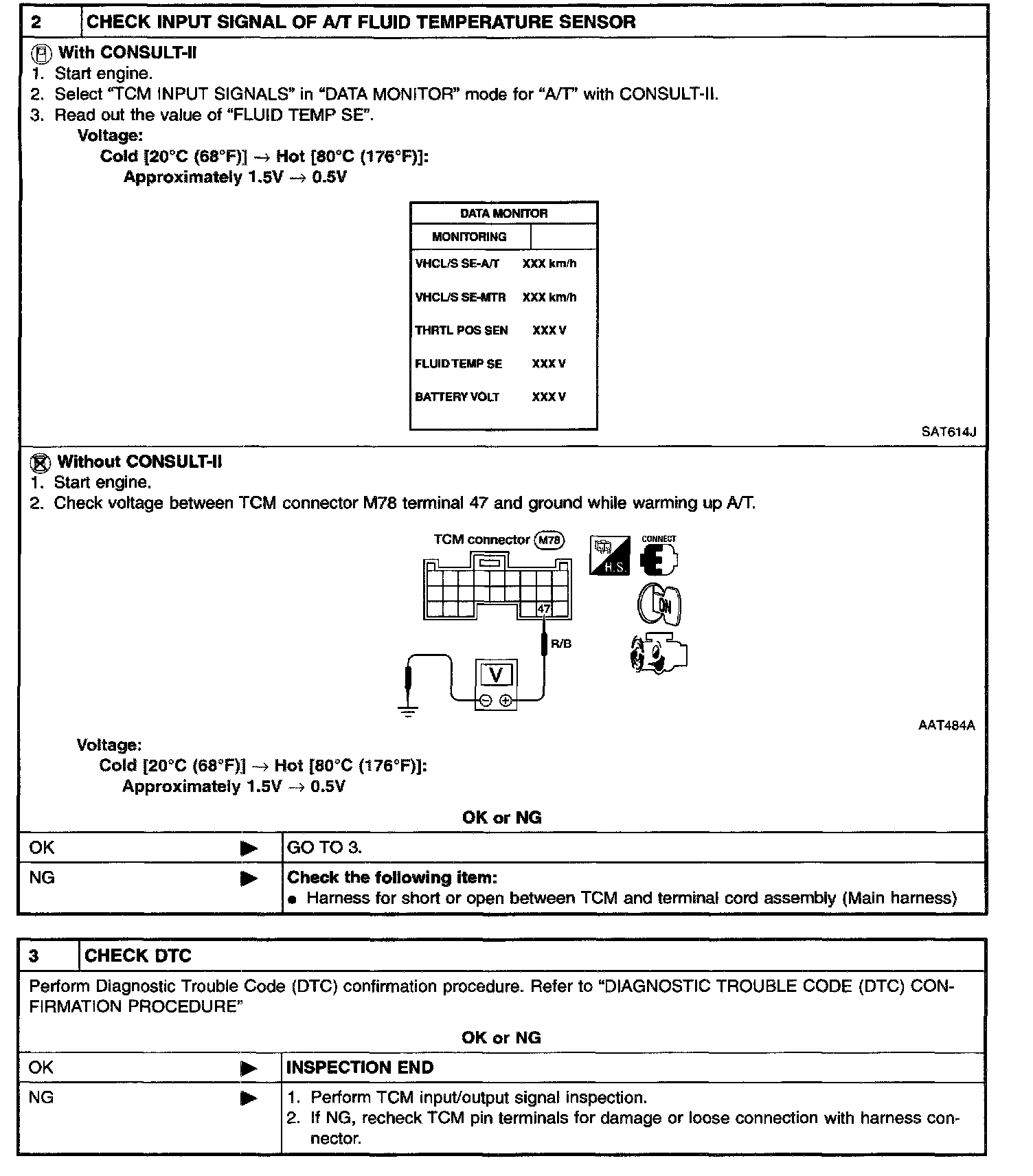

CHECK 2 AND 3

Component Inspection
A/T FLUID TEMPERATURE SENSOR

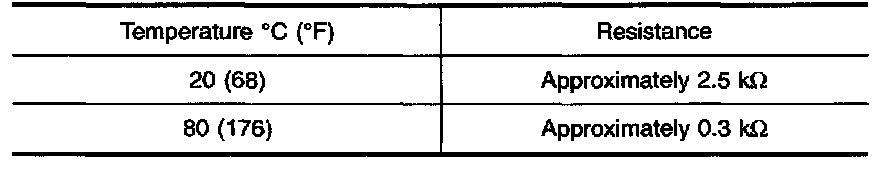

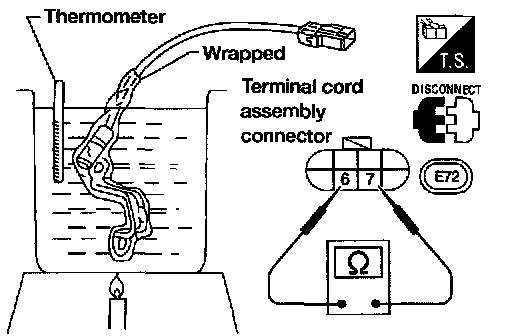

- Check resistance between terminals 6 and 7 while changing temperature as shown.
