P0105

Component Description
The absolute pressure sensor is built into ECM. The sensor detects ambient barometric pressure and sends the voltage signal to the microcomputer.

On Board Diagnosis Logic
Malfunction is detected when an excessively low or high voltage from the sensor is sent to the micro computer.

POSSIBLE CAUSE
- ECM

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.

With CONSULT-II
1. Turn ignition switch ON.

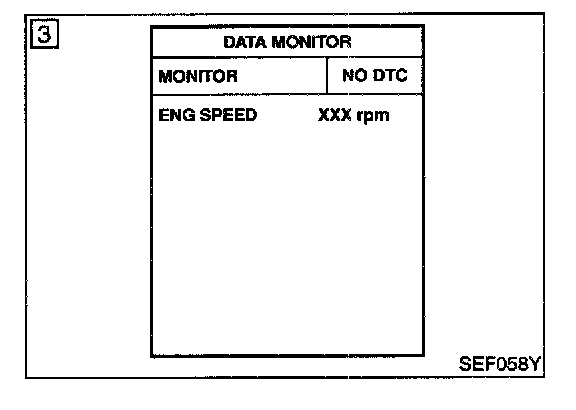

2. Select "DATA MONITOR" mode with CONSULT-II.




3. Wait at least 6 seconds.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

With GST
Follow the procedure "With CONSULT-II".

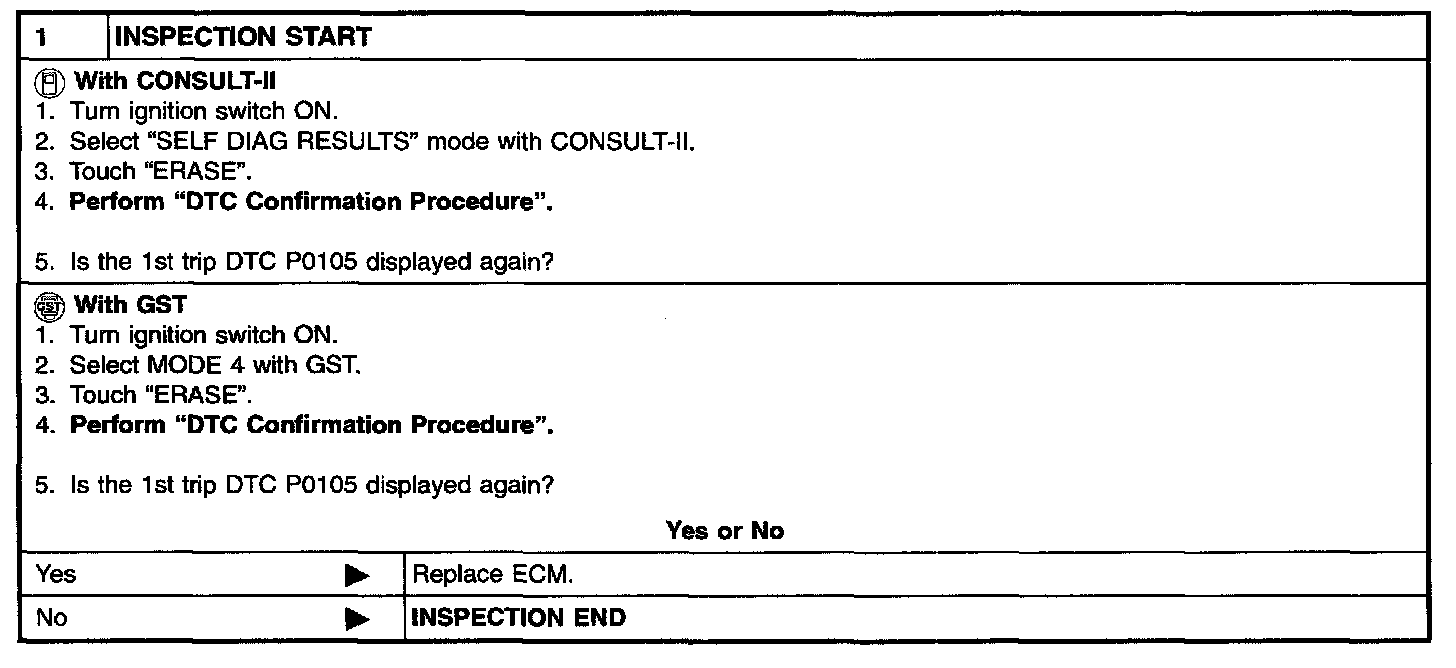

Diagnostic Procedure

Step 1:
