Home >> Nissan-Datsun Truck >> 2001 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control System >> DTC 71 >> Control Unit

Control Unit

Control Unit

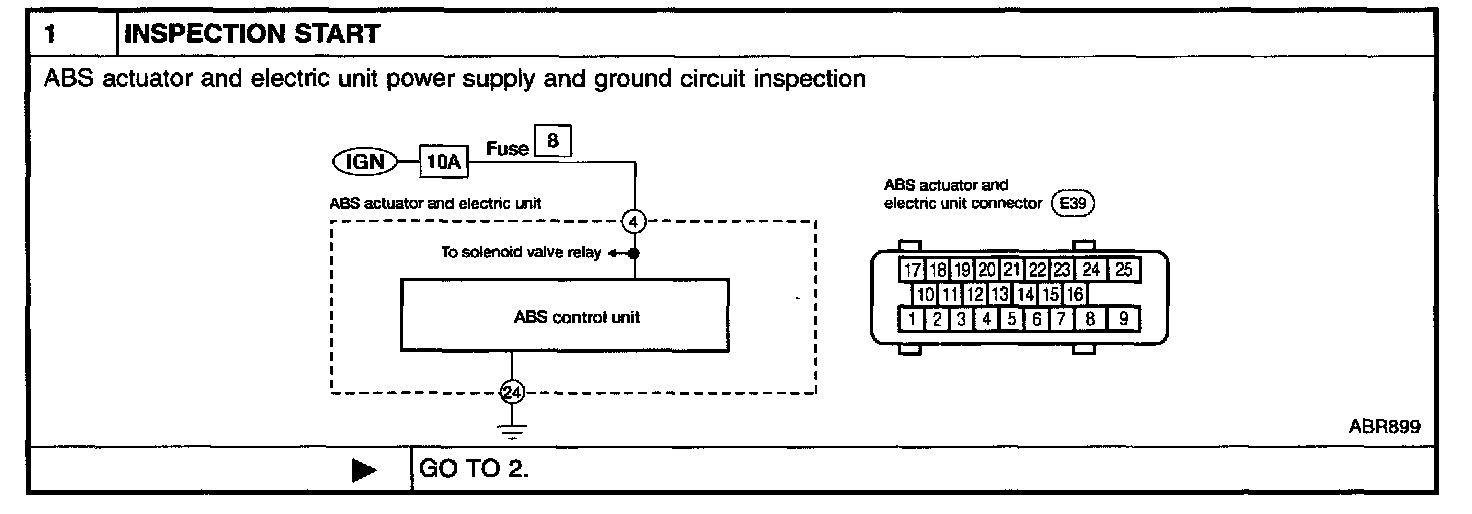

Step 1:

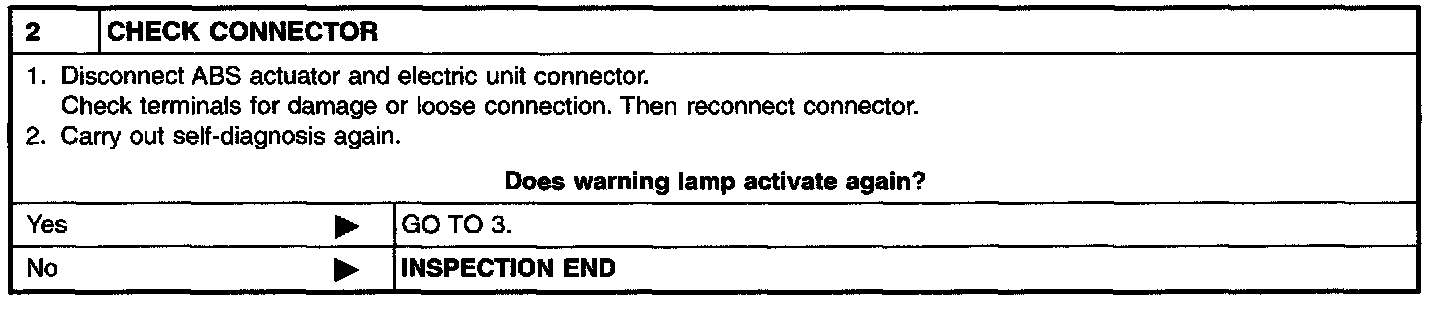

Step 2:

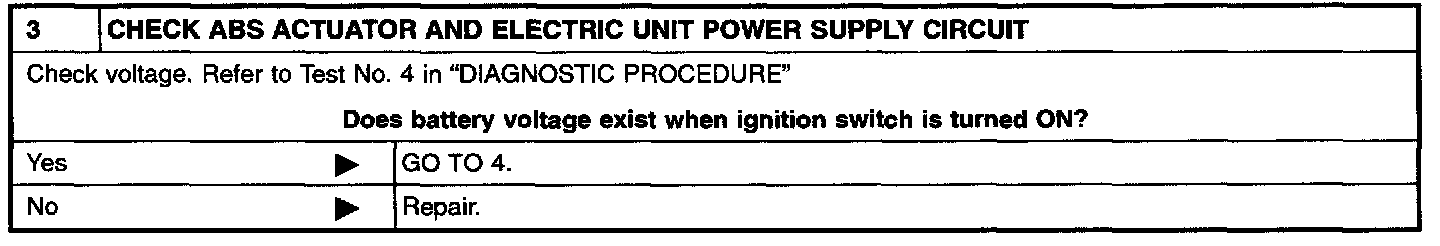

Step 3:

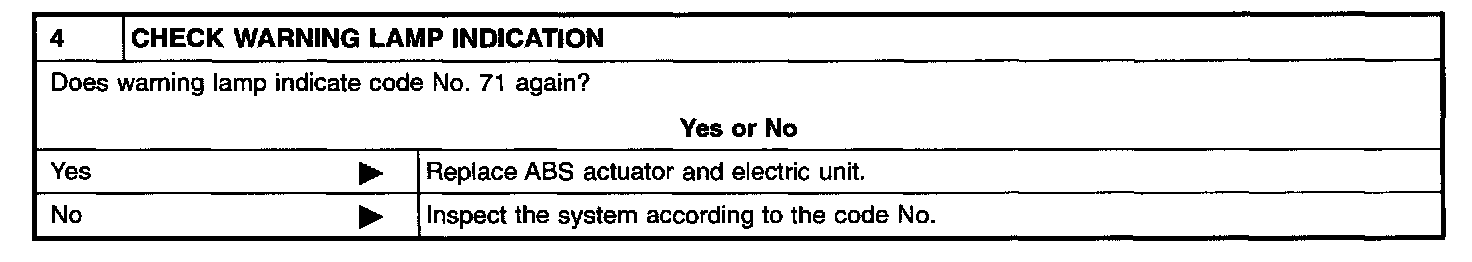

Step 4:
