Transmission Speed Sensor: Service and Repair

Revolution Sensor Replacement

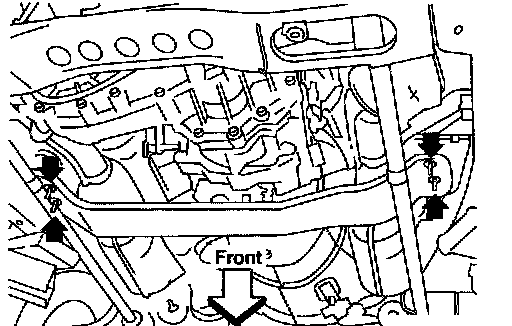

1. Remove rear engine mounting member from side member while supporting A/T with transfer case with jack. Tighten rear engine mounting member to the specified torque.
2. Lower A/T with transfer case as much as possible.
3. Remove revolution sensor from A/T.
4. Reinstall any part removed.
- Always use new sealing parts.
