Home >> Nissan-Datsun Truck >> 2001 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Testing and Inspection

Differential Assembly: Testing and Inspection

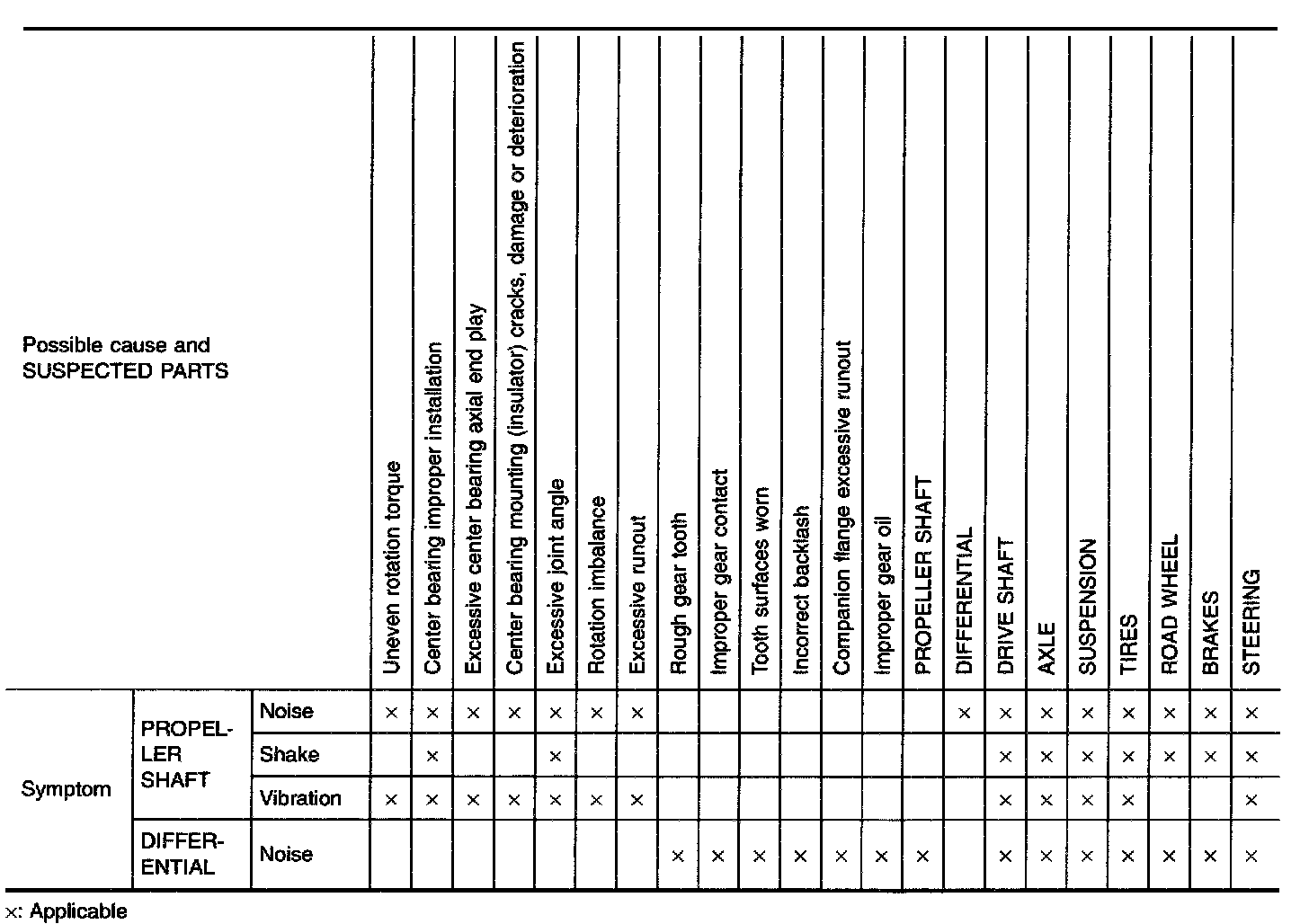

NVH TROUBLESHOOTING CHART





Use the chart to help you find the cause of the symptom. If necessary, repair or replace these parts.
