FRONT OIL SEAL REPLACEMENT
1. Remove propeller shaft.

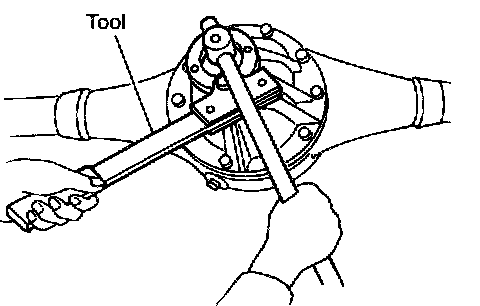

2. Loosen drive pinion nut.

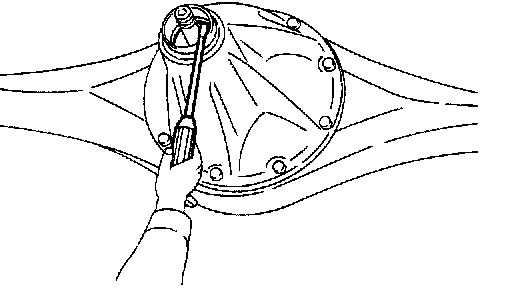

Tool number: KV38108300 (J-44195)

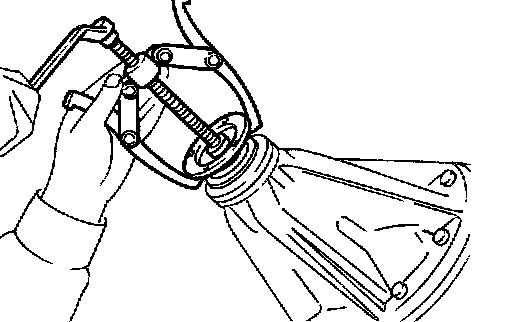

3. Remove companion flange.
4. Remove ABS sensor and sensor rotor (2WD models).





5. Remove front oil seal.

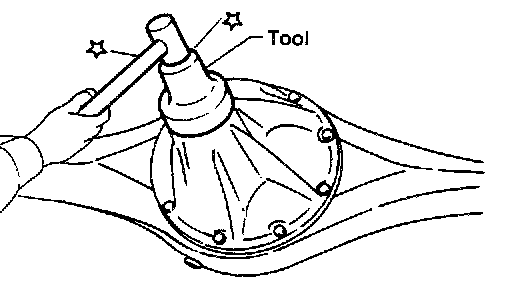

6. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.
Tool number: KV38100500 (J25273)
7. Install ABS sensor and sensor rotor (2WD models).
8. Install companion flange and drive pinion nut.
9. Install rear propeller shaft.
