Power Steering Pump: Service and Repair

Pre-disassembly Inspection





Disassemble the power steering oil pump only if the following items are found.

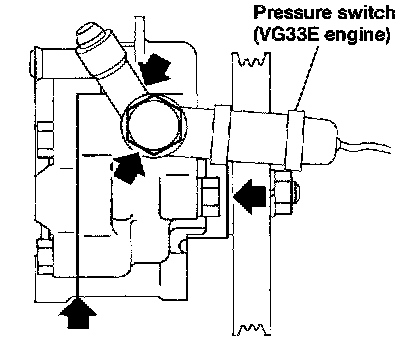

- Oil leak from any point shown in the figure.
- Deformed or damaged pulley.
- Poor performance.

Disassembly

CAUTION:
^ Parts which can be disassembled are strictly limited. Never disassemble parts other than those specified.
^ Disassemble in as clean a place as possible.
^ Clean your hands before disassembly.
^ Do not use rags; use nylon cloths or paper towels.
^ When disassembling and reassembling, do not let foreign matter enter or contact the parts.

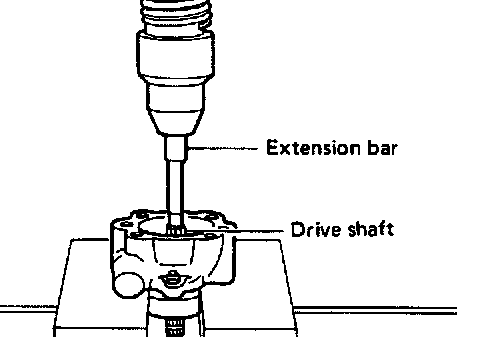

1. Remove snap ring, then draw drive shaft out.
- Be careful not to drop drive shaft.

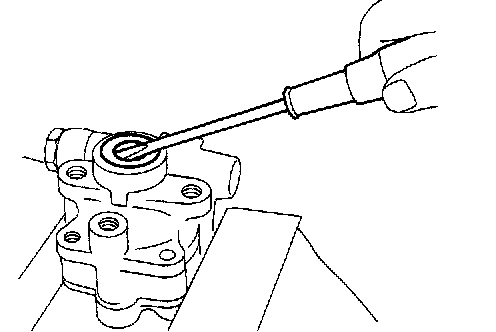

2. Remove oil seal.
- Be careful not to damage front housing.

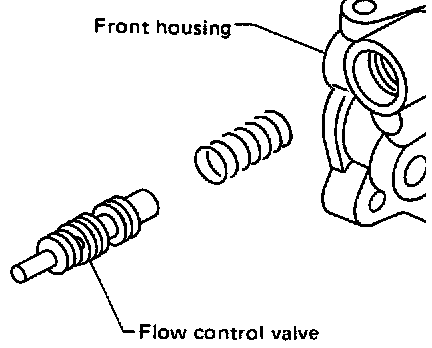

3. Remove connector and flow control valve with spring.
- Be careful not to drop control valve.

Inspection
- If pulley is cracked or deformed, replace it.
- If fluid leak is found around the pulley shaft, replace the oil seal.

Assembly





Assemble oil pump, noting the following instructions.
- Make sure O-rings and oil seal are properly installed.

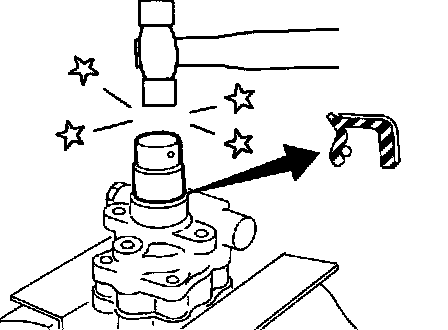

- Always install new O-rings and oil seal.
- Be careful of oil seal direction.
- Cam ring, rotor and vanes must be replaced as a set if necessary.
- When assembling, coat each part with Genuine NISSAN PSF II or equivalent.





- Pay attention to the direction of rotor.

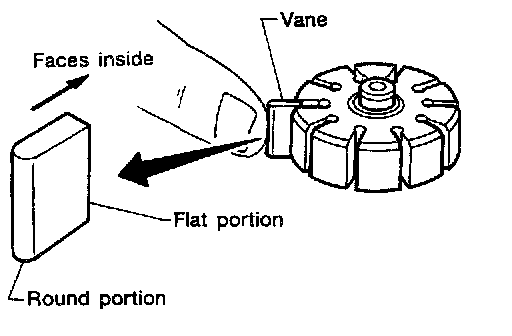

- When assembling vanes to rotor, rounded surfaces of vanes must face cam ring side.

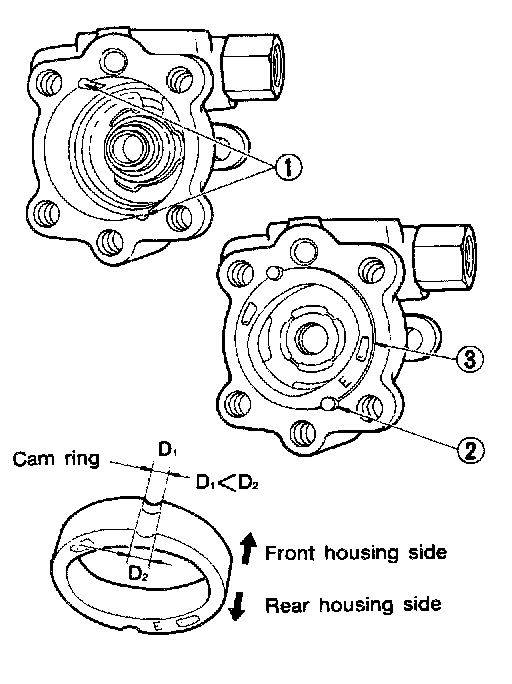

- Insert pin 2 into pin groove 1 of front housing and front side plate. Then install cam ring 3 as shown.
Cam ring:
D1 is less than D2
