System Specifications





General Specifications

Inspection and Adjustment





CLEARANCE BETWEEN FRONT DRIVE SPROCKET AND 2-4 COUPLING SLEEVE

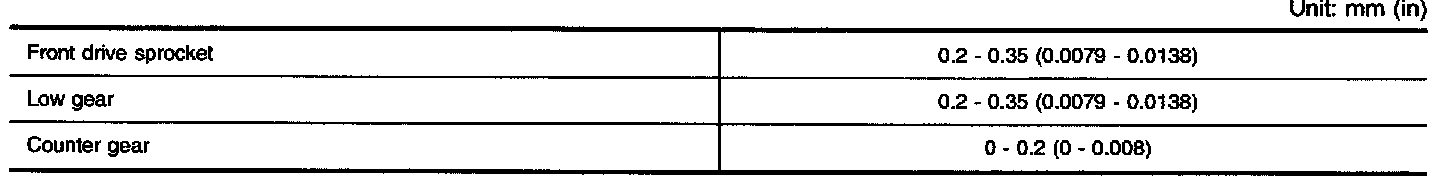

GEAR END PLAY

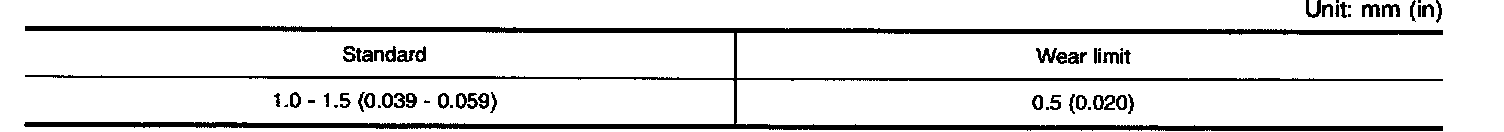

CLEARANCE BETWEEN BAULK RING AND CLUTCH GEAR

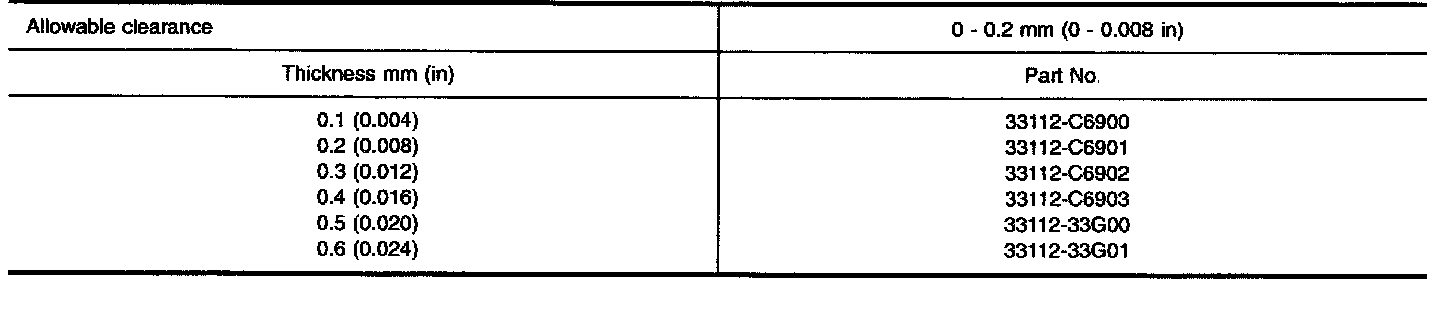

AVAILABLE SHIM





Counter Gear Rear Bearing

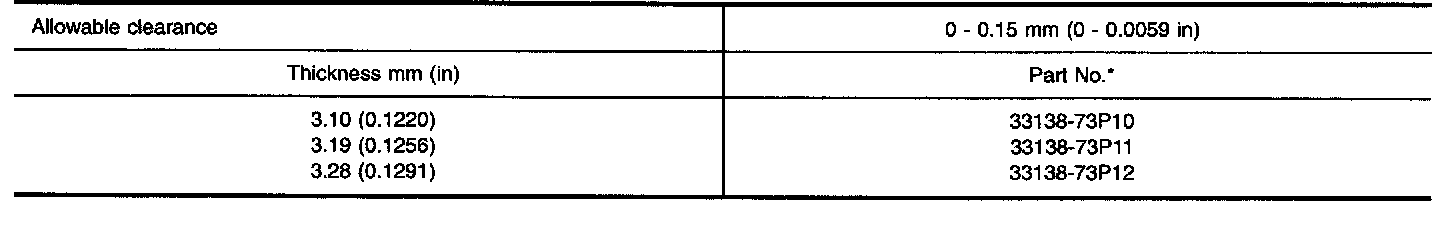

AVAILABLE SNAP RING





Mainshaft Front Bearing

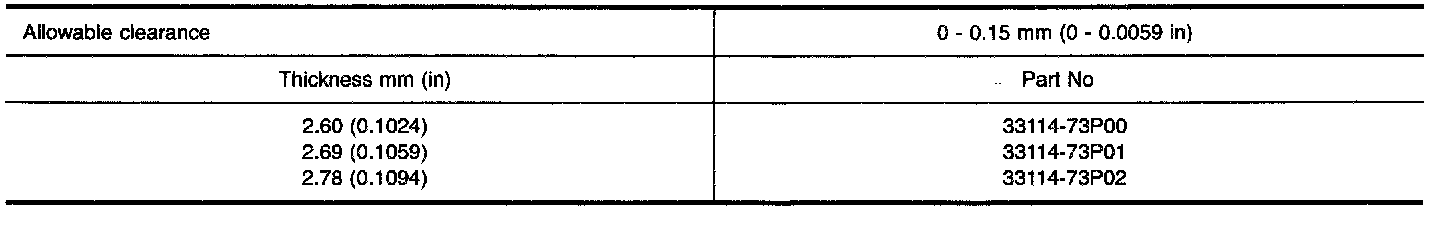

Main Gear Bearing

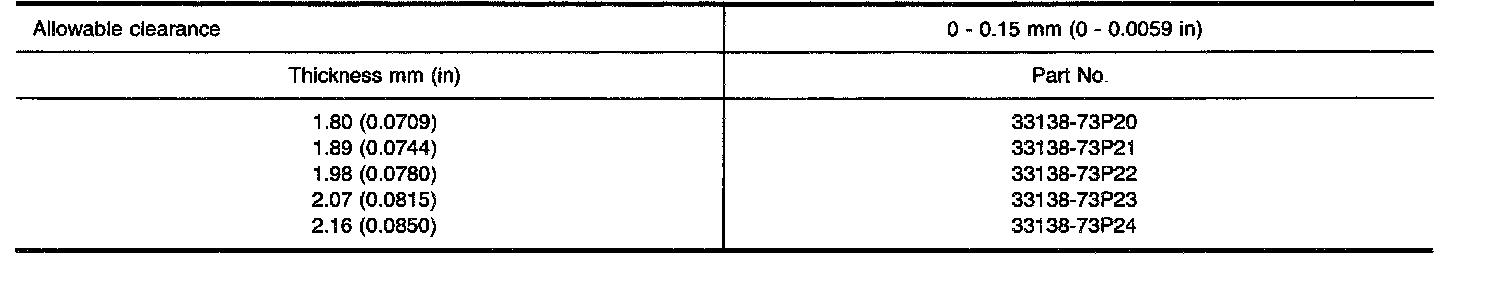

Mainshaft Rear Bearing
