Rear Seat Belt

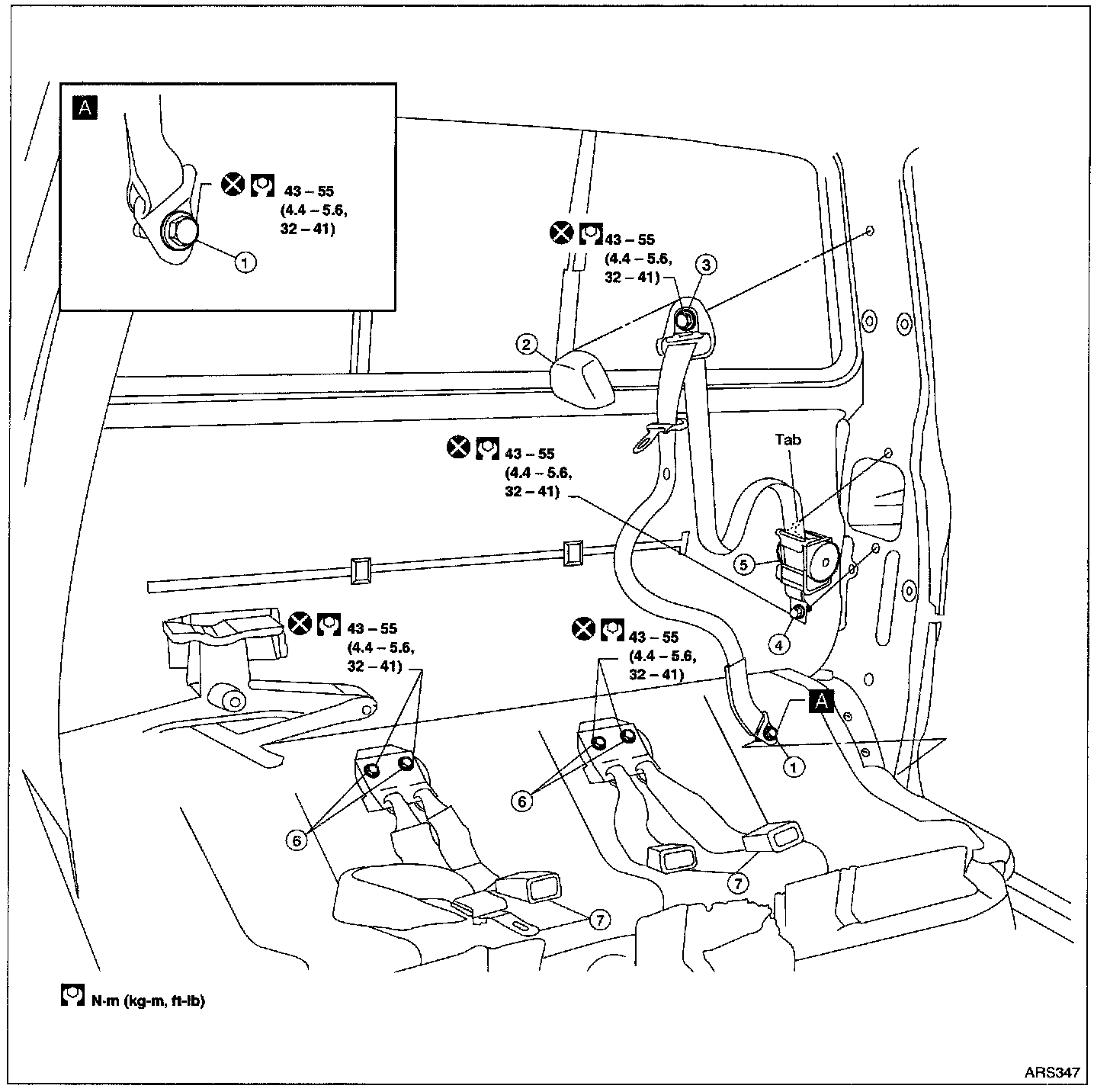

Component Locations Overview:

REMOVAL AND INSTALLATION
1. Remove lower seat belt anchor bolt;
2. Remove shoulder anchor cover.
3. Remove shoulder anchor bolt.
4. Remove retractor bolt.
5. Remove retractor.
6. Remove anchor bolts.
7. Remove seat belt assembly.
