Front Seat Belt

Component Locations Overview:

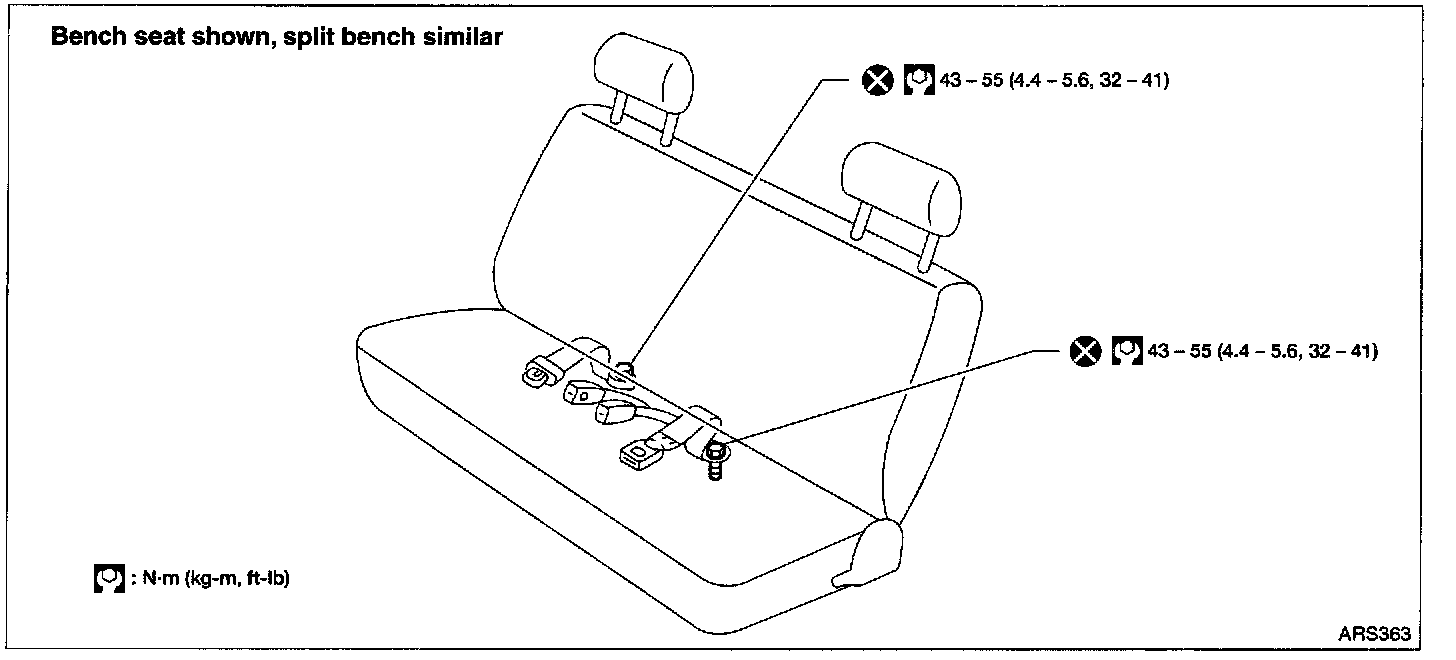

Front Center Seat Belt (Bench And Split Bench Seats):

REMOVAL AND INSTALLATION

Bucket Seats

Slide the seat all the way forward and tilt the seatback toward the front.
1. Remove buckle. For driver side, disconnect seat belt switch connector.
2. Remove floor anchor bolts.
3. Remove adjuster cover and upper guide loop anchor bolt.
4. Remove center pillar lower and upper garnishes. Refer to "SIDE AND FLOOR TRIM".
5. Remove two adjuster bolts and adjuster assembly.
6. Disconnect seat belt pre-tensioner connector.
7. Remove retractor anchor bolt and screw.
8. Remove retractor.
