Main Power Supply and Ground Circuit Testing

Trouble Diagnosis For Power Supply

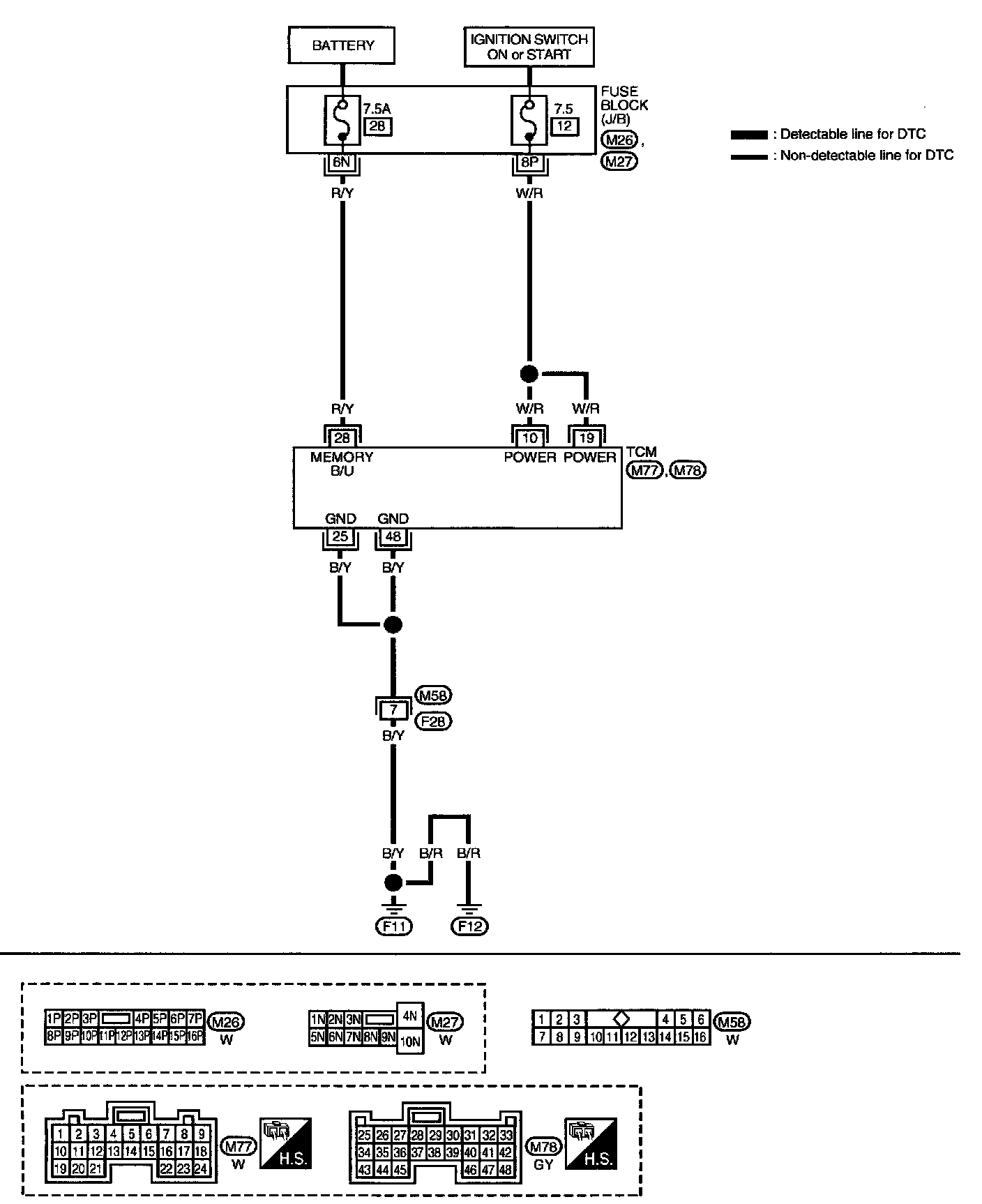

WIRING DIAGRAM - AT - MAIN

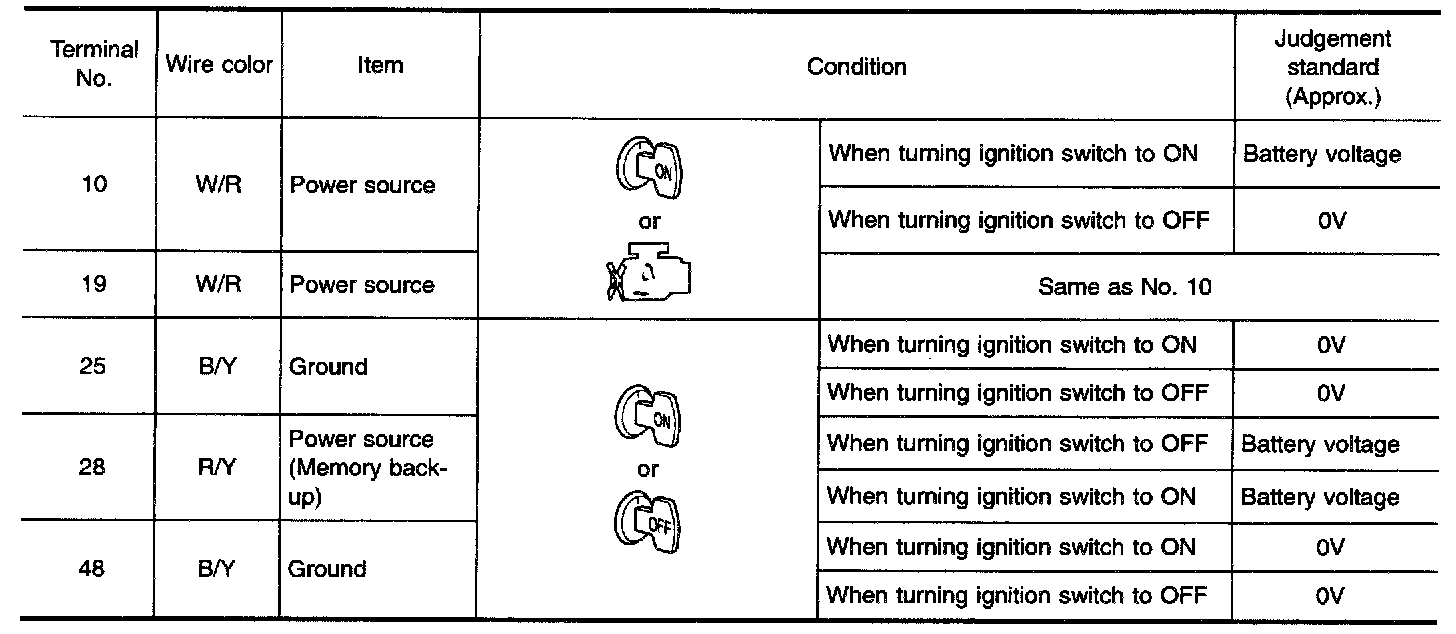

TCM TERMINALS AND REFERENCE VALUE

Remarks: Specification data are reference values.

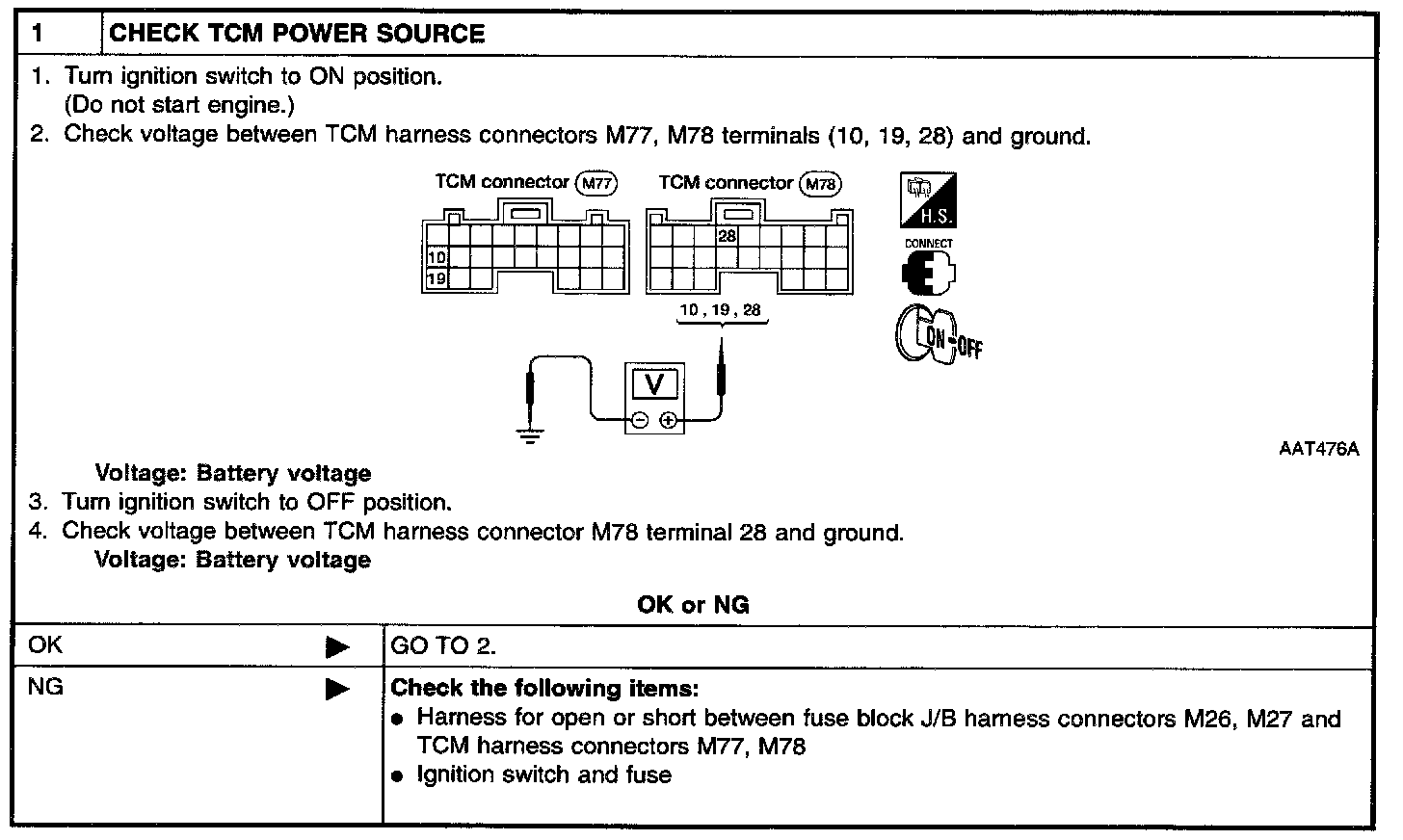

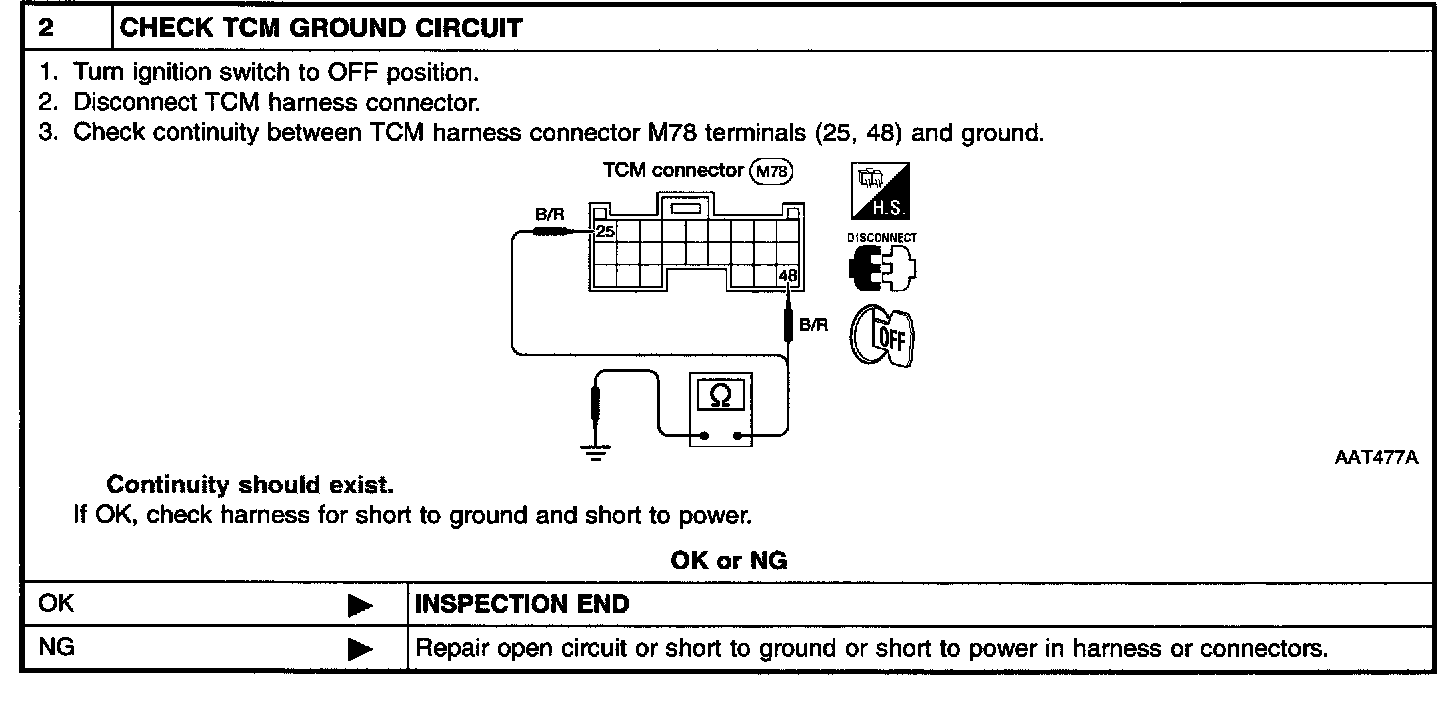

DIAGNOSTIC PROCEDURE





1 of 2





2 of 2
