Power Supply Testing
Power Supply Testing
EC-MAIN-01:
EC-MAIN-01 Connector View:
WIRING DIAGRAM
ECM Terminals And Reference Value:

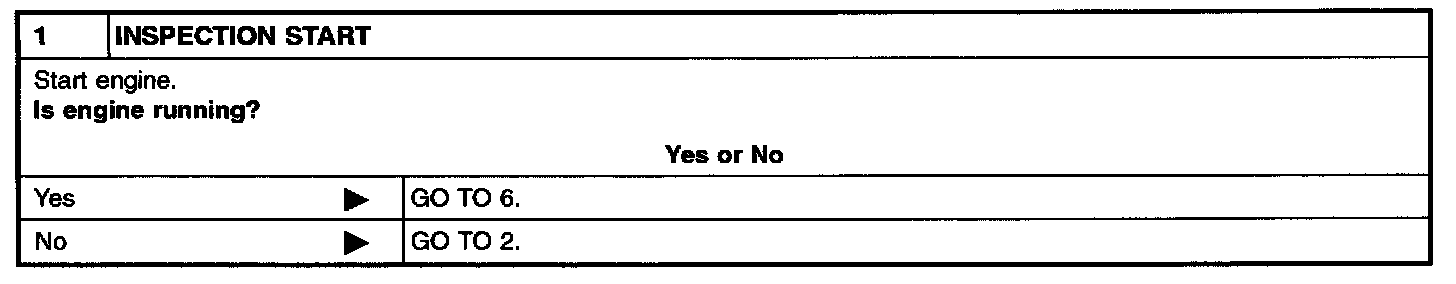

Step 1:

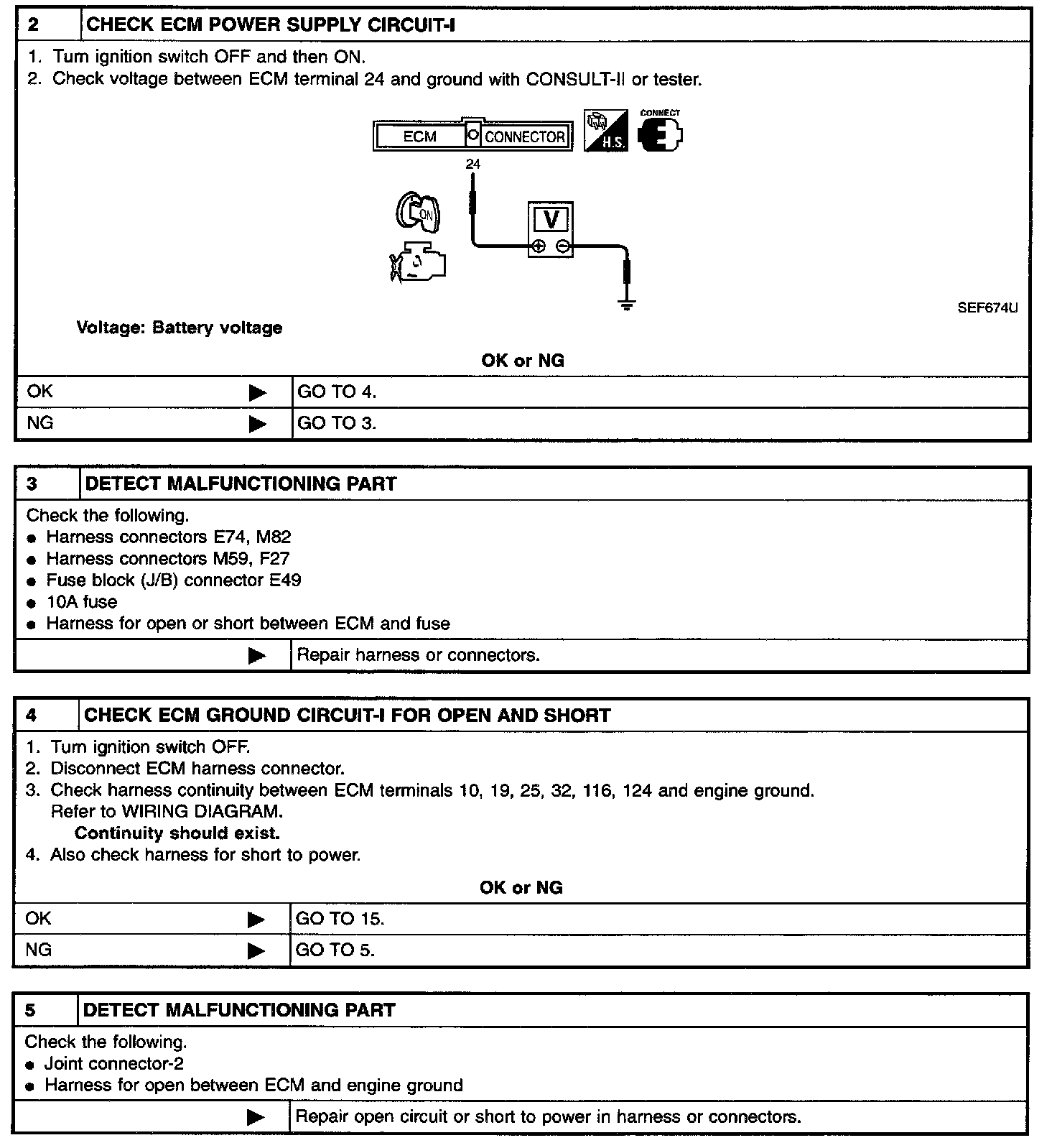

Steps 2 - 5:

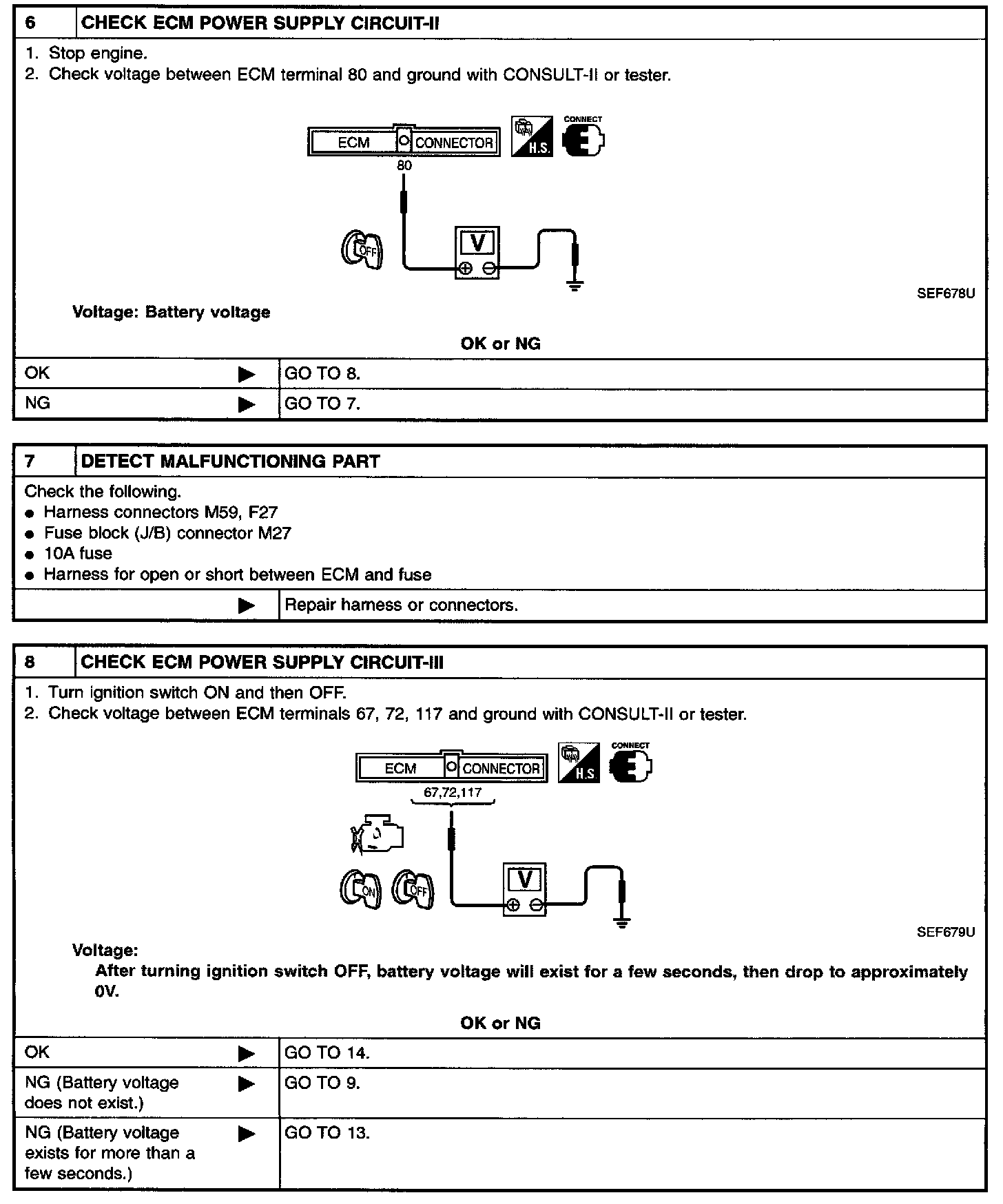

Steps 6 - 8:

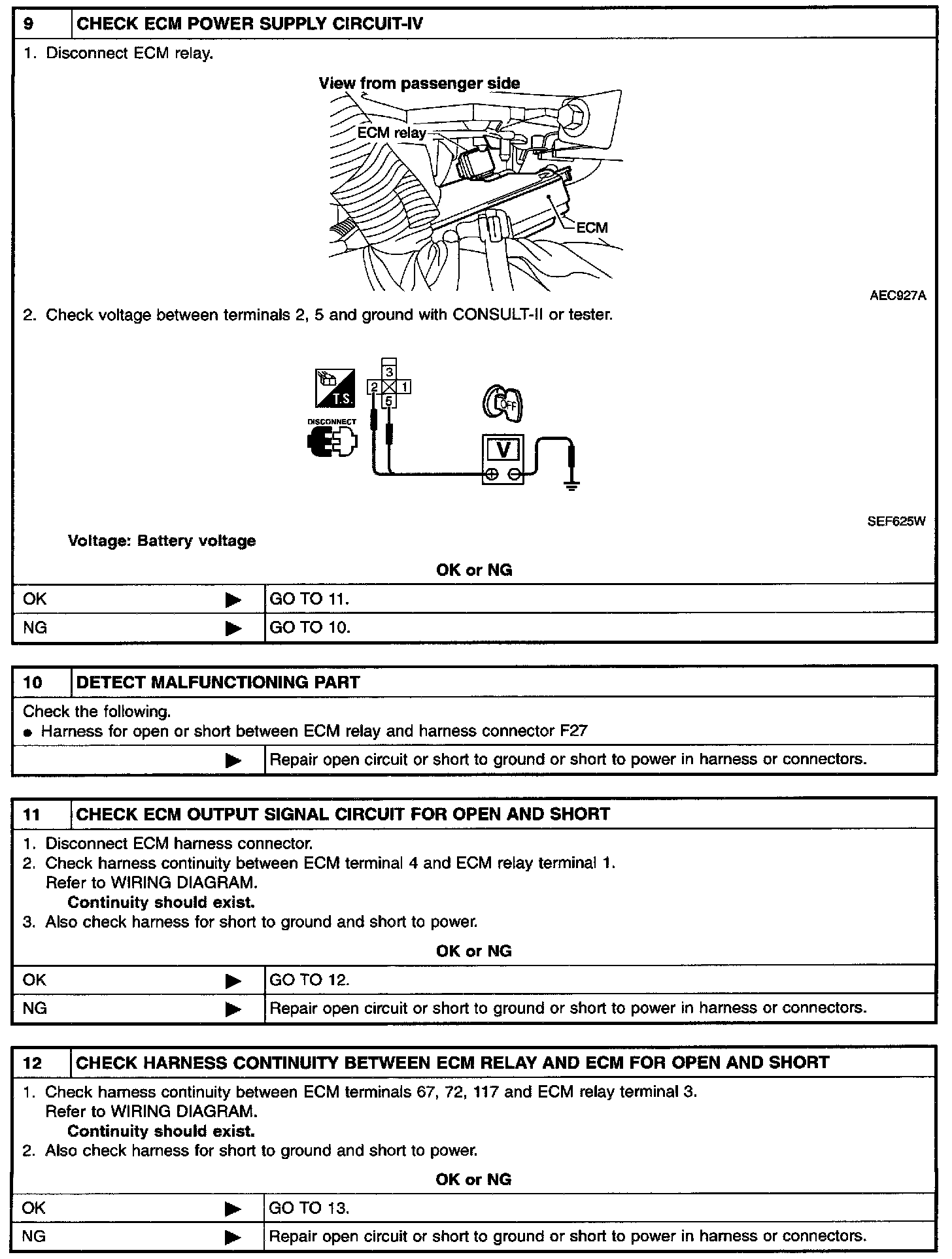

Steps 9 - 12:

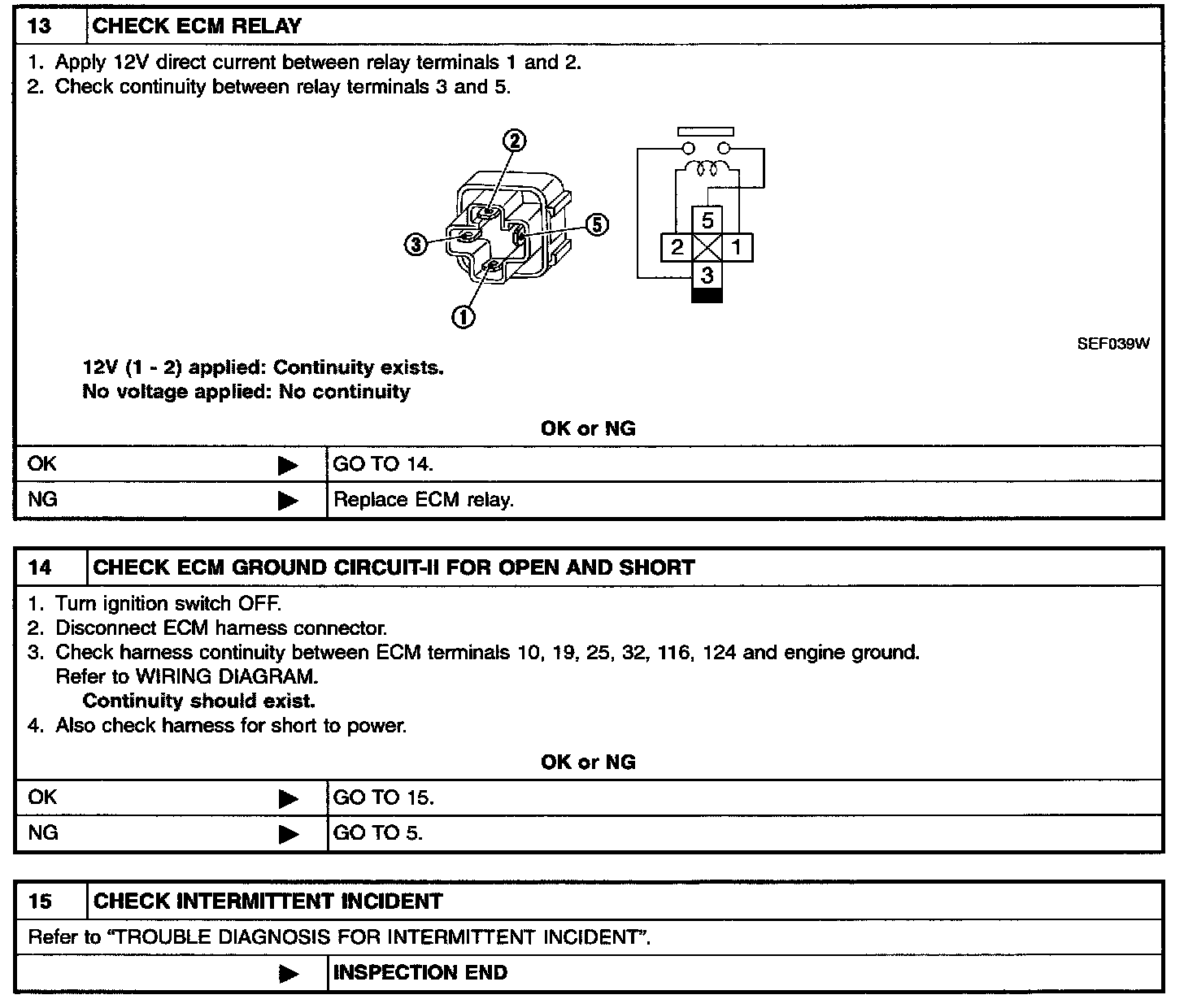

Steps 13 - 15:
DIAGNOSTIC PROCEDURE
