Audible Warning Device: Testing and Inspection

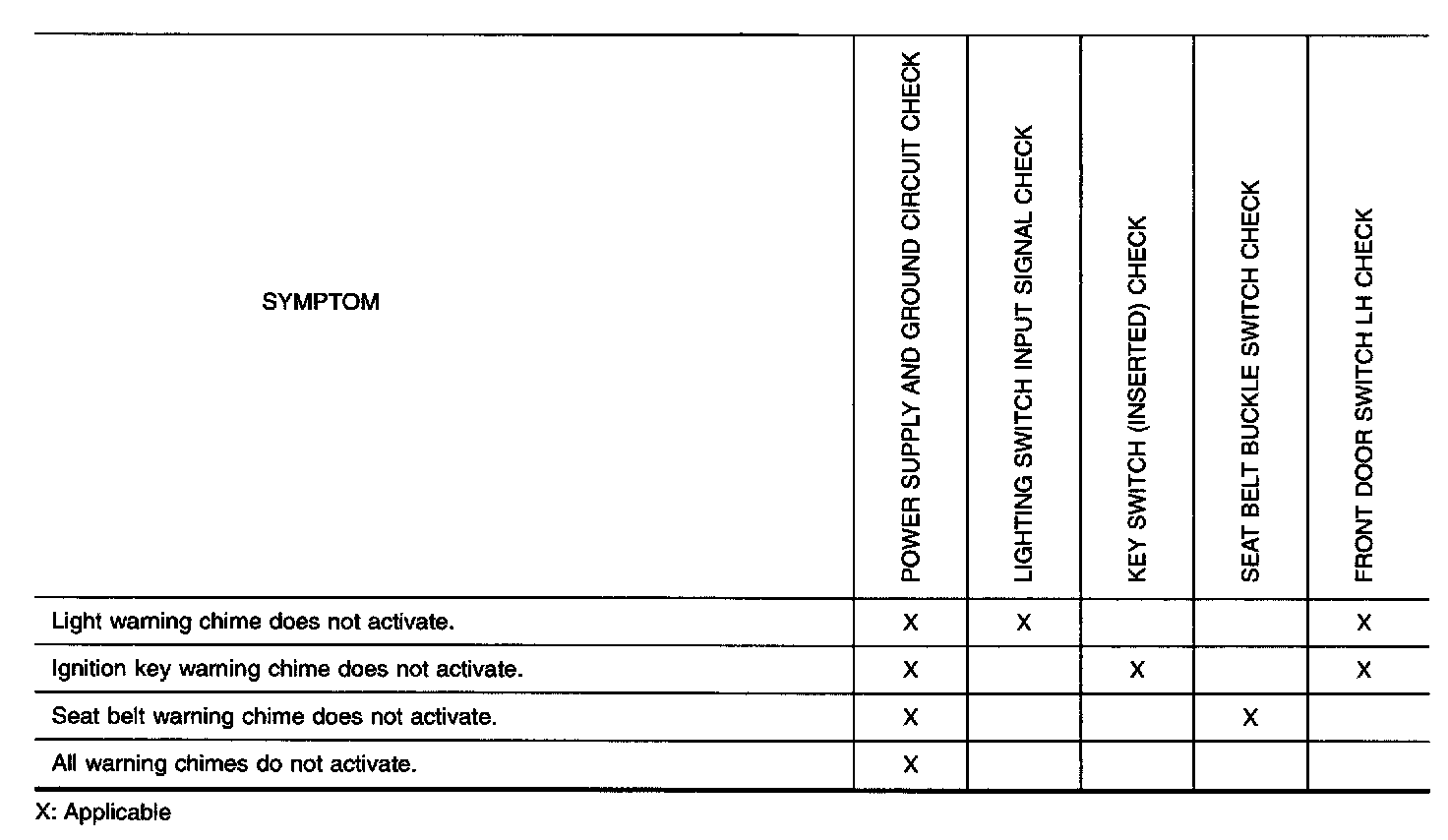

SYMPTOM CHART

POWER SUPPLY AND GROUND CIRCUIT CHECK

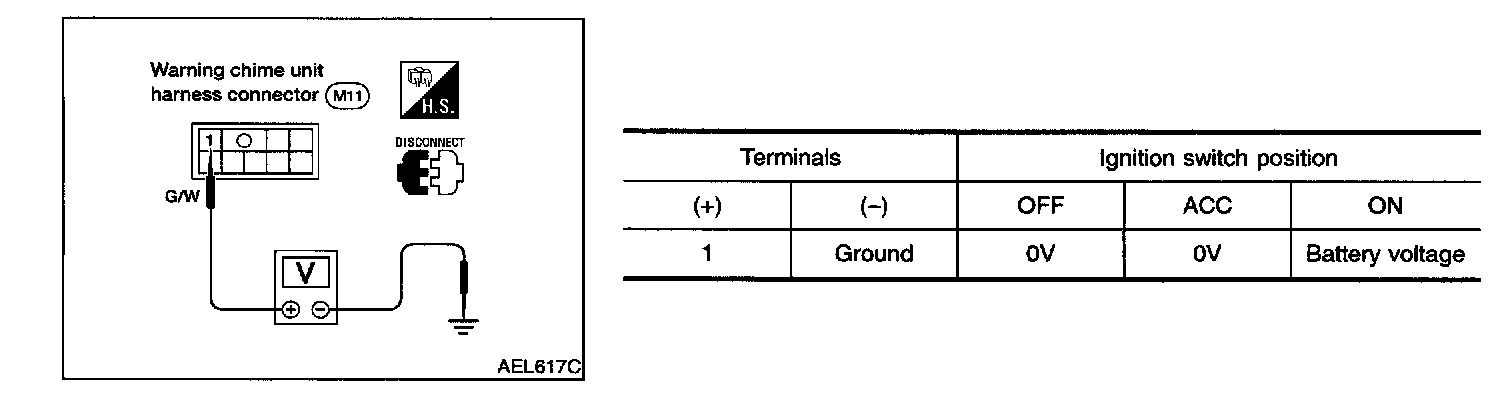

Main Power Supply Circuit Check
- Models without power door locks

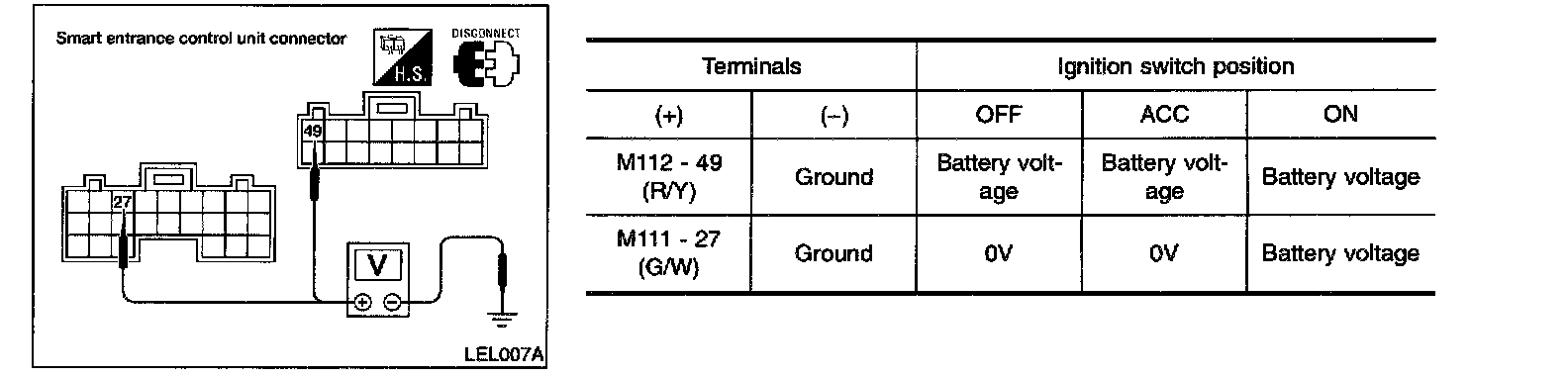

- Models with power door locks

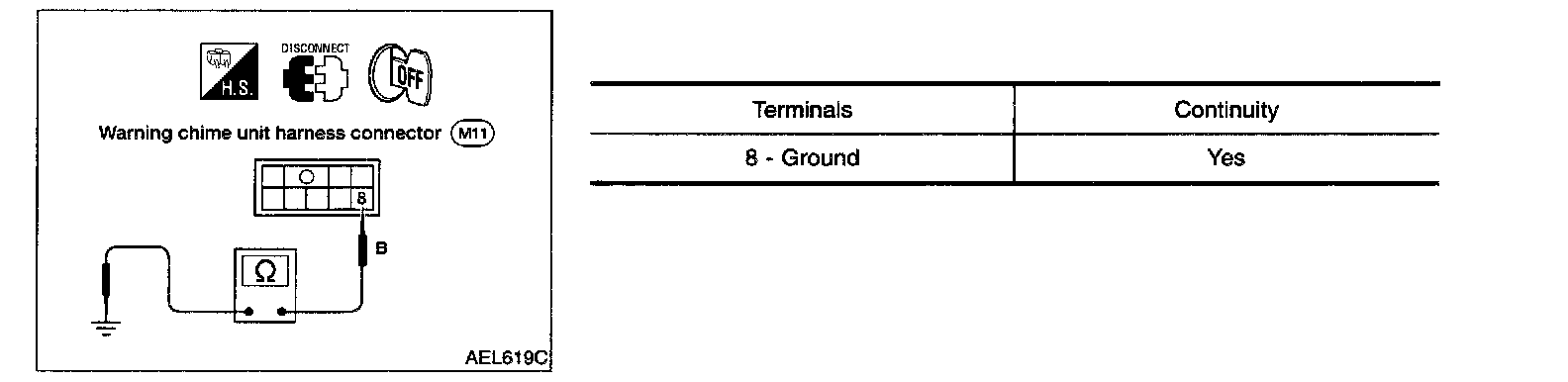

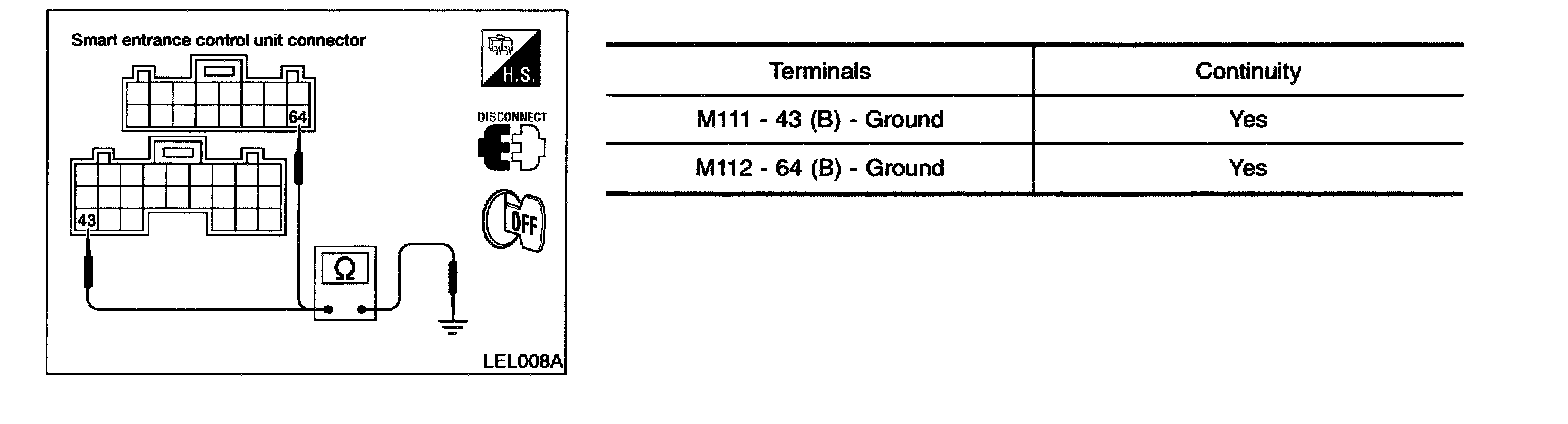

Ground Circuit Check
- Models without power door locks




- Models with power door locks

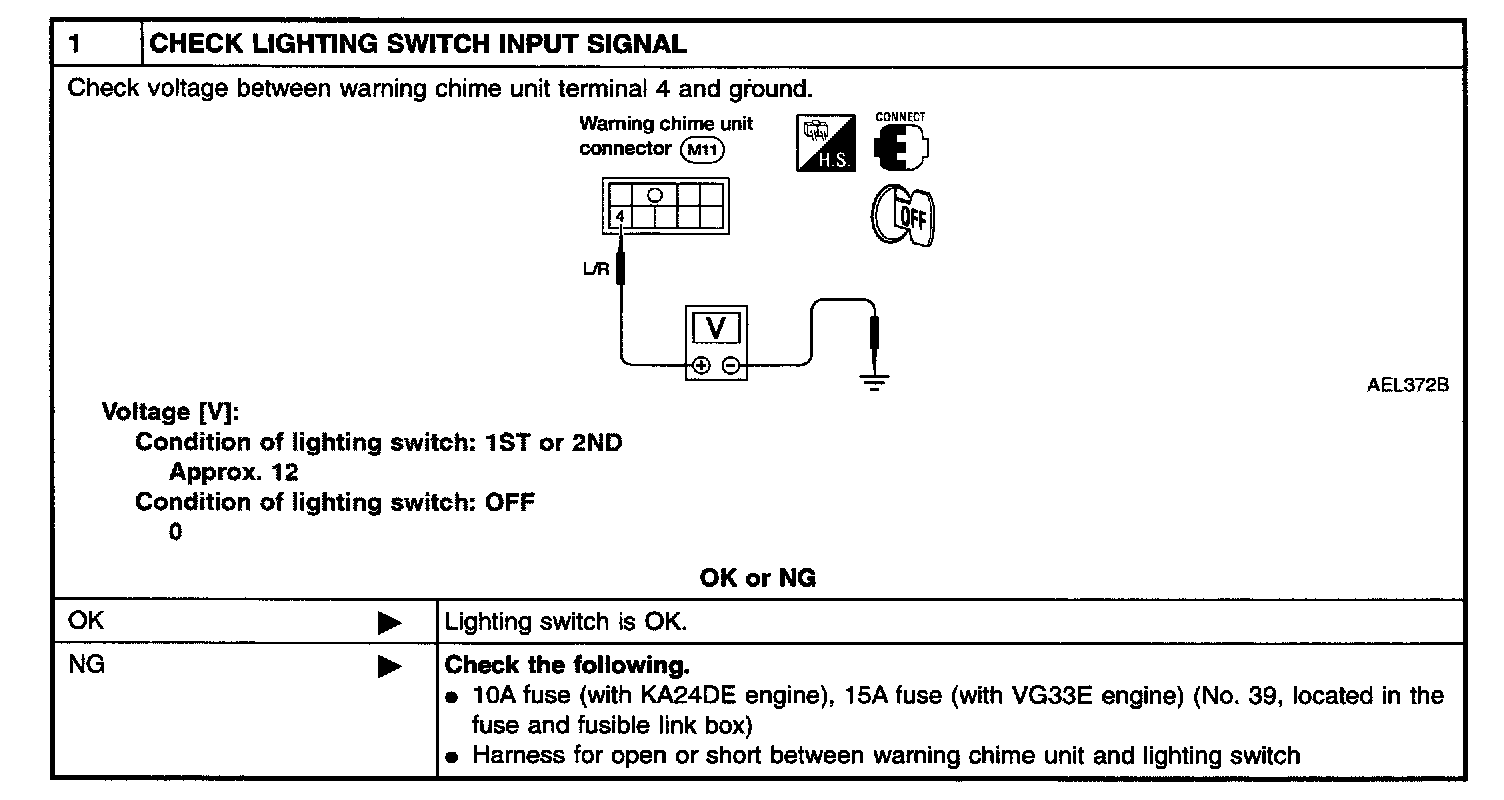

LIGHTING SWITCH INPUT SIGNAL CHECK

Step 1:

Models Without Power Door Locks

Step 1:

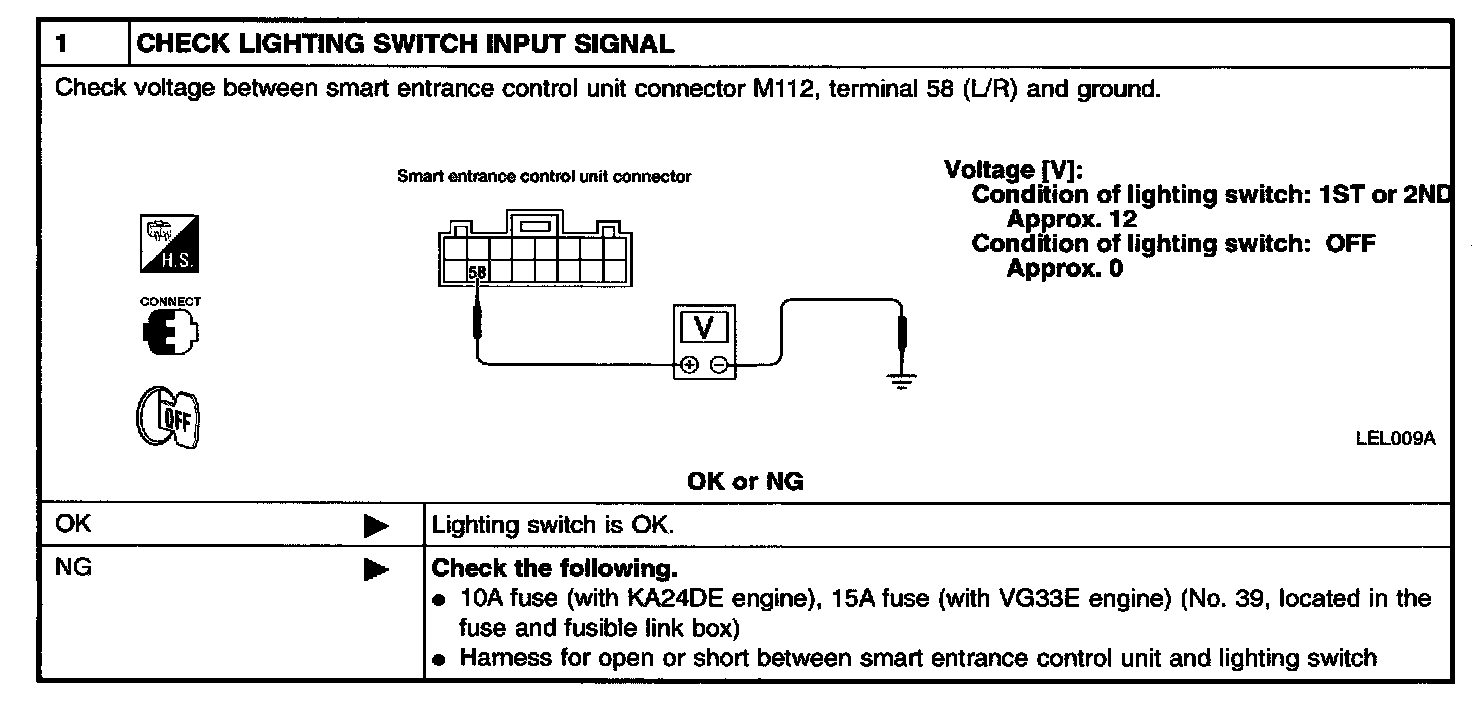

Models With Power Door Locks

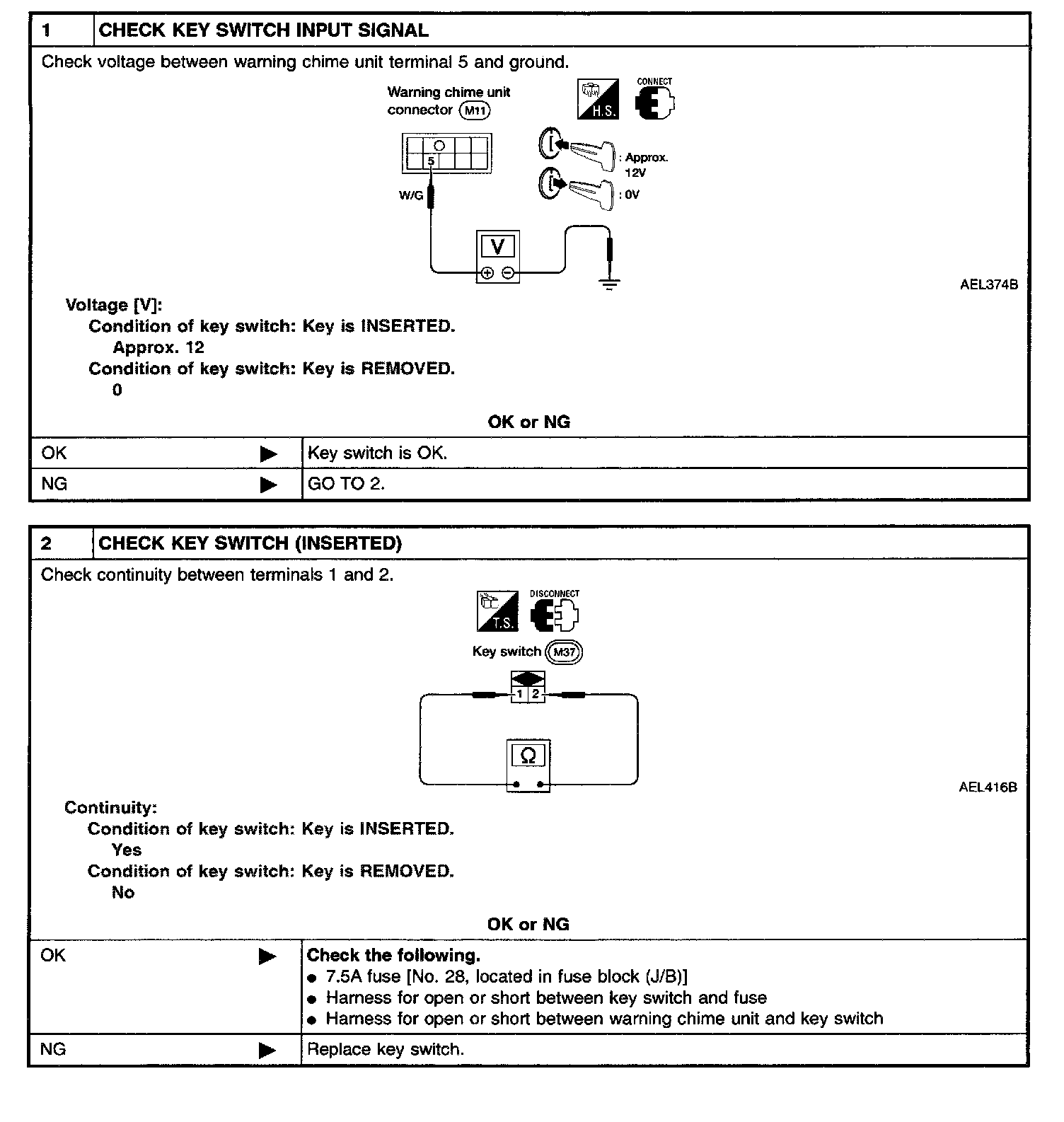

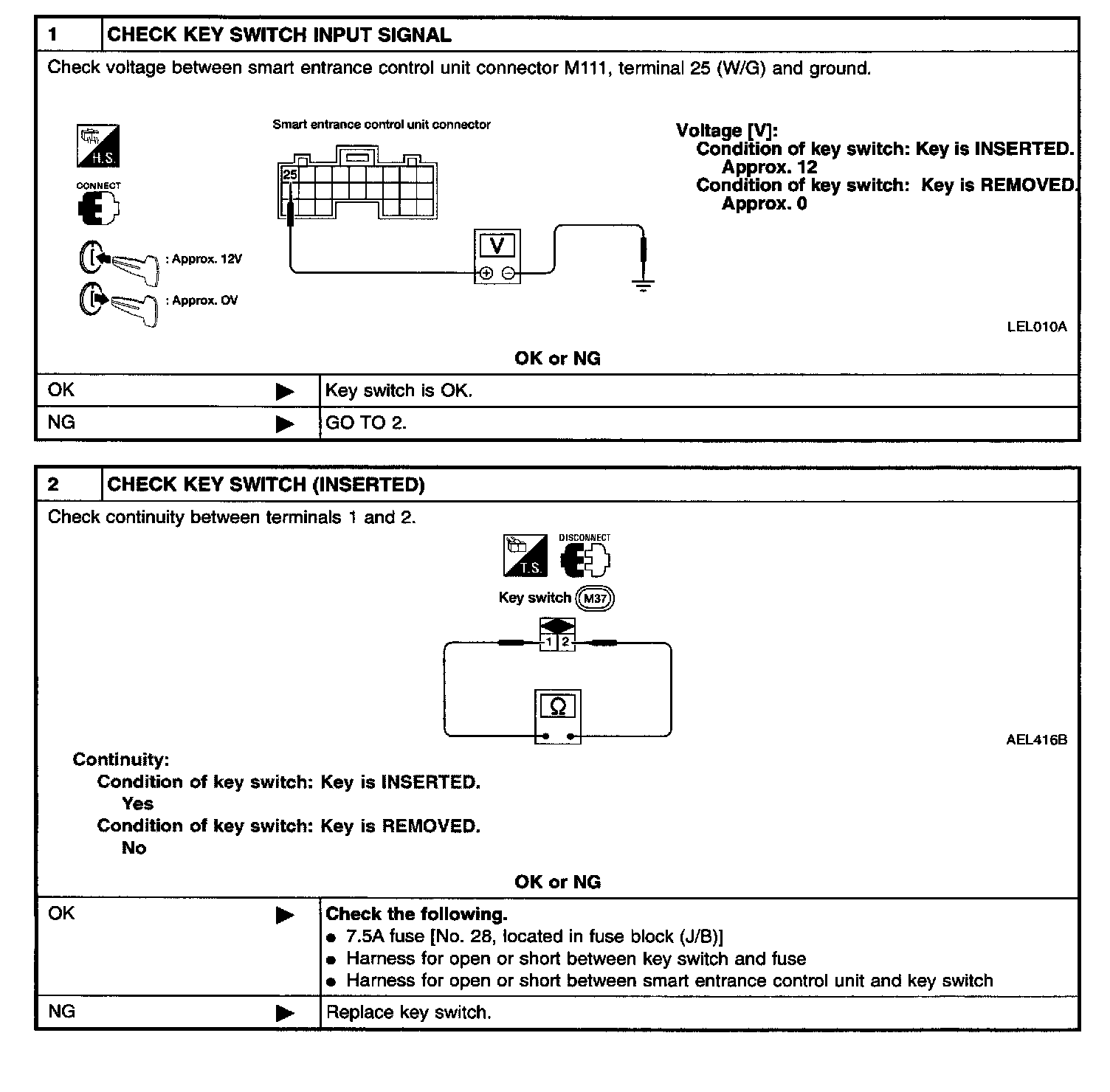

KEY SWITCH (INSERTED) CHECK

Steps 1 - 2:

Models Without Power Door Locks

Steps 1 - 2:

Models With Power Door Locks

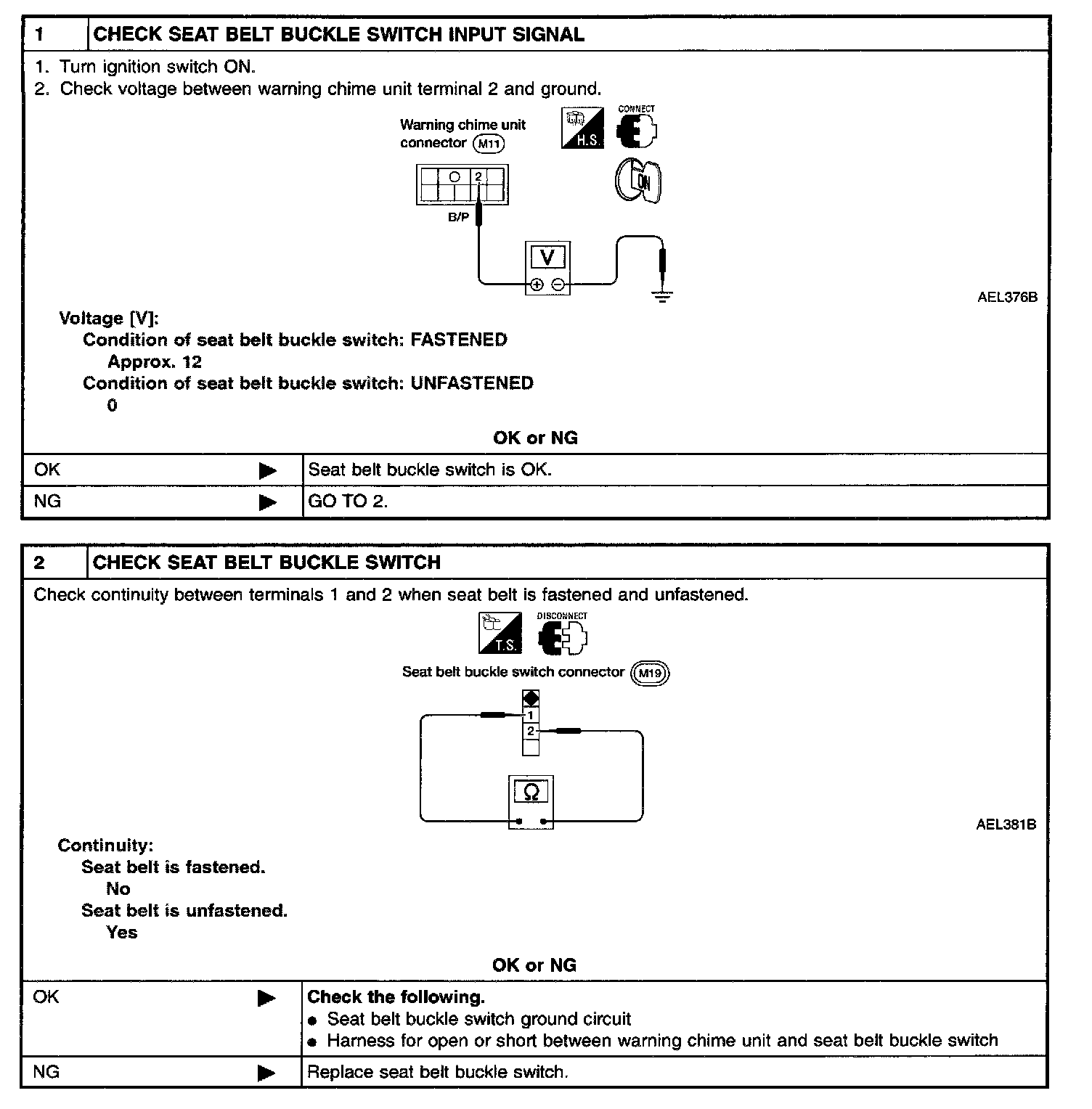

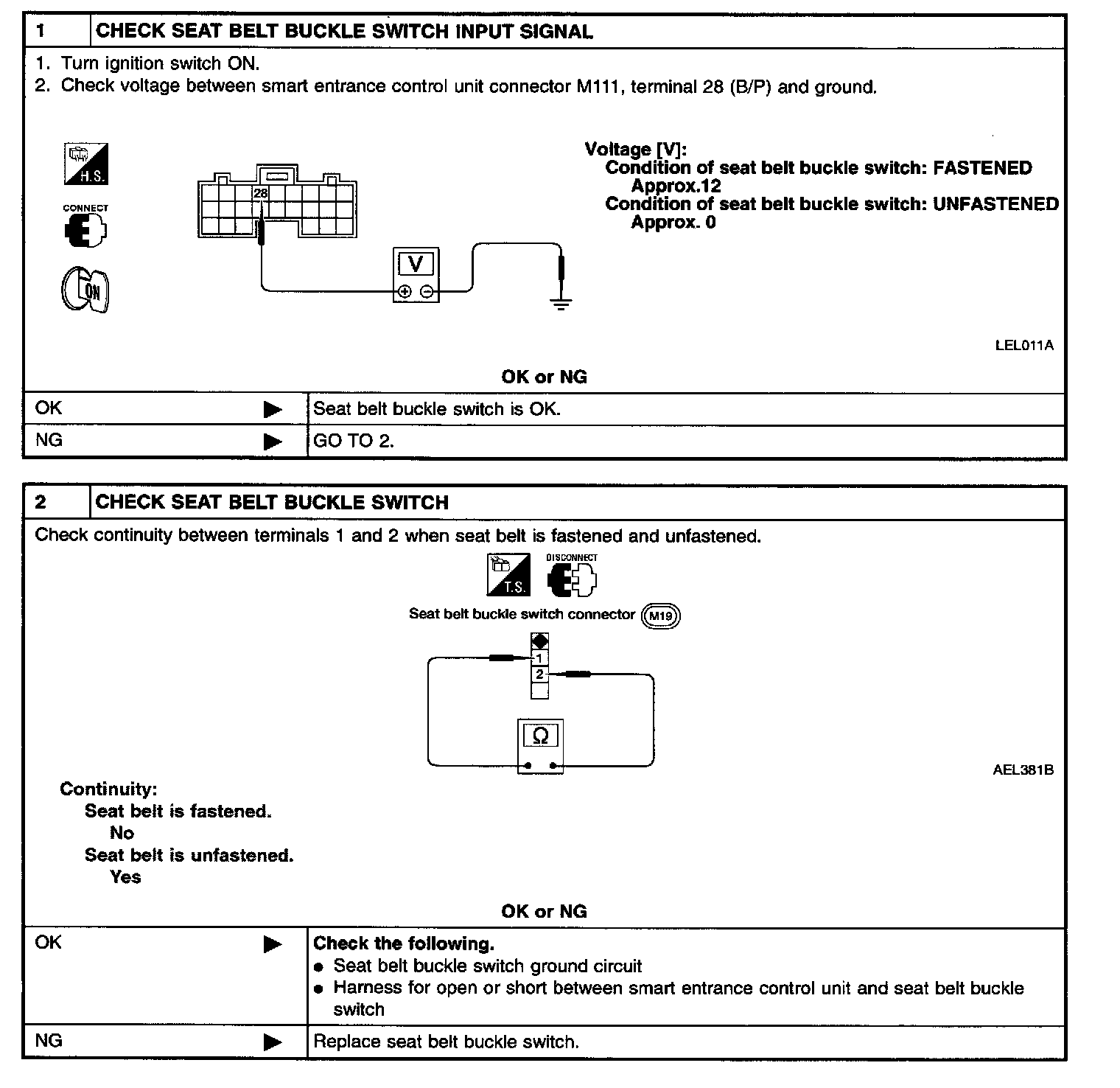

SEAT BELT BUCKLE SWITCH CHECK

Steps 1 - 2:

Models Without Power Door Locks

Steps 1 - 2:

Models With Power Door Locks

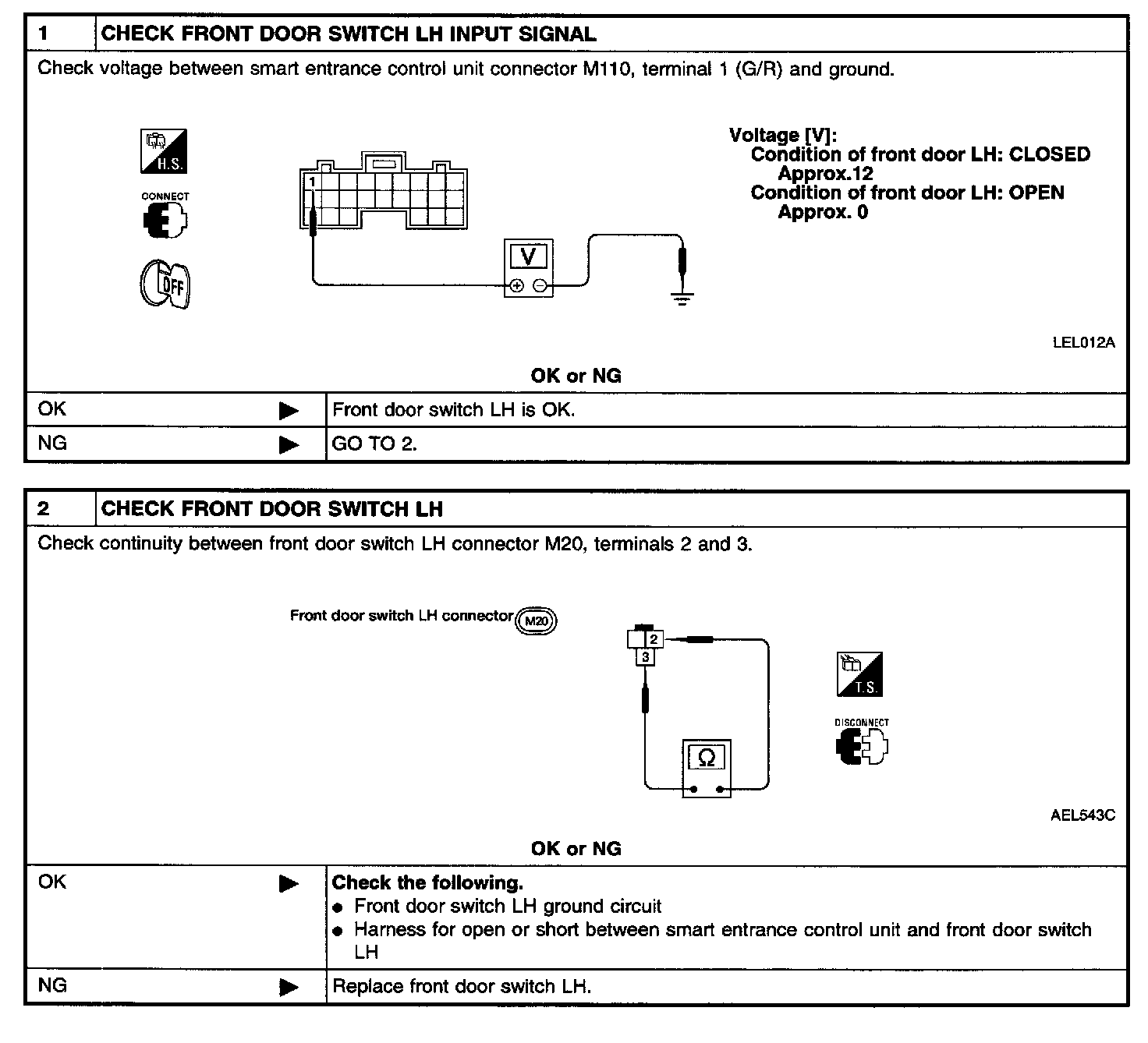

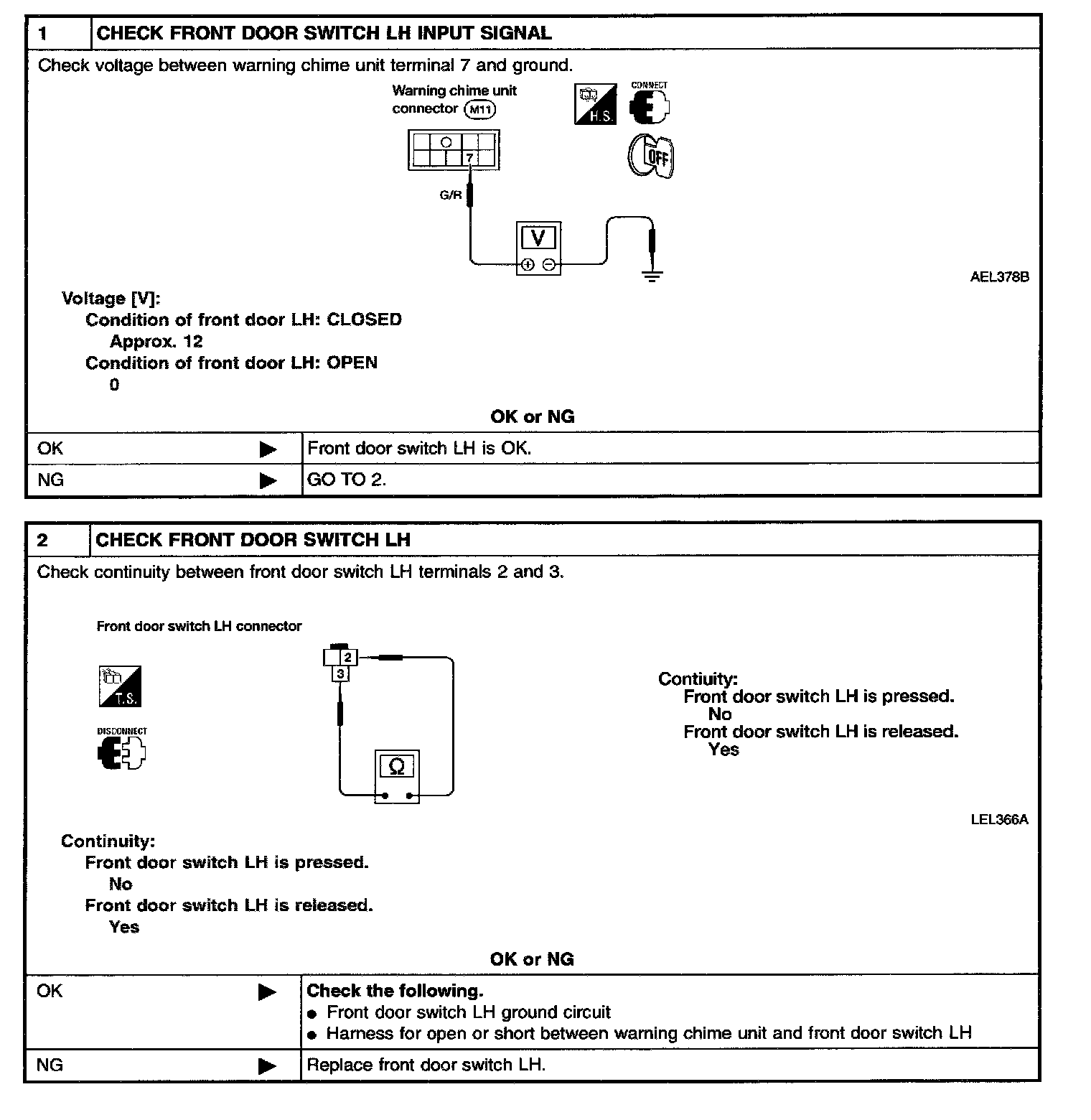

FRONT DOOR SWITCH LH CHECK

Steps 1 - 2:

Models Without Power Door Locks

Steps 1 - 2:

Models With Power Door Locks
