Insufficient Cooling
>>
Test Conditions, Pressure and Discharge Temp
Test Conditions, Pressure and Discharge Temp

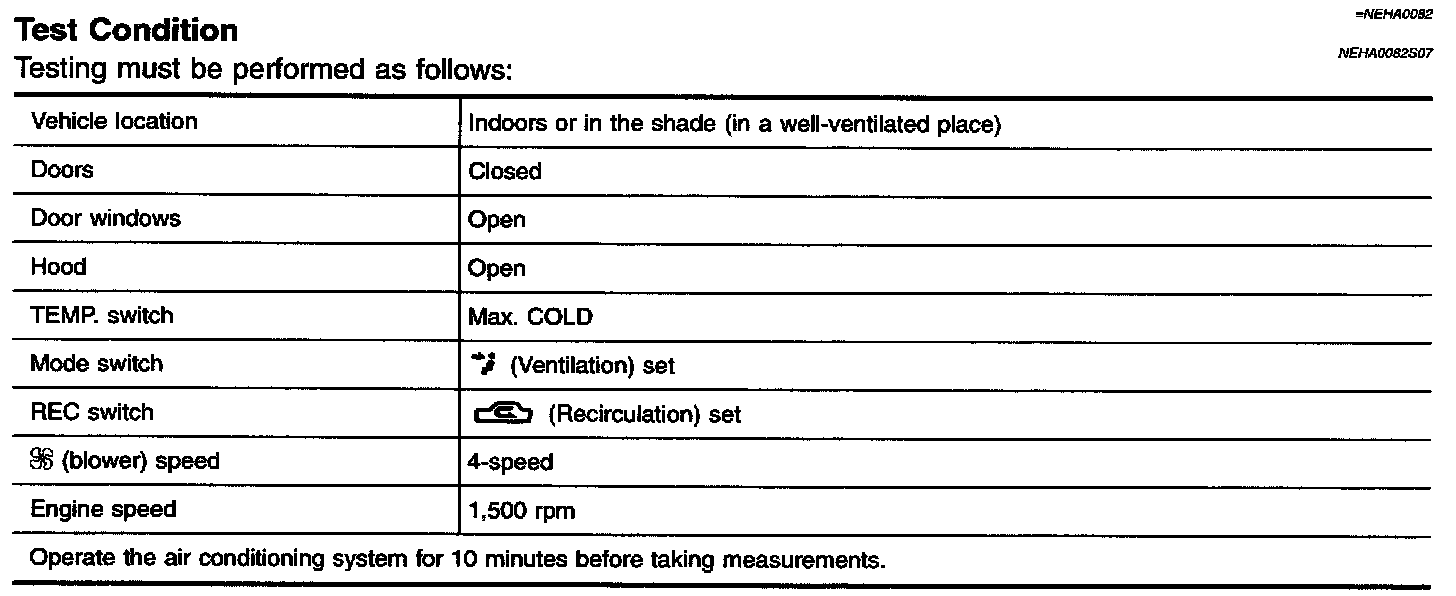

Test Condition:
Test Reading - Recirculation-to-Discharge Air Temperature Table:

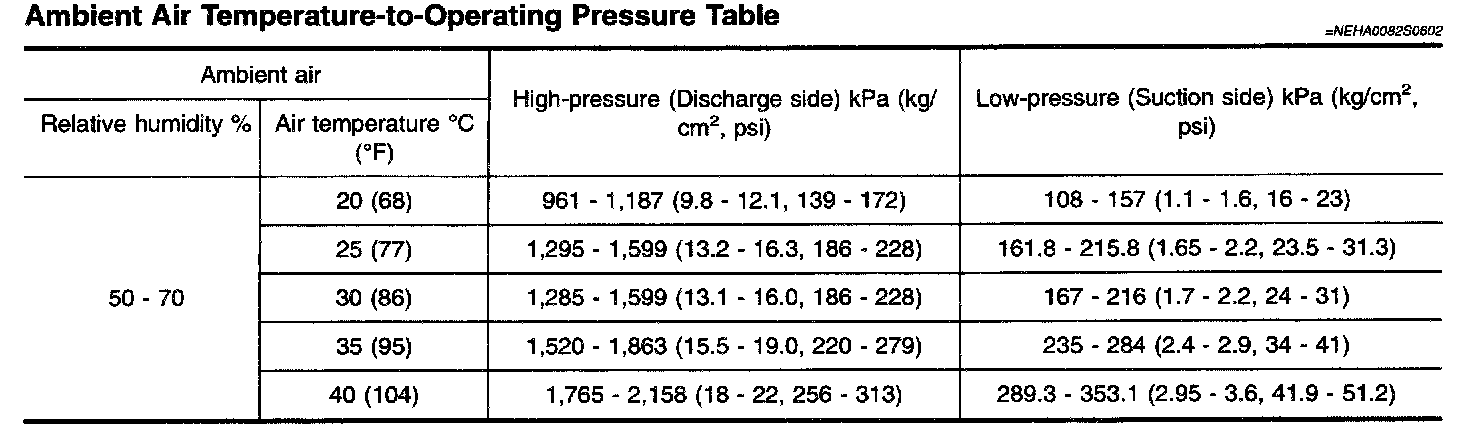

Test Reading - Ambient Air Temperature-to-Operating Pressure Table:
