Home >> Nissan-Datsun Truck >> 2001 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Insufficient Cooling >> Diagnostic Test Procedures

Diagnostic Test Procedures

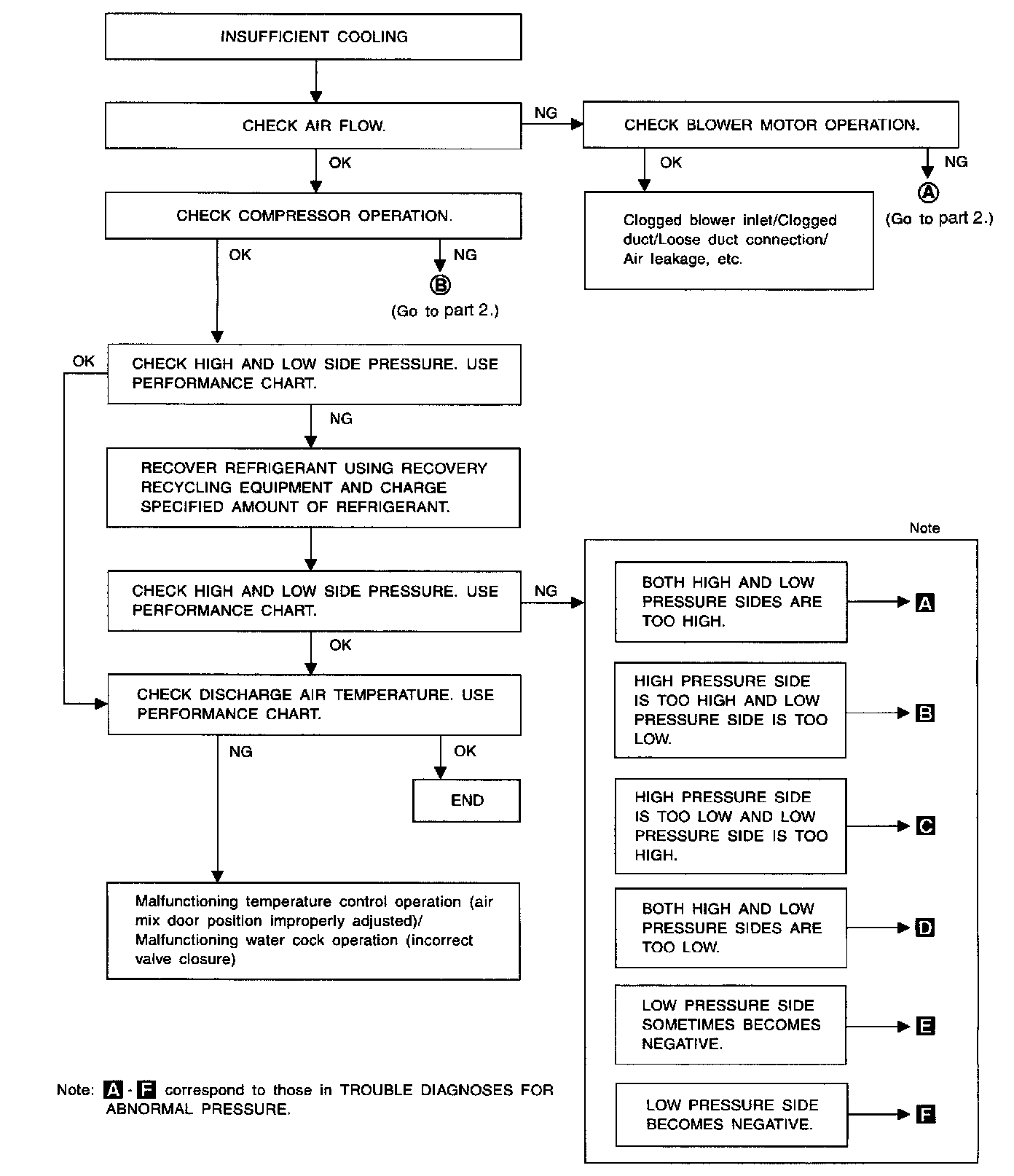

Performance Test Diagnoses Part 1:

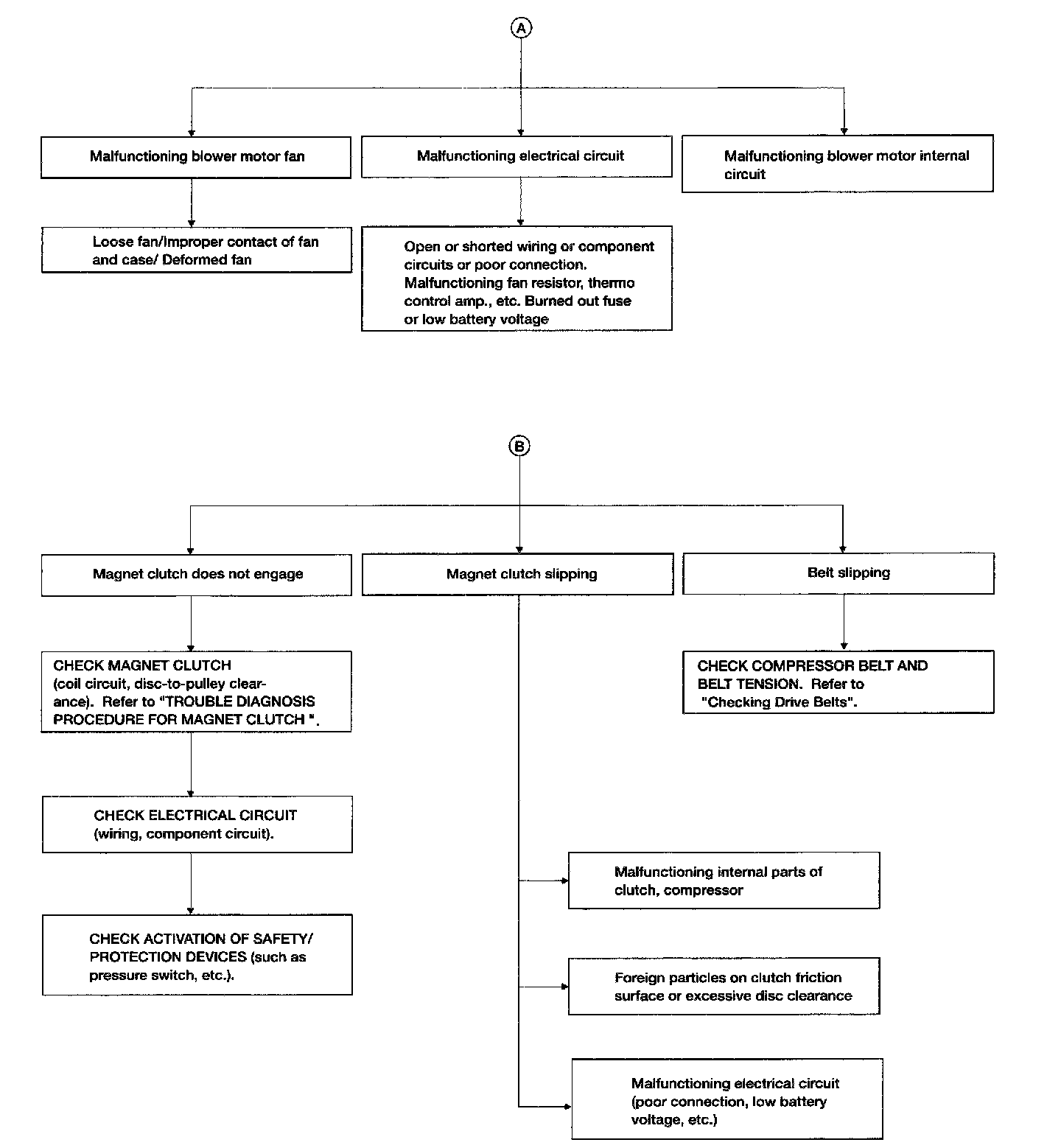

Performance Test Diagnoses Part 2:
