Blower Motor: Testing and Inspection

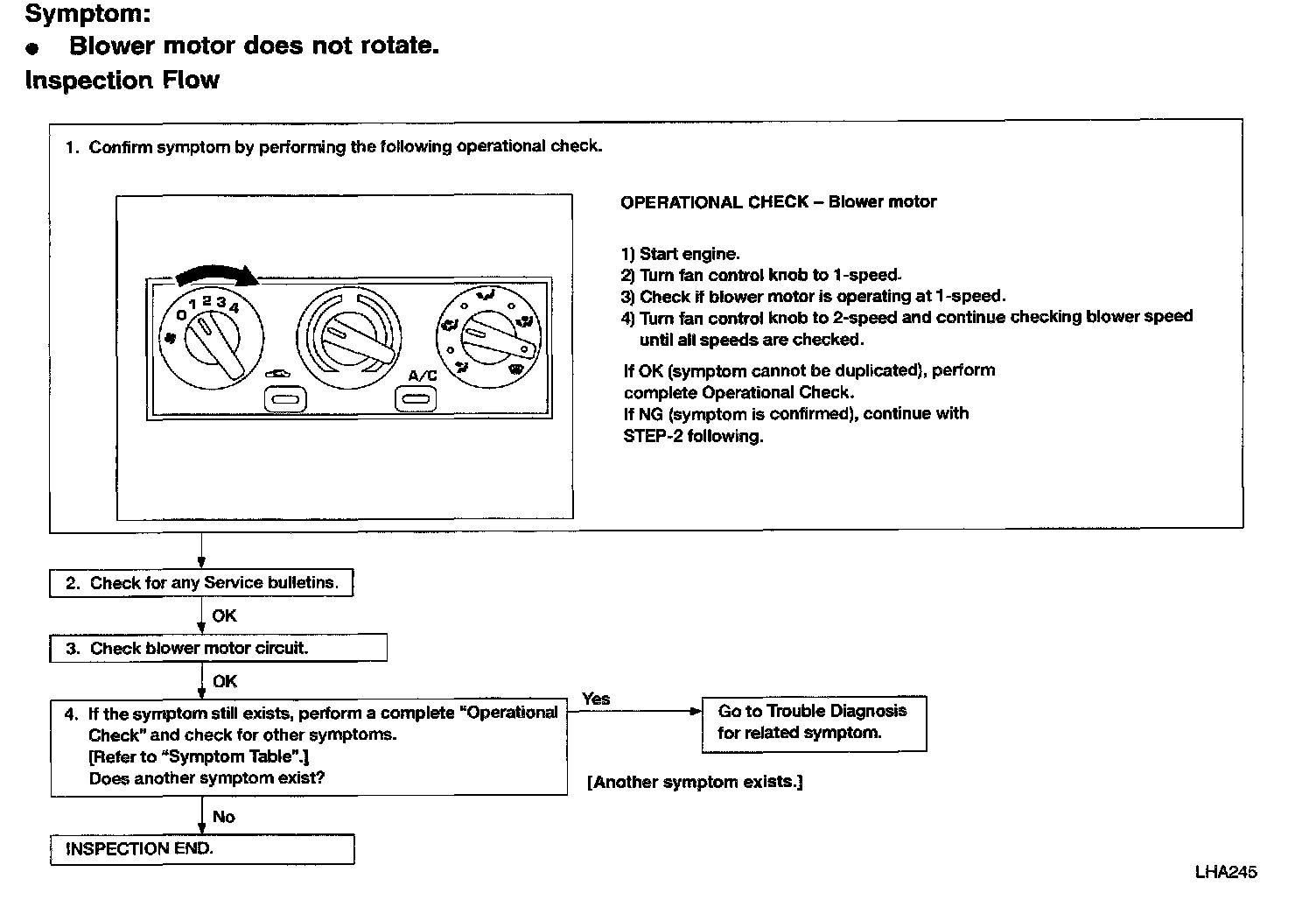

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR

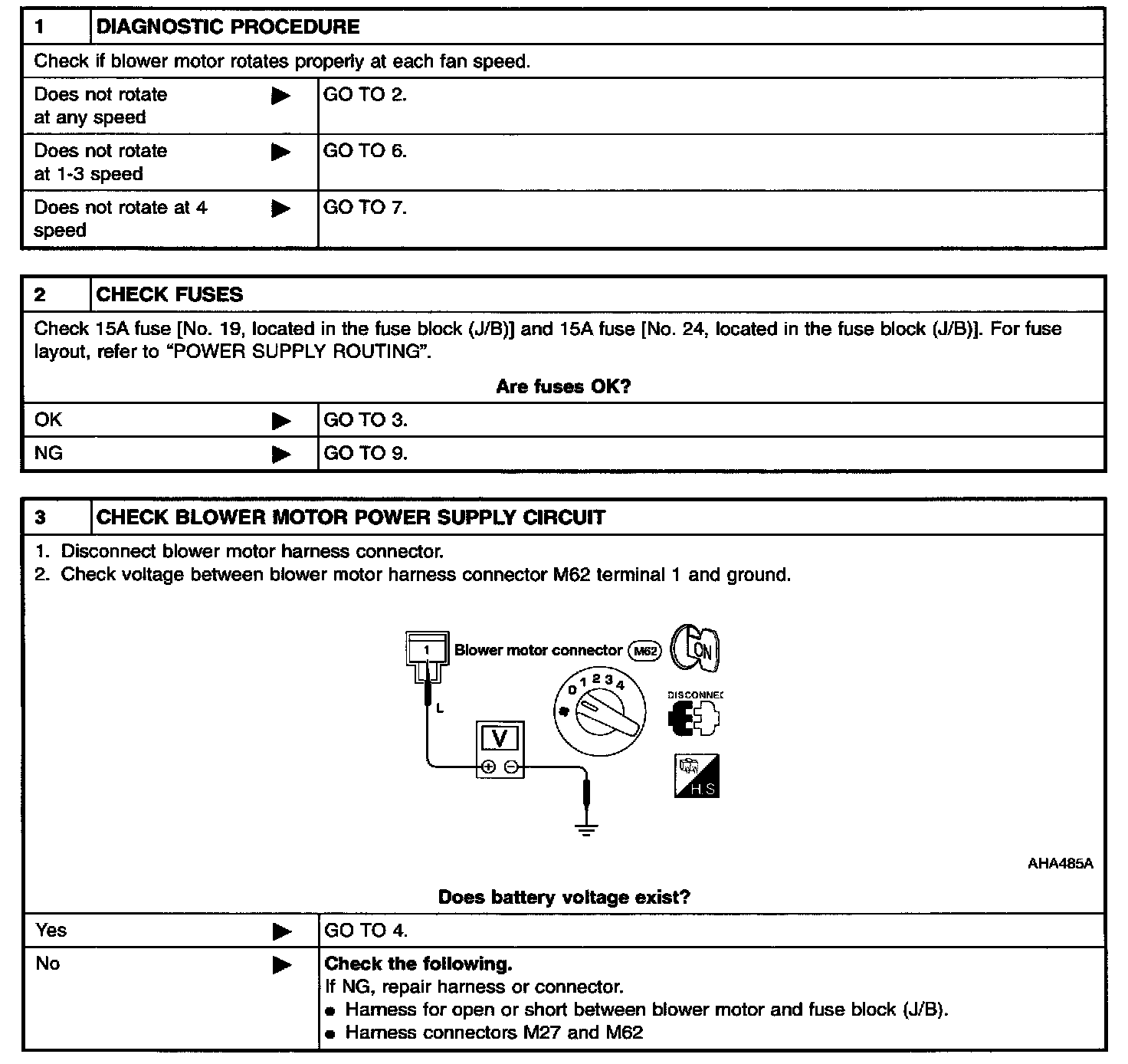

Steps 1 - 3:

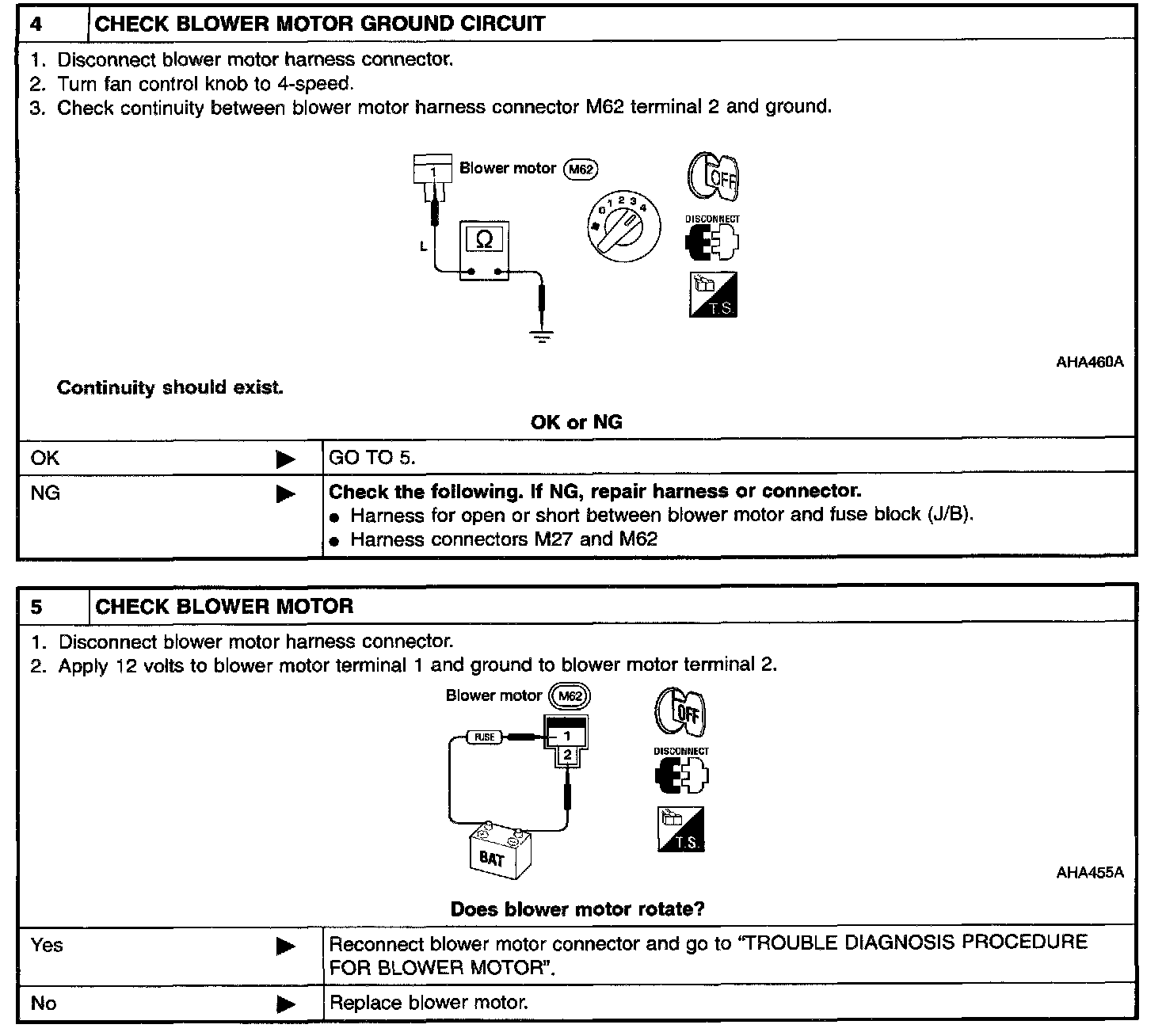

Steps 4 - 5:

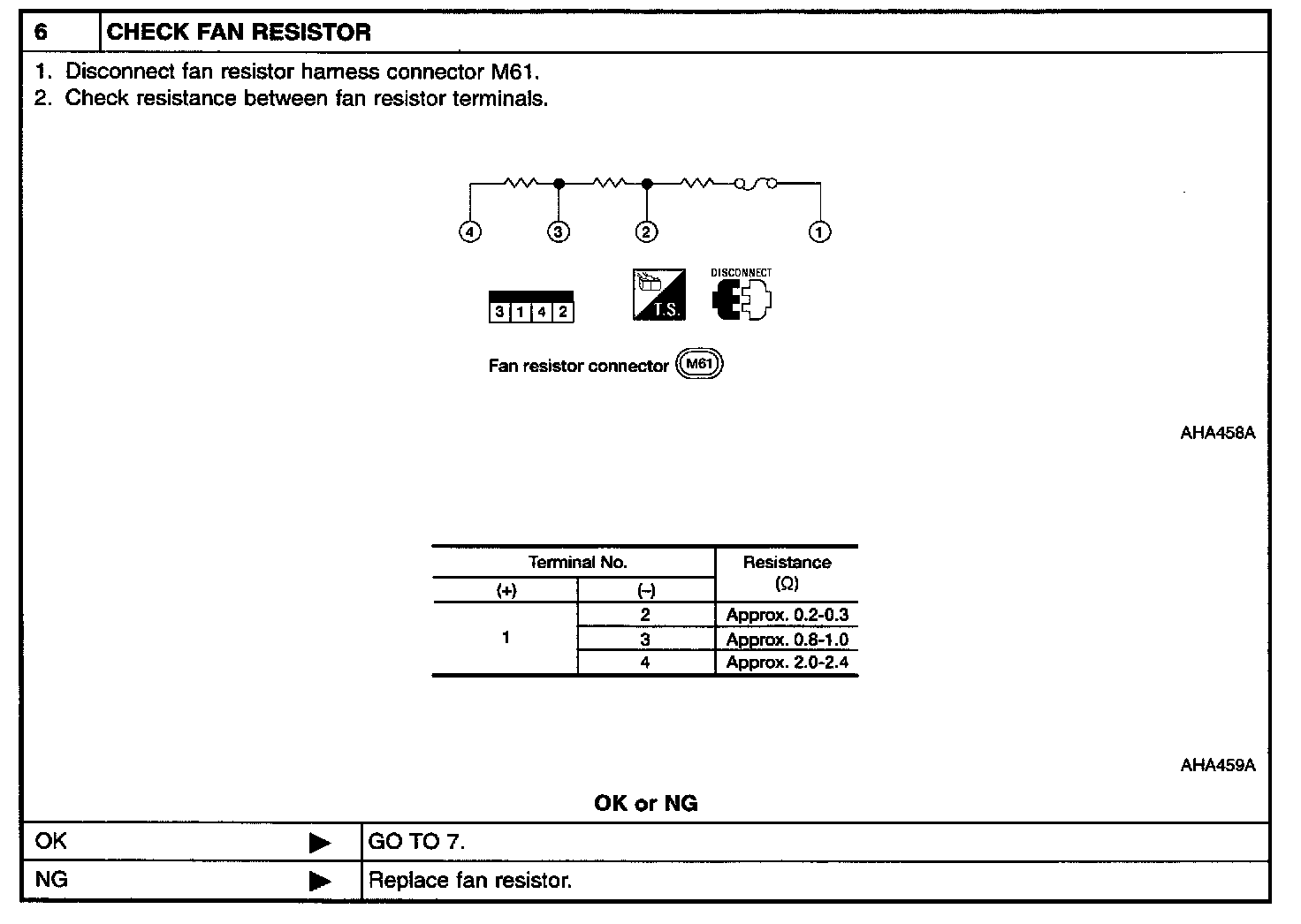

Step 6:

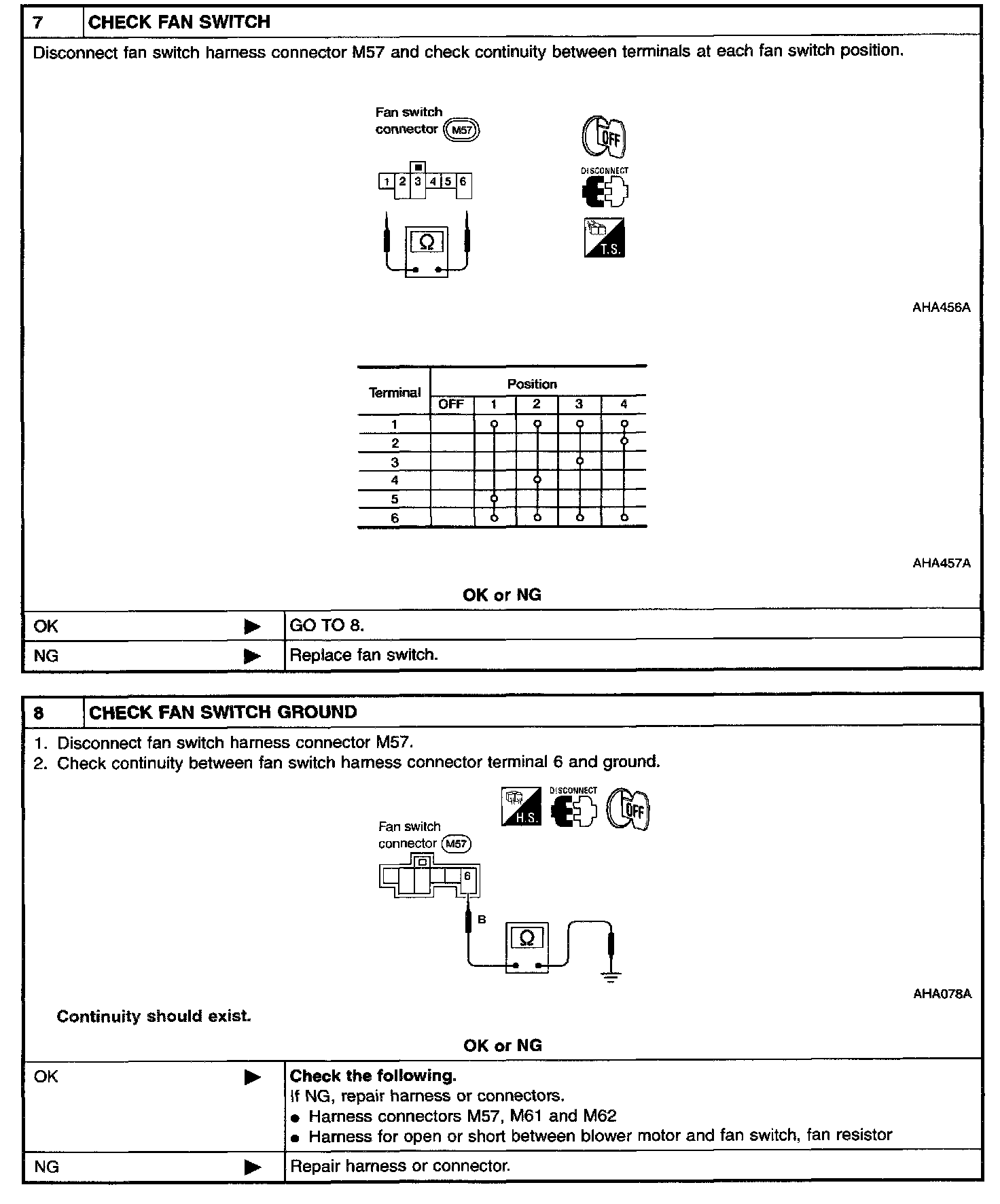

Steps 7 - 8:

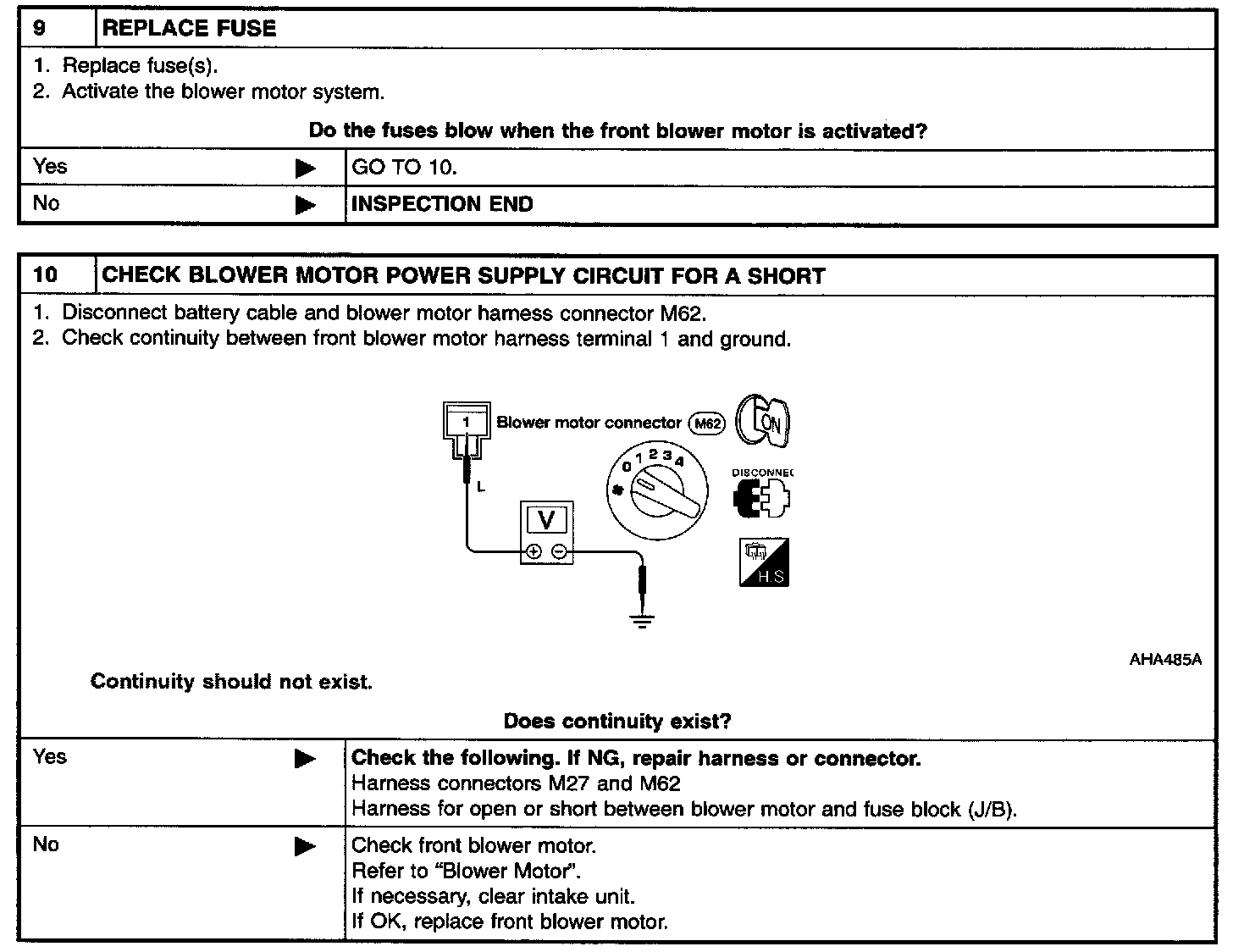

Steps 9 - 10:

SYMPTOM:
- Blower motor does not rotate.

ELECTRICAL COMPONENTS INSPECTION

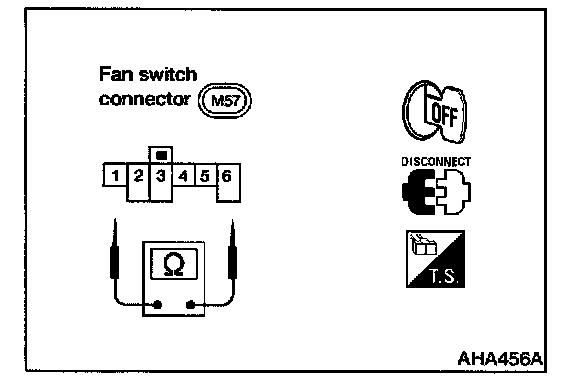

Fan Switch

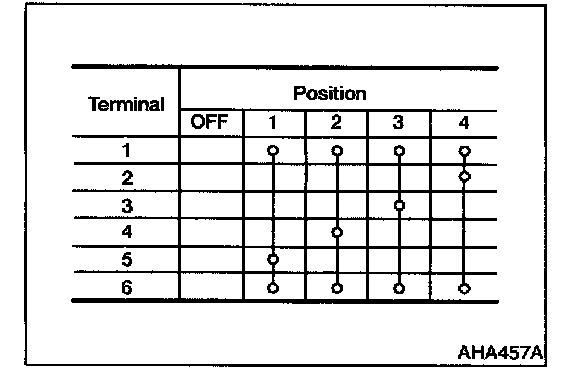

Check continuity between terminals at each switch position.




Blower Motor
Confirm smooth rotation of the blower motor.
Check that there are no foreign particles inside the intake unit.

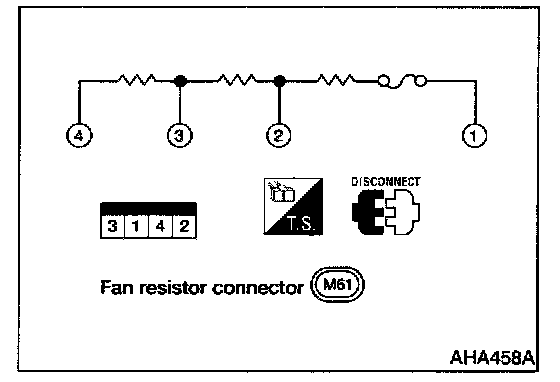

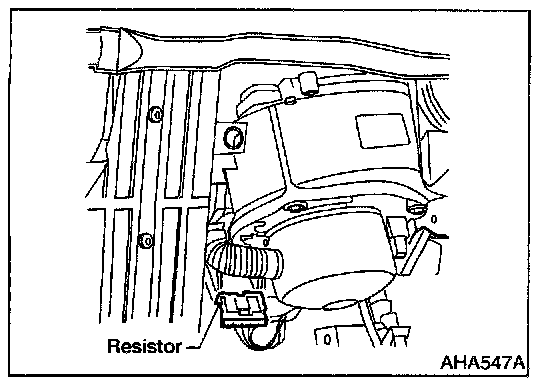

Fan Resistor

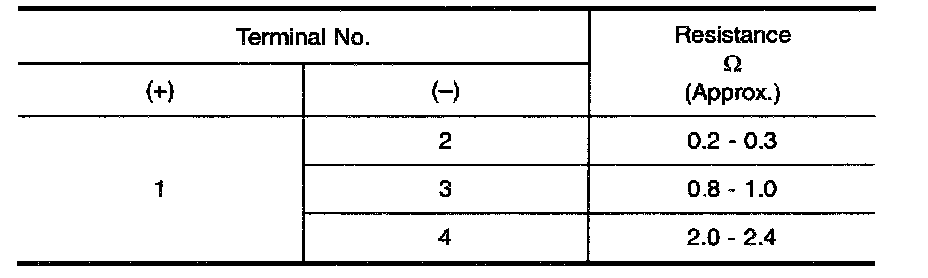

Check resistance between terminals.
