Home >> Nissan-Datsun Truck >> 2001 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Testing and Inspection >> Blend Door

Blend Door

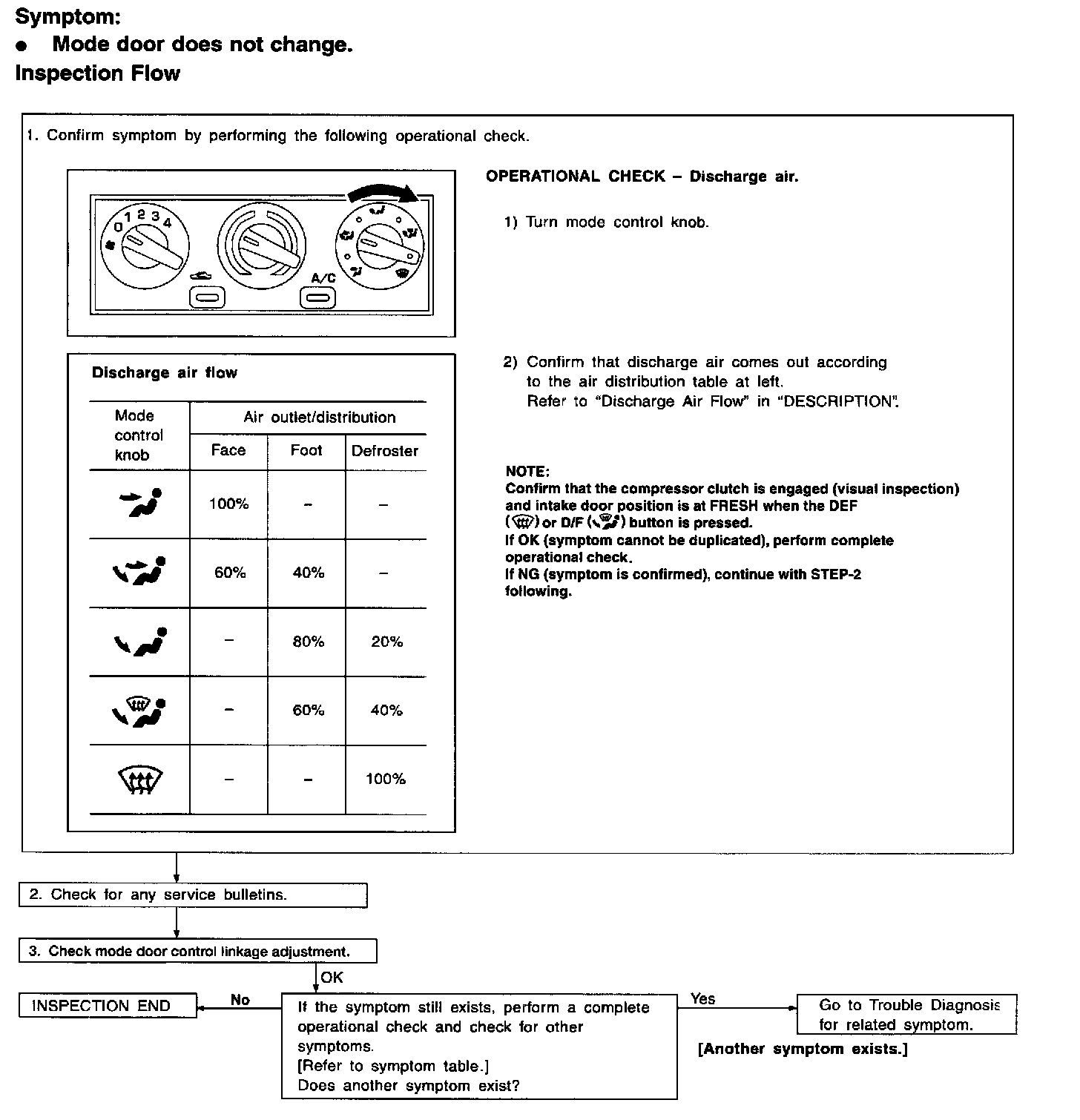

Trouble Diagnosis Procedure For Mode Door:
