Home >> Nissan-Datsun Truck >> 2001 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> System Diagram

System Diagram

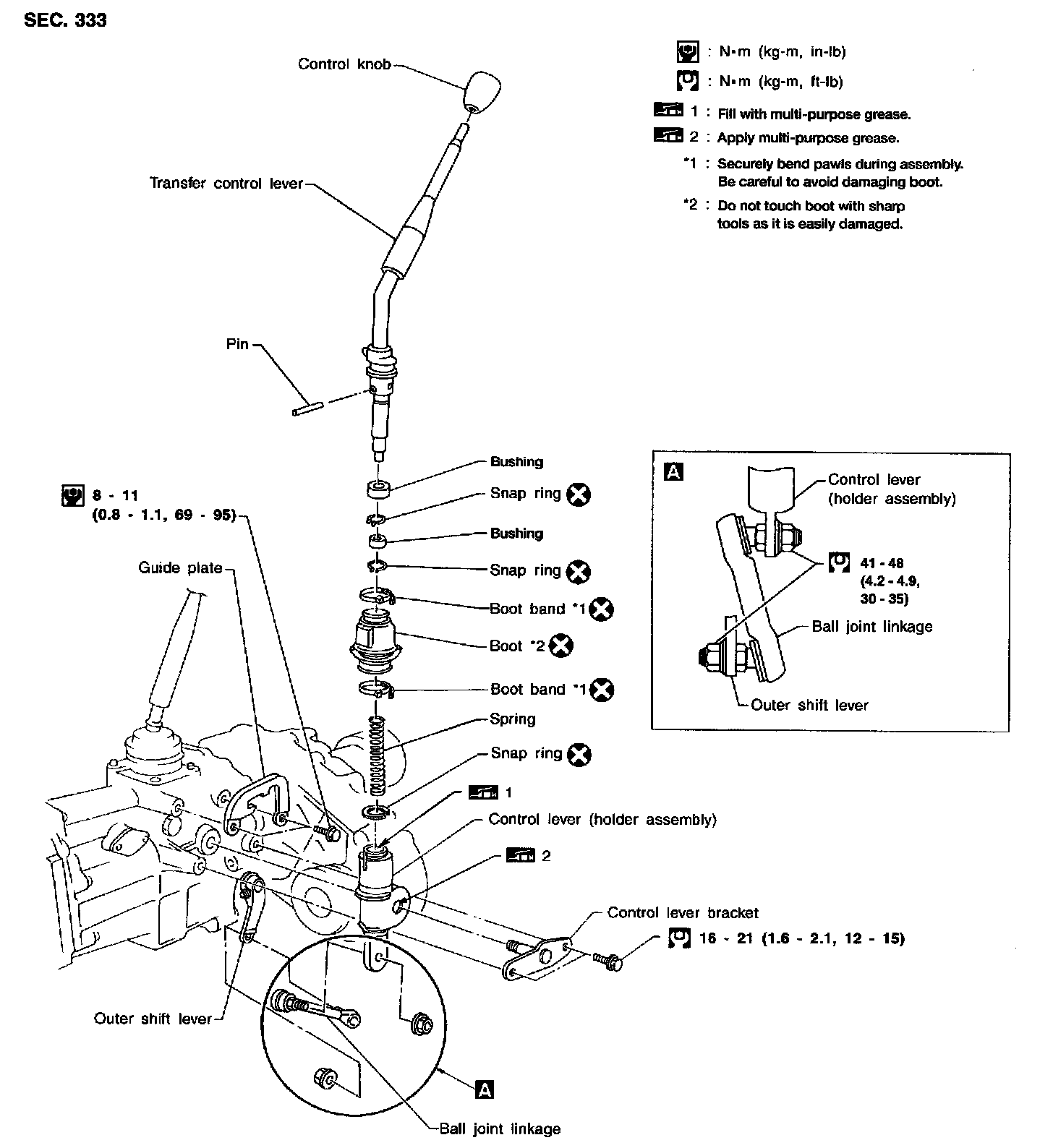

Transfer Gear Control

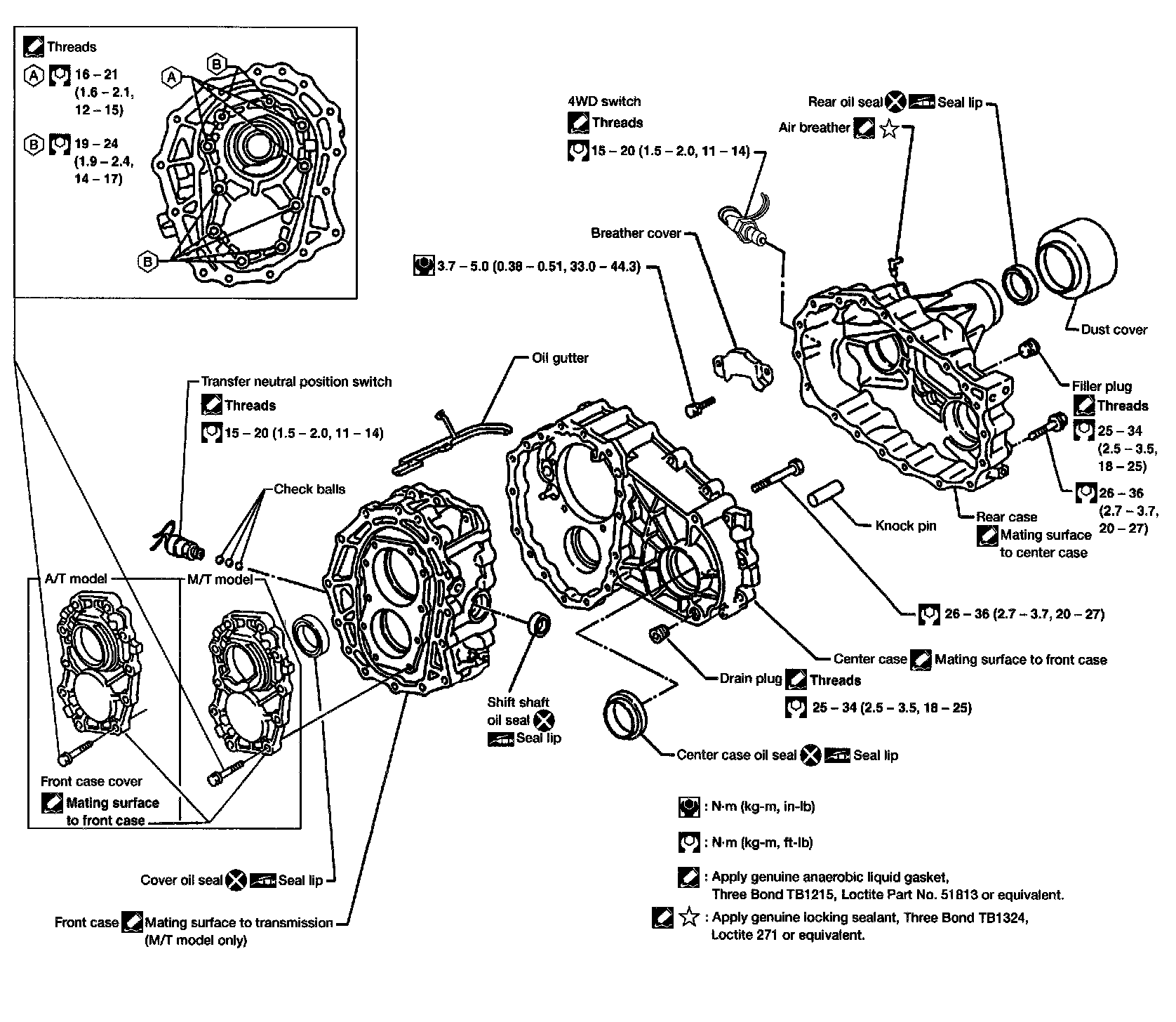

Case Components

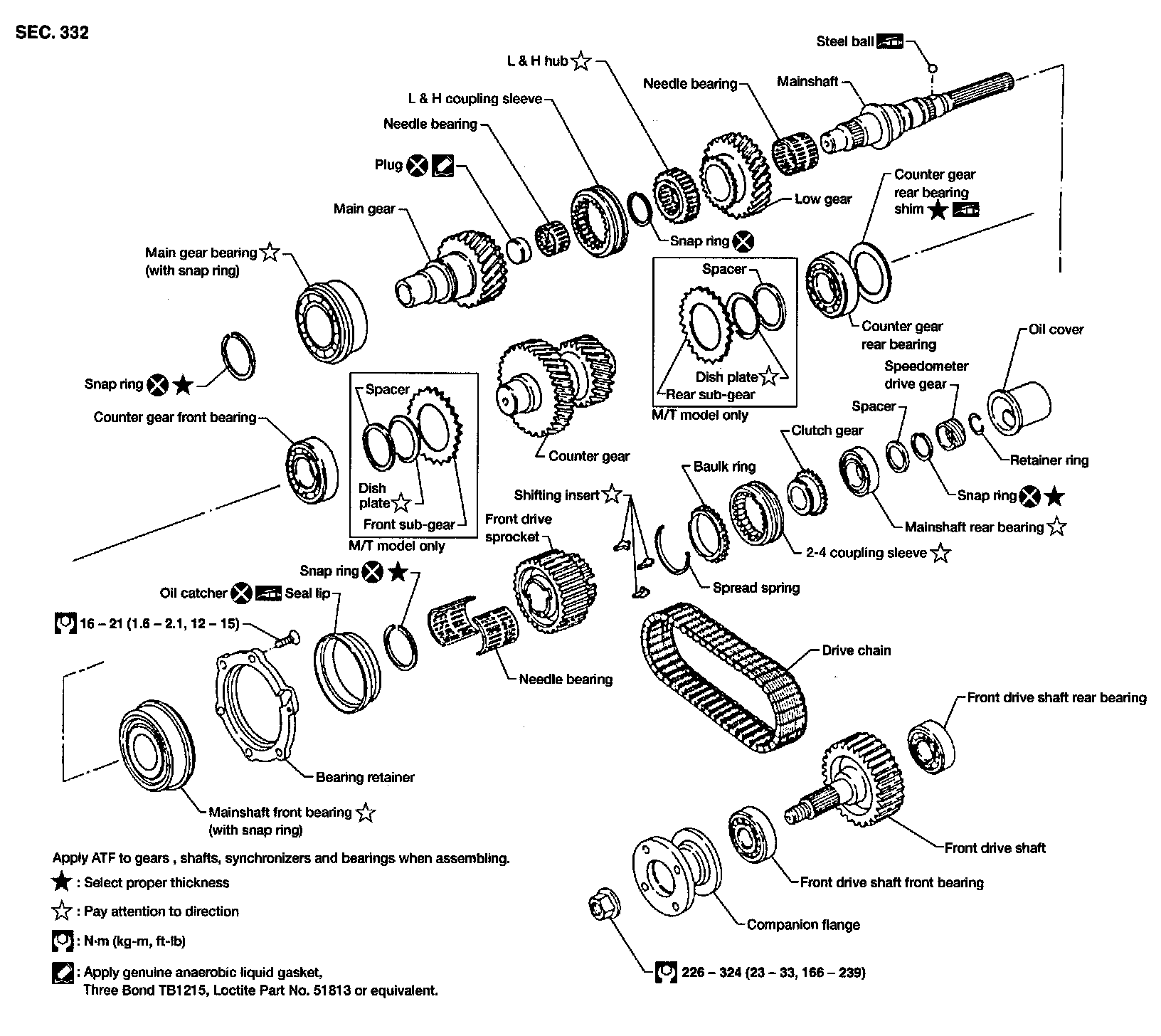

Gear Components

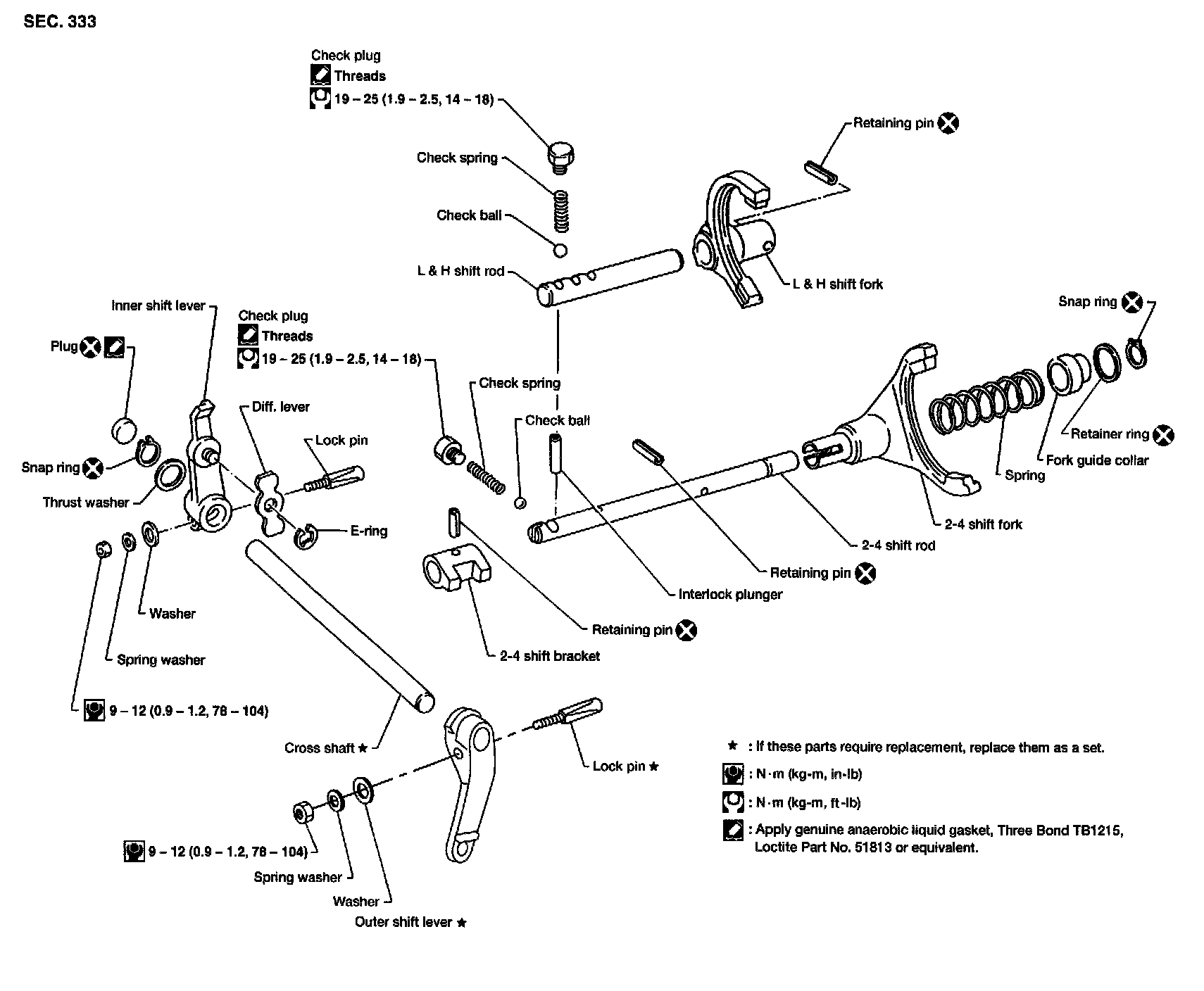

Shift Control Components
